PC Control SMT Reflow Oven PCB LED Production Line Infrared Air Heating 12 Warm Zone BGA Reflow Solders

The oven is designed for industrial three-phase power and lists AC380V as its main voltage. Some internal/control circuits may use AC220V. Confirm your local power configuration and consult the supplier or manual for exact wiring and grounding requirements.

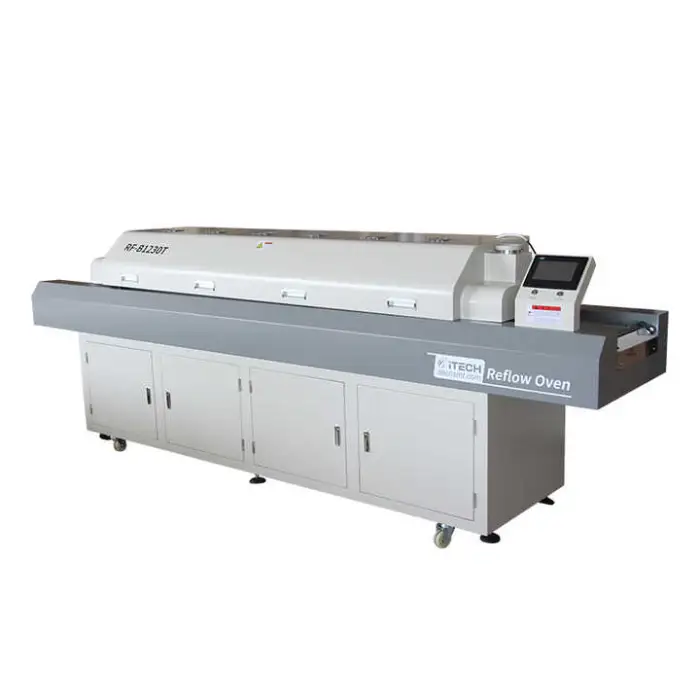

Overall dimensions are L3500 × W710 × H1250 mm. Single package size is 360 × 80 × 145 cm and the gross weight is 450 kg.

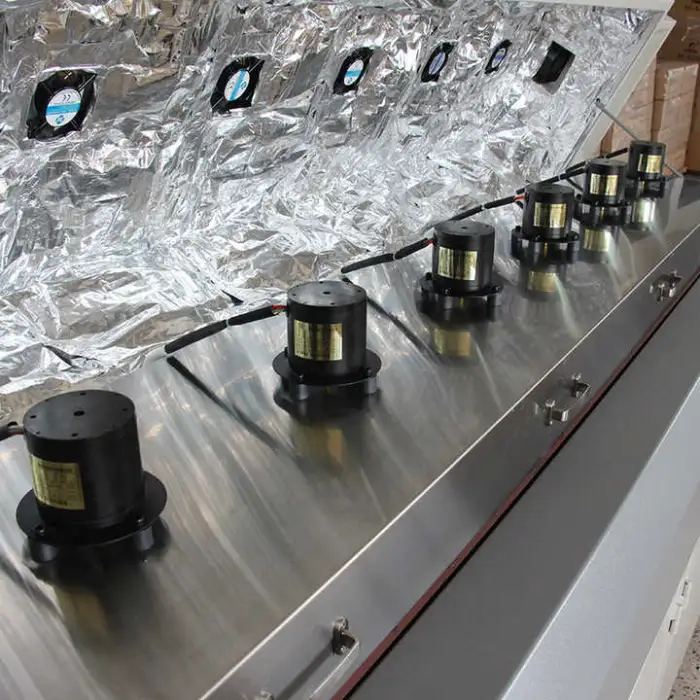

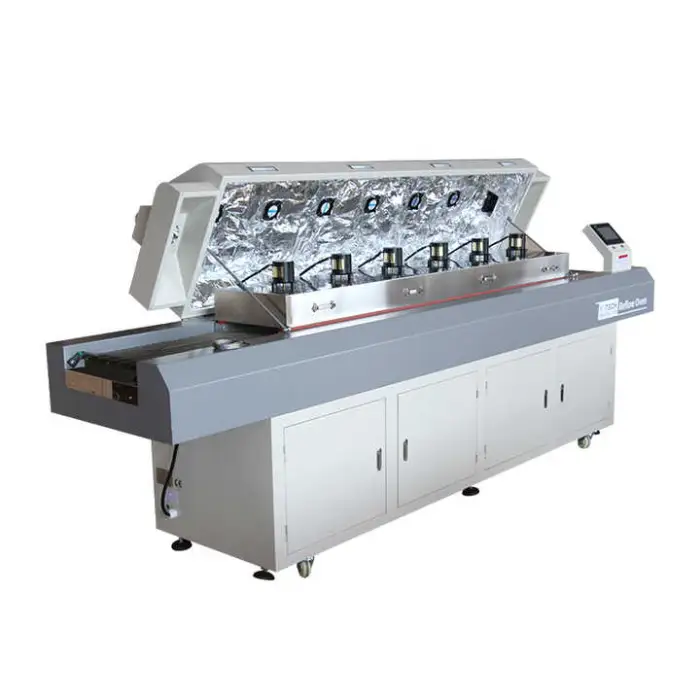

It has 12 independent heating zones. More zones allow finer temperature control across the PCB length, enabling more accurate thermal profiles for components like BGA and reducing thermal stress.

The oven uses infrared combined with hot-wind (air) heating to provide consistent, uniform heating suitable for SMT processes including BGA reflow.

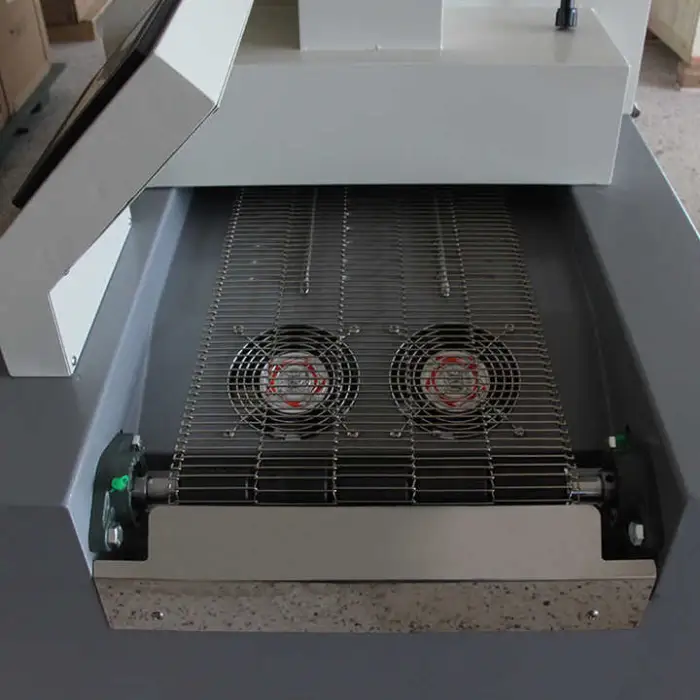

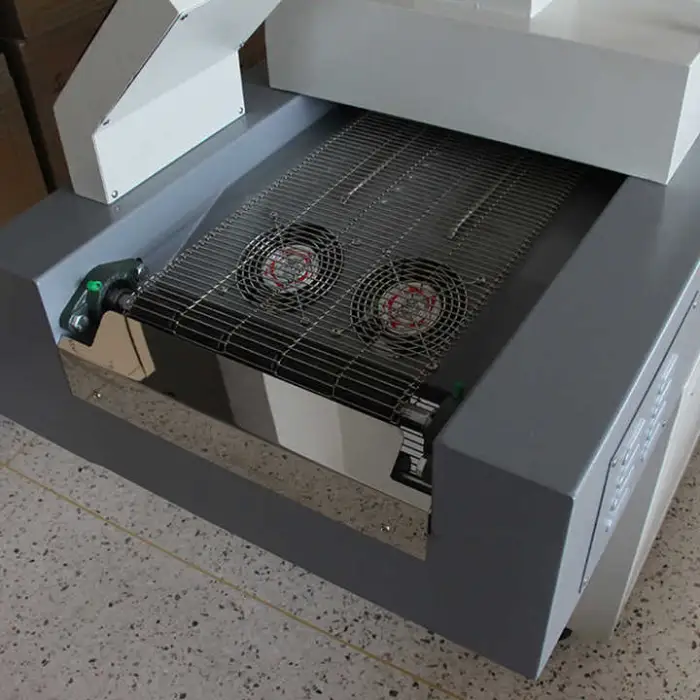

Maximum allowed PCB width is 280 mm. The conveyor (net) belt width is 300 mm.

Starting (peak) power is listed as 14 kW; working (steady state) power is around 5 kW. Actual consumption depends on profile, load, and ambient conditions.

The rated duty cycle (conveyor speed) range is 0–1500 mm/min, allowing you to adjust speed to achieve required thermal profiles and throughput.

Yes. The combination of 12 zones and infrared/air heating enables precise profile control needed for lead-free soldering and BGA reflow. Always validate and fine-tune the profile for your specific PCB assemblies.

Yes. The model is PC-controlled for programmable temperature profiles and process control. For exact details on number of recipes, file formats, and software features, request the control software documentation from the supplier.

The unit is CE certified, indicating compliance with applicable EU safety and EMC requirements. Check supplied documentation for full certification and conformity declarations.

Plan for adequate floor space (see dimensions), a stable three-phase AC380V supply with correct breakers and grounding, proper ventilation/exhaust for process gases, and sufficient clearance for maintenance. Professional electrical and mechanical installation is recommended.

Regular maintenance includes cleaning the conveyor and chamber, checking/replacing air filters, inspecting heating elements and fans, verifying thermocouples and profile accuracy, and keeping the control software backed up. Follow the manufacturer's maintenance schedule for service intervals.

Specific warranty and spare-part availability are not listed in the basic specs. Contact the supplier for warranty terms, recommended spare parts (belts, sensors, heaters, fans), and local service or authorized technicians.

Packaging is standard industrial packaging; single package size is 360 × 80 × 145 cm and gross weight 450 kg. Typical ports of dispatch are Shanghai and Ningbo.

The supplier lists a supply ability of up to 1,000 sets per month. For lead times, custom options, or volume orders, confirm current production schedules with the vendor.
