Original Handheld TinySA ULTRA Spectrum Analyzer 4 Inch Display 800Mhz With 32GB SD Card RF Generator Spectrum Analyzer

0 Customer Reviews

Add To Wishlist Share to Social

Original Handheld TinySA ULTRA Spectrum Analyzer – 4 Inch Display, 800MHz with 32GB SD Card & RF Generator

The Original Handheld TinySA ULTRA Spectrum Analyzer is a powerful tool for anyone who works with radio frequencies. It is small, easy to hold, and shows clear results on its 4-inch display. This device can measure signals up to 800MHz, and in Ultra mode, it can go up to 6GHz. It also has a built-in RF generator, which helps you test circuits and filters. With the included 32GB SD card, you can save your measurements easily. The TinySA ULTRA is perfect for hobbyists, technicians, and engineers who need a reliable and portable spectrum analyzer.

Specifications

Attribute	Details
Brand Name	XEAST
Model	TinySA Ultra
Display Size	4 inch
Max Low Input Frequency	800MHz (6GHz in Ultra mode)
Resolution Filters	200Hz to 850kHz (steps of 1, 3, 10)
Max Low Output Frequency	Sine wave up to 800MHz, Square wave up to 4.4GHz
Low Output Level	-104dBm to -16dBm
Level Calibration	Up to 6GHz (Ultra mode)
Internal LNA Gain	20dB up to 4GHz
Displayed Points per Scan	Max 450
Modulation Frequency	50Hz to 5kHz (AM) or 1kHz (FM)
Package Size	15 x 10 x 5 cm
Gross Weight	Single item
Warranty	1 year (free replacement parts & online technical support)
Customization	OEM support available

Key Features

Portable and handheld design – easy to carry and use anywhere.

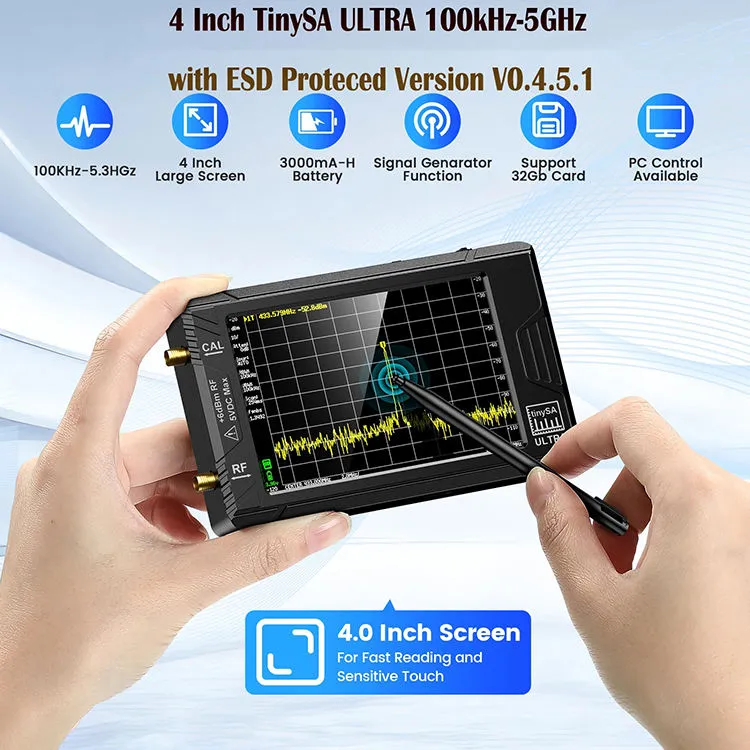

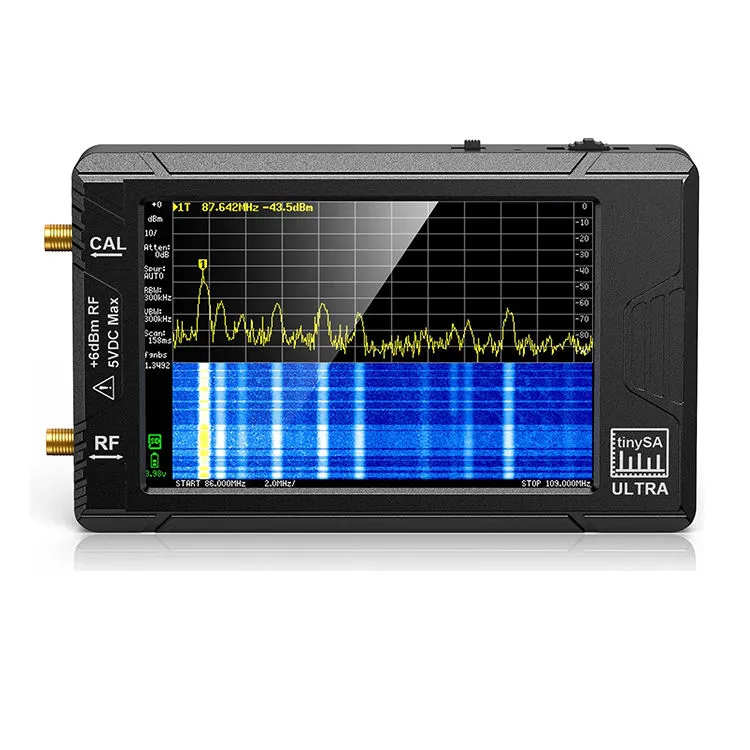

4-inch color display shows clear graphs and data.
Built-in RF generator for testing and signal output.

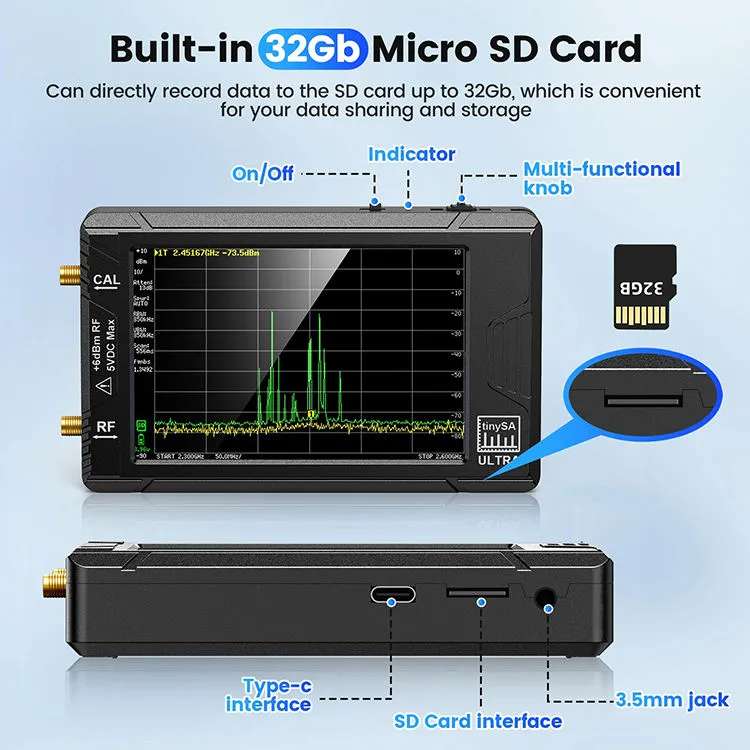

32GB SD card included for saving measurements.

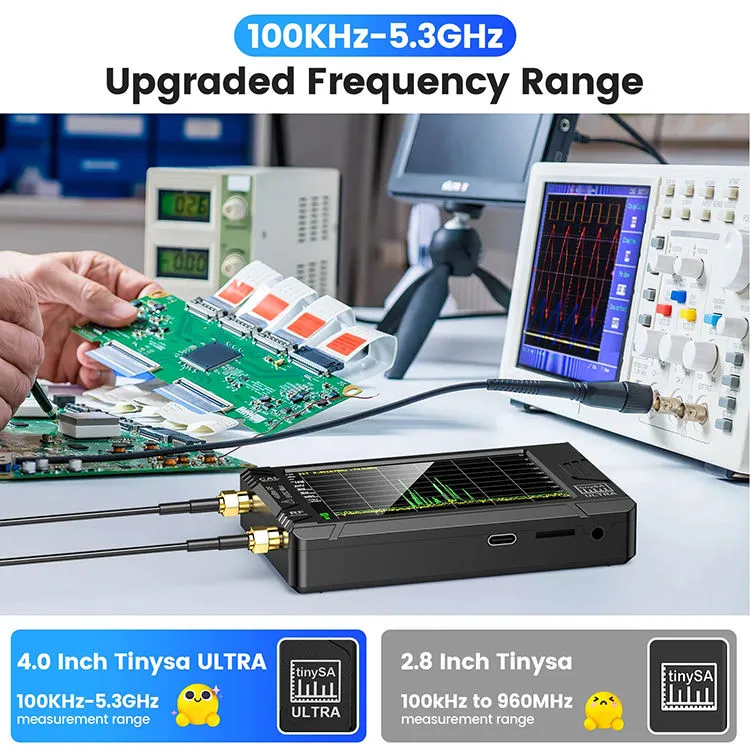

Ultra mode allows frequency measurement up to 6GHz.
Internal LNA (low noise amplifier) boosts weak signals by 20dB.
Supports AM and FM modulation for versatile testing.
Resolution filters from 200Hz to 850kHz for detailed analysis.
Simple menu and buttons – no complex setup needed.
1-year warranty with free technical support.

Applications

Check and tune radio
