Original CR-Scan Raptor Handheld Industrial Blue Light Anti-Shake Tracking up to 60FPS Scan Speed 3D Scanner

0 Customer Reviews

Section : Phones & Accessories
Category : Telecom Parts
SKU : 1601169816386

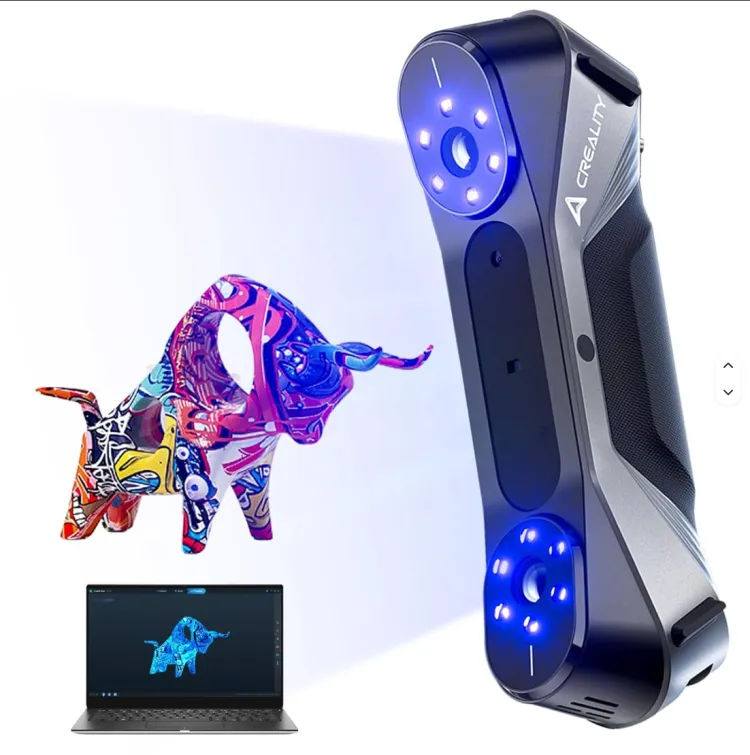

Original CR-Scan Raptor Handheld Industrial Blue Light Anti-Shake Tracking 3D Scanner

The CR-Scan Raptor is a professional-grade handheld 3D scanner that combines 7 blue laser lines and NIR (Near Infrared) structured light technology to deliver metrology-grade accuracy, high-speed scanning, and exceptional versatility. Designed for scanning objects ranging from small components to large industrial parts, the scanner captures highly detailed 3D models with accurate geometry, texture, and color information.

Featuring advanced temperature compensation, marker recognition enhancement, anti-shake technology, and a 24-bit full-color scanning system, the CR-Scan Raptor is suitable for engineering, manufacturing, quality inspection, reverse engineering, product design, healthcare, cultural preservation, and digital content creation.

The scanner supports both laser and infrared structured-light scanning modes, allowing users to efficiently capture complex surfaces, black or metallic objects, and detailed geometries with minimal preparation.

Specifications

Specification	Blue Light Mode (7-Line Laser)	NIR Mode (Infrared Structured Light)
Accuracy	Up to 0.02 mm @ 100 mm	Up to 0.1 mm
3D Resolution	0.02–2 mm	0.1–2 mm
Scanning Speed	Up to 60 fps	Up to 20 fps
Minimum Scan Volume	5 × 5 × 5 mm	150 × 150 × 150 mm
Single Capture Range	270 × 170 mm @ 300 mm	930 × 580 mm @ 1000 mm
Working Distance	150–400 mm	170–1000 mm
Color Mapping	Yes	Yes
Alignment Modes	Marker	Marker / Geometry / Texture

Specification	Value
3D Imaging Camera Resolution	1920 × 1200
Color Supplement Light	12 White LEDs
Marker Recognition Enhancement	12 Infrared LEDs
Laser Safety	Class I (Eye Safe)
Color Depth	24-Bit Full Color

Specification	Value
IMU	Yes
Output Format	OBJ / STL / PLY
Input Power	12V / 2A
Data Interface	Type-C / USB 3.0
Wireless Scanning	Supported (future wireless scanning accessories)
Supported Operating Systems	Windows 10/11 (64-bit) & macOS

Specification	Value
Device Dimensions	215 mm × 50 mm × 74 mm
Device Weight	372 g
Operating Temperature	-10°C to 40°C

Feature	Specification
Laser Lines	7 Blue Laser Lines
Blue Laser Accuracy	Up to 0.02 mm
Blue Laser Scanning Speed	Up to 60 fps
NIR Scanning Speed	Up to 20 fps
Object Size Range	5 mm to 2,000 mm
Human Body Scanning	Approx. 2 minutes per full-body scan
Lens Distortion	Less than 5%
Depth of Field	Up to 20 mm

Key Features

Hybrid Blue Laser & NIR Scanning

Combines 7 blue laser lines with infrared structured light technology.
Suitable for scanning both small precision components and large objects.

Metrology-Grade Accuracy

Accuracy up to 0.02 mm.
Designed for measurement-grade inspection and reverse engineering tasks.
Advanced temperature compensation enhances stability and precision.

High-Speed Performance

Blue laser scanning speed up to 60 fps.
NIR scanning speed up to 20 fps.
Fast data acquisition for improved productivity.

Wide Scanning Range

Scans objects from 5 mm to 2,000 mm.
Handles small parts, medium-sized products, and large industrial components.

Enhanced Detail Capture

Captures sharp edges and intricate surface details.
Low-distortion optical system improves model quality.

Anti-Shake Technology

Integrated IMU and stabilization technology reduce tracking loss.
Smooth handheld scanning experience.

Scan Black & Metallic Objects

Capable of scanning many black and metal surfaces without scanning spray.
Reduces preparation time and workflow complexity.

Full-Color 3D Scanning

24-bit color acquisition.
Dual-color LED lighting system for improved texture capture.

Flexible Alignment Modes

Marker alignment.
Geometry alignment.
Texture alignment.
Supports complex scanning workflows.

Portable Design

Lightweight handheld scanner weighing only 372 g.
Compact form factor for field and workshop use.

Applications

Industrial & Manufacturing

Reverse engineering
Quality control and inspection
CAD model generation
Product development
Mold and tooling verification
Rapid prototyping

Automotive

Vehicle component scanning
Aftermarket part design
Engine and mechanical component digitization
Restoration and customization projects

Aerospace

Component inspection
Precision measurement
Digital archiving of parts

Healthcare & Medical

Orthotics and prosthetics design
Human body scanning
Ergonomic analysis
Custom medical device development

Education & Research

Engineering education
Scientific research
Digital manufacturing training

Cultural Heritage & Art

Artifact digitization
Museum preservation
Sculpture and artwork replication
Historical documentation

Digital Content Creation

AR/VR asset creation
Game development
Animation and visual effects
3D printing workflows

Package Highlights

Hybrid Blue Laser + NIR Structured Light Scanner
Metrology-grade accuracy up to 0.02 mm
Scan objects from 5 mm to 2 m
Full-color 3D scanning capability
High-speed scanning up to 60 fps
Class I eye-safe laser system
Lightweight handheld design (372 g)
OBJ, STL, and PLY export support
Compatible with Windows and macOS
