The OEM M Series Vertical CNC Machining Center is a powerful machine designed for precision and efficiency. It is ideal for processing various parts like plates, discs, shells, and molds. With its advanced features and solid construction, this machining center ensures h...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

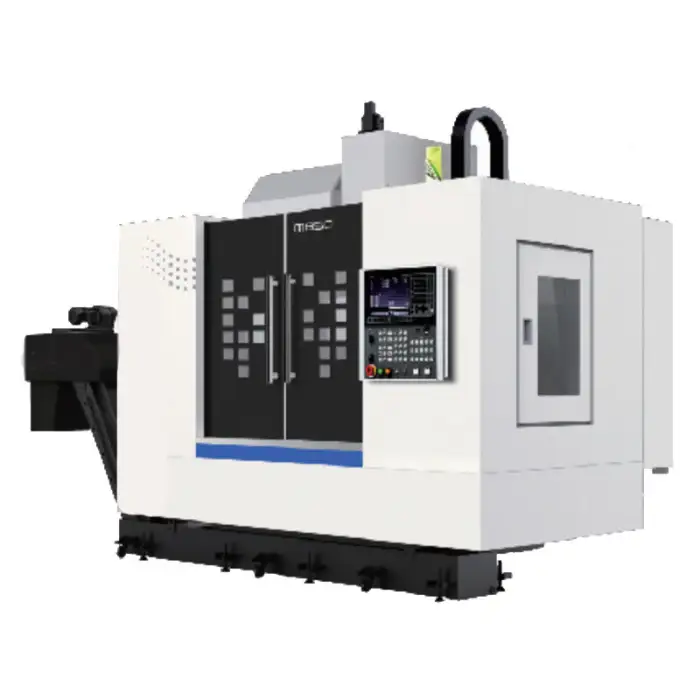

The OEM M Series Vertical CNC Machining Center is a powerful machine designed for precision and efficiency. It is ideal for processing various parts like plates, discs, shells, and molds. With its advanced features and solid construction, this machining center ensures high-quality results for your manufacturing needs.
| Attribute | Details |
|---|---|
| Brand Name | OEM |
| CNC Control System | GSK |
| Dimension (L*W*H) | 1700mm * 1800mm * 2000mm |
| Max. Table Load (kg) | 8000 |
| Max. Torque | 955Nm |
| Min. Time of Tool Change (s) | 4 |
| No. of Spindles | Single |
| Positioning Accuracy | ± 0.005/300mm |
| Range of Spindle Speed | 6000 - 20000 r.p.m |
| Rapid Feed Speed | 300 - 5000 |
| Repeatability (X/Y/Z) (mm) | ± 0.005 |
| Spindle Taper | BT40 |
| Table Size | 1200x600 |
| Table Travel (X) | 5000 |
| Table Travel (Y) | 2200 |
| Table Travel (Z) | 1000 |
| Tool Magazine Capacity | 16, 10, 20, 12, 24, 32, 40 |
| Weight (t) | 2 |
| M500 | M800 | M1000 | M1100 | M1300 | M1600 | |
| Workbench size | mm | 650*400 | 850*410 | 1155*500 | 1300*610 | 1400*700 |
| Distance from spindle end face to workbench | mm | 150-450 | 150-450 | 150-690 | 150-800 | 150-830 |
| Travel (XYZ axis) | mm | 500/400/300 | 800/400/300 | 850/550/540 | 1100/610/650 | 1300/700/700 |
| Rapid movement speed (XY/Z-axis) | m/min | 48/48/48 | 48/48/48 | 36/36/32 | 32/32/30 | 30/30/30 |
| Main spindle specifications | - | BT30 | BT30 | BT40 | BT40 | BT50 |
| Maximum spindle speed | rpm | 20000 | 20000 | 10000 | 10000 | 6000 |
| Main motor power | kw | 3.7/5.5 | 3.7/5.5 | 7.5/11 | 11/15 | 15/18.5 |
| Spindle output torque | N.m | 11.8/28.7 | 11.8/28.7 | 48/70 | 52.5/71.6 | 143/177 |
| Brand Name | OEM |
|---|---|
| CNC Control System | GSK |
| Dimension (L*W*H) | 1700mm * 1800mm * 2000mm |
| Max. Table Load (kg) | 8000 |
| Max. Torque | 955Nm |
| Min. Time of Tool Change (s) | 4 |
| No. of Spindles | Single |
| Positioning Accuracy | ± 0.005/300mm |
| Range of Spindle Speed | 6000 - 20000 r.p.m |
| Rapid Feed Speed | 300 - 5000 |
| Repeatability (X/Y/Z) (mm) | ± 0.005 |
| Spindle Taper | BT40 |
| Table Size | 1200x600 |
| Table Travel (X) | 5000 |
| Table Travel (Y) | 2200 |
| Table Travel (Z) | 1000 |
| Tool Magazine Capacity | 16, 10, 20, 12, 24, 32, 40 |
| Weight (t) | 2 |
The OEM M Series is designed to efficiently process various materials, including metals and plastics, making it suitable for manufacturing plates, discs, shells, and intricate mold parts.
The maximum table load for the OEM M Series Vertical CNC Machining Center is 8000 kg.
The positioning accuracy of the OEM M Series is ± 0.005 mm over a distance of 300 mm.
The spindle speed of the OEM M Series ranges from 6000 to 20000 revolutions per minute (r.p.m), allowing for efficient machining operations.
The OEM M Series features a rapid tool change time of just 4 seconds, enhancing productivity and efficiency.
The machine weighs approximately 2 tons.
The OEM M Series is equipped with a single spindle.
The tool magazine capacity can be configured for 16, 10, 20, 12, 24, 32, or 40 tools, depending on your specific needs.
The dimensions of the OEM M Series are 1700 mm in length, 1800 mm in width, and 2000 mm in height.
The OEM M Series is ideal for manufacturing plate and disc components, creating shells, producing intricate mold parts, and handling heavy-duty machining of complex shapes.
The rapid feed speed of the OEM M Series ranges from 300 to 5000 mm/min.
The spindle taper type for the OEM M Series is BT40, suitable for a wide range of tooling options.
Yes, the OEM M Series is designed for high-precision engineering applications, providing excellent positioning accuracy and reliability.
The OEM M Series features a robust design and long service life components, ensuring reliable performance even in heavy-duty applications.
Absolutely! The OEM M Series is specifically designed to produce intricate mold parts, making it a valuable asset for mold manufacturing.
