Wall Panel: EPS insulated galvanized steel (50mm, 0.35mm thickness)
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
| Specification | Details |
|---|---|
| Model | OBC-EH35 |
| HS Code | 8479819000 |
| Power Supply | 380V, 50Hz, 3 Phase |
| Total Power | 35 kW |
| Outer Dimensions (L×W×H) | 7000 × 5100 × 3000 mm |
| Internal Dimensions (L×W×H) | 6900 × 3900 × 2600 mm |
| Trade Term | EXW |

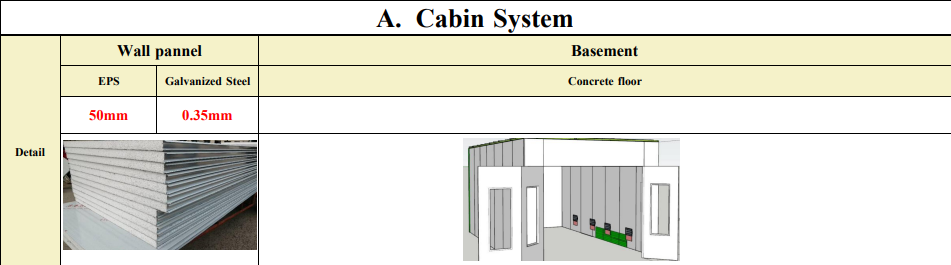

Wall Panel: EPS insulated galvanized steel (50mm, 0.35mm thickness)
Basement: Concrete floor for stable and durable performance
Entrance Door: 3-fold aluminum alloy door (3000×2500 mm)
Operator’s Door: Single fold (650×1800 mm)

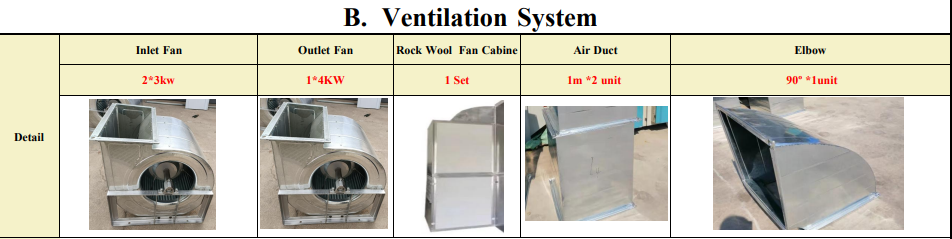

Inlet Fans: 2 × 3 kW
Exhaust Fan: 1 × 4 kW
Air Ducts: Galvanized steel, with 90° elbows
Filter Material: Rock wool insulation

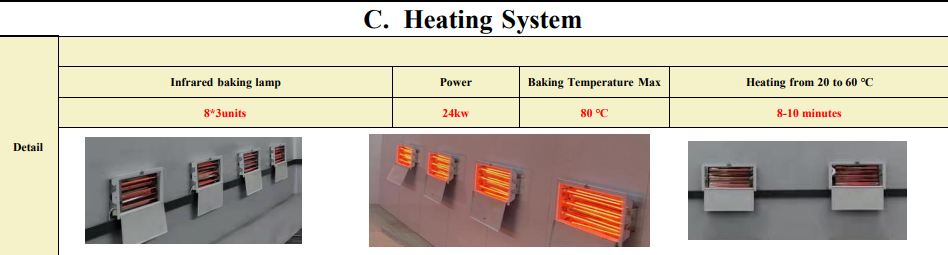

Type: Electric infrared heating
Infrared Lamps: 8 × 3 units (24 kW total)
Baking Temperature: Up to 80°C
Heating Time: 8–10 minutes (from 20°C to 60°C)

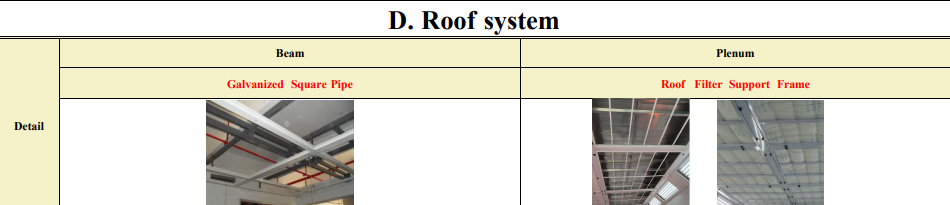

Structure: Galvanized square pipe beams
Roof Filter Support: Integrated plenum system for even air distribution

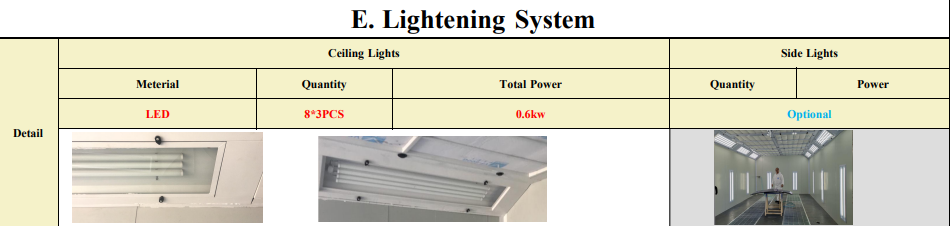

Ceiling Lights: LED, 8 sets (3 pieces each), total power 0.6 kW
Side Lights: Optional, for enhanced visibility

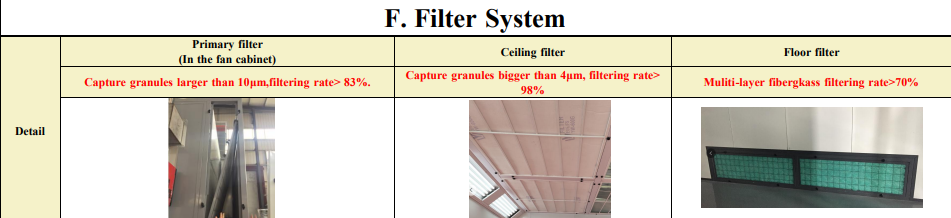

Primary Filter (Fan Cabinet): Captures particles >10μm, filtering rate >83%
Ceiling Filter: Captures particles >4μm, filtering rate >98%
Floor Filter: Multi-layer fiberglass, filtering rate >70%

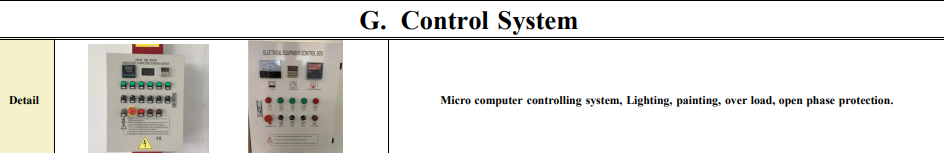

Type: Microcomputer control panel
Functions: Lighting, paint operation, overload, and phase protection.
| Model | OBC-EH35 |
|---|---|
| HS Code | 8479819000 |
| Power Supply | 380V, 50Hz, 3 Phase |
| Total Power | 35 kW |
| Outer Dimensions (L×W×H) | 7000 × 5100 × 3000 mm |
| Internal Dimensions (L×W×H) | 6900 × 3900 × 2600 mm |
| Trade Term | EXW |
| Wall Panel | EPS insulated galvanized steel (50mm, 0.35mm thickness) |
| Basement | Concrete floor for stable and durable performance |
| Entrance Door | 3-fold aluminum alloy door (3000×2500 mm) |
| Operator’s Door | Single fold (650×1800 mm) |
| Inlet Fans | 2 × 3 kW |
| Exhaust Fan | 1 × 4 kW |
| Air Ducts | Galvanized steel, with 90° elbows |
| Filter Material | Rock wool insulation |
| Infrared Lamps | 8 × 3 units (24 kW total) |
| Baking Temperature | Up to 80°C |
| Heating Time | 8–10 minutes (from 20°C to 60°C) |
| Structure | Galvanized square pipe beams |
| Roof Filter Support | Integrated plenum system for even air distribution |
| Ceiling Lights | LED, 8 sets (3 pieces each), total power 0.6 kW |
| Side Lights | Optional, for enhanced visibility |
| Primary Filter (Fan Cabinet) | Captures particles >10μm, filtering rate >83% |
| Ceiling Filter | Captures particles >4μm, filtering rate >98% |
| Floor Filter | Multi-layer fiberglass, filtering rate >70% |
| Functions | Lighting, paint operation, overload, and phase protection. |
| Power | 0.6 kW |
The external size of the Car Spray Booth is 7000*5350*3400mm, but it can be customized to fit your garage space.
The Car Spray Booth is CE certified, ensuring it meets European safety and quality standards.
The spray booth offers various heating systems, including electric, diesel, and gas heating options for optimal temperature control.
The booth is equipped with 24 pieces of 16w LED lamps for improved visibility while painting.
The Car Spray Booth comes with a 1-year warranty.
The maximum baking temperature of the Car Spray Booth can reach up to 80°C, with an option for 60°C.
The booth utilizes various types of fans including axial fans, energy-saving cooling fans, tube axial fans, and centrifugal fans.
The Car Spray Booth can be set up and operational in less than 2 hours with 100% efficiency.
Yes, the Car Spray Booth is designed specifically for automotive painting, refinishing, and body shop applications.
Absolutely! The Car Spray Booth is perfect for custom paint jobs for cars and motorcycles.
In addition to automotive painting, it can be used for industrial applications requiring precise paint applications and restoration projects for classic vehicles.
The high-efficiency filter ensures cleaner air, which leads to better paint quality and a healthier working environment.
The power consumption of the Car Spray Booth can vary between 12 kW to 30.5 kW, depending on the configuration (220v-240v or 110V-120V).
Yes, the Car Spray Booth is designed with energy-saving features, including energy-efficient fans and heating systems.
Yes, the Car Spray Booth can be customized in size to fit your specific garage dimensions.
