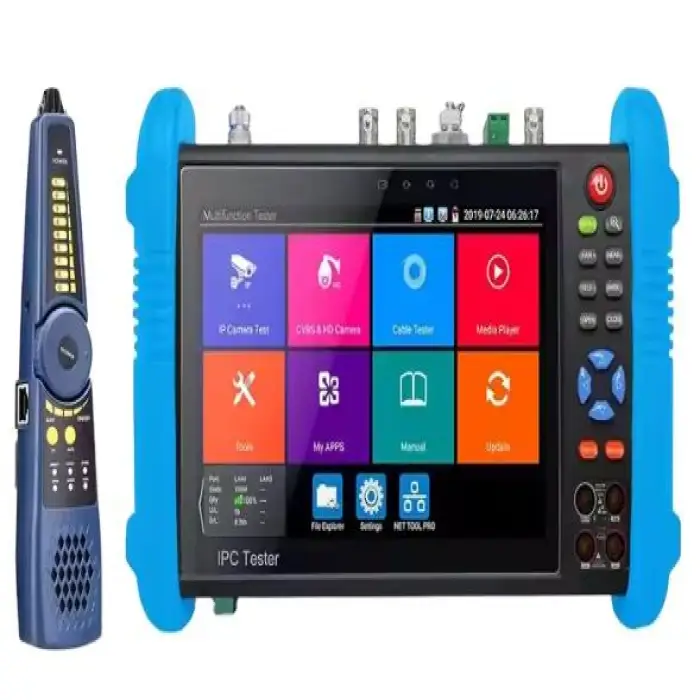

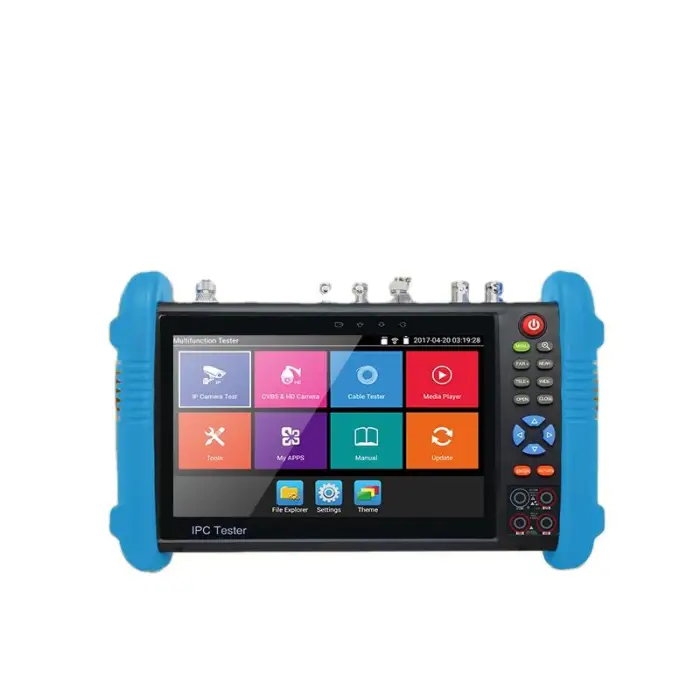

7 Inch Ips Touch Monitor Cctv Camera Tester 4K HD All in One Cctv Tester Monitor

SKU: 1601517383331
Category: Testing Equipment

Price per item

R12,686.20

Quantity

Contact Support

Section:: Consumer Electronics
Category:: Testing Equipment
SKU:: 1601517383331

Sold by Afrimart Online

Afrimart Online

Welcome to Afrimart Online, the premier destination offering an extensive range of products and streamlined services tailored to optimize your cross-border import procurement process. Our comprehensive platform serves as...

B21, China Town Mall, Midrand

011 805 0386

View Store

Plan your purchase

Delivery & Shipping

Estimated delivery

19 Nov, 2026

Delivery timing is confirmed with your order.

View Shipping Policy

Shop with Confidence

Shipping
Information Returns
Policy Product
Support

Product Description

The MT-8800 Series is a multifunction OTDR and CCTV tester designed for fibre, network cabling and security camera installation and maintenance. Its 8-inch IPS touchscreen provides a 1920 x 1200 resolution, while the camera tester supports H.265 and H.264 IP camera testing with up to 8K video display via mainstream.

The integrated OTDR supports fibre length, loss and attenuation measurement, event mapping and fault-location analysis. Test curves can be saved and reports exported in SOR, PDF or Excel formats. Additional fibre tools include an optical power meter, stable laser source and 10 mW visual fault locator.

For network and cable work, the tester features dual 10/100/1000M auto-adaptive LAN ports, RJ45 TDR testing, UTP continuity testing, digital cable tracing and network tools including traceroute, link monitoring, DHCP server, port flashing and ping testing. Built-in 2.4 GHz and 5 GHz Wi-Fi supports wireless camera image display.

The unit provides 55 V PoE++ output with a maximum power of 90 W, plus 24 V 2 A, 12 V 3 A and 5 V 2 A power outputs. Its built-in 11.1 V 5200 mAh lithium-ion battery offers approximately 11 hours of normal operation after a 3.5-hour charge.

Key Specifications

Series	MT-8800 Series
Display	8-inch IPS touchscreen
Display Resolution	1920 x 1200
IP Video Support	H.265 and H.264, up to 8K via mainstream
Network Ports	Dual 10/100/1000M auto-adaptive LAN ports
Wi-Fi	Built-in 2.4 GHz/5 GHz, 150M
PoE Output	55 V PoE++, maximum 90 W
Battery	11.1 V 5200 mAh lithium-ion
Operating Time	11 hours under normal use
Dimensions	274 x 171 x 50 mm
Weight	1.2 kg

Technical Specifications

Technical specifications for 7 Inch Ips Touch Monitor Cctv Camera Tester 4K HD All in One Cctv Tester Monitor
Series	MT-8800 Series
Display	8-inch IPS touchscreen
Display Resolution	1920 x 1200
IP Video Support	H.265 and H.264, up to 8K via mainstream
Network Ports	Dual 10/100/1000M auto-adaptive LAN ports
Wi-Fi	Built-in 2.4 GHz/5 GHz, 150M
PoE Output	55 V PoE++, maximum 90 W
Battery	11.1 V 5200 mAh lithium-ion
Operating Time	11 hours under normal use
Dimensions	274 x 171 x 50 mm
Weight	1.2 kg
Power	90 W

Frequently Asked Questions

What is the display resolution of the NOYAFA NF-IPC716MOVTADHS PLUS?

The NOYAFA NF-IPC716MOVTADHS PLUS features a 7-inch IPS touch screen with a resolution of 1280x800.

How long does the battery last on a full charge?

The built-in 7800mAh lithium polymer battery provides up to 16 hours of working time after a 5 to 6 hour charge.

Does this device support HDMI input?

Yes, the NOYAFA NF-IPC716MOVTADHS PLUS supports 1 channel HDMI input and can display 1080P video.

Is the NOYAFA NF-IPC716MOVTADHS PLUS weatherproof?

Yes, it has an IP55 protection class, making it resistant to dust and water.

Can I power my PoE-enabled cameras with this device?

Yes, it features a 48V PoE power output with a maximum power of 24W to power PoE-enabled cameras.

What network testing features are included?

The device includes trace route, link monitor, DHCP server, port flashing, and ping test capabilities.

Is Wi-Fi supported on this monitor?

Yes, the NOYAFA NF-IPC716MOVTADHS PLUS has built-in Wi-Fi with speeds of up to 150M for displaying wireless camera images.

What is the warranty period for this product?

The NOYAFA NF-IPC716MOVTADHS PLUS comes with a 1-year warranty.

Who would benefit from using this CCTV tester?

This device is ideal for security professionals, technicians, and anyone involved in CCTV camera installations or troubleshooting.

Can I use this tester for long-term monitoring?

Yes, its portability and extended battery life make it suitable for both onsite testing and long-term monitoring.

What kind of applications is this device suitable for?

It's perfect for testing and monitoring CCTV installations, troubleshooting network issues, providing power to cameras, and analyzing network performance.

How do I charge the NOYAFA NF-IPC716MOVTADHS PLUS?

You can charge the device using a standard power outlet, and it takes approximately 5 to 6 hours for a full charge.

What features make this monitor user-friendly?

The high-resolution IPS touchscreen and intuitive interface make it easy to navigate and operate.

Is this device suitable for outdoor use?

Yes, with its IP55 rating, it can withstand some outdoor conditions but should be protected from heavy rain or submersion.

What is the maximum power output for the PoE feature?

The maximum power output for the PoE feature is 24W.
