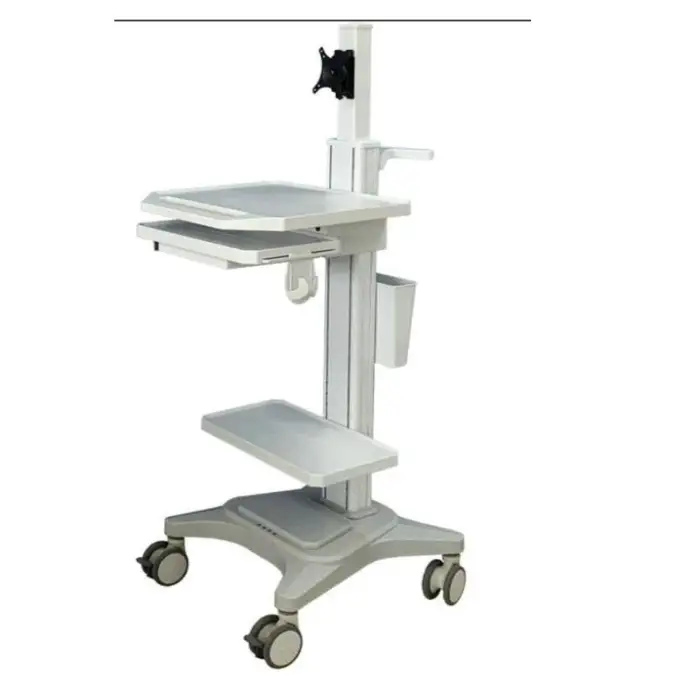

Multi-Functional Diagnostic Ultrasound Trolley Computer Trolley Patient Monitor Trolley for Hospital Use

This is the GF10-3 Multi-Functional Diagnostic Ultrasound/Computer/Patient Monitor Trolley designed for hospital and clinic use to carry ultrasound machines, patient monitors and related medical equipment.

The trolley uses a one-step formed cold-rolled steel plate base with stainless steel tubes, steel plate sprayed trays and ABS components (dust cover and knobs) for durability and easy cleaning.

Base diameter: 56 cm; wheel diameter: 7.5 cm; top tray: 33 cm x 15 cm; bottom tray: 33 cm x 20 cm; storage basket: 30 cm x 17 cm x 19 cm; tray height: 55 cm.

The trolley is rated for a maximum load-bearing capacity of 30 kg. This is for distributed load across the trays and basket; avoid concentrating the entire weight on a small area.

The trolley has four medical silent casters—two with brakes and two without—to allow smooth movement and stable locking when required.

Yes. The GF10-3 includes a metal storage basket, two tray levels (top and bottom), four stainless steel hooks for accessories, a double pump fixing bracket, and a built-in eight-hole (Bull brand) socket on some configurations.

For the GF10-3 the tray height is fixed at 55 cm. There is a related variant (AY03-1) listed with an adjustable height range of approximately 1.7 m to 2.3 m—confirm model before ordering if you need height adjustment.

Packaging is 2 pieces per carton.

Minor assembly is usually required such as attaching the casters, trays, basket and any brackets. Specific assembly instructions and fasteners are normally provided with the product—refer to the included manual or supplier instructions.

Yes provided the equipment weight and footprint are within the trolley's capacity (max 30 kg) and fit on the tray dimensions. Always check your device's weight and base dimensions before mounting.

Clean stainless steel and ABS surfaces with a mild detergent or hospital-grade disinfectant compatible with these materials. Avoid strong corrosive chemicals and abrasive tools that could damage finishes. Wipe dry after cleaning.

Some configurations include a Bull brand eight-hole socket as listed in the specs. Verify the socket type and electrical compatibility with your local standards and hospital electrical policies before use.

Regularly check caster wheels for debris and proper function, ensure brakes engage, inspect mounting brackets and fasteners for tightness, and clean surfaces per infection-control protocols. Replace worn parts promptly.

Warranty terms, spare parts and customization options vary by supplier. Contact your vendor or the manufacturer's sales/support team with the model number (GF10-3) to obtain warranty details, spare parts availability and customization quotes.
