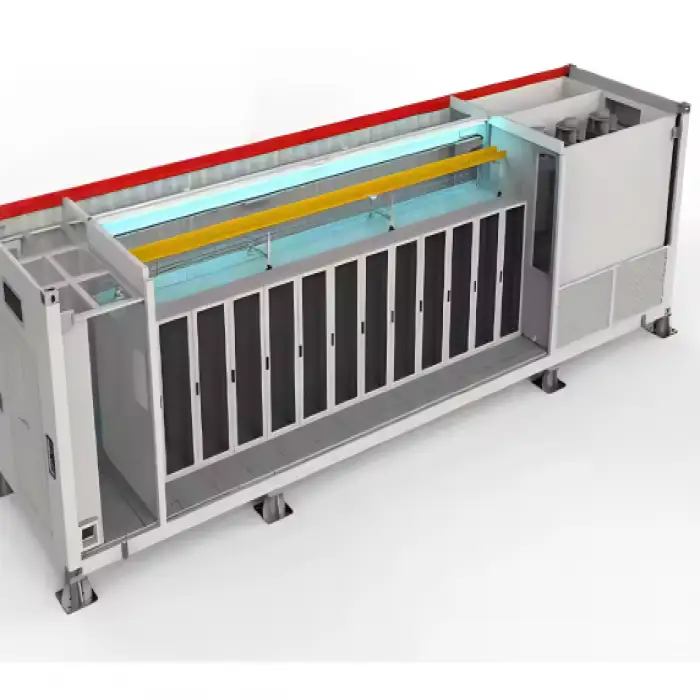

The Modular Data Center by Sunpln is a cutting-edge, customizable solution designed to provide efficient and scalable IT equipment installations. Ideal for smart data centers, cold aisles, and container data centers, this modular design ensures ease of setup, flexibility, and long-term sustainability for growing data needs.
| INTELLIGENT INTEGRATED COLD AISLE OVERALL STRUCTURE | |
| Design Specfications | Standard product: width: 360mm, height: 2000mm/2300mm; length ≤ 15000mm,support customized needs |
| Server Rack Capacity | Maximum: 48 racks |
| Single Rack Average Reference power | Standard 3kw ~ 6kw, support customized needs |
| Aisle Recommended Installation Method | Rack dedicated base |
| Power Supply Support Structure | 2x UPS power supply lines, 2x power frequency AC lines, 1x UPS power supply lines & 1x power frequency AC lines, support customized needs |
| Access Control System | Support manual sliding door, electric sliding door and other methods.Support face recognition, fingerprint, password, card swiping and other modes |
| Skylight System | Automatically rotate the skylight, support fire-fighting linkage control, and optionalautomatic reset function |
| Light | Energy-saving LED, support human body sensing function |
| Atmosphere light system | Support alarm intelligent linkage change color, light warning |
| SERVER RACK | |
| Measurement (W*D*H) | Automatically rotate the skylight, support fire-fighting linkage control, and optionalautomatic reset function |
| Rack Static Loading Capacity | 1500KGS/1800KGS |
| Quality Standards | IEC298-2, GB/T3047 .2-92 |
| Power Distribution System | |
| Aisle Integrated UPS&Battery | |
| UPS Capacity | Integrated UPS power distribution capacity up to 150KVA; Independent UPS can be more than 200KVA;Single module UPS specifications are 25KVA/40KVA/50KVAUse standard cabinet type cabinet |
| Frequency Range | 40~70Hz |
| Input voltage range | 300~460Vac |
| Output voltage | 380/400/415VAC,50~60Hz,3Ph+N+PE |
| Battery Rack | Rack- mounted battery cabinet,with cooling module |
| Backup Time | According to the actual load configuration 15min, 30min or customized |
| Battery Qty | The battery rack unit can install 16-40 12V batteries in total (lead-acid batteries) |
| Battery monitoring | Configure according to the actual UPS, support monitoring battery internal resistance, voltage, temperature |
| Aisle Integrated Power Distribution head Rack | |
| Input voltage range | 360~415Vac |
| Power Distribution Output | The input switch supports up to 630A |
| Input Method | Single/dual MCCB, PC/CB level ATS |
| Output Method | IT load power supply, air conditioning load power supply, other power load power supply, etc. |
| Power Distribution Monitoring | Support monitoring voltage, current, air switch status, real-time power, effective power, and electric energy |
| Alarm Function | Support main circuit over-voltage and under-voltage alarm, over-current alarm, frequency abnormal alarm, single-channel fault alarm, three- phase unbalance alarm . |
| Refrigerating System Aisle Integrated AC | |
| Cooling Capacity | 25KW/40KW |
| Sensible Heat Ratio | ≥0 .99 |
| Rack Size (W*D*H) | 300*1200*2000mm(25KW), 600*1200*2000mm(40KW) |
| The Refrigerant | R410A |
| Monitoring System | |
| Industrial Control Display | 13.3 Touch screen |
| Monitoring Points | Temperature, humidity, smoke, camera, sound and light alarm, SMS alarm, water leakage monitoring, etc. |
| Monitoring Collection | Standard 1U rack- mounted monitoring unit supports UPS, air conditioner, battery, power distribution cabinet monitoring . Support loop monitoring of temperature and humidity, smoke sense, input and output switch quantity, etc.Support dual network ports, support data export, support SD card, hard disk expansion storage capacity, support network monitoring through northbound interface, support access control system, video system monitoring and dual power supply expansion |
The Modular Data Center from Sunpln offers the ultimate flexibility in data center design, combining strength, scalability, and efficient use of space to meet modern IT demands.
No approved technical specifications are available yet. Please refer to the product description or contact our team.
A Modular Data Center is a customizable and scalable IT infrastructure solution designed for efficient installations of IT equipment, optimizing space and operational efficiency.
Key features include customizable sizes, durable SPCC cold-rolled steel construction, capacity for up to 1800kgs, smart design for various data center environments, and options for OEM servers and brand customization.
The racks are designed to support a maximum weight capacity of 1800kgs, making them suitable for heavy-duty equipment installations.
Yes, the Modular Data Center can be tailored to fit your specific dimensions and requirements, providing flexibility for your data center environment.
The Modular Data Center is constructed from durable SPCC cold-rolled steel, ensuring robust protection for your IT infrastructure.
Yes, the Modular Data Center includes an industrial control monitoring system with features such as temperature, humidity, smoke detection, and SMS alarms.
It supports integrated UPS and battery systems, with options for monitoring voltage, current, and alarms for over-voltage and under-voltage conditions.
The cooling system utilizes aisle integrated AC with capacities of 25KW or 40KW, optimizing the cooling efficiency for the installed equipment.
The standard rack sizes are 300mm x 1200mm x 2000mm for 25KW and 600mm x 1200mm x 2000mm for 40KW configurations.
Yes, the Modular Data Center is designed to fit the 19-inch standard, ensuring compatibility with a wide range of IT equipment and accessories.
Yes, you can apply a customized logo to the Modular Data Center, allowing you to maintain your brand identity.
The Modular Data Center is manufactured in Zhejiang, China, ensuring high-quality craftsmanship and reliable performance.
The Modular Data Center supports various access control methods, including manual and electric sliding doors, as well as face recognition, fingerprint, password, and card swiping modes.
The monitoring system supports real-time tracking of temperature, humidity, smoke detection, and includes alarms for water leakage and other critical conditions.
The backup time for the battery system can be configured according to the actual load, with options for 15 minutes, 30 minutes, or customized durations.
