The Mirtec 2D AOI Online Optical Inspection Machine MV-6 is a top-of-the-line solution for automated optical inspection of printed circuit boards (PCBs). This high-precision equipment is designed to ensure quality and efficiency in your manufacturing processes. With adv...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

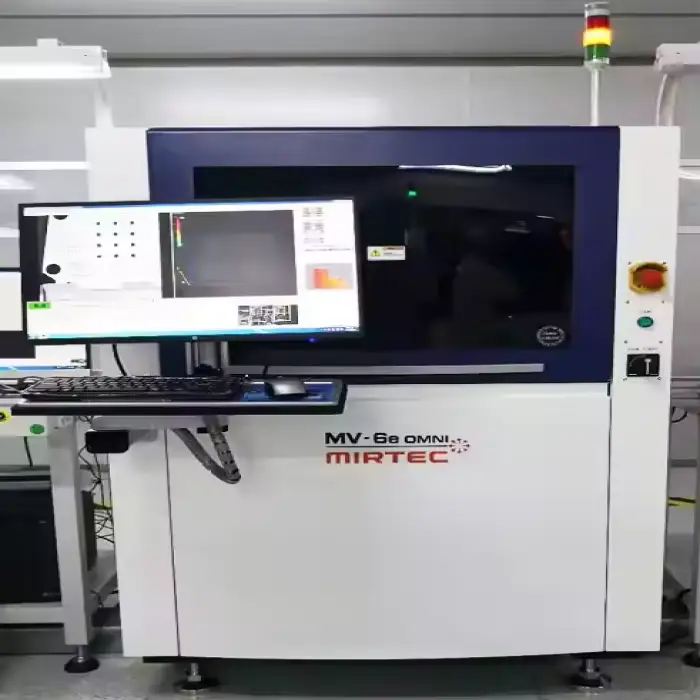

The Mirtec 2D AOI Online Optical Inspection Machine MV-6 is a top-of-the-line solution for automated optical inspection of printed circuit boards (PCBs). This high-precision equipment is designed to ensure quality and efficiency in your manufacturing processes. With advanced features and reliable performance, the MV-6 is ideal for businesses looking to enhance their PCB inspection capabilities.
| Attribute | Details |
|---|---|
| Air Requirements | 5 Kgf / cm2 (0.5 MPa), 5 LPM |
| Lighting System | 8 Phase Coaxial Color Lighting System |
| PCB Bottom Side Clearance | 50 mm |
| PCB Thickness | Standard 0.5 mm ~ 5 mm |
| PCB Top Side Clearance | 45 mm |
| Power Requirements | Single Phase(s) 200~240V 50~60Hz, 1.1 kW |
| Robot Positioning System | X/Y Axis Servo Motor System |
| Selling Units | Single item |
| Side Camera System | Optional 18/10 Megapixel Digital Color Side Camera (4ea) |
| Single Stage Conveyor Dual Lane | 50 x 50 ~ 510 x 590 mm (Single) / 50 x 50 ~ 510 x 300 mm (Dual) |
| Software | Standard Built-in SPC, Built-in Repair |
| Weight (KG) | 1000 |
| Warranty | 1 Year |
| Air Requirements | 5 Kgf / cm2 (0.5 MPa), 5 LPM |
|---|---|
| Lighting System | 8 Phase Coaxial Color Lighting System |
| PCB Bottom Side Clearance | 50 mm |
| PCB Thickness | Standard 0.5 mm ~ 5 mm |
| PCB Top Side Clearance | 45 mm |
| Power Requirements | Single Phase(s) 200~240V 50~60Hz, 1.1 kW |
| Robot Positioning System | X/Y Axis Servo Motor System |
| Selling Units | Single item |
| Side Camera System | Optional 18/10 Megapixel Digital Color Side Camera (4ea) |
| Single Stage Conveyor Dual Lane | 50 x 50 ~ 510 x 590 mm (Single) / 50 x 50 ~ 510 x 300 mm (Dual) |
| Software | Standard Built-in SPC, Built-in Repair |
| Weight (KG) | 1000 |
| Warranty | 1 Year |
The Mirtec MV-6 is designed for automated optical inspection of printed circuit boards (PCBs), ensuring quality control in electronics manufacturing.
The Mirtec MV-6 requires a single-phase power supply of 200~240V at 50~60Hz, with a power consumption of 1.1 kW.
The MV-6 can inspect PCBs with a standard thickness ranging from 0.5 mm to 5 mm and supports various dimensions for both single and dual lane configurations.
Yes, the Mirtec MV-6 comes with a 1-year warranty.
The MV-6 features an advanced 8 Phase Coaxial Color Lighting System that provides clear imaging for accurate inspections.
Yes, the MV-6 can accommodate PCB sizes ranging from 50 x 50 mm to 510 x 590 mm in single lane mode and 50 x 50 mm to 510 x 300 mm in dual lane mode.
The MV-6 utilizes an X/Y Axis Servo Motor System for precise positioning during inspections.
Yes, the MV-6 comes with built-in software for statistical process control (SPC) and repair, enhancing its functionality for quality assurance.
The Mirtec MV-6 weighs approximately 1000 kg.
Yes, the MV-6 offers an optional high-resolution 18/10 Megapixel Digital Color Side Camera for detailed inspection.
The MV-6 is ideal for electronics manufacturing, particularly in SMT assembly lines where quality control and defect detection are critical.
The MV-6 reduces waste and enhances production efficiency by providing accurate inspections, which help in early detection of defects.
The MV-6 can detect various defects in circuit boards, including issues with solder joints and component placement.
The MV-6 requires a bottom side clearance of 50 mm and a top side clearance of 45 mm for effective operation.
Yes, the MV-6 is designed for ease of use, with built-in software and intuitive controls to assist new users in operating the machine effectively.
