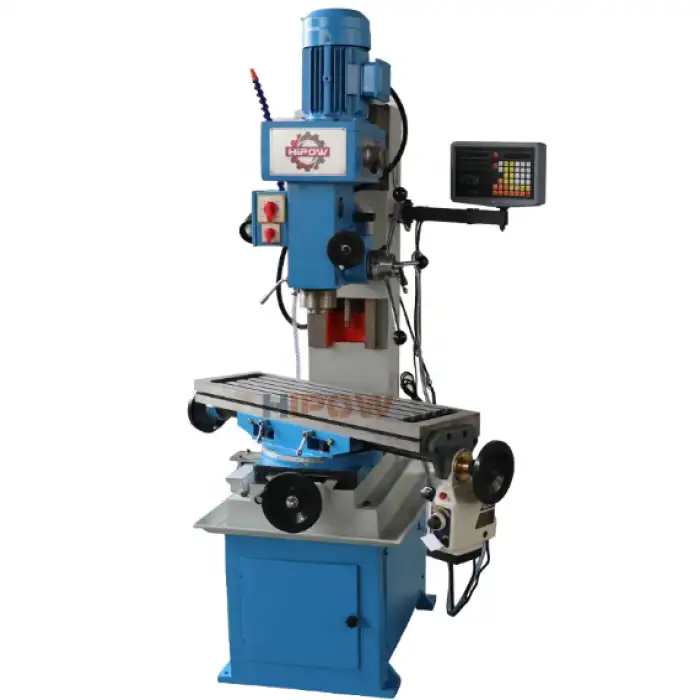

The Mini Metal Bench ZX50C Drilling Milling Machine weighs 550 kg.
The dimensions of the ZX50C are 1100 mm in length, 970 mm in width, and 1650 mm in height.
The maximum drilling capacity of the ZX50C is 50 mm.
The ZX50C uses an MT4 spindle taper.
The spindle speed range for the ZX50C is from 115 to 1750 r.p.m.
Yes, the ZX50C is designed to perform both drilling and milling tasks effectively.
The maximum table load for the ZX50C is 0 kg.
The table travel dimensions are 400 mm in the X direction, 280 mm in the Y direction, and 400 mm in the Z direction.
Yes, the ZX50C is ideal for educational settings, as it helps teach machining skills.
The ZX50C is suitable for light-duty machining of various materials, including metals.
The face milling capacity of the ZX50C is 25 mm.
The ZX50C is a vertical type drilling and milling machine.
Yes, the ZX50C includes an automatic machinery test report and a video of the outgoing inspection.
The work table size of the ZX50C is 900 mm by 240 mm.
The ZX50C is available in multiple voltage options: 220V, 380V, 400V, and 415V at 50/60HZ.
