Microsurgical cautery machine ligasure

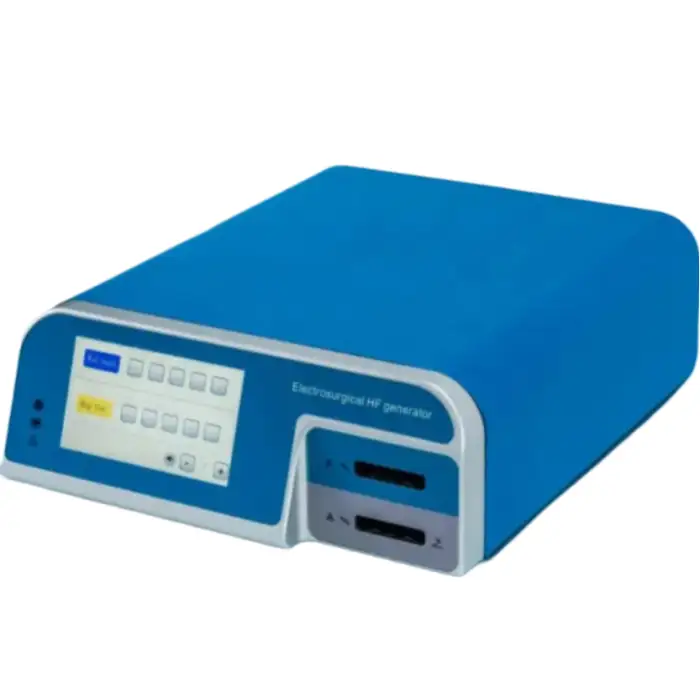

YYF Ligasure Vessel Sealing Generator (Model: SM5000)

The YYF SM5000 Ligasure Vessel Sealing Generator is an advanced surgical tool designed for use in various abdominal surgeries. Offering high precision and efficiency, it is suitable for laparoscopic and open surgeries, providing reliable sealing of blood vessels.

Key Features:

• Product Name: Ligasure Vessel Sealing Generator
• Model Number: SM5000
• Application: Ideal for abdominal surgeries
• Function: Used for laparoscopy and open surgery for vessel sealing
• Color: Blue
• MOQ: 1 Set
• OEM: OEM Service Accepted

Specifications:

• Place of Origin: Jiangsu, China
• Brand Name: YYF
• Product Type: Disposable Surgery Instruments Set
• Keywords: Surgical Instruments

The YYF SM5000 Ligasure Vessel Sealing Generator is an essential tool for surgeons, offering optimal sealing for blood vessels during surgery, ensuring safety and precision in various surgical procedures.

Product Info Gallery

 Real time Instant Power technology features an advanced feedback system that recognizes changes in tissue 1,000 times per second.

The generator automatically senses tissue resistance and adjusts the output voltage to maintain a consistent effect across different

tissue density.This adjustment is based on the power setting and the leve loft issue resistance.The maximum output voltage is controlled

to reduce tissue damage and to minimize sparking.The generator produces a high- current,low-voltage output that corresponds to at

least four times the current of a standard electrosurgery generator, with one-fifth to one-twentieth the amount of voltage.

Ligasure vessel sealing and cutting system

Clinical Benefits for Both the Surgeon and Patient
1. Permanently fuses vessels up to and including 7 mm in diameter
2. Tissue bundles without dissection or isolation
3. Reduces the risk of needlestick injuries,Reduces thermal spread ,Minimizes thermal spread to approximately 1~ 2 mm for most instruments.
4. Unique energy output results in virtually no sticking or charring
5. Permanent seal leaves no foreign material behind to interfere with future diagnosis .
6.Potential time savings compared to suture.
7. A clinical study demonstrated that seals withstand 3x normal systolic blood pressure
8. May reduce blood loss in some surgical procedures. Minimizes the need for multiple applications.

Specfications

Two touch screens , two sockets

Main carrier frequency: 457KHz

Rated output power : 5 levels as 100W,120W,140W,160W,180W

Unit Dimension :480mm(L)×400mm(W)×140mm(H)

Weight :14Kg

Package Dimension : 550mm(L)×550mm(W)×340mm(H)

Working condition :  Temperature :10℃~40℃

Humidity :30%~75%

Atmospheric pressure:700hPa~1060hPa

Power supply :220V/110V ±22V;50Hz±1Hz

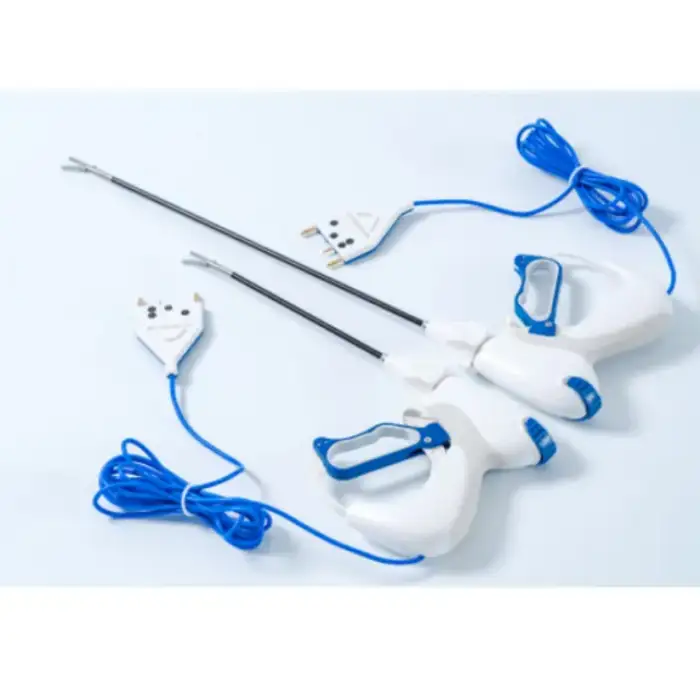

Instrument list

SM1100	10mm ,37cm length Laparoscopic instrument straight tip
SM1200	10mm, 20cm length Open surgery instrument straight tip
SM1100D	10mm ,37cm length Laparoscopic instrument straight tip   Detachable
SM1200D	10mm, 20cm length open surgery instrument straight tip   Detachable
SM1500	5mm ,37cm length Laparoscopic instrument straight tip
SM1520	5mm, 20cm length Open surgery instrument straight tip
SM1500W	5mm ,37cm length Laparoscopic instrument curved tip
SM1520W	5mm ,20cm length open surgery instrument curved tip
SM1544W	5mm ,44cm length Laparoscopic instrument curved tip
SM2150	Small jaw curved tip plastic non detachable                      With suction system tube
