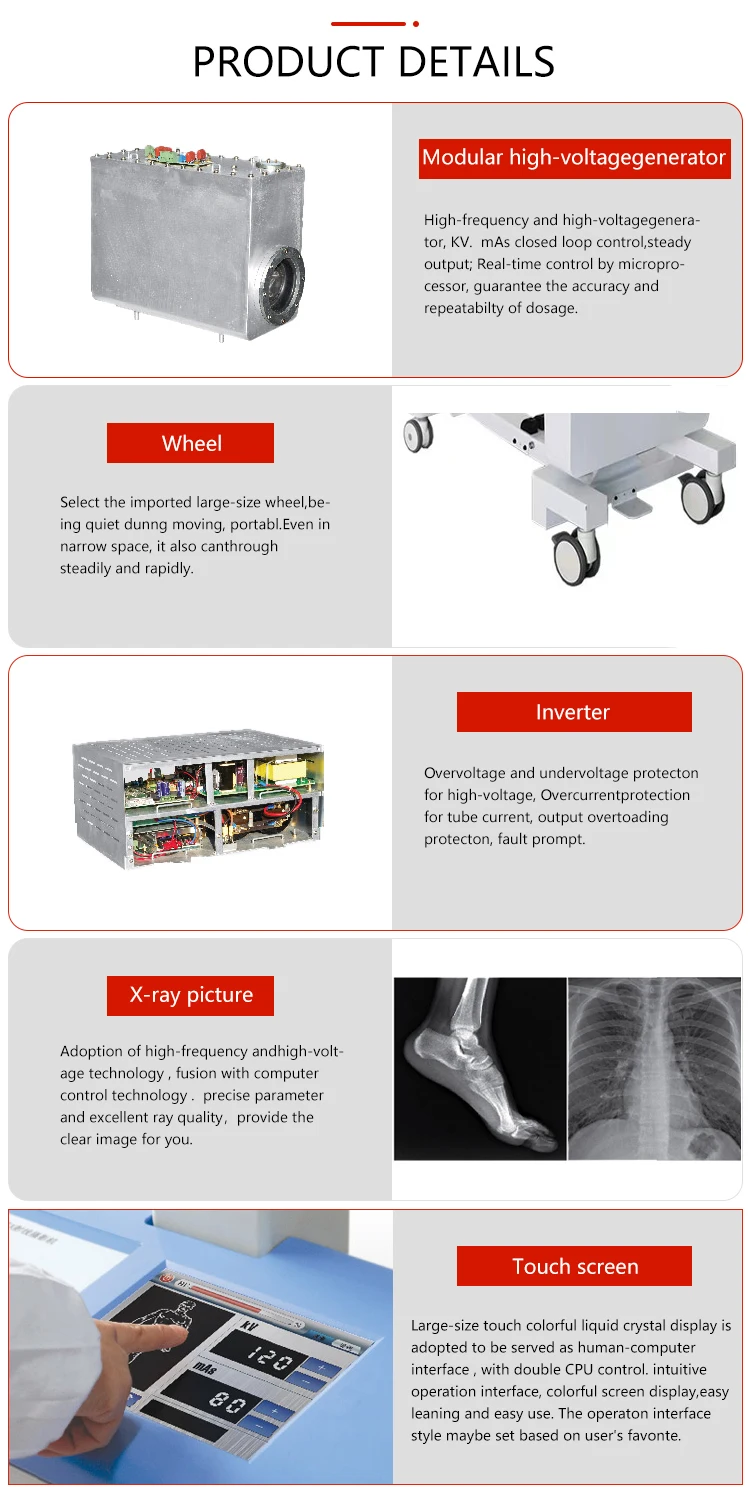

Features
1. With high frequency inverter to emit high quality X-ray and low dose on skin, and ensure excellent definition and contrast of pictures.
2. With techniques of KV analog closed loop control, mAs digital closed loop control and micro-processing real-time control to ensure precision and repeatability of the dose.
3. With kV, mAs two button adjustment, LCD display, multifunction of safety guard.
4. With 50 preset exposure programs, and can be modified and stored by the user for convenient operation.
5. With a high-quality knockdown X-ray generator to reduce irradiation, which is much safer to environment and operator.
6. With a symmetrical beam applicator to adjust the X-ray field and a collimator lamp to locate the filed to ensure accurate radiograph.

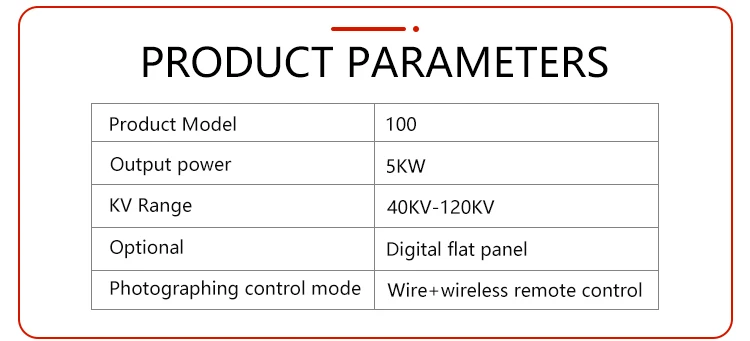

Specifications:
| Item | Specification | ||
| 1. High voltage generator | |||
| 1.1 | standard output power:5.6kW | ||
| 1.2 | mA range:10-100mA | ||
| 1.3 | Tube voltage range:40-125kV | ||
| 1.4 | mAs range :0.1-200mAs | ||
| 1.5 | Load time range:0.002s~4s | ||
| 1.6 | High voltage transformer structure:The power frequency | ||
| 2. Collimator | |||
| 2.1 | The inherent filtration:1 mm Al /70 kV; | ||
| 2.2 | Collimator is equipped with LED lights(Bright 30S are automatically extinguished) | ||
| 2.3 | Collimator is built into measuring ruler | ||
| 3. The tube bracket structure optional | |||
| 3.1 | SID: 330 ~ 1650mm | ||
| 3.2 | Size after folding:1060*400*400mm | ||
| 3.3 | weight:32KG | ||
| 4. Detector optional | |||
| 4.1 | WIFI connection, Amorphous Silicon oxide ,whole panel technology | ||
| 4.2 | The effective camera size of the detector:350mm×430mm | ||
| 4.3 | Pixel size:150 µm | ||
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 19 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the power output of the Medical Equipment X-Ray Machine?
The standard output power of the Medical Equipment X-Ray Machine is 5.6kW.
2. What is the range of mA for this X-ray machine?
The mA range for this X-ray machine is from 10 to 100mA.
3. What is the tube voltage range of the X-ray machine?
The tube voltage range is from 40 to 125kV.
4. How many preset exposure programs does the machine have?
The machine has 50 preset exposure programs that can be modified and stored by the user.
5. Is the X-ray machine portable?
Yes, the X-ray machine is designed to be portable, making it easy to move and use in various locations.
6. What safety features are included with the X-ray machine?
The machine includes a multifunction safety guard and a high-quality knockdown X-ray generator to reduce irradiation, ensuring safety for the environment and operator.
7. What type of control does the machine use for precision?
The machine uses KV analog closed loop control and mAs digital closed loop control, along with micro-processing real-time control for precision and repeatability of the dose.
8. What are the dimensions of the X-ray machine when folded?
When folded, the dimensions of the X-ray machine are 1060mm x 400mm x 400mm.
9. What is the weight of the X-ray machine?
The weight of the X-ray machine is 32KG.
10. Does the X-ray machine come with a collimator?
Yes, the X-ray machine is equipped with a collimator that includes LED lights and a built-in measuring ruler.
11. What is the load time range for the X-ray machine?
The load time range for the X-ray machine is from 0.002 seconds to 4 seconds.
12. Can the exposure settings be adjusted during operation?
Yes, the X-ray machine has kV and mAs two-button adjustments for convenient operation.
13. What type of detector is optional with this X-ray machine?
An optional detector with WIFI connection and whole panel technology using Amorphous Silicon oxide is available.
14. What is the effective camera size of the optional detector?
The effective camera size of the optional detector is 350mm x 430mm.
15. What is the pixel size of the detector?
The pixel size of the optional detector is 150 µm.
