The Universal Parallel Automatic Manual Lathe Machine for Metal PL460 is a versatile and reliable tool designed for precision machining. This machine offers both automatic and manual operations, making it suitable for a variety of metalworking tasks. With its robust con...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

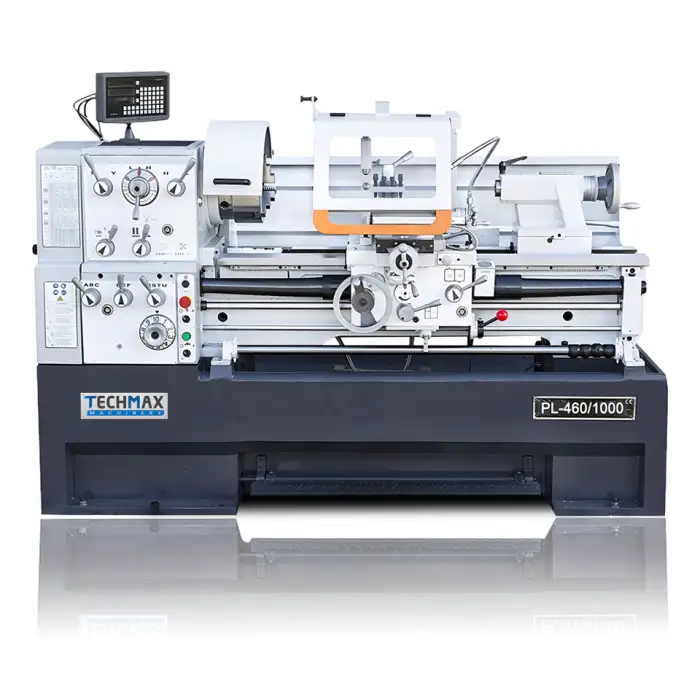

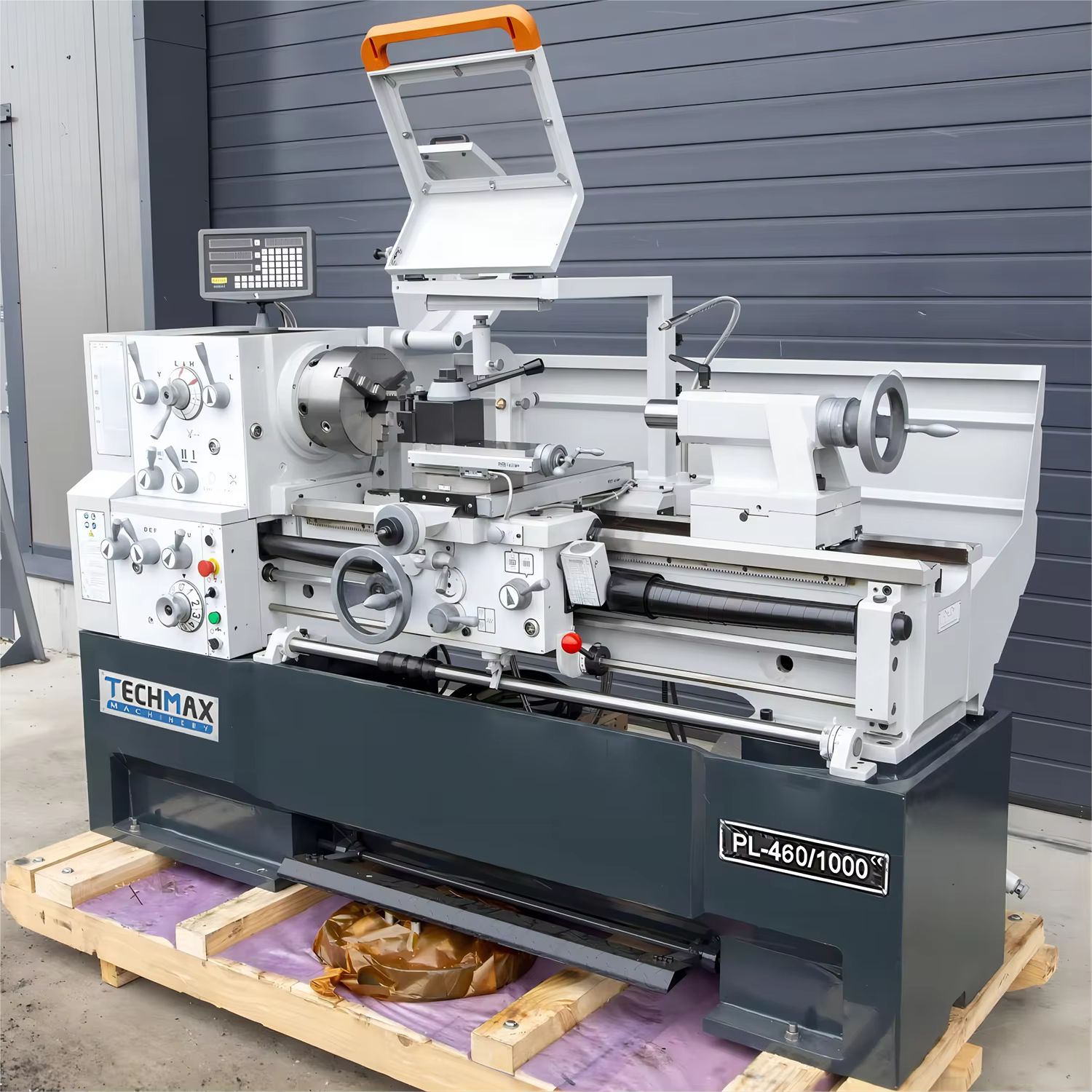

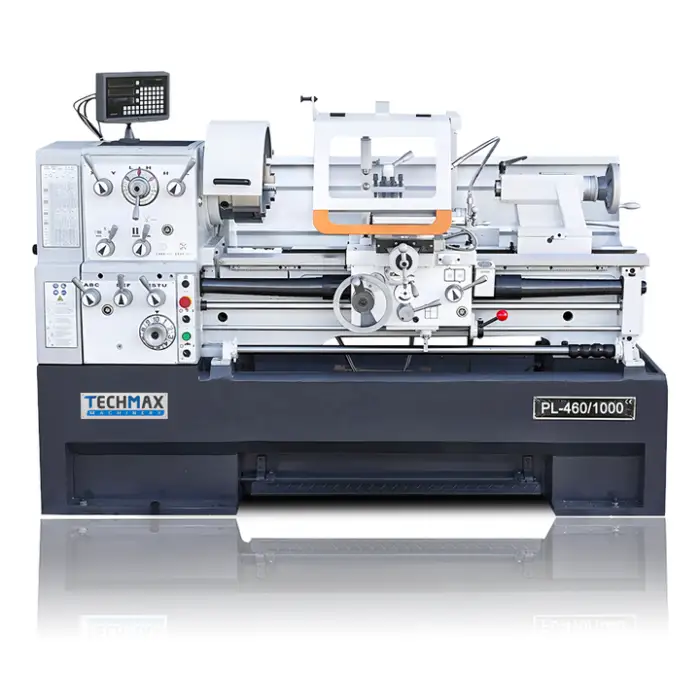

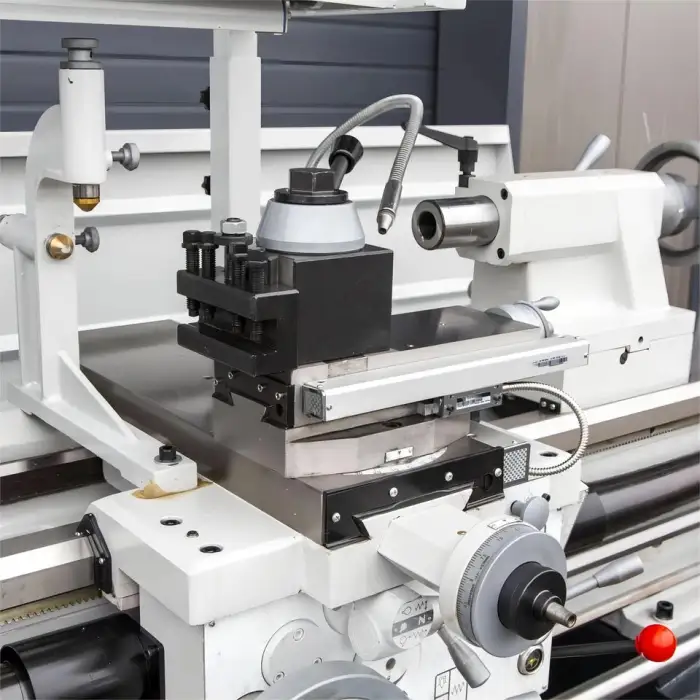

The Universal Parallel Automatic Manual Lathe Machine for Metal PL460 is a versatile and reliable tool designed for precision machining. This machine offers both automatic and manual operations, making it suitable for a variety of metalworking tasks. With its robust construction and user-friendly features, it is perfect for both beginners and experienced operators alike.
| Attribute | Details |
|---|---|
| Max Length of Workpiece (mm) | 3000 |
| Center Height (mm) | 230 |
| Swing Over Bed (mm) | 460 |
| Swing Over Cross Slide (mm) | 270 |
| Swing Over Gap (mm) | 690 |
| Cross Slide Travel (mm) | 285 |
| Top Slide Travel (mm) | 128 |
| Longitudinal Feed (mm/rev) | 0.031 - 1.7 |
| Cross Feed (mm/rev) | 0.014 - 0.784 |
| Spindle Speed Range (r.p.m) | 25 - 2000 |
| Spindle Motor Power (kW) | 5.5 |
| Weight (kg) | 2295 |
| Dimensions (L*W*H mm) | 3250 * 1080 * 1370 |

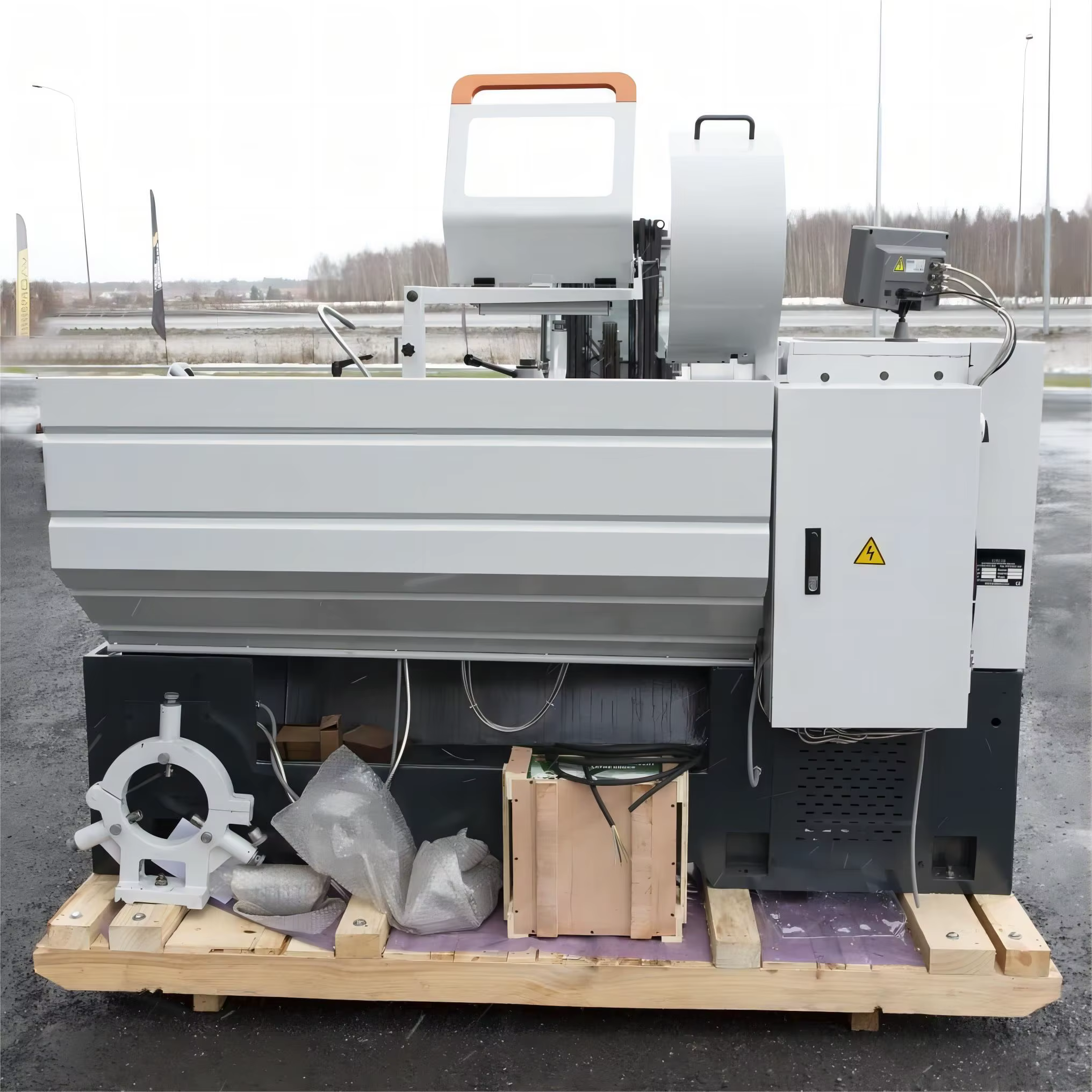

| Packaging | International Heat Treatment Standard Export Wooden Package |
| Warranty | 1 Year |
| Specification | Unit | PL-410 | PL-460 |
| Distance between centers | mm | 1000/1500/ 2000 | 1000/1500/ 2000 |
| Center height | mm | 205 | 230 |
| Swing over bed | mm | Φ410 | Φ460 |
| Swing over cross slide | mm | Φ220 | Φ270 |
| Swing over gap | mm | Φ640 | Φ690 |
| Bed width | mm | 300 | 300 |
| Spindle nose fixture | - | D1-6 | D1-6 |
| Spindle bore | mm | Φ58 | Φ58 |
| Spindle taper | - | MT6 | MT6 |
| Spindle speed | rpm | (12) 25-2000 | (12) 25-2000 |
| Longitudinal feed | mm/rev | (42) 0.031-1.7 | (42) 0.031-1.7 |
| Cross feed | mm/rev | (42) 0.014-0.784 | (42) 0.014-0.784 |
| Metric thread | mm | (41) 0.1-14 | (41) 0.1-14 |
| Inch thread | TPI | (60) 2-112 | (60) 2-112 |
| Diametrical thread | DP | (50) 4-112 | (50) 4-112 |
| Module thread | MP | (34) 0.1-7 | (34) 0.1-7 |
| Top slide travel | mm | 128 | 128 |
| Cross slide travel | mm | 285 | 285 |
| Tool section size | mm | 25×25 | 25×25 |
| Leadscrew | - | 40×4T.P.I or pitch 6mm | 40×4T.P.I or pitch 6mm |

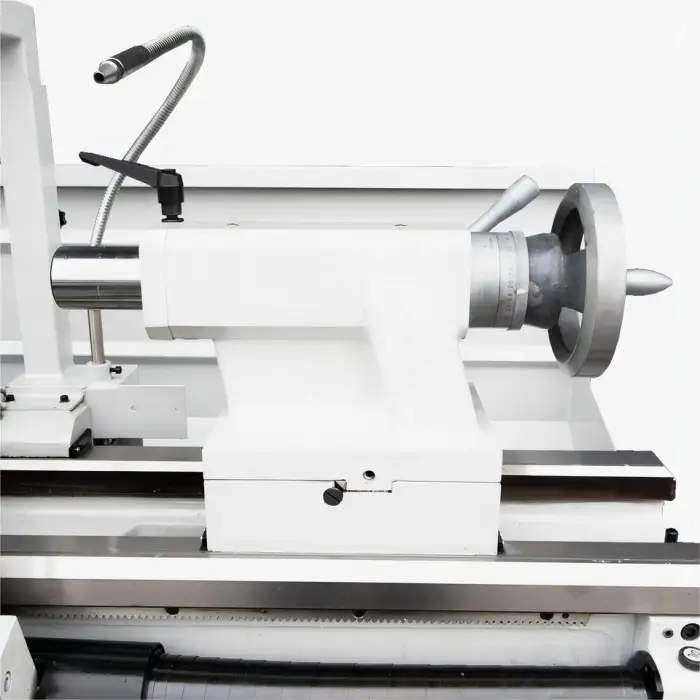

| Tailstock sleeve diameter | mm | Φ60 | Φ60 |
| Tailstock sleeve travel | mm | 130 | 130 |
| Tailstock sleeve taper | - | MT4 | MT4 |
| Main motor power | kw | 5.5 | 5.5 |
| Coolant pump power | kw | 0.1 | 0.1 |
| Overall dimensions (L×W×H) | cm | 220/275/325×108×134 | 220/275/325×108×137 |
| Packing size (L×W×H) | cm | 225/280/330×112×162 | 225/280/330×112×162 |
| Weight approx. | kg | 1844/2049/2229 | 1910/2115/2295 |
| Standard Configuration | Optional Configuration |

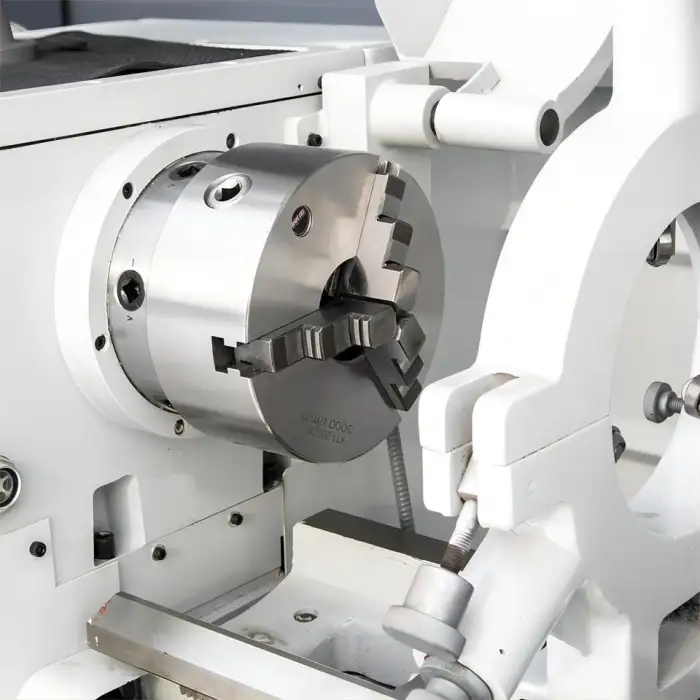

❶ 3-jaw chuck ⓬ Tool-box & tools | ❶ 2 axes DRO ❷ Quick change tool post ❸ Taper turning accachment ❹ Chasing dial indicator ❺ Live Center |
| Max Length of Workpiece (mm) | 3000 |
|---|---|
| Center Height (mm) | 230 |
| Swing Over Bed (mm) | 460 |
| Swing Over Cross Slide (mm) | 270 |
| Swing Over Gap (mm) | 690 |
| Cross Slide Travel (mm) | 285 |
| Top Slide Travel (mm) | 128 |
| Longitudinal Feed (mm/rev) | 0.031 - 1.7 |
| Cross Feed (mm/rev) | 0.014 - 0.784 |
| Spindle Speed Range (r.p.m) | 25 - 2000 |
| Spindle Motor Power (kW) | 5.5 |
| Weight (kg) | 2295 |
| Dimensions (L*W*H mm) | 3250 * 1080 * 1370 |
| Packaging | International Heat Treatment Standard Export Wooden Package |
| Warranty | 1 Year |
| Standard Configuration | Optional Configuration |
The Universal Parallel Automatic Manual Lathe Machine for Metal PL460 can accommodate a maximum workpiece length of 3000 mm.
The swing over bed measurement of the PL460 is 460 mm.
Yes, the PL460 offers both automatic and manual operations, making it versatile for various machining tasks.
The spindle speed range of the PL460 is from 25 to 2000 RPM.
The weight of the PL460 is 2295 kg.
Yes, the PL460 is easy to operate and is suitable for all skill levels, including beginners.
The PL460 is packaged in an International Heat Treatment Standard Export Wooden Package.
The PL460 is suitable for manufacturing precision parts, custom metalworking projects, prototype development, general fabrication, and educational purposes.
The PL460 comes with a 1-year warranty.
Yes, the PL460 includes a machinery test report and video outgoing inspection for reliability.
The dimensions of the PL460 are 3250 mm in length, 1080 mm in width, and 1370 mm in height.
The cross slide travel of the PL460 is 285 mm.
The longitudinal feed range of the PL460 is from 0.031 to 1.7 mm/rev.
The cross feed range of the PL460 is from 0.014 to 0.784 mm/rev.
The PL460 is designed for precision machining of various metals, making it suitable for a wide range of metalworking tasks.
