LED Compact Soldering Machine Assembly Equipment Reflow Solders Machine

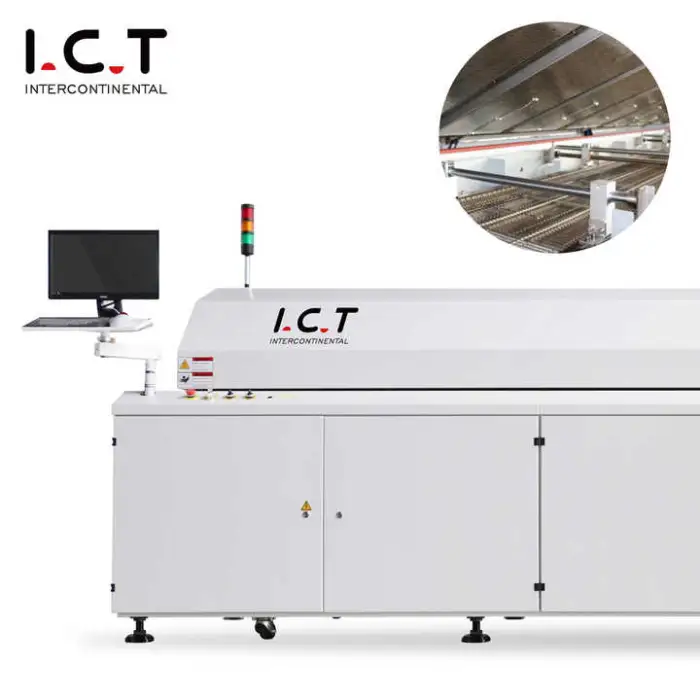

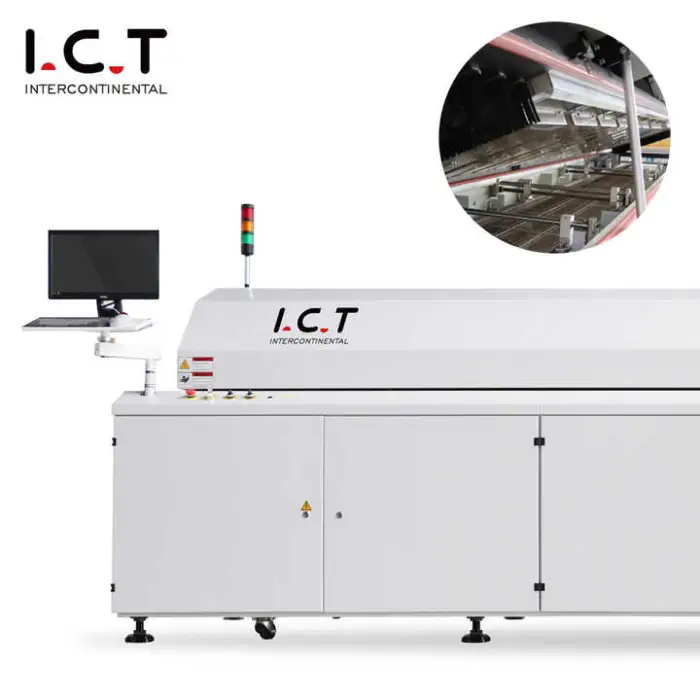

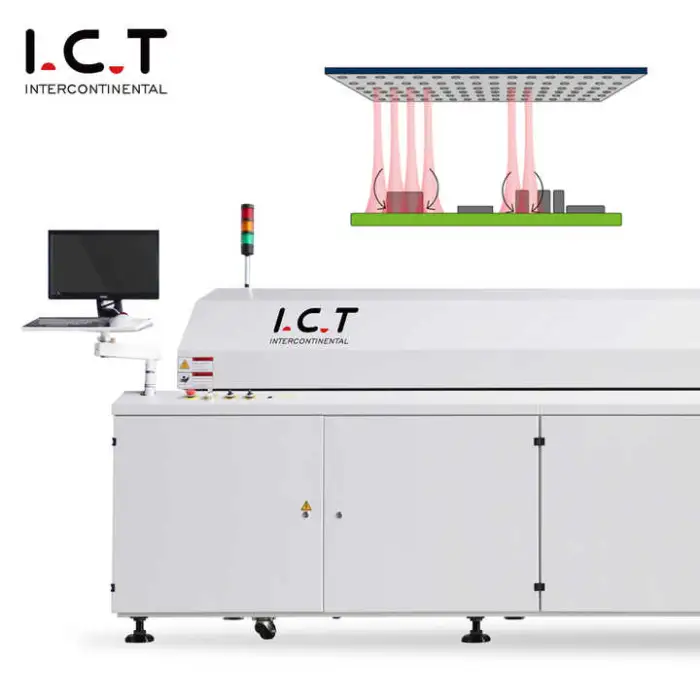

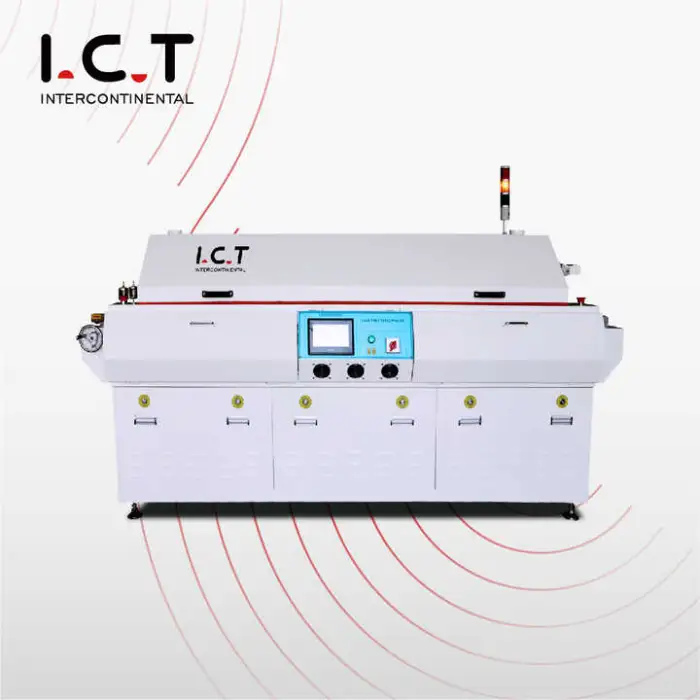

This is a reflow oven designed for PCB reflow soldering and LED assembly. It is used to thermally profile printed circuit boards to melt solder paste and form reliable solder joints for surface-mount components.

The machine requires three-phase power: 380V, 50/60Hz. Ensure your facility can supply a 3-phase 380V line and appropriate breaker protection sized for the machine; consult the supplier for exact current/power ratings for your configuration.

The machine footprint is approximately 5150 × 1400 × 1500 mm and the unit weight is listed as 2400 kg. Note: the listed single-package gross weight (20.000 KG) and package size (50×50×50 cm) appear inconsistent with the unit weight—confirm shipping and crating details with the vendor.

Maximum PCB width supported is 460 mm. The standard mesh width is 440 mm, with optional mesh widths of 560 mm and 680 mm. Rail (single-rail) width adjustable from 50 mm to 460 mm.

The top and bottom component clearance is 25 mm, which sets the maximum component height allowed on the board during the reflow process.

Temperature control precision is ±1.0°C. The oven uses PLC + computer control, allowing you to set multiple zones and custom profiles. The specification notes a maximum temperature gap between preheat zones of 40°C, so zone-to-zone changes should be within that range.

Warm-up time is approximately 20 minutes to reach operational temperature, though actual time may vary with ambient conditions and the target profile.

This likely refers to the exhaust/airflow capacity: two exhausts each rated at about 10 m3/min. Proper exhaust/ventilation is required to remove flux fumes and maintain stable process conditions; confirm exact airflow figures with the supplier.

Reflow ovens of this type are generally suitable for lead-free soldering, but successful lead-free profiles require correct temperature profiling and process setup. Confirm the maximum achievable peak temperature with the vendor and validate with your solder paste and component thermal limits.

You will need a stable, level floor capable of supporting the machine weight, a 3-phase 380V power connection, proper grounding, and ducting for exhaust to a safe location. Allow adequate clearance for loading/unloading and maintenance. The supplier should provide a detailed install checklist.

Routine maintenance includes cleaning the conveyor mesh and heater zones, replacing filters for fans/exhausts, inspecting/adjusting the chain and mesh transmission, checking heaters and thermocouples, and occasional replacement of worn parts (conveyor mesh, bearings, filters). Follow the manufacturer maintenance schedule.

Typical safety features include emergency stop, proper guarding of moving parts, overtemperature protection, and electrical grounding. Certification (CE, UL, etc.) is model/supplier dependent—request certification and compliance documents from the vendor before purchase.

Yes. Options listed include alternative mesh widths (560 mm and 680 mm) and adjustable rail widths. Additional customizations (special exhaust arrangements, extra zones, automated loading/unloading) may be available—discuss options with the manufacturer.

Support and warranty terms vary by supplier. Ask the vendor about warranty length and coverage, availability of spare parts, onsite commissioning, operator training, and remote or field service options before buying.
