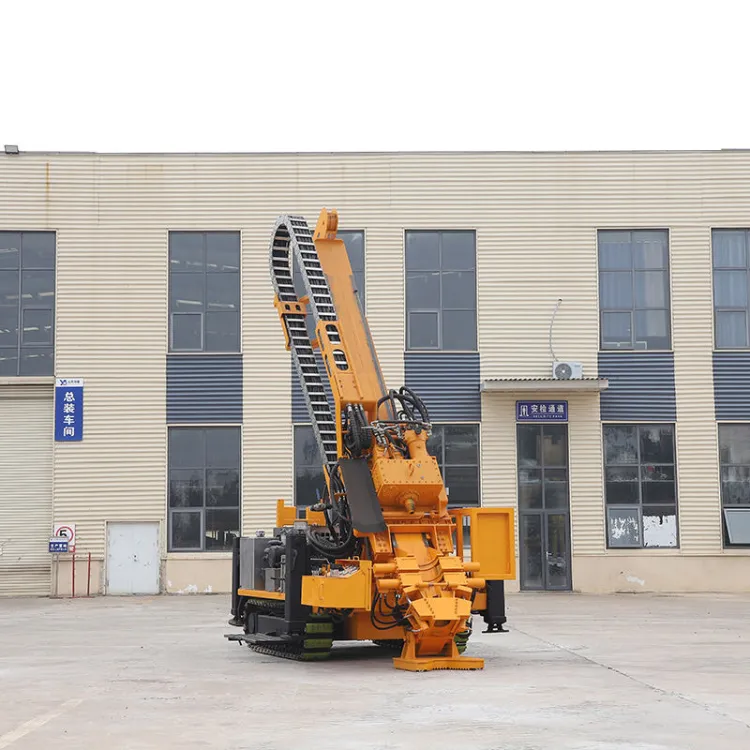

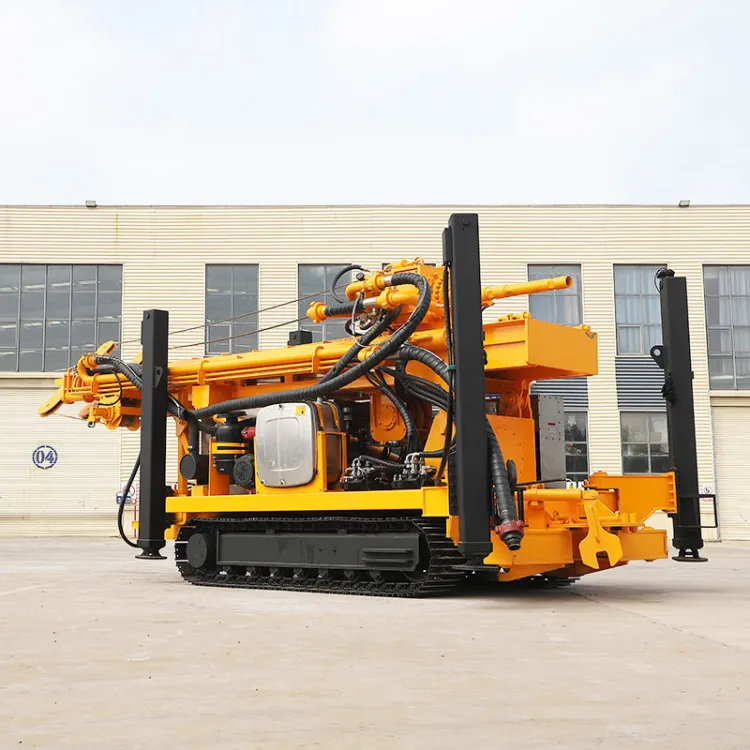

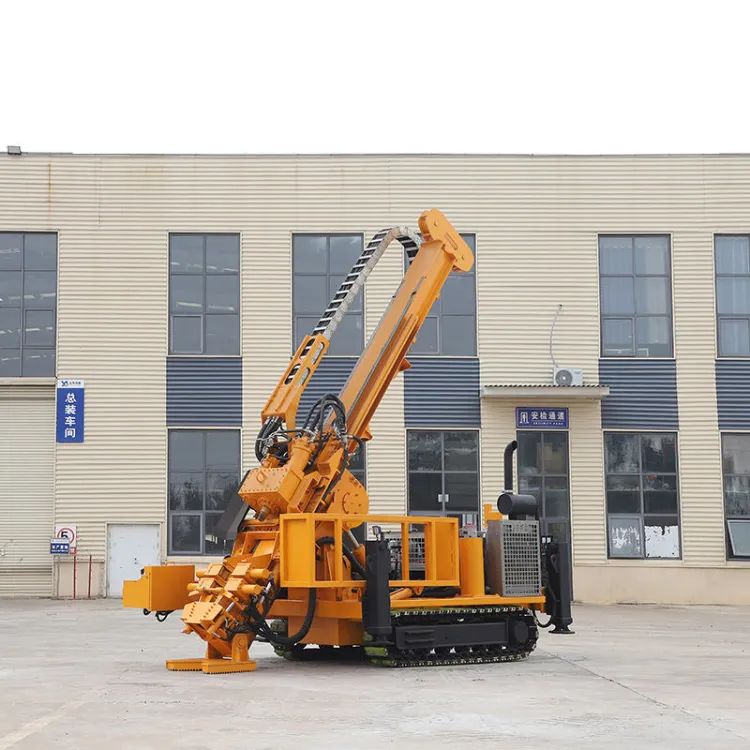

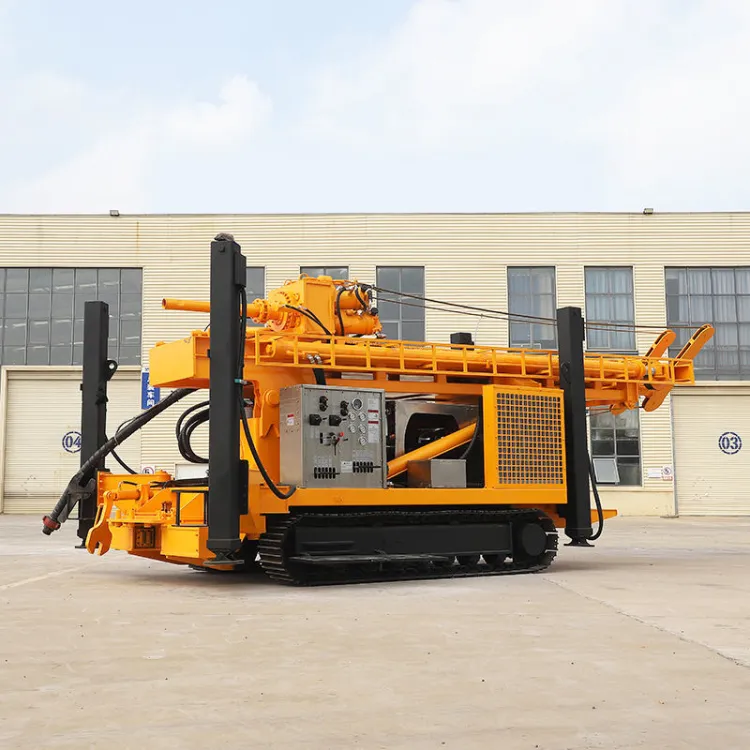

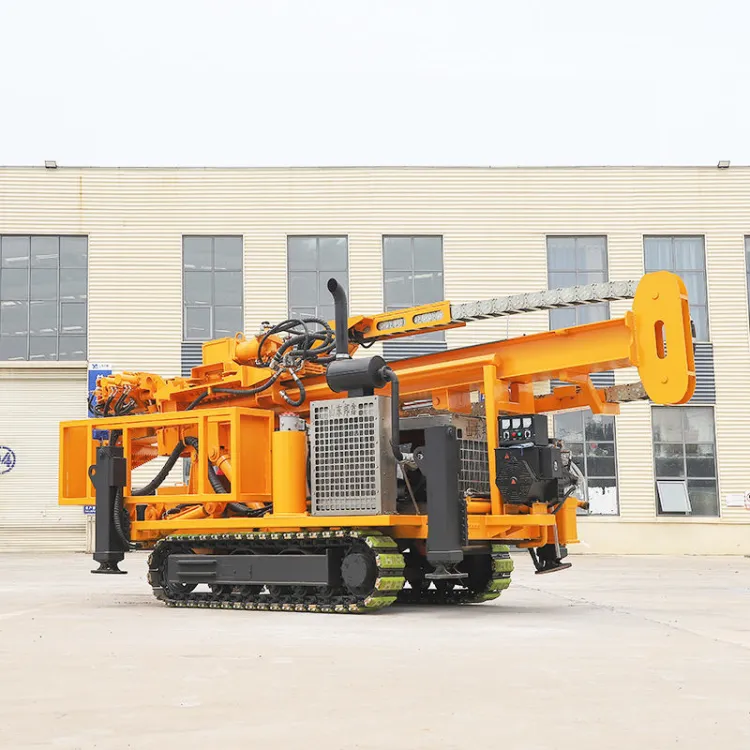

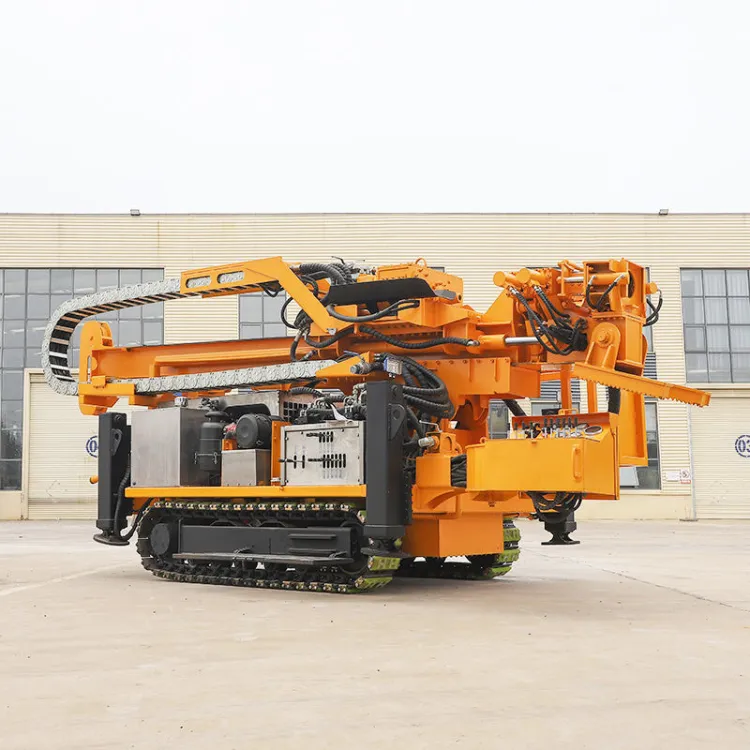

Large Crawler Full Hydraulic Core Drilling Rig for Geological Exploration Multifunctional Diesel Wireline Rock Core Drilling Rig
The Large Crawler Full Hydraulic Core Drilling Rig is a powerful machine built for big drilling jobs. It runs on diesel and uses a turbocharged Yuchai engine with 58 kW of power. This rig can drill up to 500 meters deep and make holes from 140 to 400 mm wide. It moves on crawler tracks, so you can take it almost anywhere. The drilling tower tilts from 45 to 90 degrees, which helps you drill at different angles. This Large Crawler Full Hydraulic Core Drilling Rig is great for geological exploration and rock core drilling.
Specifications
| Attribute | Details |
|---|---|
| Brand Name | YINSITANDUN / OEM / ODM |
| Type | Turbocharging |
| Usage | Drilling Rig |
| Power Type | Diesel |
| Drilling Depth | Max. 500m |
| Drilling Diameter | 140–400mm |
| Drilling Tower Angle | 45–90° |
| Feed Stroke | 1.8m |
| Torque | 300–500 N.m |
| Rated Pressure | 20 Mpa |
| Rated Flow Rate | 78 L/min |
| Rated Power | 58 Kw |
| Rated Speed | 2400 rpm |
| Cooling Method | Water cooling |
| Model | Yuchai |
| Core Components | Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox |
| Dimension (L*W*H) | 3000*1300*1800mm |
| Weight | 4300 KG |
| Mobility | Yes |
| Key Selling Points | Multifunctional |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 1 Year |
| Free Replacement Parts & Online Technical Support | Yes |
| Custom Design | In 3 days |
| Selling Units | Single item |
