Product Description

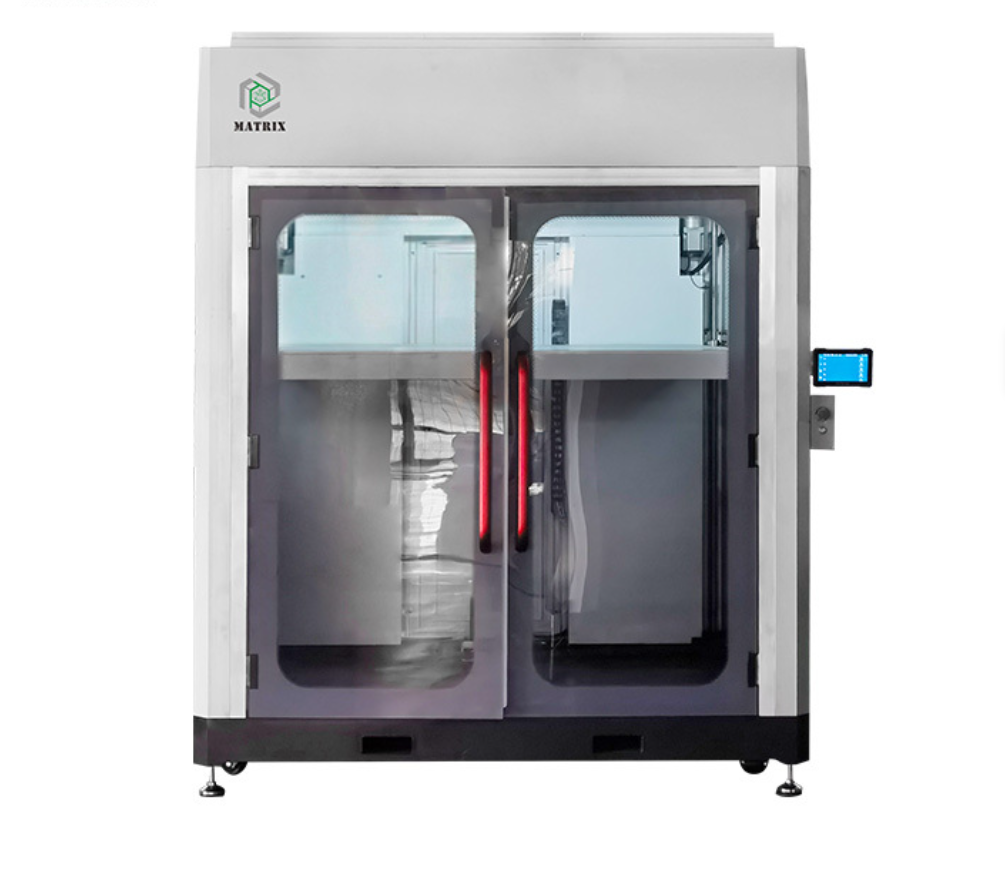

The YM-NT-1000 is a large and fast FFF/FDM 3D printer,it’s a full metal frame structure that comes with a closed printing environment. This makes the YM-NT-1000 ideal to print ABS, Nylon and other heat sensitive materials.
This machine can adopt 1.75mm & 2.85mm extrusion system, pellet extrusion system is also available now.
Printing size can be customized.
If you need to print large objects fast but at high precision, this might be the one you are looking for.
Features
· 5-INCH TOUCH SCREEN (Easy to use, full color touch screen)
· RESUME PRINTING (A guarantee for the large size model printing, in spite of accidental power failure.)
· LARGER BUILD VOLUME (Max size1000x1000x1000 mm)
· SPECIAL MATERIAL HEATABLE BUILD PLATE ( High viscosity )
· DEVELOPED DEVICE STRUCTURE (All ball screws and linear guides, servo motor,imported belt)
· MULTIPLE CONNECTIVITY (Support USB Stick, USB cable and Wi-Fi connection.)
· BUILT-IN CAMERA (On-line camera helps you monitor your print jobs.) (Options)
· STRONG FULL METAL BODY ( The thickness of the structural floor steel plate is 5mm, and the thickness of the body sheet metal is 2mm.)
Etc....
Technology parameter
We have two models for large size FDM printing.
Here's the technical Parameter of YM-NT-750 and YM-NT-1000.
| Parameter | YM-NT-750 | YM-NT-1000 |
| Printing Technology: | Fused Deposition Manufacturing Technology | Fused Deposition Manufacturing Technology |
Max build volume: |
750*750*750 mm |
1000*1000*1000 mm |
Dimensions (mm) : |
1642*1110*1320 mm |
1890*1450*1600 mm |
Net Weight (kg) : |
400 kg |
700 kg |
X Y Axis Movement : |
0,005 mm in axis X, Y |
0,005 mm in axis X, Y |
Maximum Print Speed : |
120 mm/s (adjustable) |
120 mm/s (adjustable) |
Maximum Movement Speed (mm/s) : | 250 mm/s | 250 mm/s |
| Z Axis Movement : | 0,0025 mm in axis Z | 0,0025 mm in axis Z |
Minimum layer tickness (mm) : |
0,05-2.0 mm |
0,05-2.0 mm |
XYZ Precision (mm) : |
0,05 mm |
0,05 mm |
Number of Extruders supported : |
2 set |
2 set |
Nozzle Diameter (mm) : | 0,4 mm
( Diameter 0.2,0.6,0.8 can also be used ) | 0,4 mm
( Diameter 0.2,0.6,0.8 can also be used ) |
Filament Detector : |
YES |
YES |
magnetic adsorption platform: |
YES |
YES |
| Hot Bed Maximum Temperature (ºC) : | 110 ℃ | 110 ℃ |
| Chamber temperature: | 50±5°C | 50±5°C |
Automatic Shutdown : |
YES | YES |
Anti-blackouts : |
YES | YES |
SUPPOERT Materials : | PLA ,ABS , PC , Nylon (PA), PETG,POM,CARBON ,HIPS ,PVA,TPU,ETC. PLA ,ABS , PC , Nylon (PA), PETG,POM,CARBON ,HIPS ,PVA,TPU,ETC. | |
Operating Systems : |
Windows, Linux, Mac OS, OSX | |
| Languages : | English, Multi-language | English, Multi-language |
| Software : |
Cura , IEMAI 3D |
Cura , IEMAI 3D |
Formats : |
STL, OBJ, GCode, Amf, Dae |
STL, OBJ, GCode, Amf, Dae |
Print From : |
SD Card, USB, Wi-Fi |
SD Card, USB, Wi-Fi |
Screen : |
5-inch color touch screen |
5-inch color touch screen |
Print Head Material: |
Aluminum/Copper/Steel/PTFE Throat |
Aluminum/Copper/Steel/PTFE Throat |
Transmission: |
Industrial Belt + Synchronous Wheel |
Industrial Belt + Synchronous Wheel |
XYZ axis stepper motor drive: | with professional expansion closed-loop drive | with professional expansion closed-loop drive |
| Packing size | 1800*1550*1300 mm | 2050*1545*1790 mm |
Packing weight |
480 kg |
790 kg |
Big flow extrusion system is optional for YM-NT-750 & 1000, that means the big machine can adopt both 1.75 mm extrusion system and 2.85mm extrusion system.
Choose which system depends on your requirement.
1.75mm filament extrusion system fit for precision surface printing quality. 2.85-3.0 mm filament fit for very big size and fast speed printing.

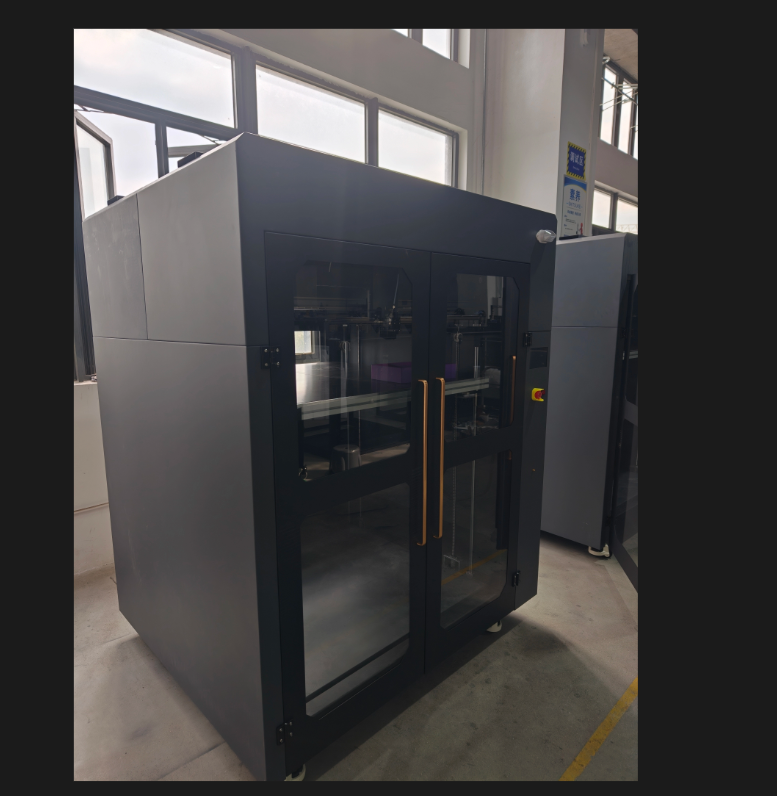

product Show
