Product Description

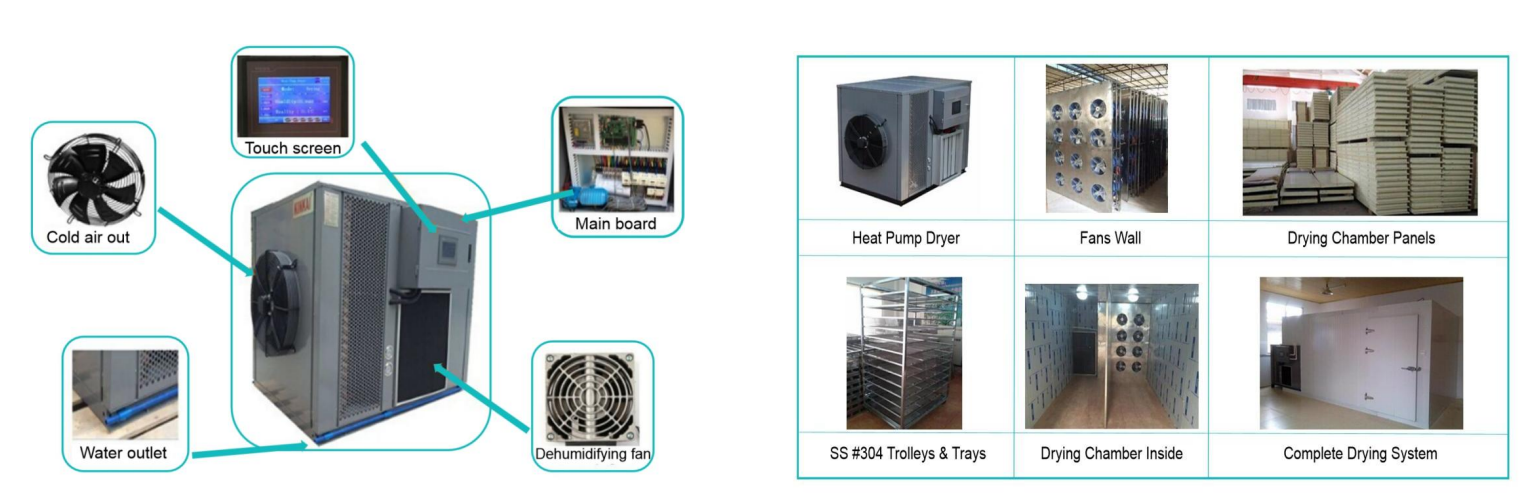

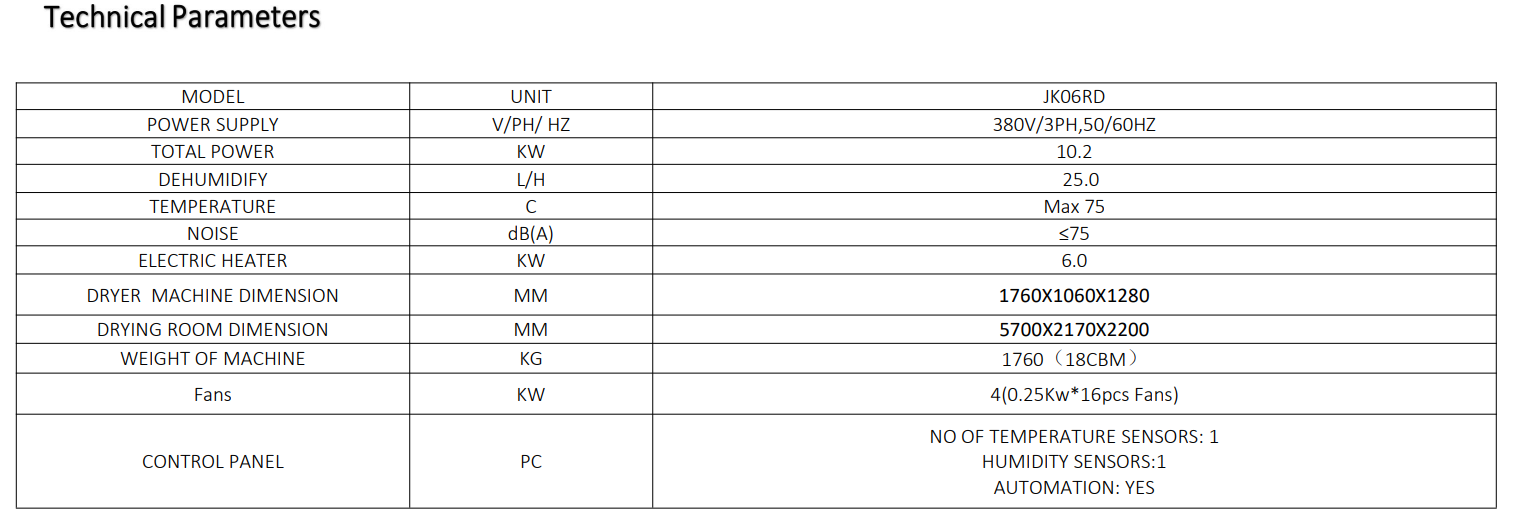

Heat Pump Dryer

Model: JK06RD

Material: Coated Steel Sheet Metal

Power Supply: 380V/3PH/50HZ

Rated Power: 6.2KW/12.4A

Capacity: 500-700kg/batch

Accessory: Electric Heater *6KW/12A

Dimension: 1760X1060X1180mm

Fans Wall

Frame: Stainless Steel #201

Rated Power:4KW (0.25KW*16pcs)

Dimension: 1010X250X2000mm

Drying Chamber

Material: PUF Sandwich Panels (color coated steel/ 100mm thickness/ 66㎡)

Partition Panels: 25mm thickness

Dimension: 5700X2170X2200mm

Main Door: 1600×1870mm * 1pc

Maintenance Door: 500×850mm * 1pc

Free Assembly Tools Supply: (Moisture-proof lamp, Rubber mats, Rivets and rivet tool gun, Silicon glue and silicon glue tool gun, Metal fixture, Allen key etc.)

Trolleys & Trays

Trolley:

Material: Stainless Steel #304

Dimension: 820*670*1750mm

Type: 16 trays/trolley

Tray:

Material: Stainless Steel #304

Dimension: 750*660mm

Type: Flat Type

Mesh Hole: 5*5mm

Frequently Asked Questions

What is the capacity of the JK06RD Drying System?

The JK06RD Drying System has a capacity of 500-700 kg per batch.

What are the dimensions of the JK06RD Drying System?

The overall dimensions of the JK06RD Drying System are 1760 mm (L) x 1060 mm (W) x 1180 mm (H).

What type of material is used in the construction of the JK06RD?

The JK06RD Drying System is made from coated steel sheet metal and features stainless steel components.

What is the rated power of the JK06RD Drying System?

The rated power of the JK06RD Drying System is 6.2 kW with a current rating of 12.4 A.

What is the power supply requirement for the JK06RD Drying System?

The JK06RD Drying System requires a power supply of 380V, 3-phase, and 50Hz.

Does the JK06RD come with any assembly tools?

Yes, the JK06RD Drying System comes with a free assembly tool supply, including a moisture-proof lamp, rubber mats, rivets and a rivet tool gun, silicon glue and a silicon glue tool gun, metal fixtures, and an Allen key.

What type of heater is included with the JK06RD?

The JK06RD Drying System includes an electric heater rated at 6 kW and 12 A.

What are the dimensions of the drying chamber?

The drying chamber dimensions are 5700 mm (L) x 2170 mm (W) x 2200 mm (H).

What type of trays are used in the JK06RD Drying System?

The trays used in the JK06RD Drying System are made from stainless steel #304 and are flat type with dimensions of 750 mm x 660 mm and a mesh hole size of 5 mm x 5 mm.

How many trays can fit per trolley?

Each trolley can hold 16 trays.

What are the dimensions of the trolley?

The trolley dimensions are 820 mm (W) x 670 mm (D) x 1750 mm (H).

What materials are used for the partition panels in the drying chamber?

The partition panels in the drying chamber are 25 mm in thickness.

What is the construction material of the fans wall frame?

The fans wall frame is made from stainless steel #201.

Is the JK06RD Drying System suitable for industrial use?

Yes, the JK06RD Drying System is designed for industrial use, with a significant capacity and robust construction.

What is the maintenance door size on the JK06RD?

The maintenance door measures 500 mm x 850 mm.
