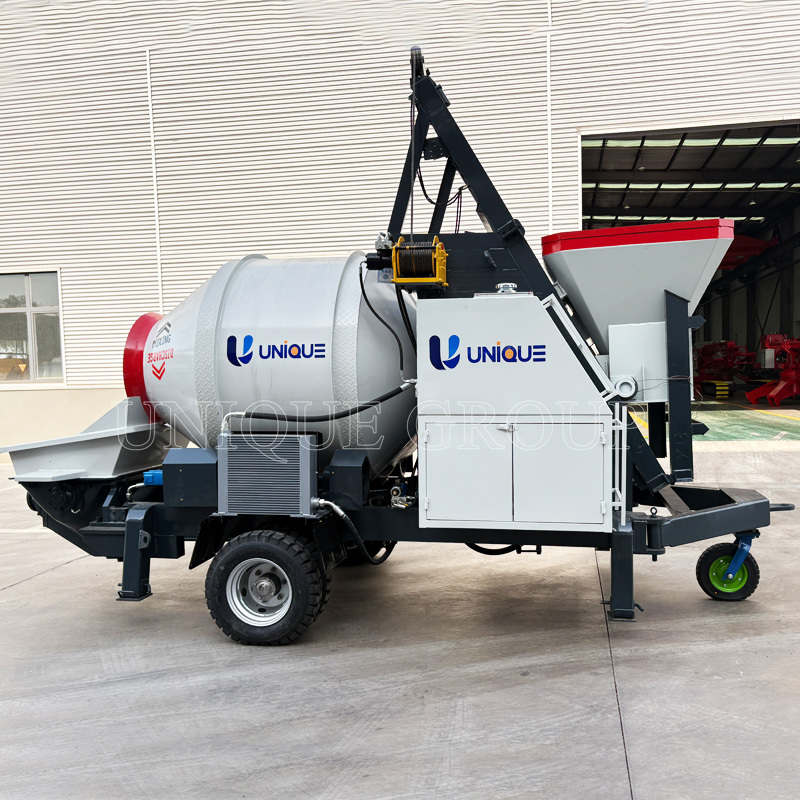

The JBS30 Diesel Concrete Mixer Pump is a compact and efficient construction machine that combines concrete mixing and pumping functions into a single integrated unit. Designed for small- to medium-scale concrete placement projects, it allows concrete to be mixed on-sit...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
The JBS30 Diesel Concrete Mixer Pump is a compact and efficient construction machine that combines concrete mixing and pumping functions into a single integrated unit. Designed for small- to medium-scale concrete placement projects, it allows concrete to be mixed on-site and pumped directly to the required location, helping to improve productivity and reduce manual handling.
The machine offers a maximum theoretical concrete output of 30 m³/h and a pumping capacity of 30–60 m³/h. It is equipped with a Weifang diesel engine, a 400 L hopper, and an S-valve distribution system for efficient concrete delivery. With a maximum pumping distance of 120 m vertically or 400 m horizontally, the JBS30 is suitable for a wide range of construction applications.
Its hydraulic system provides a pumping pressure of 31.5 MPa, while the integrated mixing system operates with a charging capacity of 0.56 m³ and a discharging capacity of 0.45 m³. The compact design and diesel-powered operation make it particularly suitable for construction sites where access to a stable electrical power supply may be limited.
| Specification | Unit | Details |
|---|---|---|
| Model | – | JBS30 |
| Machine Type | – | Diesel Concrete Mixer Pump |
| Maximum Theoretical Concrete Output | m³/h | 30 |
| Mixer Charging Capacity | m³ | 0.56 |
| Mixer Discharging Capacity | m³ | 0.45 |
| Maximum Concrete Pumping Pressure | MPa | 10 |
| Distribution Valve Type | – | S Valve |
| Concrete Cylinder Diameter × Stroke | mm | Φ140 × 1000 |
| Pump Capacity | m³/h | 30–60 |
| Hopper Capacity | L | 400 |
| Outlet Diameter | mm | Φ125 |
| Diesel Engine Model | – | Weifang |
| Electrical Engineering Power | kW | 66 |
| Rated Speed | r/min | 1800 |
| Hydraulic Circuit Type | – | Open Circuit |
| Pumping System Pressure | MPa | 31.5 |
| Mixing System Pressure | MPa | 6 |
| Hydraulic Oil Tank Capacity | L | 350 |
| Maximum Vertical Pumping Distance | m | 120 |
| Maximum Horizontal Pumping Distance | m | 400 |
| Maximum Aggregate Diameter | mm | 20/30 |
| Delivery Pipe Internal Diameter | mm | Φ100 |
| Overall Dimensions (L × W × H) | mm | 600 × 230 × 5310* |
| Total Weight | kg | 4500 |
The JBS30 Diesel Concrete Mixer Pump is suitable for:
| Model | JBS30 |
|---|---|
| Machine Type | Diesel Concrete Mixer Pump |
| Maximum Theoretical Concrete Output | 30 m³/h |
| Mixer Charging Capacity | 0.56 m³ |
| Mixer Discharging Capacity | 0.45 m³ |
| Maximum Concrete Pumping Pressure | 10 MPa |
| Distribution Valve Type | S Valve |
| Concrete Cylinder Diameter × Stroke | Φ140 × 1000 mm |
| Pump Capacity | 30–60 m³/h |
| Hopper Capacity | 400 L |
| Outlet Diameter | Φ125 mm |
| Diesel Engine Model | Weifang |
| Electrical Engineering Power | 66 kW |
| Rated Speed | 1800 r/min |
| Hydraulic Circuit Type | Open Circuit |
| Pumping System Pressure | 31.5 MPa |
| Mixing System Pressure | 6 MPa |
| Hydraulic Oil Tank Capacity | 350 L |
| Maximum Vertical Pumping Distance | 120 m |
| Maximum Horizontal Pumping Distance | 400 m |
| Maximum Aggregate Diameter | 20/30 mm |
| Overall Dimensions (L × W × H) | 600 × 230 × 5310* mm |
| Total Weight | 4500 kg |
| S-valve distribution system | for efficient concrete pumping. |
| Capacity | 30 m³/h |
The Daswell DMP50 Concrete Mixer Pump has a capacity ranging from 30 to 90 m³/h.
The DMP50 Concrete Mixer Pump is powered by a diesel engine.
The maximum horizontal conveying distance of the DMP50 is 260 meters.
The DMP50 can pump concrete vertically up to 160 meters.
The weight of the DMP50 Concrete Mixer Pump is 4000 kg.
The dimensions of the DMP50 are 4250 x 2100 x 2700 mm.
Yes, the DMP50 comes with a 1-year warranty.
Key features include high efficiency, combined mixing and pumping functions, durable design, easy operation, and a powerful diesel engine.
The DMP50 is suitable for building construction, road and bridge projects, concrete pouring for foundations, high-rise buildings, and infrastructure development.
The DMP50 features a user-friendly interface, making it easy to operate for users with varying levels of experience.
Yes, the DMP50 is ideal for high-rise building projects due to its vertical pumping capability.
Regular maintenance includes checking the diesel engine, hydraulic system, and ensuring the mixing and pumping components are clean and functional.
Yes, the DMP50 is versatile and can be used effectively on both small and large construction sites.
While it is designed to be user-friendly, some basic training or guidance is recommended to ensure safe and efficient operation.
The DMP50 is designed to mix and pump concrete, making it perfect for various concrete mixtures commonly used in construction.
