Intelligent Agriculture GPS T40 40kg 40 L Liter Spraying System Farm Crop UAV Agro Agricultural Drone Sprayer

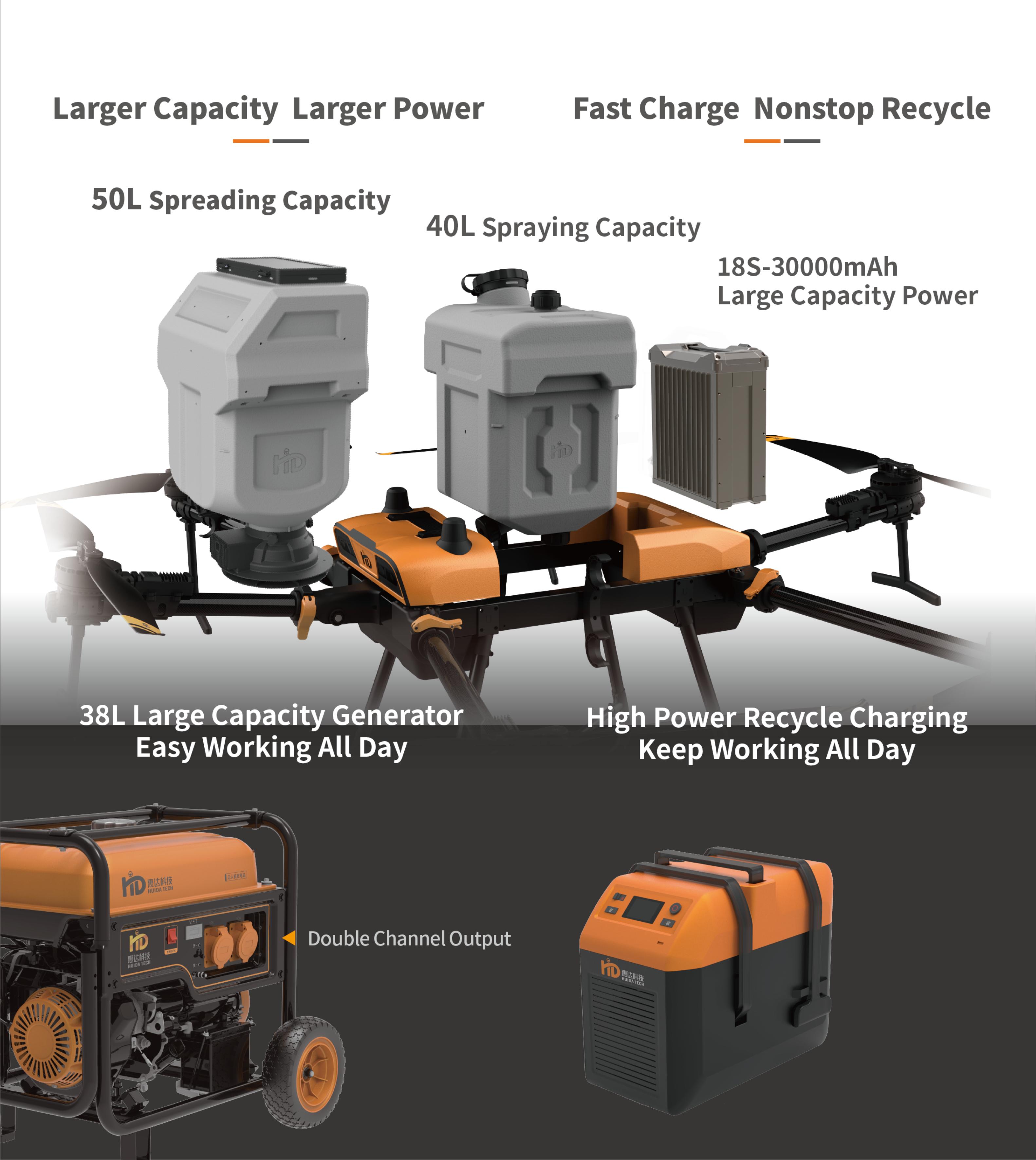

Main spraying tank: 40 L (product spec shows 40L). Separate spread tank: 50 L. Note: one line in the source lists 38 L — please confirm with the seller if precise capacity is critical.

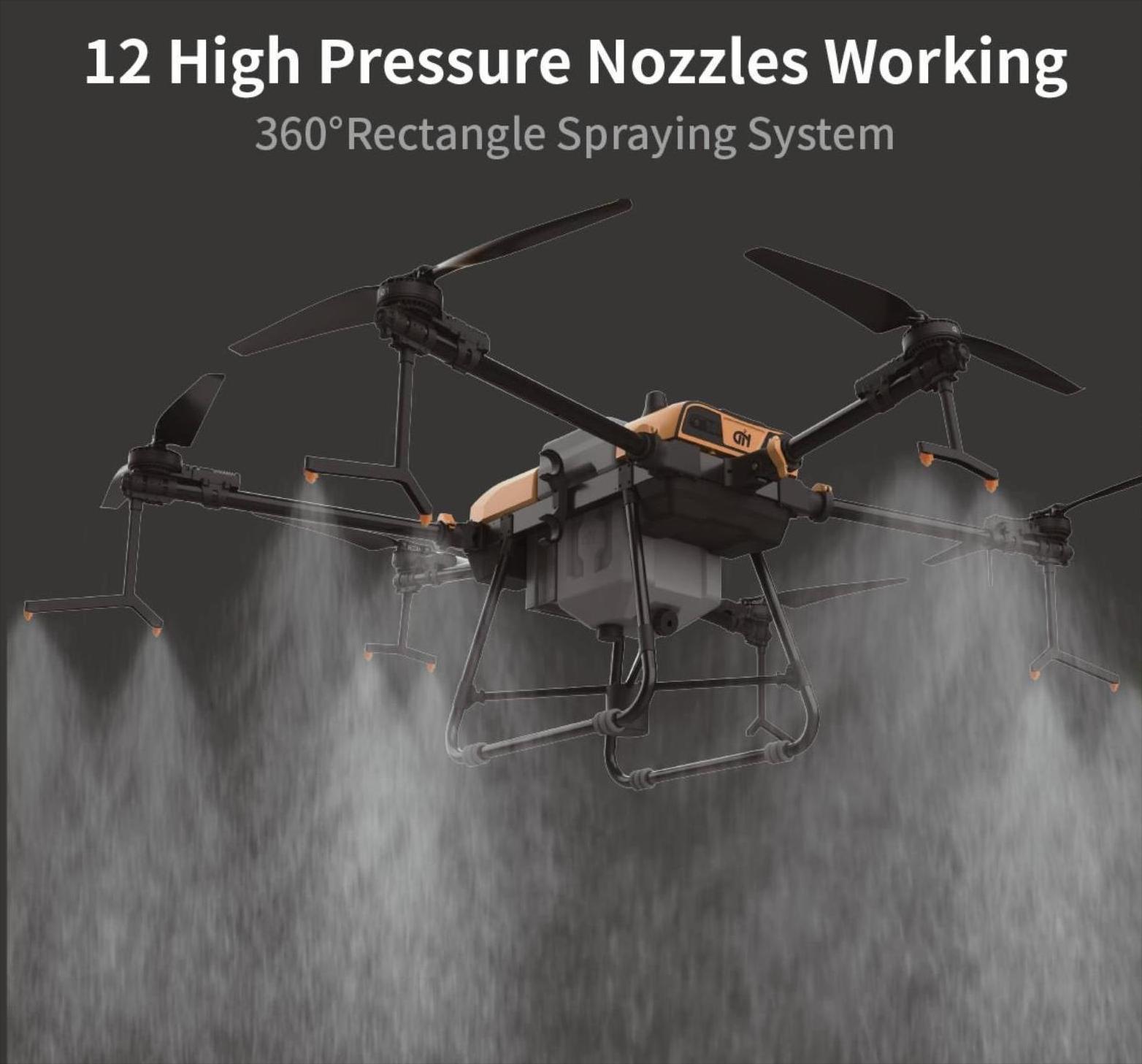

The drone uses 12 high‑pressure fan nozzles and produces atomized droplets approximately 100–300 μm in size.

The spec lists a max flow of 7 L/min × 2 (interpreted as two pump outlets at 7 L/min each). Confirm with the vendor whether that means up to 14 L/min total in your configuration.

Maximum spraying width is up to 12 meters (actual swath depends on flight height, speed, and nozzle settings).

Spray hover endurance: 7.6 minutes. Spread hover endurance: 6.5 minutes. Hover with empty payload: 23 minutes. Actual mission time depends on payload, wind and flight profile.

Battery: 68.4 V, 30,000 mAh (30 Ah). Battery weight: 13 kg. Stated charge time: about 13 minutes from 20% to 95%. Note: the spec sheet also cites a 20.5 kWh figure which is inconsistent with 68.4 V × 30 Ah (≈2.05 kWh); please confirm energy rating with the supplier.

Empty weight (without battery): 35 kg. Max takeoff weight: Spray configuration — 88 kg; Spread configuration — 93 kg.

RTK positioning accuracy: horizontal ±10 cm, vertical ±10 cm. Built‑in radar obstacle detection accuracy listed as ±0.1 m. Obstacle/positioning operational range: 1–30 m height.

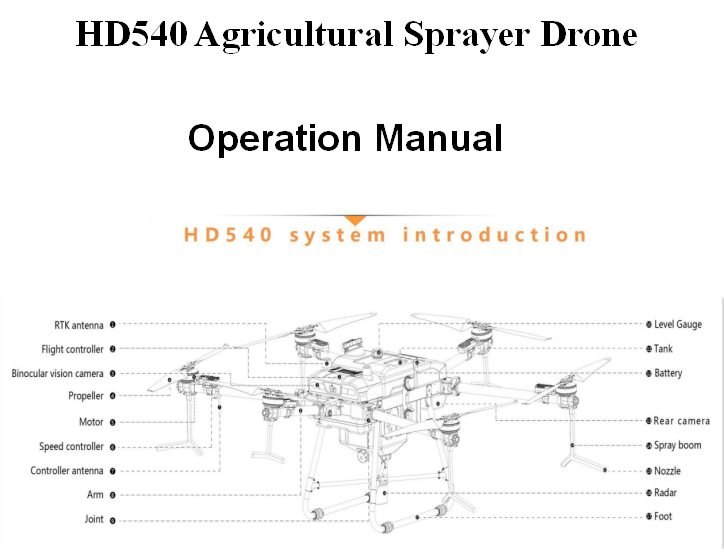

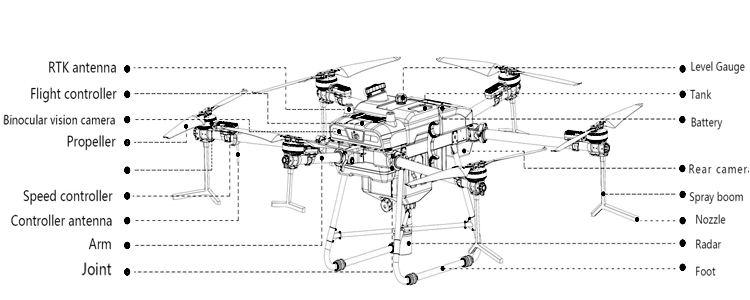

Structural layout: six‑axis. Maximum wheelbase: 2100 mm (six‑axis). Unfolded dimensions: 2913 mm × 3033 mm × 790 mm. Folded dimensions: 1138 mm × 682 mm × 790 mm.

Rated working efficiency is about 15 hectares per hour under optimal conditions. Actual coverage depends on flight speed, overlap, nozzle setup and field conditions.

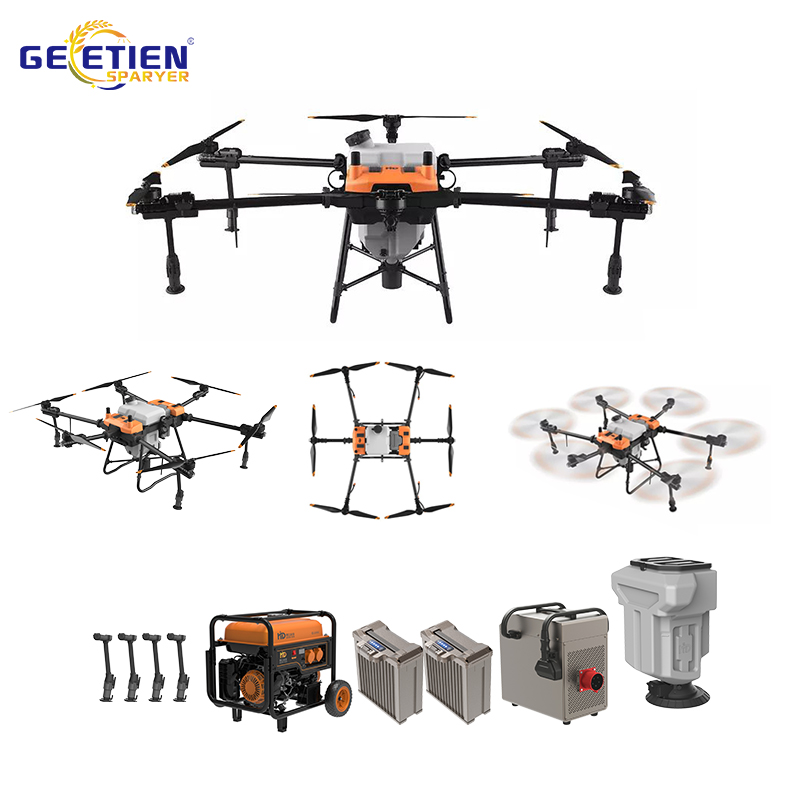

The system references an intelligent generator and AC charger. Generator output is listed around 220–230 V at 8000 W. The product also references a 230 V/2300 W output for certain modes. Verify included accessories and exact electrical outputs with the seller.

Designed for agricultural spraying and spreading — suitable for field crops, orchards, rice paddies, vegetables, and general pesticide/fertilizer applications where aerial application is appropriate.

The drone features RTK positioning, radar obstacle sensing (accuracy ±0.1 m) and height/obstacle avoidance capabilities from 1–30 m. Standard flight‑control safety functions (return‑to‑home, fail‑safe) should be confirmed per model.

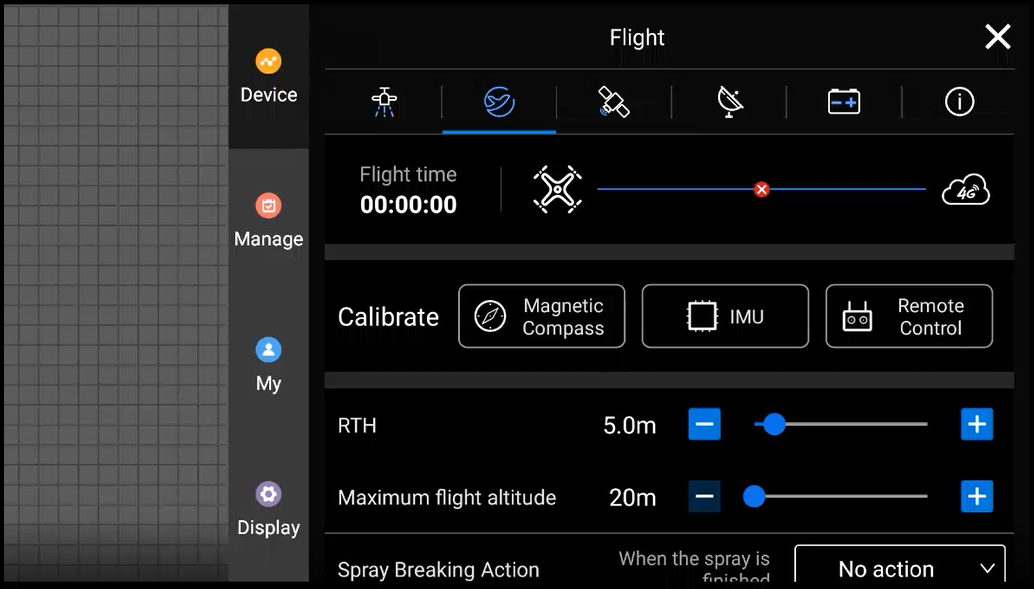

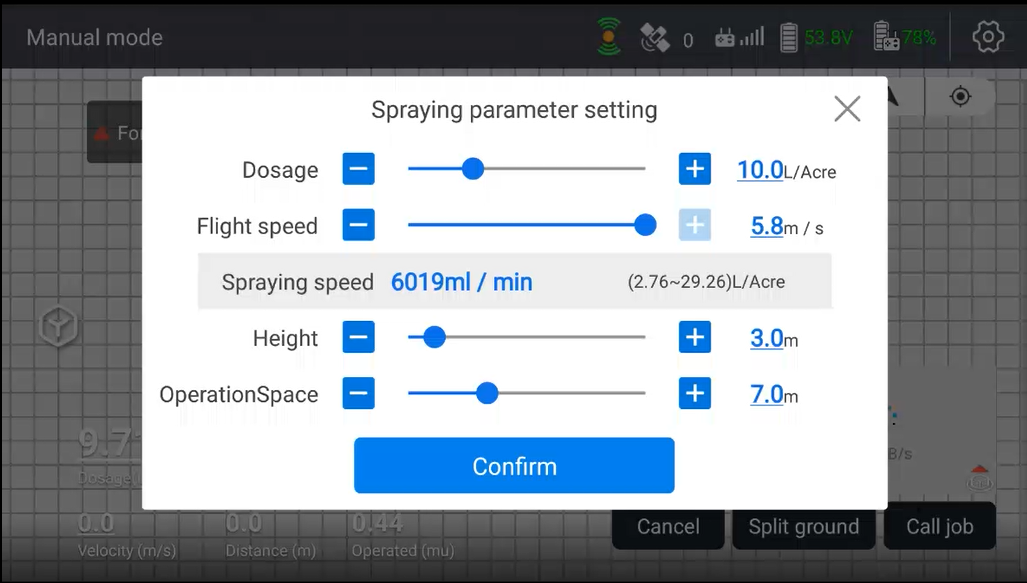

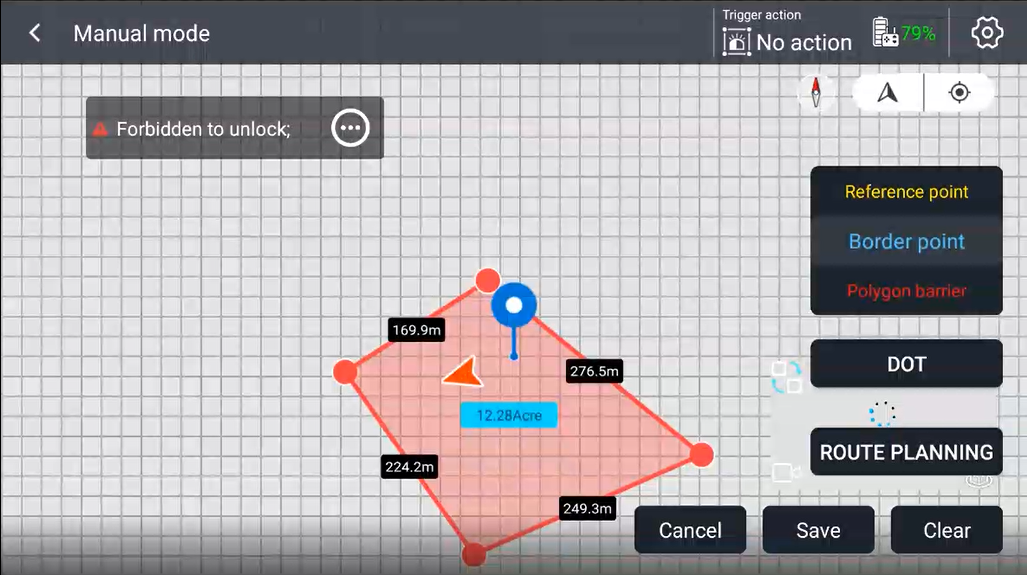

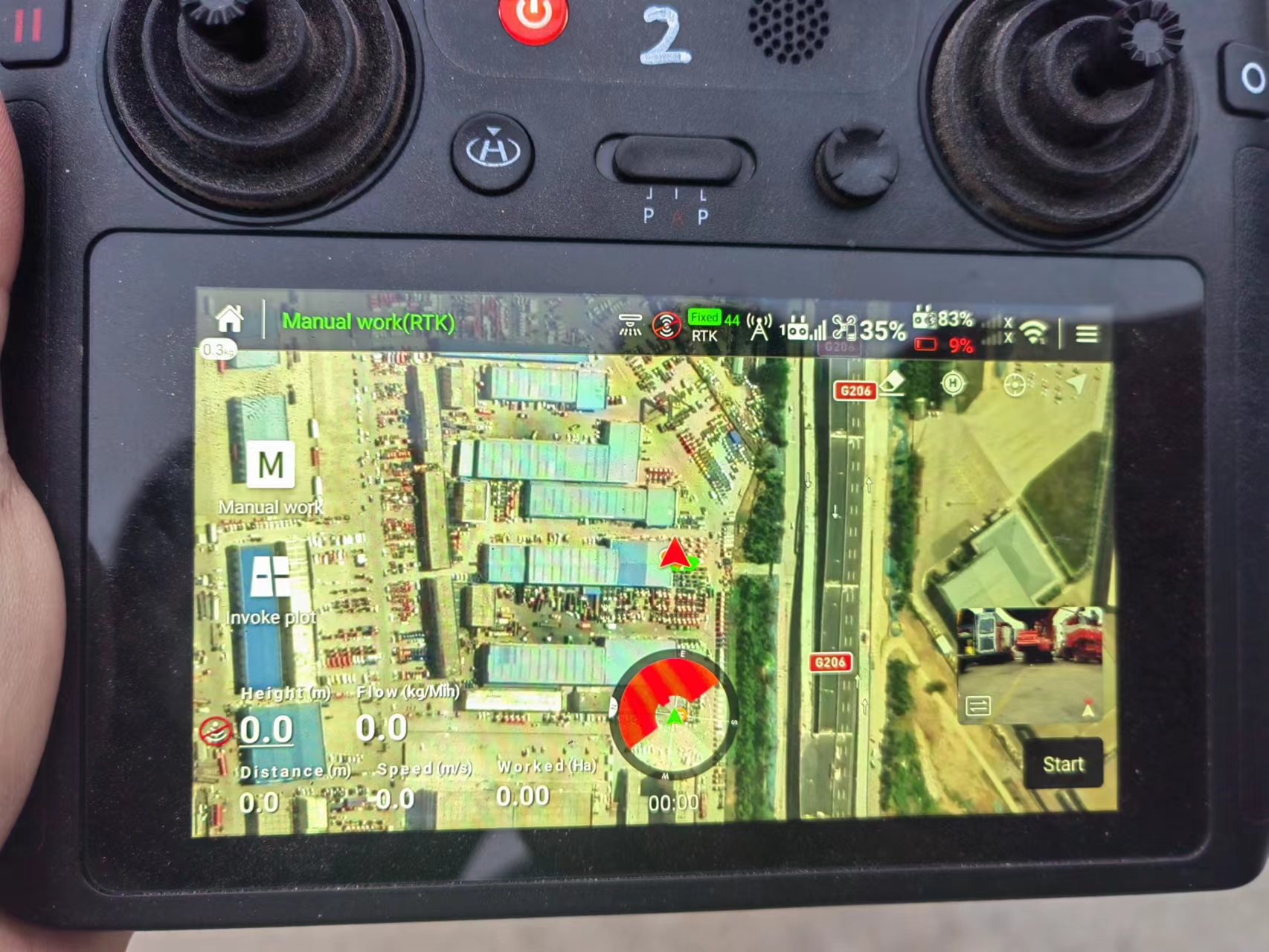

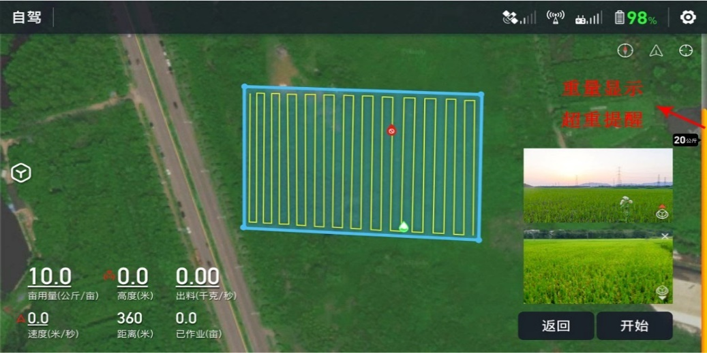

The system includes a remote control with an operation display and on‑screen operation guidance to assist missions and parameter setup.

Yes. The spec sheet contains a few inconsistencies (e.g., tank listed as 40 L and also 38 L; battery energy listed as 20.5 kWh which conflicts with 68.4 V × 30 Ah). Always confirm final specifications, included accessories, warranty and local service support with the vendor prior to purchase.
