The Industrial Grade Plate and Frame Hydraulic Filter Press is designed for effective sewage sludge dewatering. This high-performance machine delivers reliable results, making it perfect for various industrial applications. With its semi-automatic operation and robust c...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

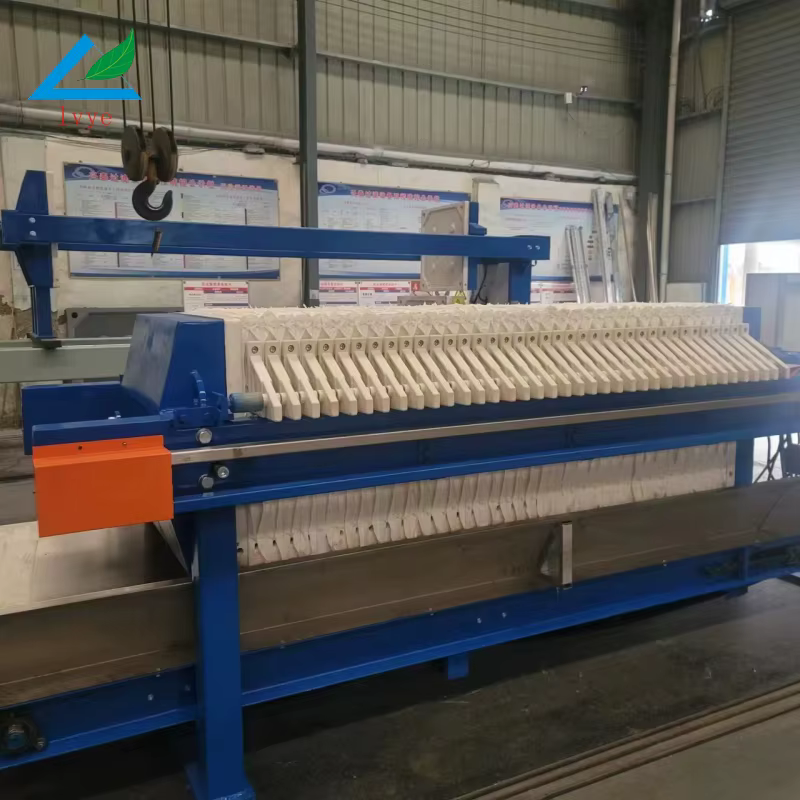

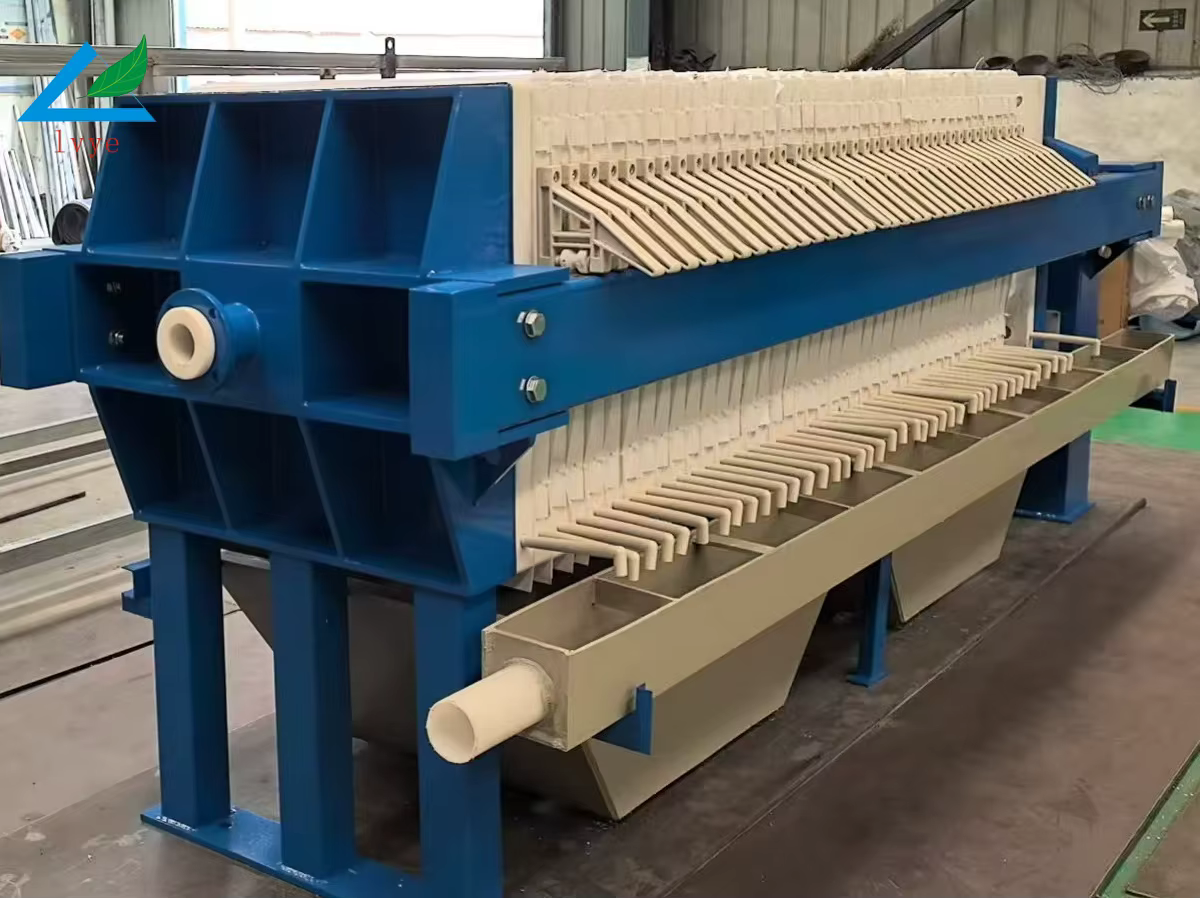

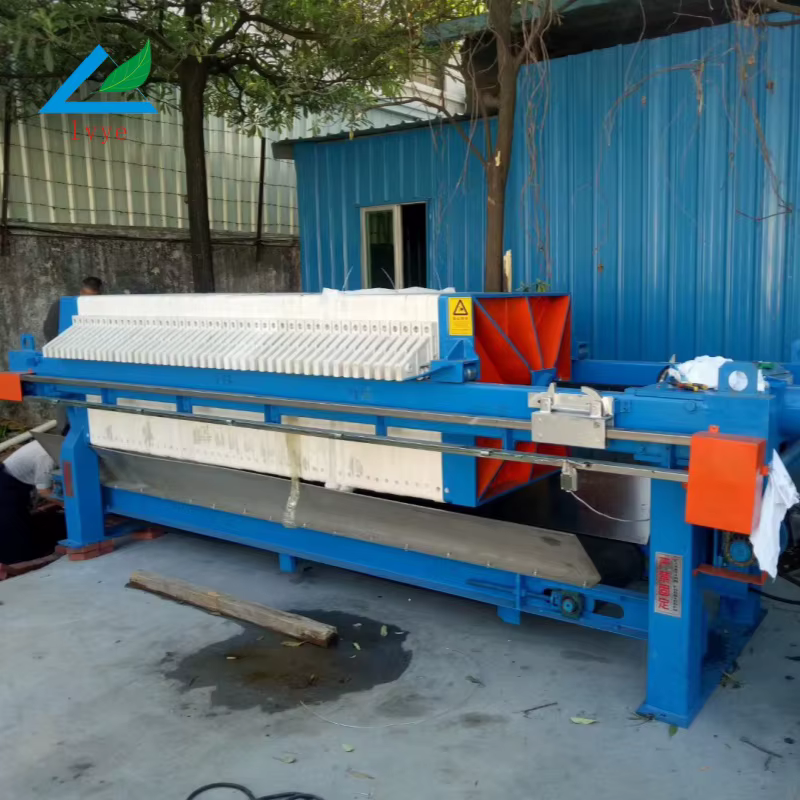

The Industrial Grade Plate and Frame Hydraulic Filter Press is designed for effective sewage sludge dewatering. This high-performance machine delivers reliable results, making it perfect for various industrial applications. With its semi-automatic operation and robust construction, it ensures optimal filtration efficiency and durability.
| Attribute | Details |
|---|---|
| Cake Thickness | 30 mm |
| Chamber Volume | 1050 L |
| Cylinder Pressure | 20-22 Mpa |
| Filter Area | 70 m² |
| Filtration Pressure | 0.8 Mpa |
| Foundation Dimensions | 4050 x 500 x 1000 mm |
| Maximum Board Shift | 400 mm |
| Power | 2.2 kW |
| Weight | 3530 kg |
| Dimensions (L x W x H) | 4500 x 1300 x 1260 mm |
| Model | Filter area(m³) | Plate size(mm) | Number of filter plates | Chamber volume(L) | Cylinder pressure(Mpa) | Overall dimensions(mm) | Weight(kg) |
| XMAS-1/390-25U | 1 | 390*390 | 4 | 15 | 0 | 1100*760*650 | 160 |
| XMAS-3/390-25U | 3 | 390*390 | 14 | 46 | 0 | 1650*700*660 | 185 |
| XMAS-5/500-SS | 5 | 500*500 | 11 | 75 | 0 | 1650*700*860 | 310 |
| XMAY-5/500-30U | 5 | 500*500 | 11 | 75 | 15-18 | 2150*700*860 | 360 |
| XMAY-10/500-D | 10 | 500*500 | 24 | 150 | 15-18 | 2740*700*860 | 680 |
| XMAY-20/700-30U | 20 | 700*700 | 24 | 300 | 20-22 | 3200*1100*1120 | 1200 |
| XMAY-40/700-30U | 40 | 700*700 | 49 | 600 | 20-22 | 4300*1100*1120 | 2200 |
| XMAY-50/870-30U | 50 | 870*870 | 38 | 750 | 20-22 | 4100*1300*1260 | 3020 |
| XMAZ-80/870-30U | 80 | 870*870 | 62 | 1200 | 20-22 | 5650*1300*1260 | 4150 |
| XMAZ-100/1000-30U | 100 | 1000*1000 | 57 | 1500 | 20-22 | 5820*1500*1360 | 5500 |
| XMAZ-200/1250-30U | 200 | 1250*1250 | 72 | 3400 | 18-20 | 8250*1800*1680 | 7300 |
| XMAZ-500/1500-30U | 500 | 1500*1500 | 127 | 7550 | 20-22 | 11700*2130*1900 | 24500 |
| XMAZF-100/1000-30U | 100 | 1000*1000 | 57 | 1500 | 20-22 | 5820*1500*1360 | 5500 |
| XMAZF-500/1500-30U | 500 | 1500*1500 | 127 | 7550 | 20-22 | 11700*2130*1900 | 24500 |
| XMAZQ-200/1250-D | 200 | 1250*1250 | 72 | 3400 | 18-20 | 8250*1800*1680 | 7600 |
| XMAZQ-500/1500-D | 500 | 1500*1500 | 127 | 7550 | 15-20 | 11500*2130*1900 | 22800 |
| XMAZG-100/1000-30U | 100 | 1000*1000 | 57 | 1500 | 20-22 | 5920*1500*1450 | 5910 |
| XMAZG-200/1250-30U | 200 | 1250*1250 | 72 | 2998 | 20-22 | 6700*1800*1680 | 8950 |
| XMAZG-500/1500-30U | 500 | 1500*1500 | 127 | 7550 | 20-22 | 11700*2130*1900 | 24500 |
| Cake Thickness | 30 mm |
|---|---|
| Chamber Volume | 1050 L |
| Cylinder Pressure | 20-22 Mpa |
| Filter Area | 70 m² |
| Filtration Pressure | 0.8 Mpa |
| Foundation Dimensions | 4050 x 500 x 1000 mm |
| Maximum Board Shift | 400 mm |
| Power | 2.2 kW |
| Weight | 3530 kg |
| Dimensions (L x W x H) | 4500 x 1300 x 1260 mm |
The primary function of the Industrial Grade Plate and Frame Hydraulic Filter Press is to effectively dewater sewage sludge, ensuring efficient filtration and treatment of wastewater.
This filter press can handle a maximum sludge cake thickness of 30 mm.
The total chamber volume of the filter press is 1050 liters.
The filtration pressure of the filter press is 0.8 Mpa.
The filter press requires a power supply of 2.2 kW for operation.
The dimensions of the filter press are 4500 mm in length, 1300 mm in width, and 1260 mm in height.
No, the filter press features a semi-automatic operation for ease of use while maintaining efficient processing.
The filter press is suitable for various industries, including sewage treatment plants, industrial wastewater management, food processing waste treatment, pulp and paper industry sludge dewatering, and mining and mineral processing applications.
The weight of the filter press is 3530 kg.
The filter area of the press is 70 m², allowing for maximum sludge processing.
The foundation dimensions required for installation are 4050 mm in length, 500 mm in width, and 1000 mm in height.
The robust industrial design ensures durability and reliability, allowing the filter press to withstand heavy-duty operations and extend its service life.
Yes, the filter press is suitable for mining and mineral processing applications, providing effective sludge dewatering.
The maximum board shift of the filter press is 400 mm.
Yes, the compact dimensions of the filter press allow for flexible installation options in various industrial settings.
