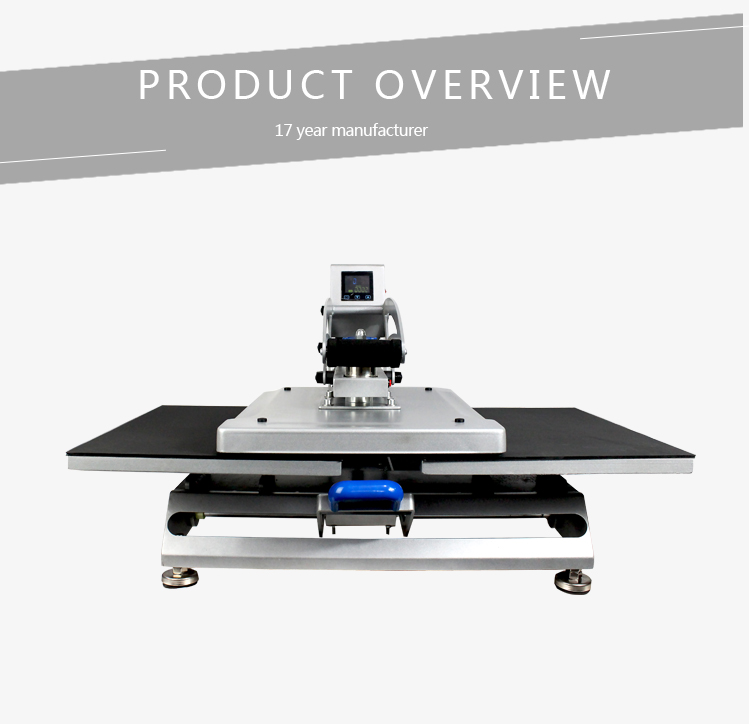

Industrial Double stations Automatic Sublimation Digital 16x20 Heat Press Machine Transfer

It is a commercial-grade heat press with two 16" x 20" platens that allows automatic pressing for dye-sublimation transfers. Designed for high-volume, continuous production, it features digital temperature and time controls and automatic open/close cycling to improve throughput and consistency.

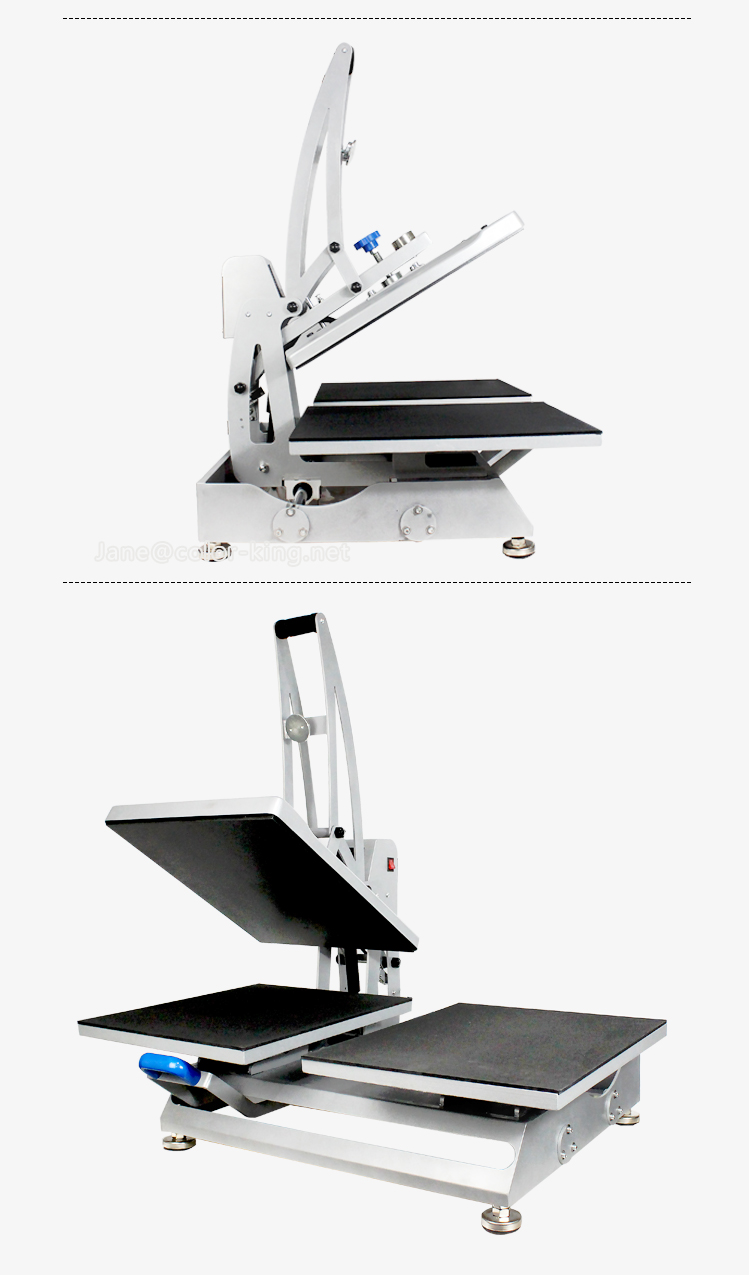

Double stations means the machine has two working platens. While one platen is pressing, the operator can load or unload the other platen. This overlap reduces idle time and increases output compared with a single-station press.

It is intended primarily for dye-sublimation transfers onto polyester fabrics and polyester-coated hard blanks (metal, coated ceramics, aluminum panels, etc.). It can also be used with heat-transfer vinyl and some coated substrates, but it is not effective for untreated 100% cotton unless using a special coating or transfer material.

Each platen measures 16 inches by 20 inches (approximately 40 x 50 cm), suitable for medium- to large-format garments and flat items.

Yes — it features automatic cycle control (automatic clamp/press and release) driven by its control system. Some models use pneumatic actuation for the automatic operation. Specific features may vary by supplier.

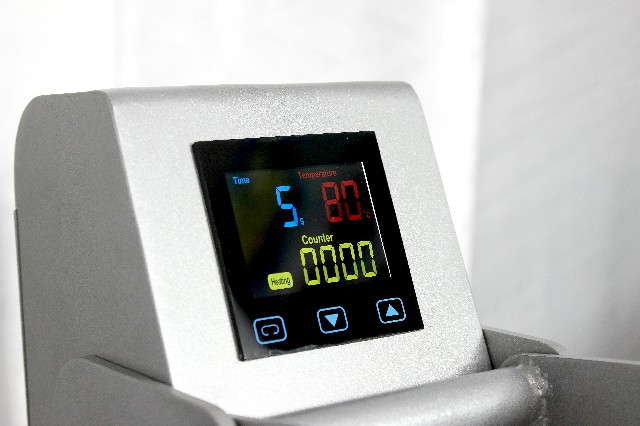

Typical sublimation processes use temperatures around 350–400°F (175–205°C). The digital controller usually allows precise temperature control up to the machine's maximum (check the model spec) and a programmable timer that can be set in seconds or minutes. Refer to vendor specs for exact limits.

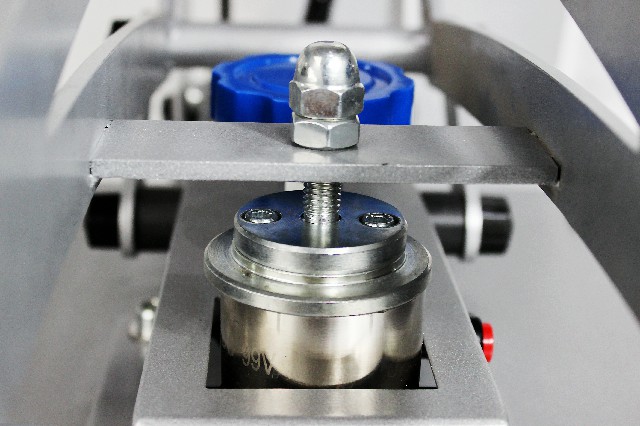

Pressure is typically adjustable to accommodate different substrate thicknesses. Adjustment methods vary by model: some use a manual pressure knob, others use adjustable pneumatic pressure. Confirm the adjustment method with the seller.

Industrial heat presses commonly come in 110–120V or 220–240V configurations depending on region. Power rating (amps/kW) varies by model. Always check the product specification or consult the supplier to ensure compatible electrical supply.

Cycle time depends on substrate, temperature, and transfer type. For many sublimation garment transfers, cycles range from about 15 to 60 seconds. Double-station operation significantly increases hourly throughput versus single-station units, but exact rates depend on your process and operator efficiency.

Basic steps: preheat the platen to the required temperature, position the substrate on the platen, place sublimation paper design face-down on the substrate and secure if needed, start the automatic cycle, and remove the finished piece after release and cooling. Always follow recommended pressure, time, and temperature for the specific material.

Many industrial models include thermal over-temperature protection, emergency stop buttons, insulated heating elements to reduce exterior heat, and safety interlocks. Exact features vary by manufacturer — verify safety specifications before purchase.

Some manufacturers offer interchangeable or optional platens (different sizes, rounded platens for sleeves, etc.). Check with the supplier for available accessories and compatibility with the double-station frame.

Regular maintenance typically includes keeping platens clean and free of adhesive residue, checking and tightening fasteners, inspecting pneumatic hoses and electrical connections, and replacing worn silicone pads or Teflon covers as needed. Follow the manufacturer's maintenance schedule for best results.

Most suppliers provide spare parts (heating elements, controllers, pneumatic parts, silicone pads) and technical support or service. Availability and lead times vary — confirm parts availability and warranty/support terms with the vendor before purchase.

Warranty coverage and installation/training services differ by seller. Common offerings include a limited parts warranty and optional on-site or remote setup/training. Always review the specific warranty terms and ask about installation, calibration, and training options prior to buying.
