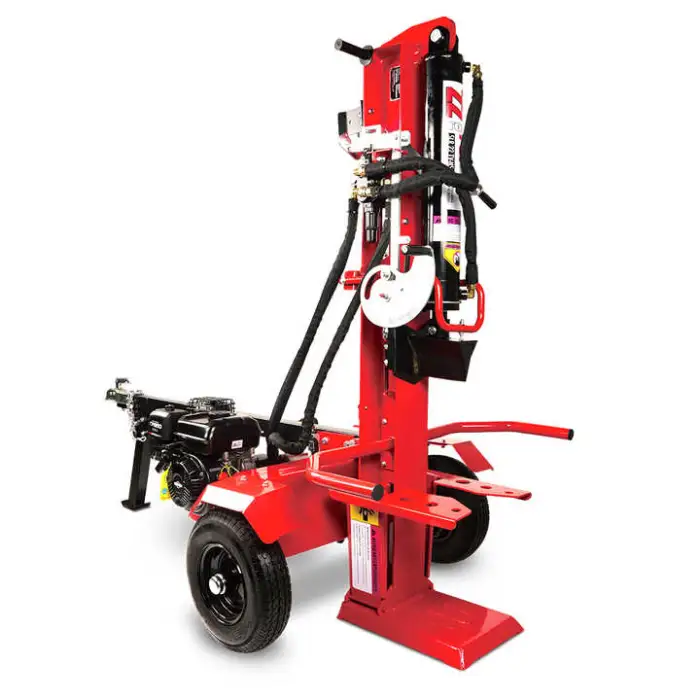

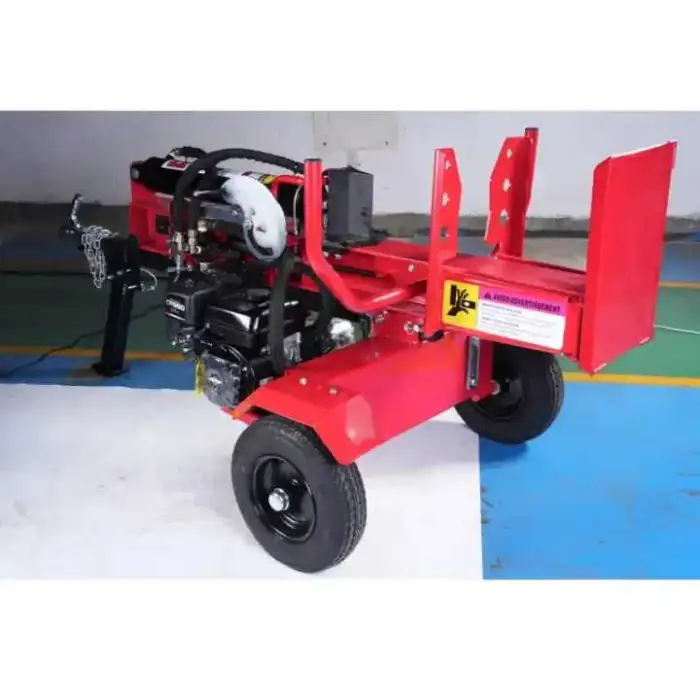

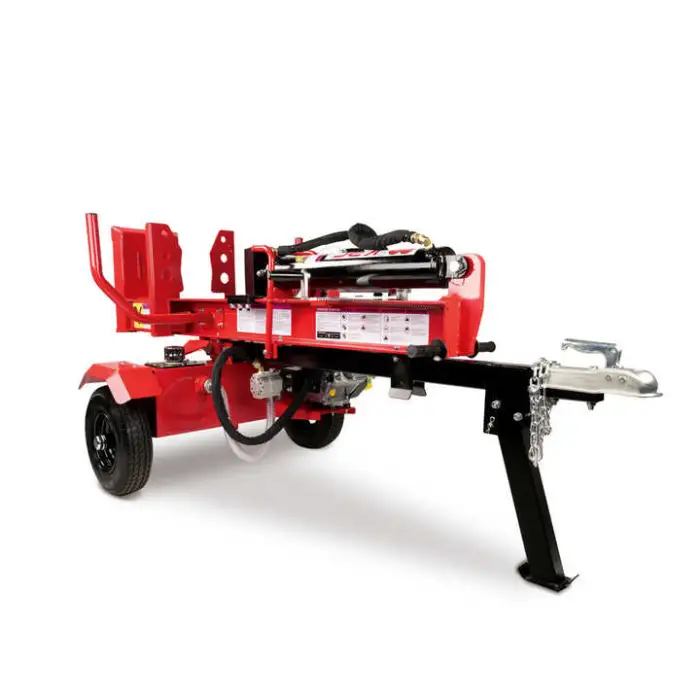

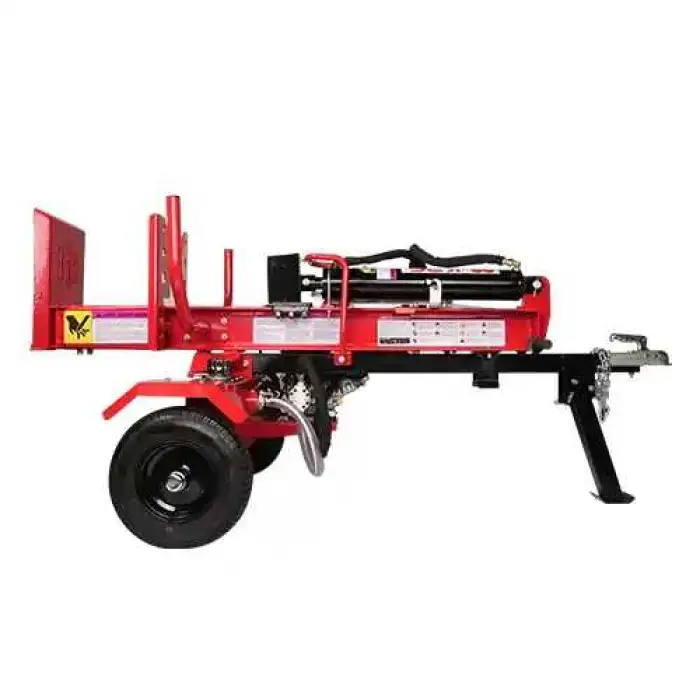

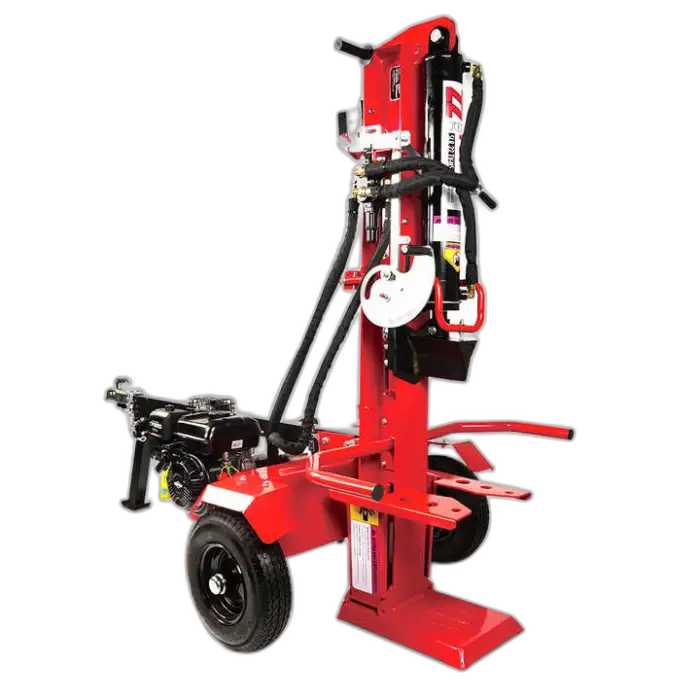

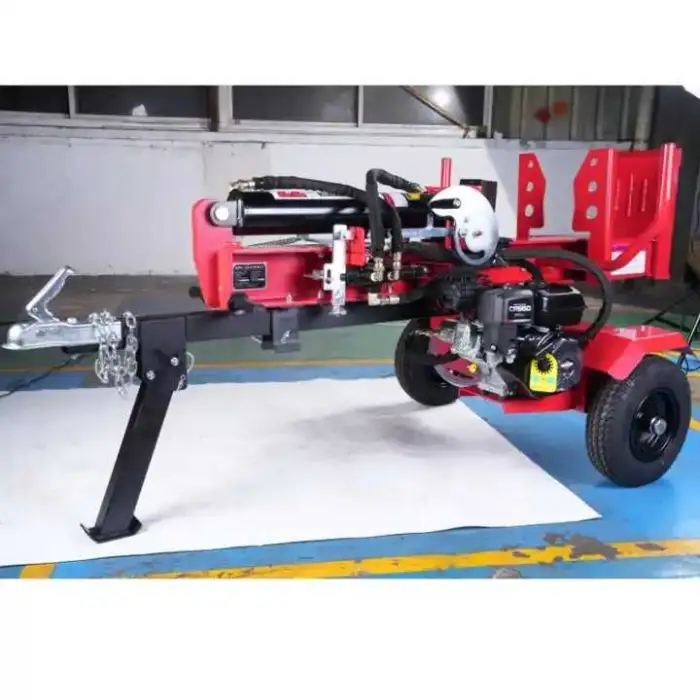

Hydraulic Log Splitter 22/26T CE Certificate Wood Splitter Hydraulic with Forest Machine Supplier Wood

This model is rated at 22/26 tonnes of splitting force, making it suitable for splitting hardwoods and large-diameter logs.

The unit is powered by a 7 HP gasoline engine. Use the correct grade of unleaded gasoline recommended by the engine manufacturer and follow the engine manual for oil type and maintenance.

Maximum log diameter is 500 mm (about 19.7 inches). The ram travel (load capacity/travel) is 610 mm, and the wedge height is 190 mm.

Typical cycle time is 13–18 seconds per stroke, depending on load and wood species.

Machine weight is 240 kg (single gross package weight 274 kg). Overall dimensions are 2300 × 1050 × 1030 mm; packed size is 220 × 58 × 60 cm.

CE certification indicates the product conforms to applicable EU safety, health and environmental protection standards. It means the machine meets regulatory requirements for sale and use within the European Economic Area.

According to the specifications, the hydraulic reservoir/valve is listed as 100 L with a maximum operating pressure of 21 MPa. The machine uses a two-stage pump (listed as 11 GAL two-stage pump). Refer to the operator manual for exact fluid volumes and recommended hydraulic oil types.

Follow standard safety practices: wear eye and hearing protection and gloves, keep bystanders clear, ensure a stable level working surface, use the machine’s control lever(s) as intended, never place hands near the wedge or moving ram, and engage any provided safety locks or supports before servicing. Always follow the operator manual and CE safety instructions.

Yes. With its high splitting force, sturdy construction and 7 HP engine, it is suitable for farms, forestry operations and tree service professionals, as well as demanding residential use.

Inspect daily for leaks, loose fasteners and damaged hoses. Keep the wedge sharp and straight, change hydraulic oil and filters per the manufacturer’s schedule, check engine oil and air filter regularly, and lubricate pivot points. Always follow the detailed maintenance schedule in the operator manual.

Common spare parts include wedge replacements, hydraulic hoses and seals, filters, hydraulic oil, engine oil, spark plugs and belts (if applicable). Contact the supplier for an official spare parts list and part numbers.

The machine weighs about 240 kg, so use appropriate equipment (forklift, pallet jack or trailer) for transport. Secure the splitter during transport and follow local requirements for towing or moving heavy equipment. Consult the supplier for optional transport accessories.

Warranty terms and after-sales support vary by supplier and region. Contact the forest machine supplier or your local dealer for specific warranty length, coverage details and authorized service centers.

Ideal uses include home heating/firewood preparation, landscaping and garden maintenance, campsite or property wood preparation, farms, and professional tree service or forestry operations.
