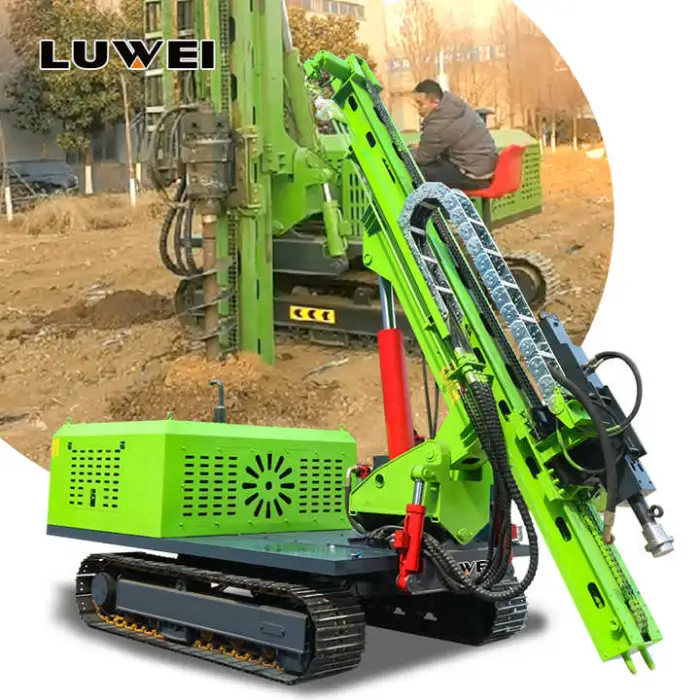

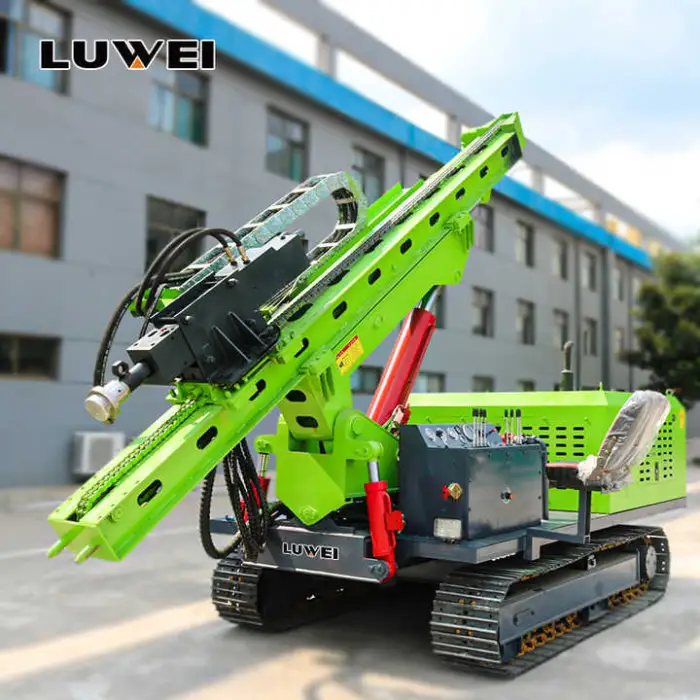

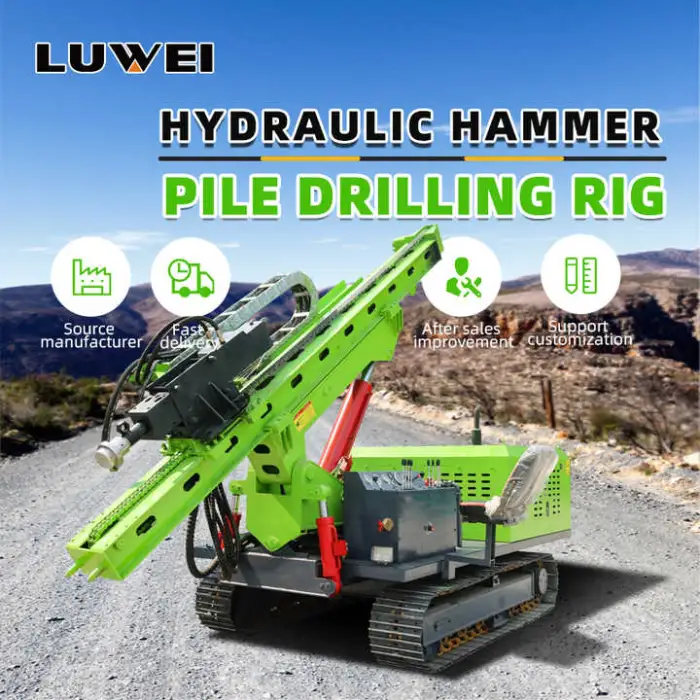

Hydraulic Hammer Solar Powered Pile Driver Machine

It is used for efficient pile driving in bridge construction, foundation work, docks and marine structures, soil stabilization, and other infrastructure development and repair tasks.

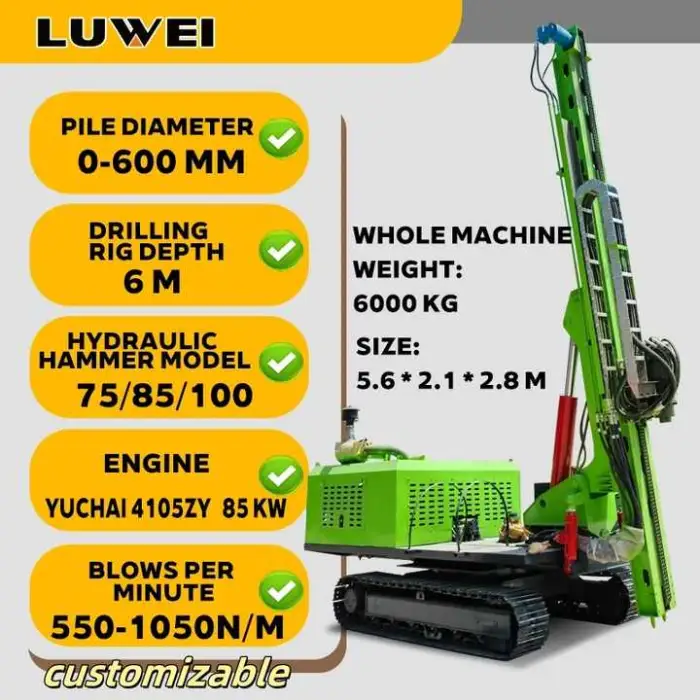

Key specs include piling speed 550–1050 n/min, impact frequency 350–800 bpm, engine Yuchai 4105ZY 85 kW, hydraulic system pressure 22 MPa, walking motor rated pressure 18 MPa, weight ~6000 kg, dimensions 3.6 × 2.1 × 2.8 m, effective pile stroke 0–4000 mm, drilling depth up to 6 m, and optional hydraulic hammer models 75/85/100.

The machine is designed to use solar energy to supply power to its electrical/hydraulic systems, reducing reliance on fossil fuels. Exact PV array size, battery capacity and runtime depend on the configuration—please consult LUWEI for detailed solar system specifications and site-specific sizing.

The product description highlights solar-powered operation, but many site deployments use hybrid configurations (solar plus backup diesel generator or battery storage) for continuous operation under low-insolation conditions. Confirm available configurations with the manufacturer.

The machine is compatible with a wide range of common piles (steel H-piles, tubular steel, concrete piles) using the optional hammer models (75/85/100). Exact pile diameter and wall-thickness limits depend on the selected hammer and tooling—provide pile specifications to LUWEI for confirmation.

Piling speed (number of blows) is 550–1050 n/minute according to the spec sheet. The impact frequency range is 350–800 blows per minute, adjustable based on hammer model and settings to suit ground conditions.

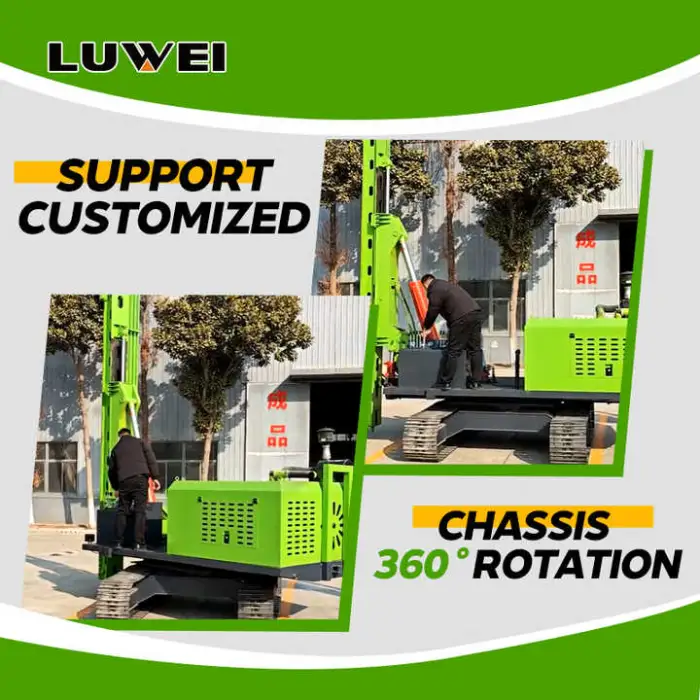

The machine has a 360° rotation angle for enhanced maneuverability and is equipped with a walking motor (rated pressure 18 MPa). With a shipping/operating weight around 6000 kg and compact footprint (3.6 × 2.1 × 2.8 m), it is relatively easy to position on typical construction sites.

It is powered by a Yuchai 4105ZY engine rated at 85 kW. The overall hydraulic/electrical efficiency is described with an 85 kW engine power rating in the product details.

Regular maintenance includes hydraulic fluid and filter checks, hammer and tooling inspection, engine service (oil, filters), solar system inspection (panels, wiring, batteries if fitted), and lubrication of pivoting parts. Frequency depends on operating hours and conditions—follow the manufacturer's maintenance schedule or contact LUWEI for a recommended service plan.

While the description emphasizes robust hydraulic design and 360° rotation, typical safety features to implement include emergency stop systems, overload protection, safety interlocks for hammer engagement, operator guarding, and site-specific PPE and exclusion zones. Confirm standard and optional safety systems with LUWEI.

Selling unit is a single item. Single package size is listed as 380 × 230 × 300 cm and single gross weight about 6500 kg, which generally allows transport on a heavy-duty flatbed or low-loader—check local transport regulations and securing requirements before moving.

Yes. The machine supports optional hydraulic hammer models (75/85/100) and spare parts should be available through LUWEI or authorized dealers. For long-term operations, order a spare parts kit and confirm lead times for consumables and wear parts.

Using solar power reduces on-site fuel consumption and emissions compared with diesel-only machines, can lower operational noise and operating costs, and supports greener construction projects. Actual environmental gains depend on system configuration and local solar resources.

Operators should receive training on hydraulic hammer operation, safe pile-driving procedures, solar/hybrid power system operation (if applicable), daily inspections, and emergency response. Manufacturer-provided/operator training and proof of competency are recommended for safe and efficient use.

Contact LUWEI or an authorized dealer with your project requirements (pile type/size, site location, desired hammer model, and preferred solar configuration). They can provide quotes, lead times, warranty terms, service contracts, and technical support options tailored to your needs.
