Basic parameters of the equipment:
| Model | Rated load | Lifting height | Rising time | Descending time | Net weight | Passing width | Machine width | Machine height |
| TLT235SC (U) (Symmetric installation) | 3500 kg 7875 lb | 1850 mm 72.8 in | ≤50s | ≥20s ≤ 40s | 660kg 1455 lb | 2424 mm 95.4 in | 3392 mm 133.5 in | 3840 mm 151.2 in |
| TLT235SC (U) (Asymmetric installation) | 2378 mm 93.6 in | 3544mm 139.5 in | ||||||
| TLT235SC (Symmetric installation) | 3500 kg 7875 lb | 1850 mm 72.8 in | ≤50s | ≥20s ≤ 40s | 660kg 1455 lb | 2486 mm 97.9 in | 3420 mm 134.6 in | 3840 mm 151.2 in |
| TLT235SC (Asymmetric installation) | 2415 mm 95.1 in | 3563mm 140.3 in | ||||||
| TLT240SC (Symmetric installation) | 4000 kg 9000 lb | 1850 mm 72.8 in | ≤50s | ≥20s ≤ 40s | 690kg 1521 lb | 2486 mm 97.9 in | 3420 mm 134.6 in | 3840 mm 151.2 in |
| TLT240SC (Asymmetric installation) | 2415 mm 95.1 in | 3563mm 140.3 in | ||||||
| TLT235SB | 3500 kg 7875 lb | 1850 mm 72.8 in | ≤50s | ≥20s ≤ 40s | 610kg 1345 lb | 2486 mm 97.9 in | 3370 mm 132.7 in | 2860 mm 112.6 in |
| TLT240SB | 4000 kg 9000 lb | 1850 mm 72.8 in | ≤50s | ≥20s ≤ 40s | 645kg 1422 lb | 2486 mm 97.9 in | 3370 mm 132.7 in | 2860 mm 112.6 in |
One-piece column design, with decent and elegant appearance and convenient for installation.
Fully automatic unlocking safety device is adopted for operating only with UP/ DOWN button.
The cable and oil pipe are fully concealed; with decent and elegant appearance.
Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.
Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle from tilting.
24V low voltage control box(IP54 level)ensures operator's safety.
Cylinder travel limit switch effectively protects cylinder and extends its lifespan.
Emergency lowering valve can be manually operated to make lift lower safely in case power is off.
Anti-explosion valve is deployed to make lift slower or stop lowering for the case of oil pipe explosion ,thus protects operator's safety and vehicle not being damaged.
CE-STOP function with safety alarm beep would automatically warn operators to keep safe distance from lift when it lowers to about 250mm high from ground.
Door rubber pad protects car door from being damaged in collision.

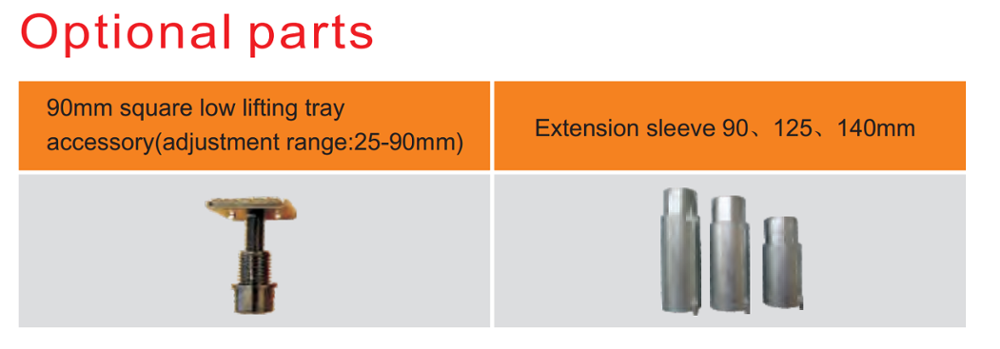

More lifting pads with different height meets the requirements for light lorries and SUVs.

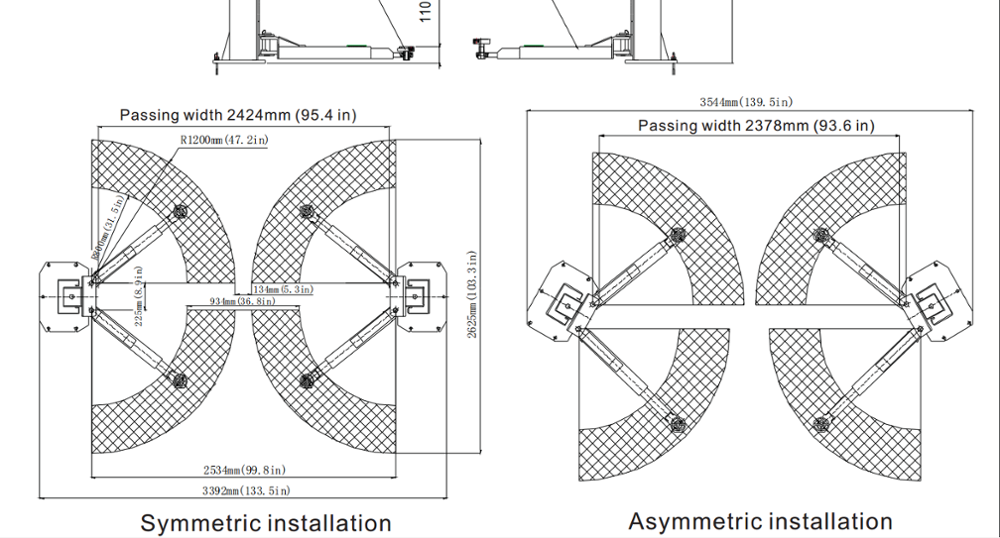

Symmetric and asymmetric installation types are optional.
Passed 115% dynamic loading test and 150% static loading test .
CE certificated.
| Rated load: | 3500kg |
| Lifting height: | 1850mm |
| Initial height: | 110mm |
| Lifting time: | ≤50s |
| Lowering time: | ≥20s≤40s |
| Passing width for symmetric installation: | 2424mm |
| Overall width for symmetric installation: | 3392mm |
| Passing width for asymmetric installation: | 2378mm |
| Overall width for asymmetric installation: | 3544mm |

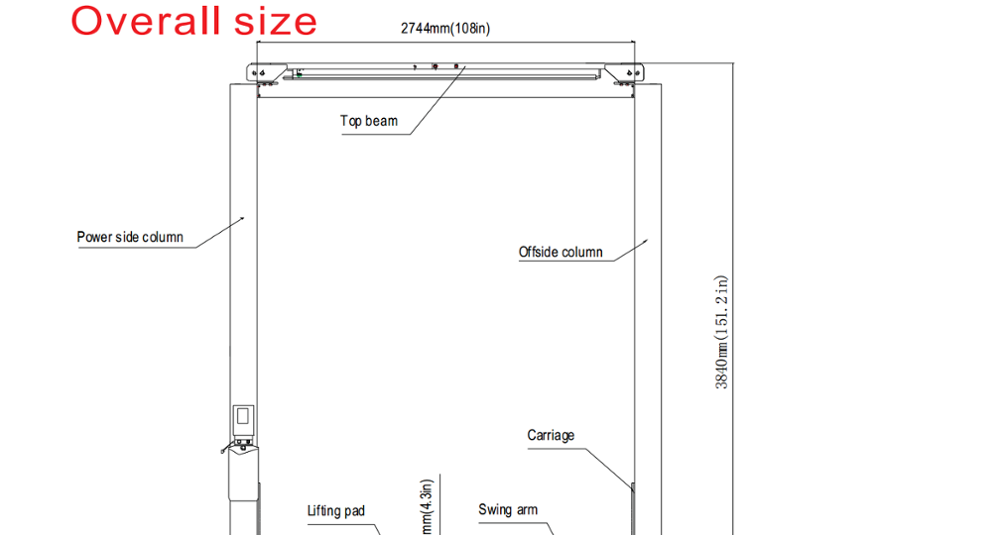

| Overall height: | 3840mm |
| Motor power: | 2.2kw |
| Motor voltage: | 3 phase/380v or Single phase/220V |
| Working noise: | ≤75dB(A) |
| Working oil pressure: | 16M Pa |
| Working temperature: | -5℃ ~+ 40℃ |
| Transport/storage temperature: | -5℃~+ 40℃ |
| Relative humidity: | Temperature+ 30℃ ,relative humidity 8 0 % |
| Height above sea level: | No more than 2000m |
| Rated load | 3500kg |
|---|---|
| Lifting height | 1850mm |
| Initial height | 110mm |
| Lifting time | ≤50s |
| Lowering time | ≥20s≤40s |
| Passing width for symmetric installation | 2424mm |
| Overall width for symmetric installation | 3392mm |
| Passing width for asymmetric installation | 2378mm |
| Overall width for asymmetric installation | 3544mm |
| Overall height | 3840mm |
| Motor power | 2.2kw |
| Motor voltage | 3 phase/380v or Single phase/220V |
| Working noise | ≤75dB(A) |
| Working oil pressure | 16M Pa |
| Working temperature | -5℃ ~+ 40℃ |
| Transport/storage temperature | -5℃~+ 40℃ |
| Relative humidity | Temperature+ 30℃ ,relative humidity 8 0 % |
| Height above sea level | No more than 2000m |
The Launch TLT235SC(U) hydraulic car lift has a maximum weight capacity of 3500 kg (7875 lb).
The lifting height of the TLT235SC(U) is 1850 mm (72.8 in).
The lifting time is ≤50 seconds and the lowering time is ≥20 seconds, with a maximum lowering time of ≤40 seconds.
The TLT235SC(U) can be installed in symmetric or asymmetric configurations.
It includes a fully automatic unlocking safety device, emergency lowering valve, anti-explosion valve, and a CE-STOP function with a safety alarm beep.
Yes, it comes with more lifting pads of different heights to meet the requirements for light lorries and SUVs.
The overall height of the TLT235SC(U) is 3840 mm (151.2 in).
The motor power is 2.2 kW, and it can operate on a three-phase voltage of 380V or a single-phase voltage of 220V.
The working temperature range is -5℃ to +40℃, and the relative humidity should not exceed 80% at 30℃.
Yes, the TLT235SC(U) has CE certification and has passed dynamic and static loading tests.
The working noise level of the TLT235SC(U) is ≤75 dB(A).
The net weight of the TLT235SC(U) is 660 kg (1455 lb).
Yes, the TLT235SC(U) is designed for use in both garages and workshops.
The passing width for symmetric installation is 2424 mm (95.4 in).
Yes, it features a wire rope equalization system that ensures synchronous movement of the carriages, effectively preventing vehicle tilting.
