Huazheng Electric High Power Cable Route Tester Underground Cable Fault Locator

  • SKU: 1600078373459
  • Category: Networking Tools

Product Overview

Price per item

R347,386.40

Asset Finance Available

Explore funding with Afrimart's partners. Subject to provider approval.

Check Funding Options
Section:
Computers
SKU:
1600078373459
Payment security and privacy badges

Product Description

HZ-A30 Complete Cable Fault Location & Testing System

Product Overview

The HZ-A30 Cable Fault Location System is an integrated cable testing and fault detection solution designed to identify, measure and accurately locate faults in underground and power cables. The system combines advanced multi-pulse testing technology, high-voltage discharge capabilities and acoustic-magnetic pinpointing technology to help technicians detect and locate cable faults efficiently.

The system is suitable for testing power cables of different voltage levels, cross-sections and insulation materials. It can identify open circuits, short circuits, low-resistance faults, high-resistance leakage and high-resistance flashover faults.

The complete system consists of the HZ-A30 cable fault pre-locator, HZ-G35A high-voltage power supply and HZ-B acoustic-magnetic pinpoint locator. A cable path locator is also available as an optional component.

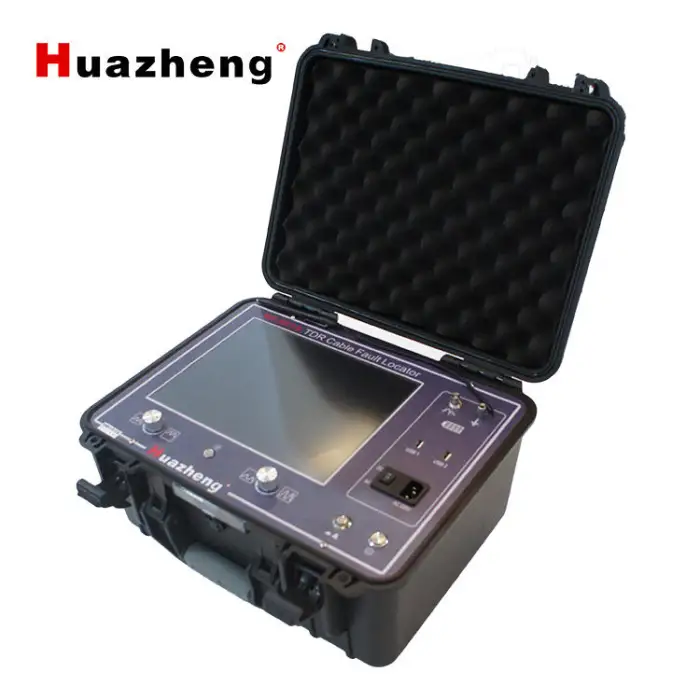

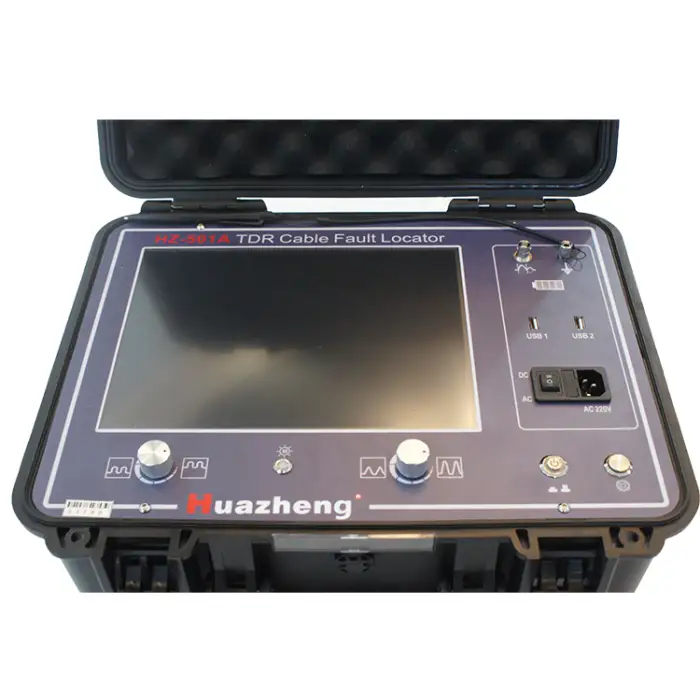

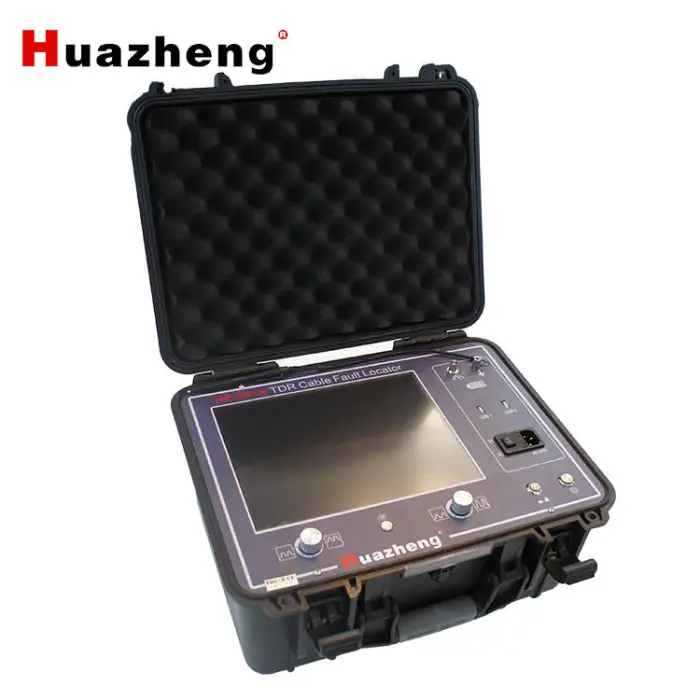

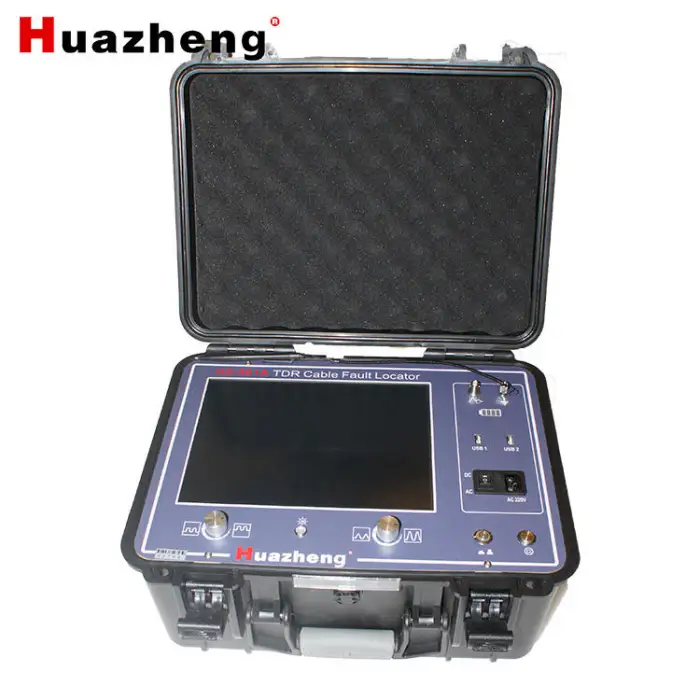

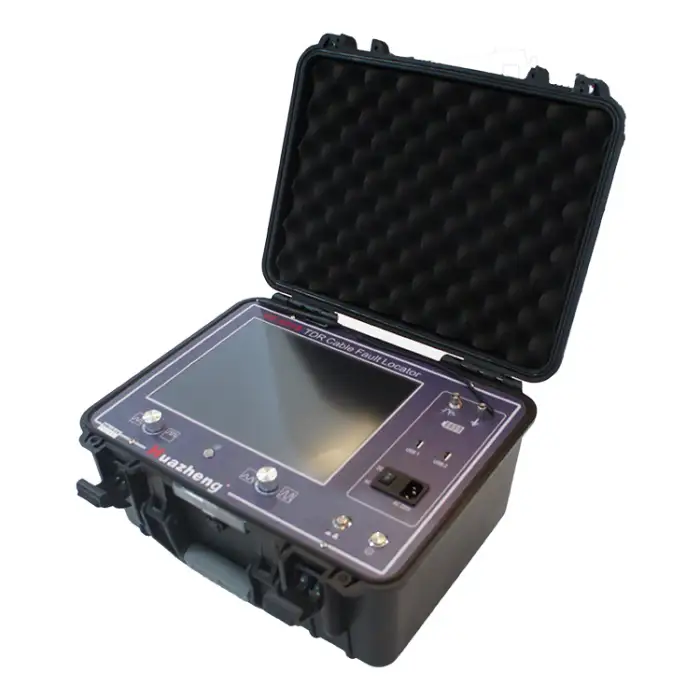

1. HZ-A30 Intelligent Multi-Pulse Cable Fault Tester

Technical Specifications

SpecificationDetails
ModelHZ-A30
Display12.1-inch Industrial LCD
Operating SystemLinux
Storage32GB
LanguagesChinese, English, Russian
Test MethodsLow-voltage pulse, high-voltage flash and multiple pulse
Test Distance5 m – 100 km
Minimum Test Distance5 m
Positioning Accuracy±0.2 m
System Test ErrorLess than ±1%
Pulse Width100 ns – 10 μs
Pulse Amplitude120V
Gain Adjustment-20 to +40 dB
Output Impedance120 Ohms
Sampling Frequencies3.125, 6.25, 12.5, 25, 50, 100, 200 and 400 MHz
Maximum Impulse Voltage≤40 kV (multi-pulse generator)
Power SupplyAC 220V ±10% / DC 12V (7Ah)
Power Consumption≤15W AC / ≤20W DC
Continuous Operating TimeApproximately 6 hours
Main Unit Weight5 kg
Dimensions390 × 280 × 160 mm
Operating Temperature-20°C to +40°C
Relative Humidity≤80%

Key Features

Automatic fault waveform identification and analysis.

Multiple pulse testing technology.

Automatic fault distance calculation and display.

Wireless data transmission through Wi-Fi and SIM interface.

Waveform storage, playback and analysis.

Portable design for on-site cable testing.

2. HZ-B Acoustic-Magnetic Cable Fault Pinpoint Locator

Product Overview

The HZ-B is designed to accurately pinpoint underground cable faults using acoustic and magnetic detection technology. It detects the sound generated by high-voltage impulse discharges at the cable fault location, allowing technicians to identify the precise position of the fault from ground level.

Technical Specifications

SpecificationDetails
ModelHZ-B
Detection TechnologyAcoustic-Magnetic
Sensor Dynamic RangeGreater than 104 dB
Impact Discharge Sound AmplificationGreater than 90 dB
Maximum Impact Discharge Volume84 dB(A)
Display320 × 240 LCD
Power SupplyReplaceable alkaline / rechargeable lithium-ion battery
Adjustable Handle Height450–750 mm
Signal Cable Length1.2 m

Standard Accessories

Receiver host with shoulder strap.

Ground-penetrating microphone sensor.

Height-adjustable handle.

Headphones.

Signal connection cable.

Hard-ground probe.

Grass probe.

6 × AA alkaline batteries.

User manual.

Key Features

Intelligent background noise reduction.

Adjustable impact discharge sound amplification.

Suitable for locating faults under different ground surfaces.

Ground probes for hard surfaces and grass.

Portable design for field operations.

3. HZ-G35A Integrated High-Voltage Power Supply

Product Overview

The HZ-G35A is an integrated high-frequency, high-voltage power supply designed to generate controlled high-voltage impulse discharges for cable fault testing. It works together with cable fault testers and pinpoint locating instruments to measure fault distances and identify fault positions.

Technical Specifications

SpecificationDetails
ModelHZ-G35A
Output MethodPulse Output
Maximum Output VoltageDC Negative Voltage ≤32 kV
Working Current≤10 A
Operating ModesSingle Pulse / Continuous Pulse
Built-in Capacitance3 μF / 32 kV
Discharge Energy≤1536 J
Pulse Period4–8 seconds (adaptive)
Automatic DischargeYes
Power Supply220V ±10%
Display800 × 480 Touchscreen LCD
Continuous Operating TimeAt least 6 hours
Operating Temperature-10°C to +40°C
Working Humidity≤80%
Maximum Operating Altitude≤1,000 m
Dimensions550 × 300 × 435 mm
Weight≤28 kg

Key Features

Integrated design with built-in capacitors.

Touchscreen operation.

Automatic voltage regulation and protection.

Single and continuous impulse discharge modes.

Emergency stop function.

Automatic voltage reduction and discharge during shutdown.

Portable trolley-style chassis.

4. Optional Cable Path Locator

The cable path locator consists of a transmitter and receiver used to identify the route and burial depth of underground cables.

SpecificationDetails
Detection DistanceUp to 5 km
Detection DepthUp to 3 m
Routing Error5 cm
Transmitter Frequency9.6 kHz
Transmitter Output Power5W
Receiver Input Frequency9.6 kHz
Probe Routing Error±2 cm
Burial Depth Error±5 cm
Receiver Display320 × 240 LCD
Battery9V rechargeable lithium battery
Operating TimeApproximately 8 hours

Applications

Underground power cable fault detection.

Electrical utility maintenance.

Industrial power distribution networks.

Railway signal control cables.

Airport signal control cables.

Street lighting cable networks.

Electrical infrastructure inspection and maintenance.

Important: The HZ-G35A is specified for cable fault testing on power cables rated up to 35 kV. High-voltage operation must be performed by suitably qualified personnel using appropriate safety procedures.
