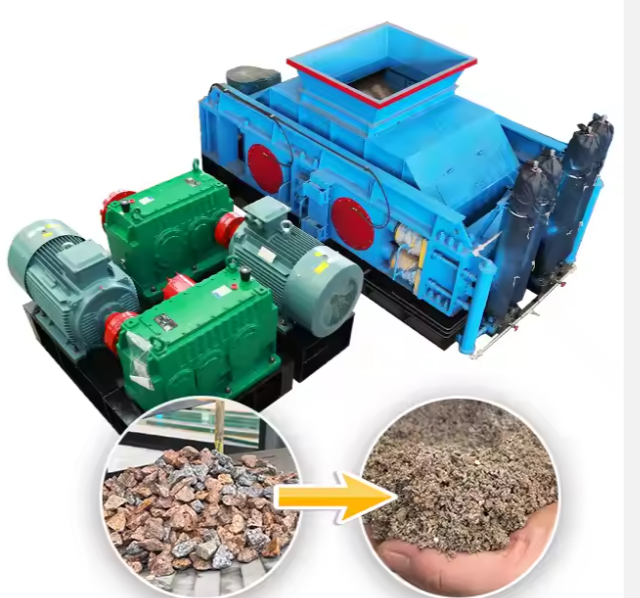

HSM 2PGY800*800 Hydraulic Double Roller Crusher

The HSM 2PGY800*800 Hydraulic Double Roller Crusher is engineered for heavy-duty material processing, making it an ideal solution for industries that require efficient and high-output crushing. With its robust design, advanced components, and exceptional performance, this crusher ensures minimal downtime and maximum productivity.

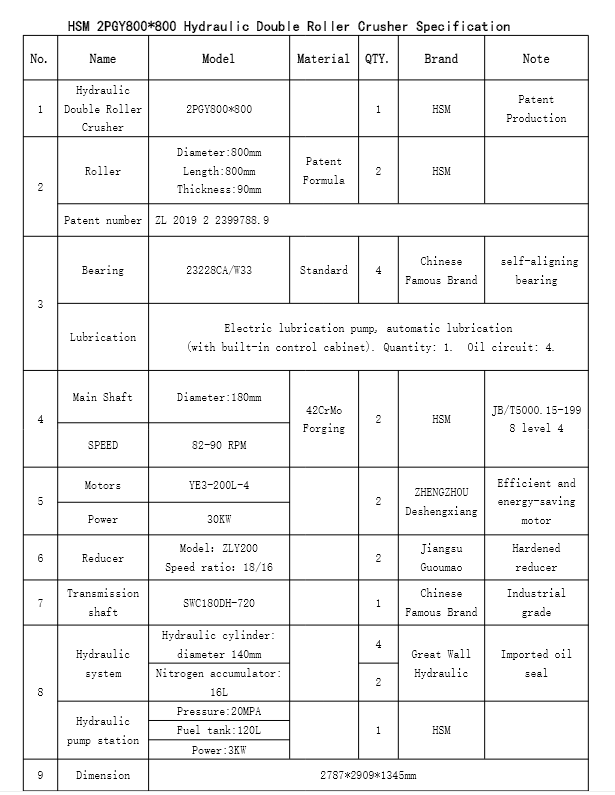

Key Features:

Model: 2PGY800*800
This heavy-duty crusher model is designed to meet the demands of intense crushing tasks, ensuring reliable and consistent performance in various industries.

Rollers:

• Diameter: 800mm
• Length: 800mm
• Thickness: 80mm
• Crafted with a patented formula for optimal durability and effective material crushing.

Bearings:

• Model: 2322BCA/W33
• Quantity: 4
• Chinese famous brand, self-aligning for smooth operation and long service life.

Lubrication System:

• System: Electric lubrication pump with automatic lubrication and built-in control cabinet.
• Oil Circuit Quantity: 4
• This system ensures all moving parts are efficiently lubricated, reducing friction and wear.

Main Shaft:

• Material: 42CrMo
• Diameter: 180mm
• High-strength and durable, built to withstand high forces.
• Speed: 82-90 RPM
• Adjustable to cater to different crushing needs.

Motors:

• Model: YE3-200L-4
• Power: 30kW per motor, total 60kW
• These efficient, energy-saving motors from Zhenzhou Dengfengxiang reduce operational costs while providing reliable performance.

Reducer:

• Model: ZLY200
• Speed Ratio: 15/16
• Known for its rugged construction and reliability, sourced from Jiangsu Guomao.

Transmission Shaft:

• Model: SWC180DH-720
• Industrial-grade shaft ensures robust and efficient power transmission.

Hydraulic System:

• Cylinders: Diameter 140mm
• Nitrogen Accumulator: 16L
• Pressure: 20MPa
• Fuel Tank: 120L
• Power: 3kW
• Brand: Great Wall Hydraulic, with imported oil seals for increased longevity.

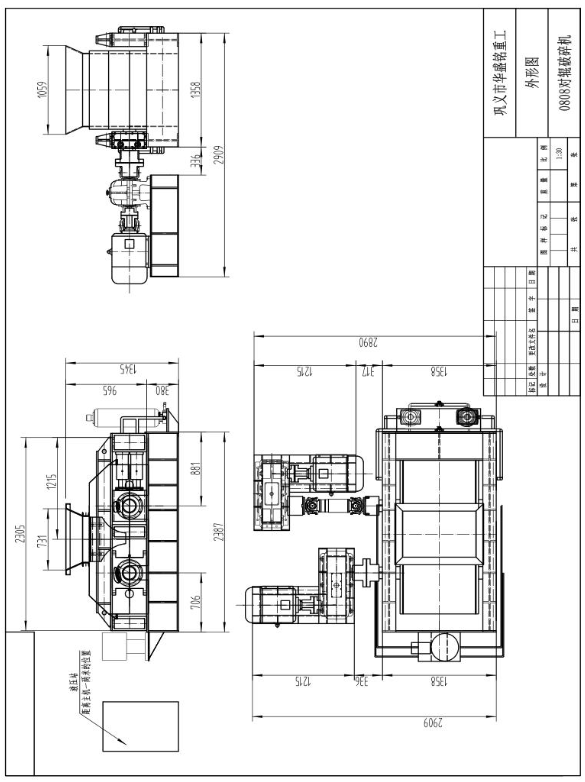

Dimensions:

• Size: 2787 x 2909 x 1345mm
• Compact but powerful, designed to fit well into industrial setups.

Weight:

• 8 tons
• A heavy-duty machine built to handle large volumes of material with ease.

Applications:

• Mining: Efficiently processes various ores and minerals.
• Construction: Ideal for breaking down construction materials like stone and aggregates.
• Recycling: Perfect for recycling industries to crush materials like scrap metal or plastics.

Conclusion:

The HSM 2PGY800*800 Hydraulic Double Roller Crusher is a top-tier choice for industries needing high-efficiency and heavy-duty crushing solutions. With its advanced lubrication, durable components, and energy-efficient motors, this crusher is designed to provide maximum output with minimal downtime. Whether in mining, construction, or recycling, this crusher offers the reliability and performance needed for demanding tasks.
