Horizontal Directional Drilling Rigs Machine Underground Drilling
Asset finance available
Do you want funding for this equipment?
Afrimart can connect you with trusted funding partners who specialise in asset finance for businesses like yours. Compare options and apply in minutes — final approval is subject to provider review.
Check funding options
Secure & no obligation
- Section : Machinery
- Category : Drilling Rigs
- SKU : 1600976620819

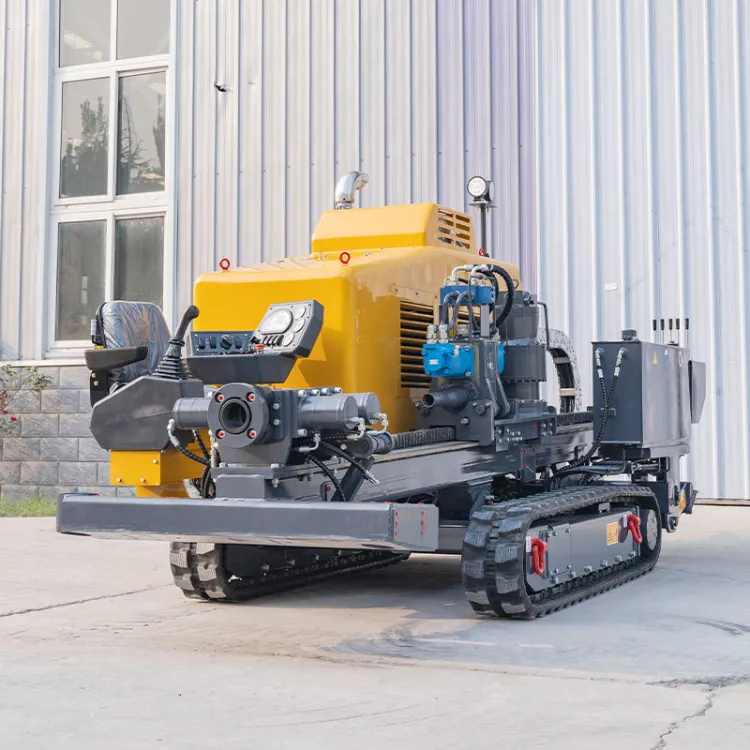

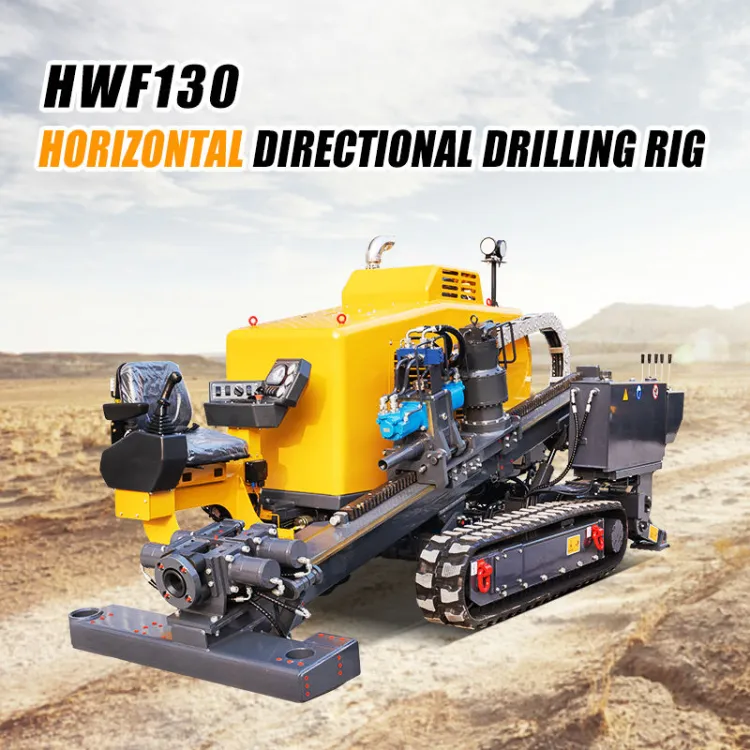

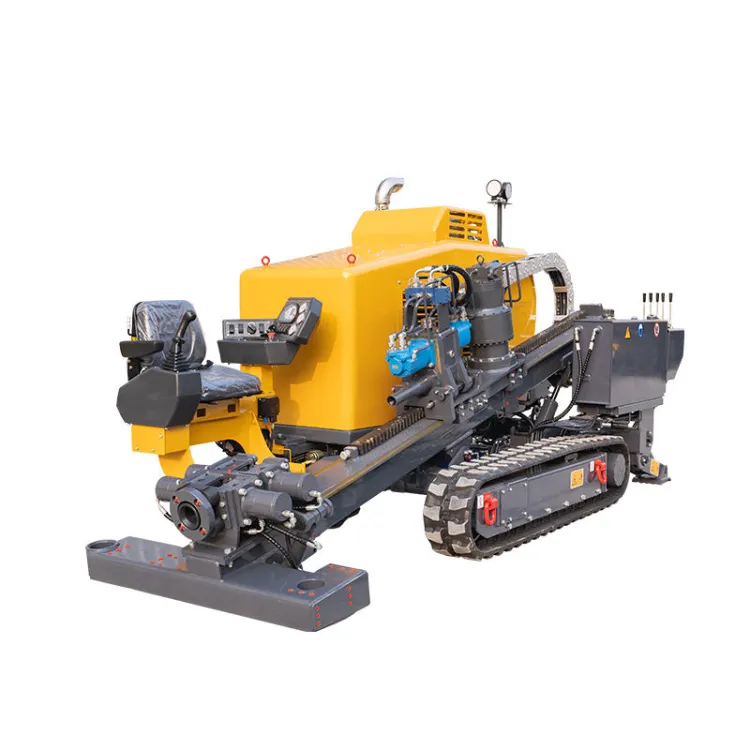

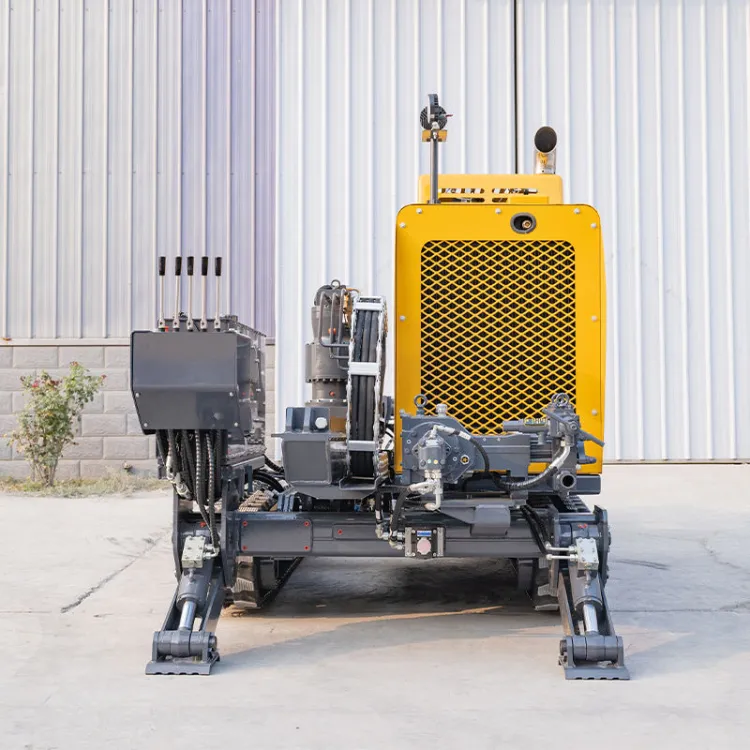

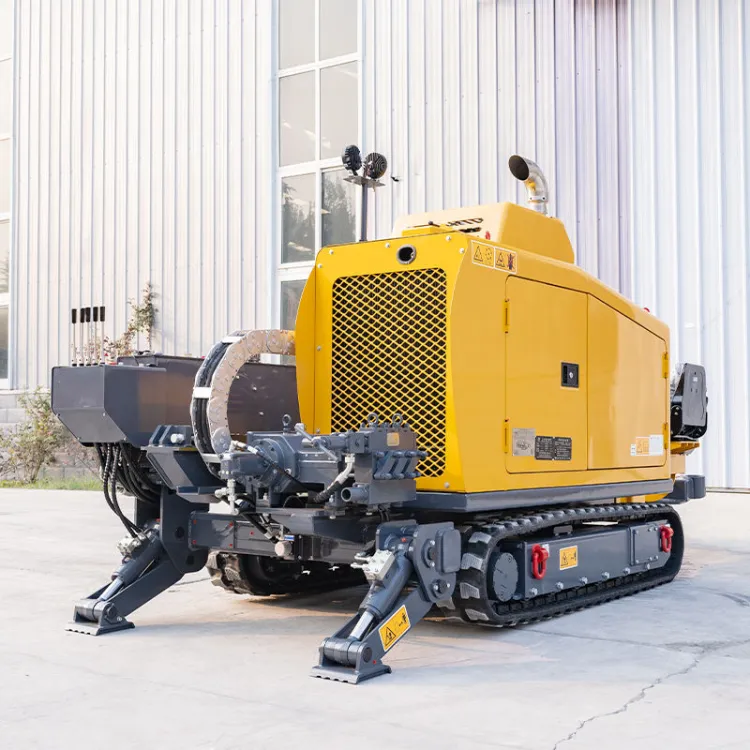

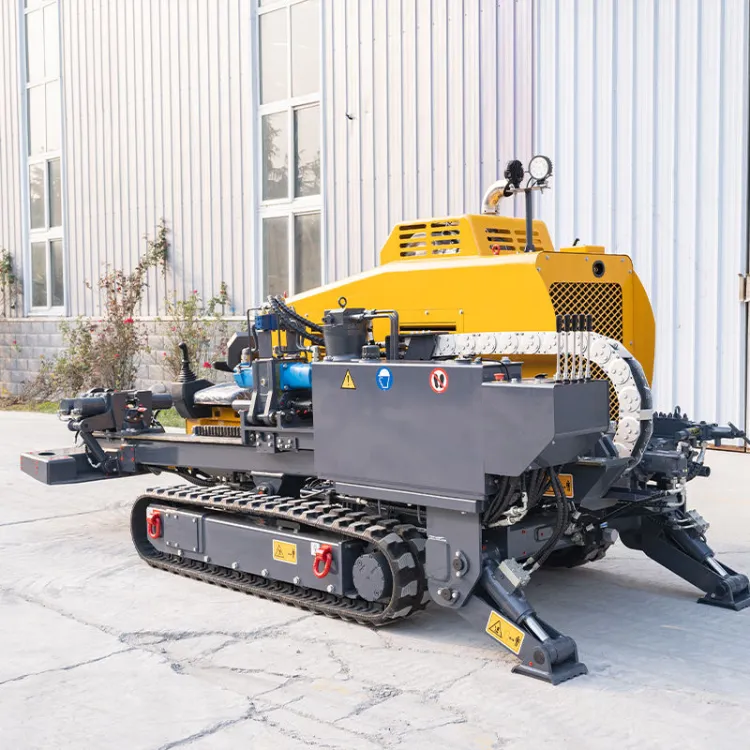

Horizontal Directional Drilling Rigs Machine Underground Drilling
The Horizontal Directional Drilling Rigs Machine Underground Drilling is a powerful machine for drilling water wells and underground holes. It runs on diesel power and works with 220V or 380V electricity. This rig can drill up to 20 meters deep and make holes from 300 mm to 1000 mm wide. It is made by the famous brand hengwang and comes from Shandong. The machine weighs 5000 KG and is easy to move around. It has a strong engine and a smart PLC system that helps it work well. This Horizontal Directional Drilling Rigs Machine Underground Drilling is great for big jobs that need speed and power.
Specifications
| Attribute | Details |
|---|---|
| Product Name | Horizontal Directional Drilling Rigs Machine Underground Drilling |
| Usage | Water Well |
| Type | Rotary Drilling Rig |
| Drilling Depth | Max. 20m |
| Drilling Diameter | 300 mm, 1000 mm |
| Power Type | Diesel |
| Voltage | 220V/380V |
| Core Components | Engine |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Not Available |
| Key Selling Points | Famous Brand, PLC |
| Brand Name | hengwang |
| Weight | 5000 KG |
| Dimension (L*W*H) | 4200x1680x2170 mm |
| Mobility | First-rate |
| Push-Pulling Power | 135 kN |
| Maximum Speed | 40 m/min |
| Rotating Torque | 3200 Nm |
| Rotate the Highest Speed | 230 r/min |
| Mid-Mud Pump Maximum Flow | 100 L/min |
| Diamond Diameter x Length | 52/60x1.8 |
| Maximum Entry Angle | 18° |
| Rated Power | 81 kW / 2200 r/min |
| Warranty | 1 Year |
| Warranty of Core Components | 6 Months |
| After-Sales Support | Free replacement parts & online technical support |
