High-Level Radar Level Meter Liquid Intelligent Radar Level Sensor

High-Level Radar Level Meter Liquid Intelligent Radar Level Sensor

The High-Level Radar Level Meter Liquid Intelligent Radar Level Sensor is a state-of-the-art solution for precise and reliable level measurement in liquid and solid applications. Designed for accuracy and durability, this radar sensor offers advanced features to meet the demands of industrial environments.

Key Features:

• High Accuracy: Provides precise level measurement with an accuracy of ±2mm, ensuring reliable performance.
• Wide Application: Suitable for measuring liquid and solid levels in a variety of industrial applications such as chemical processing, water treatment, and storage tanks.
• Advanced Radar Technology: Uses intelligent radar technology for accurate and interference-free level detection.
• Blind Area: Features a minimal blind area of just 100mm, improving measurement accuracy close to the sensor.
• Signal Output Options: Supports 4-20mA and RS485 output, making it easy to integrate into existing monitoring and control systems.

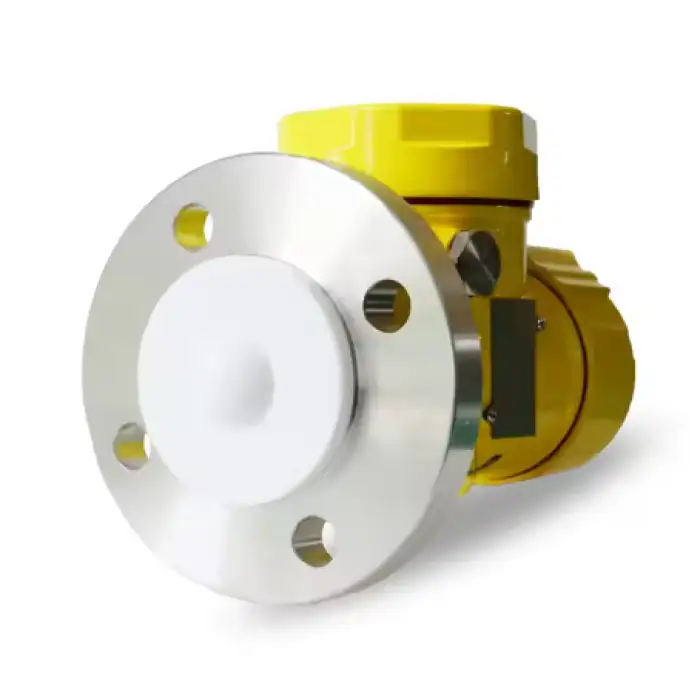

• Durable Construction: Built with SS304 stainless steel material and PTFE lens antenna for long-lasting performance in harsh environments.

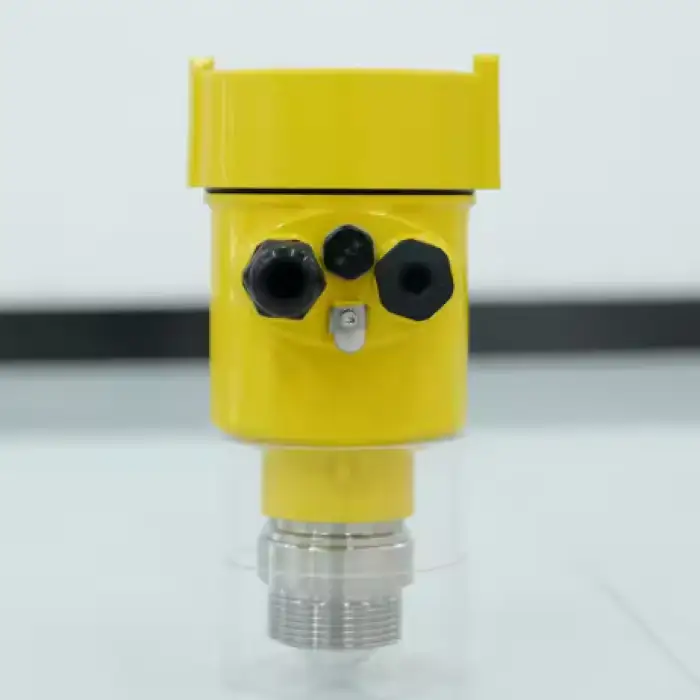

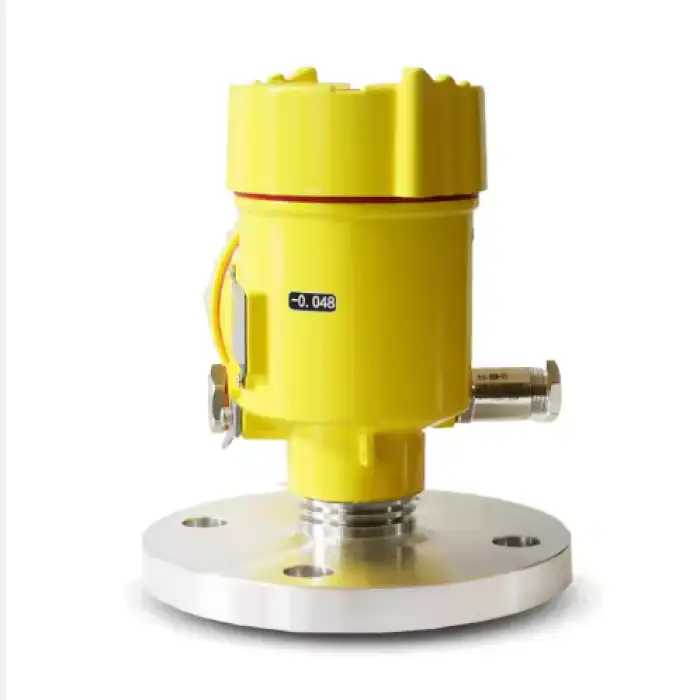

• Flexible Installation: Can be installed using thread or flange connections, providing versatility for different system requirements.
• Power Supply: Operates on both 220VAC and 24VDC power supplies for added convenience.

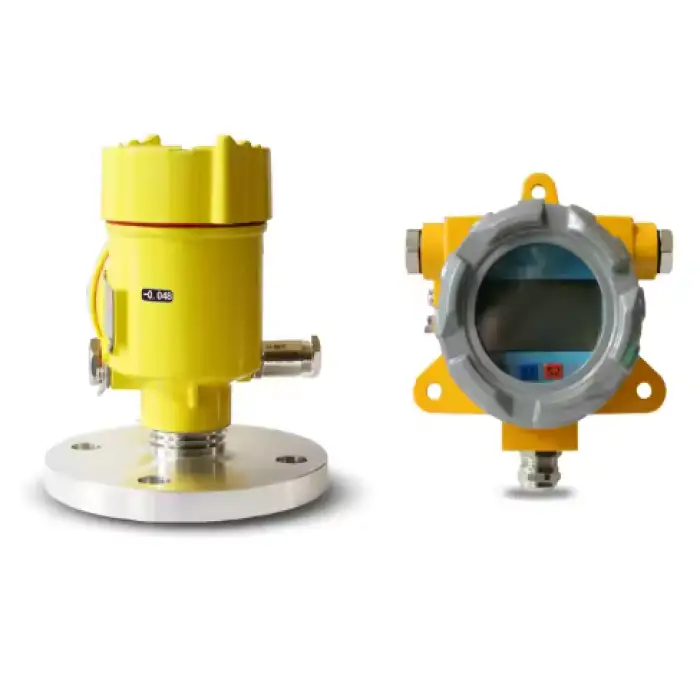

• Watch Case: Features a cast aluminum watch case available in both single and double cavity designs for protection and durability.

Product parameter

The High-Level Radar Level Meter Liquid Intelligent Radar Level Sensor is an essential tool for accurate and reliable level measurement in a wide range of industrial applications. With its advanced radar technology, precise measurement, and durable construction, this sensor ensures consistent performance even in challenging conditions.

Product Info Gallery

Original manufacturer high accuracy continuous frequency modulation wave radar level meter

liquid intelligent radar level sensor can measure the time difference from transmitting signal to returning signal, and calculating the measurable distance and level, do not need the carrier media, can pass by the speed of light.Radar level gauge radar level transmitter radar level sensor for chemical liquids

Radar level gauge radar level transmitter radar level sensor for chemical liquids

Has a strong anti-jamming capability, and in the harsh environment, the accuracy and stability is unaffected, greatly improving


the accuracy and the reliability.

Installation

Pay attention to the following points during installation:

 For liquid applications, try to ensure that the mounting flange is parallel to the liquid surface so
that the transmitted electromagnetic wave is incident perpendicular to the liquid surface.

 For solid applications, you can suitably relax the installation angle. If the material accumulation
angle is relatively large and the blind spot that is required to measure is relatively small, it is
recommended to use a universal structure to adjust the transmitting direction to be nearly
vertical to the inclined material surface

During installing, try to avoid interfering objects within the radar beam range, such as mixing blades,
protrusions and other objects. Interfering objects can easily generate interference signals and affect
the normal operation of the radar.


1

Keep the antenna beam range free of any interference, such as ladders and steps

2

Avoid the contact between antenna beam and feeding inlet

3

At least 20cm away from the vessel wall when mounting to avoid incorrect readings
