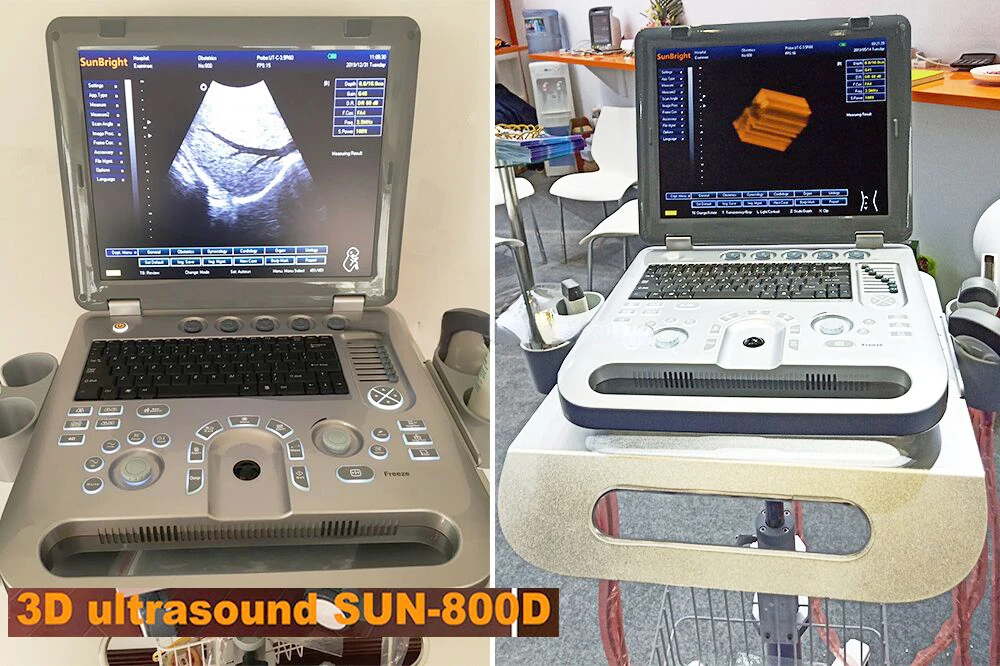

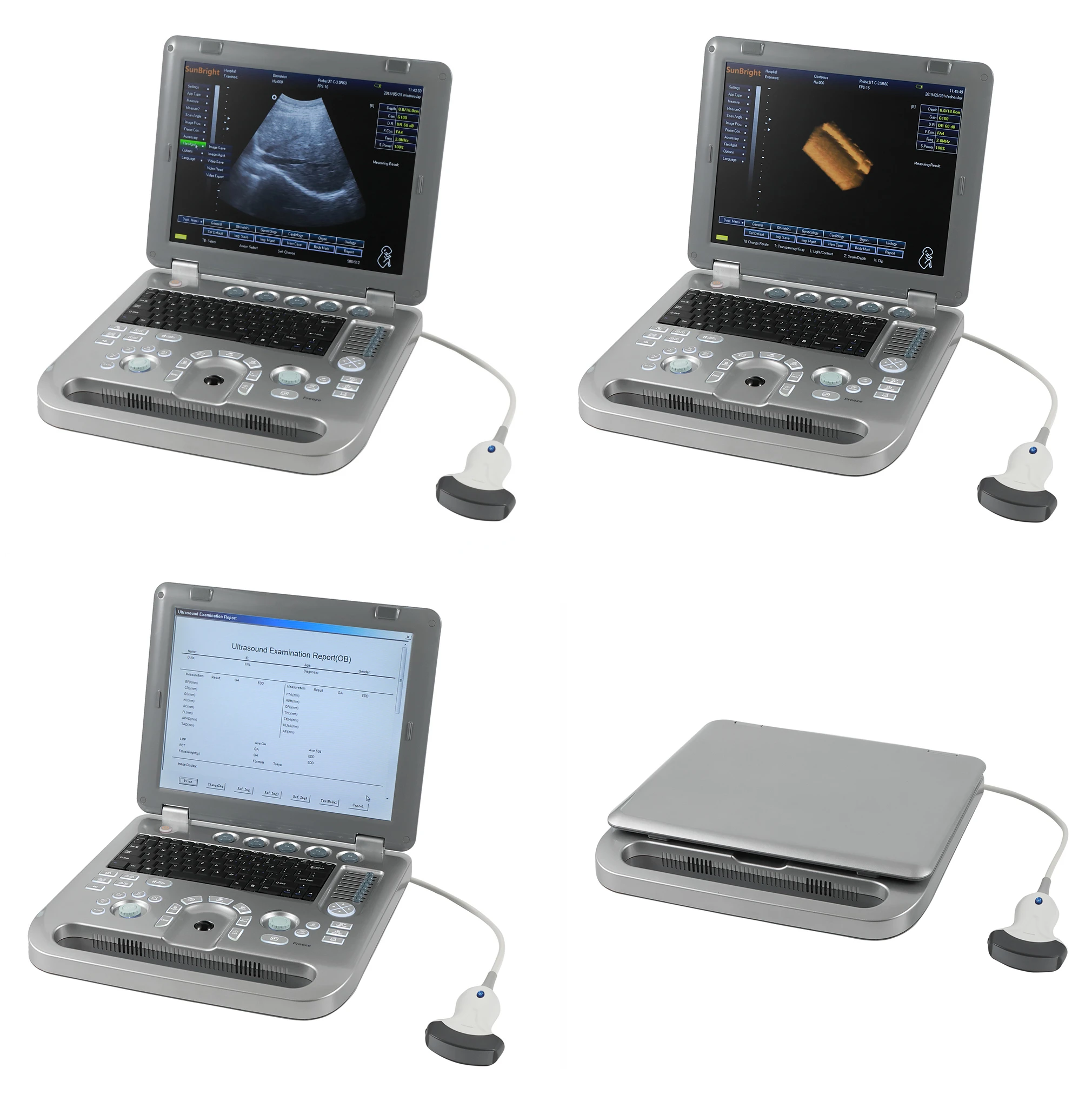

High-End Advanced Laptop Portable 3D Veterinary Ultrasound Scanner Professional For Pets
High-End Advanced Laptop Portable 3D Veterinary Ultrasound Scanner Professional For Pets
High-End Advanced Laptop Portable 3D Veterinary Ultrasound Scanner Professional For Pets
High-End Advanced Laptop Portable 3D Veterinary Ultrasound Scanner Professional For Pets
High-End Advanced Laptop Portable 3D Veterinary Ultrasound Scanner Professional For Pets
High-End Advanced Laptop Portable 3D Veterinary Ultrasound Scanner Professional For Pets
High-End Advanced Laptop Portable 3D Veterinary Ultrasound Scanner Professional For Pets
High-End Advanced Laptop Portable 3D Veterinary Ultrasound Scanner Professional For Pets

0 Customer Reviews

Add To Wishlist Share to Social

Detailed Product Description.

Weighing less than 5 kgs, comfortably pick and go.
Built-in battery, working time more than 3 hours, extending point of care to sites where power sources are
unavailable.
Not only a professional ultrasound system, could also be a laptop computer upon request.
15 inch LED display, as large as 175 degree viewing angle.
8-segment TGC, precise adjustment of near/far gain.

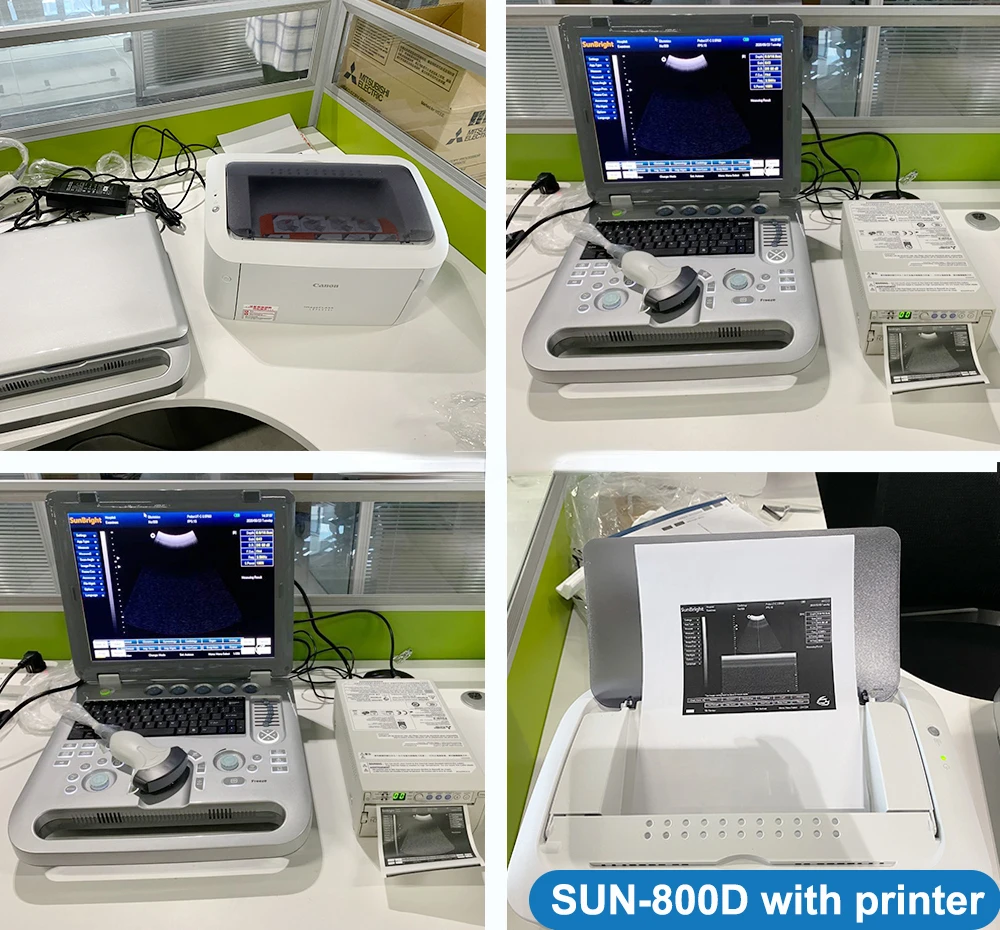

2 usb ports, connectivity of usb flash and laser printer
Discom 3.0 port, compatibility with archives, PACS or serves
Projector port, a must for lecturing or training
Probe variety: convex, micro-convex, endo-cavity/rectal, linear
Specialty: general, OB/GYN, vascular, cardiology, urinary, small organs, etc.
Display mode; B, 2B, 4B, B/M, M

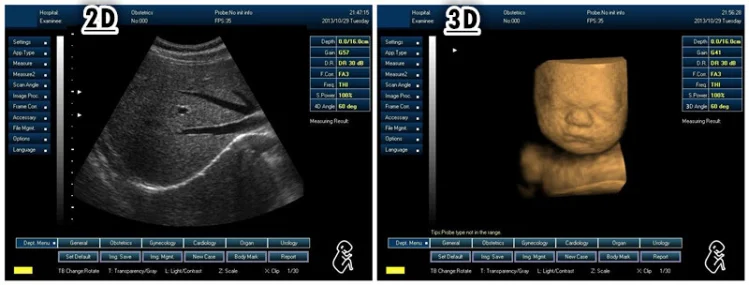

Imaging mode: 2D, free-hand 3D
Image/video format: AVI, JPG, BMP, PNG, TIF, DICOM.

DisplayFull digital 15 inch LED display, 3D ultrasound
PlatformPc-based

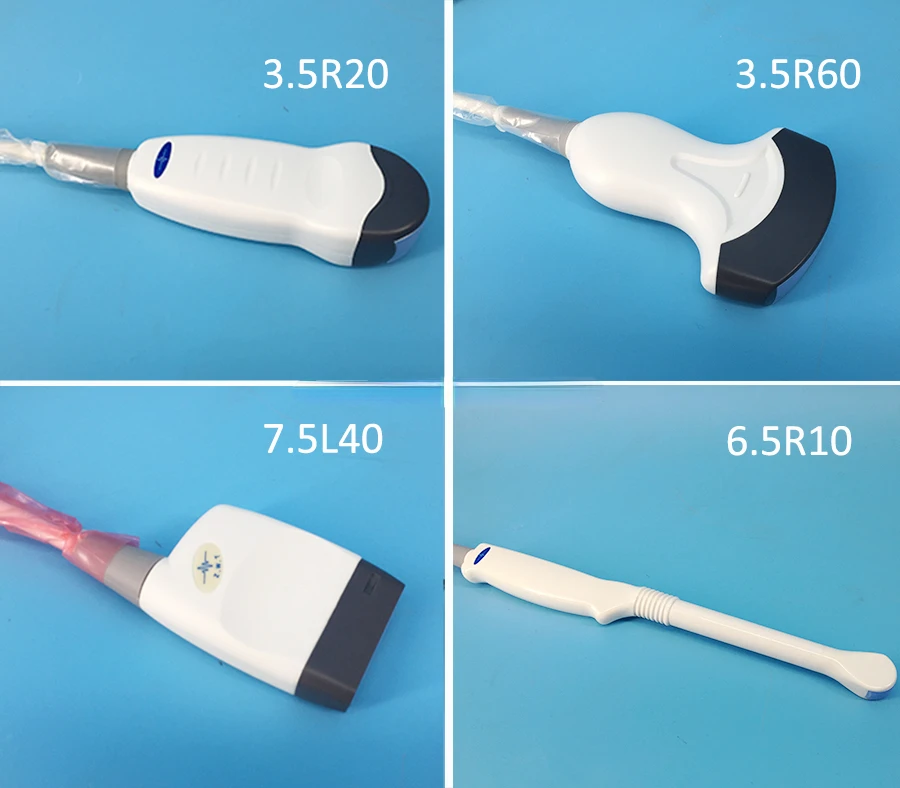

                             Probes

3.5MHz R60/R50 convex probe; multi-frequency from 2.0MHz to 5.0MHz
7.5MHz L40 linear probe; multi-frequency from 5.0MHz to 10.0MHz
6.5MHz R10/R13 transvaginal probe; multi-frequency from 5.0MHz to 8.0MHz
3.5MHz R20 cardiac probe; multi-frequency from 2.0MHz to 5.0MHz
Beam formingDBF, RDA, DRA, DRF
DFSDynamic frequency scanning from 2.0 to 12.0MHz, 4 multi-frequency scanning
THIyes
Display modeB, 2B, 4B, B/M, M
Dynamic range≥100dB, 4 steps of switching functions
                                       Image process      technologiescontrollable frame correlation, Gamma correction, edge enhancement, image smoothing, image denoisiong, automatical gain adjustment, up/down, left/right and black/white conversation.
Image magnificationstepless magnification, dynamic real-time PIP local zoom functions
Cine loop512 frame auto/manual cine loop; multi screens cine loop (4B, 9B); auto/manual cine loop under B/M and M mode.
                                Image management systemthe functions of pigeonholing, browsing, comparing, saving, printing and transferring images; as many as hundreds of thousands of images and thousands of cine loop could be saved; saved images could be operated by full-screen browse under slide mode.



   Measurement and calculation

measure perimeter and area by distance or ellipse method; measure perimeter and area by track method; measure body surface area and volume by ellipse method. 4 measure sticks; rate measure; linear stenosis ratio, area stenosis ratio, angle measure. All calculations are automatic.
Assist toolspuncture guide, histogram, sectional drawing.
Menu manage interfacereal time online support and navigation clew system, image fore-set and one-key optimization functions.
Body marksMulti-tens
                                     Patient cases database systemAll the data could be saved, searched and managed.
Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve.
                                    Presetting FormulasPresetting system for diagnosis and measurement formulas. Different formulas could be set according to different races.
                                                                                                                                               Auto-measure software of OB., Gyn., small organs, cardiac, urology     and othersOB.: BPD, CRL, GS, HA, AC, HC, FL, APAD, TAD, FTA, HUMERUS, OFD, THD, TIBIA, ULNA, AFI, LIMP, BBT, FBP
Gyn.: uterus diameter, intima thickness, ovary colume, regnant ovarian follicle, length of cervix long-diameter, uterine.
Small organs: thyroid gland, hip joint.
Cardiac: AOD, LAD, IVSTd, LVIDd, AA, LAD/AOD, LVPWd, LVIDs, EF, EF SLP, CA/CE, MVCF, CO, CI, LVMWI, AVSV, FS, ACV, ET, SV, SI, LVMW, QMV
Urology: remained urine sample, prostate,PSAD.
Patient cases database systems. All the data could be saved, searched and managed.
Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve.
3D softwareyes
4D softwareyes, optional



Relative extended ports

VGA, S-Video, TV video port
USB2.0 port, 2G saving card
RJ-45 network port
Multiple kinds of saving modes are all supported, containing soft disk, hard disk, flash disk, CF card, SD card and others.
Compatible of jet printer, laser printer, video printer and video recorder

Detailed Images
