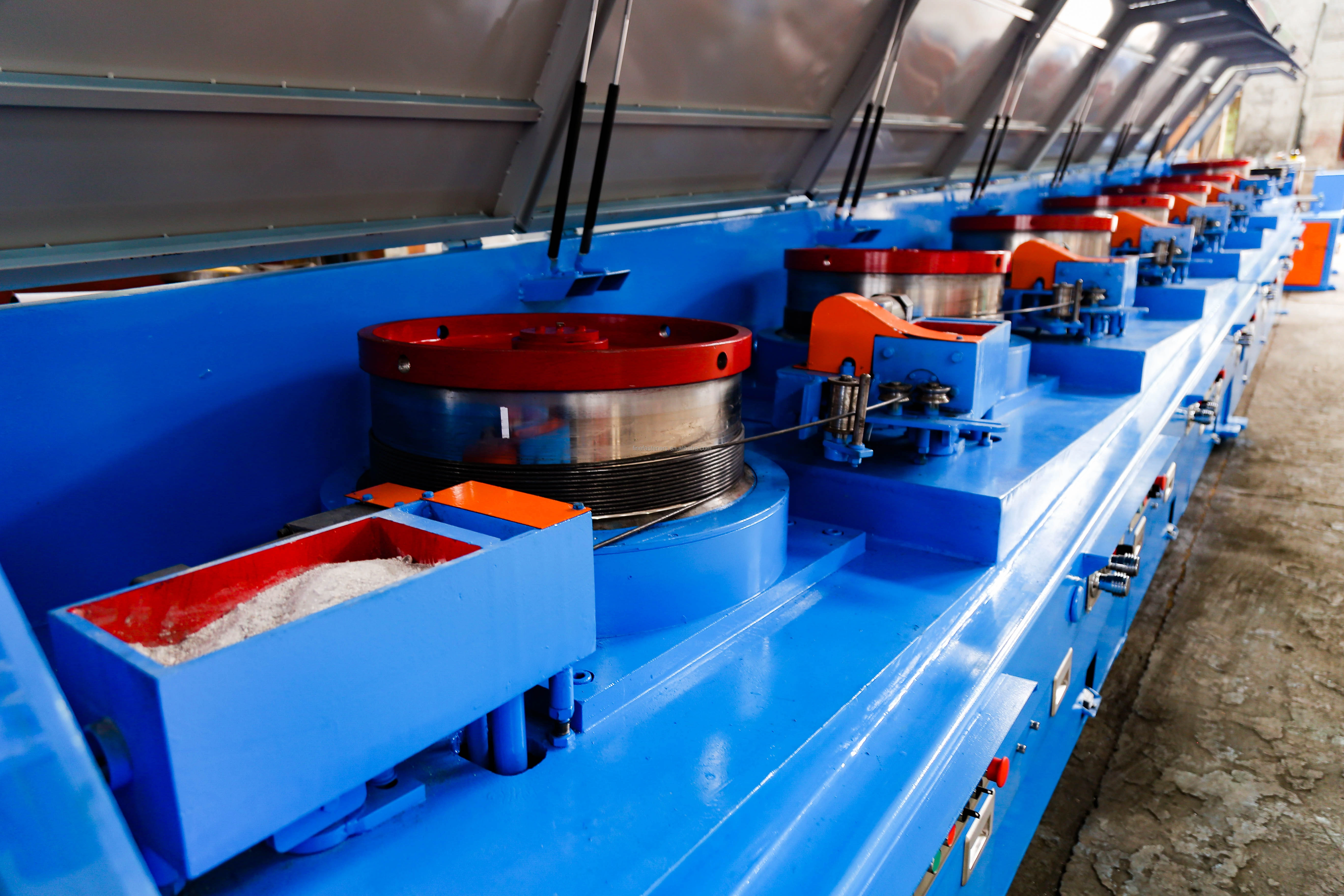

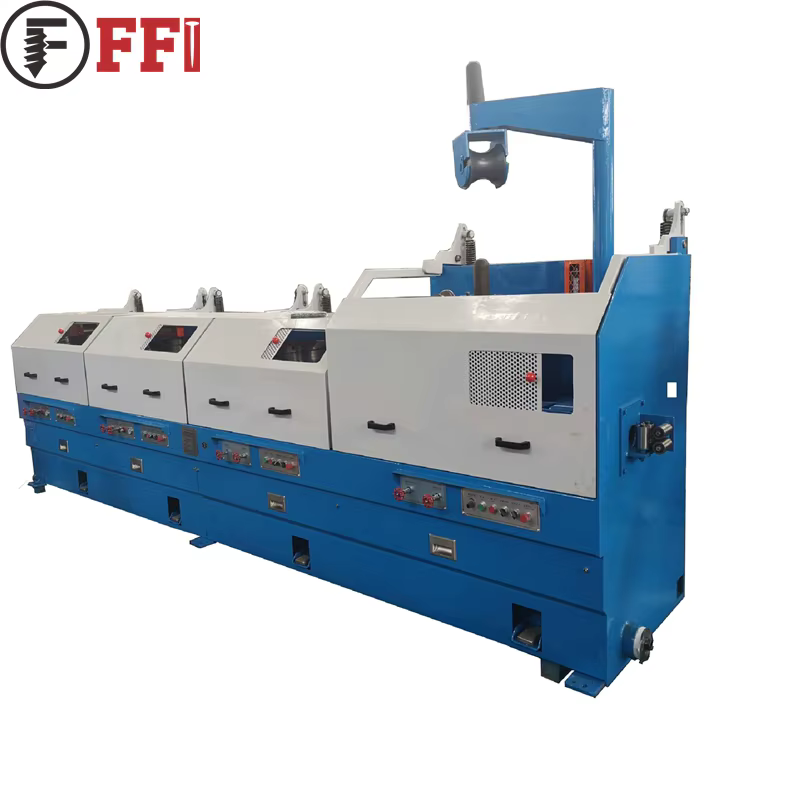

This High Speed Straight Line Wire Drawing Machine is perfect for drawing annealed and galvanized wires. It is built for high efficiency and durability. With speeds up to 1200 meters per minute, it meets the needs of various wire types. This machine is suitable for diff...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
This High Speed Straight Line Wire Drawing Machine is perfect for drawing annealed and galvanized wires. It is built for high efficiency and durability. With speeds up to 1200 meters per minute, it meets the needs of various wire types. This machine is suitable for different materials, including low, medium, and high carbon steel, copper, and aluminum. Get ready to enhance your wire production process!
| Attribute | Details |
|---|---|
| Max Speed of Drawing | 600-1200 m/min |
| Max Speed of Outlet | 1.5-3.0 mm |
| Diameter of Block | 560 mm |
| Inlet Diameter | 3.0-6.5 mm |
| Outlet Diameter | 1.6-3.0 mm |
| Motor | Inverter motor |
| Power | 30KW*6 + 15KW |
| Voltage | 380V 50HZ |
| Warranty | 1 Year |
| Packaging | Plywood box or customized |
| Type | 300 | 350 | 400 | 450 | 500 | 560 | 600 | 700 | 800 |
| Material Intensity | ≤1250Mpa | ||||||||
| Drawing Passes | 2 ~ 11 | 2 ~ 11 | 2 ~ 11 | 2 ~ 12 | 2 ~ 12 | 2 ~ 12 | 2 ~ 12 | 2 ~ 9 | 2 ~ 9 |
| Max. Dia. Of Inlet Wire | 2.8mm | 3.5mm | 4.2mm | 50mm | 5.5mm | 6.5mm | 8mm | 10mm | 12.7mm |
| Min. Dia. Of Outlet Wire | 0.5mm | 0.6mm | 0.75mm | 1.0mm | 1.2mm | 1.4mm | 1.6mm | 2.2mm | 2.6mm |
| Max. Speed Of Drawing | ~25m/s | ~20m/s | ~20m/s | ~16m/s | ~15m/s | ~15m/s | ~12m/s | ~ 12m/s | ~ 8m/s |
| Drawing Power | 7.5~18.5kw | 11~22kw | 11~30kw | 15~37kw | 22~45kw | 22~55kw | 30~75kw | 45~90kw | 55~110kw |
Accessory Equipment
| Name | Model | Range of Dia. |
| Discharging Machine | ||

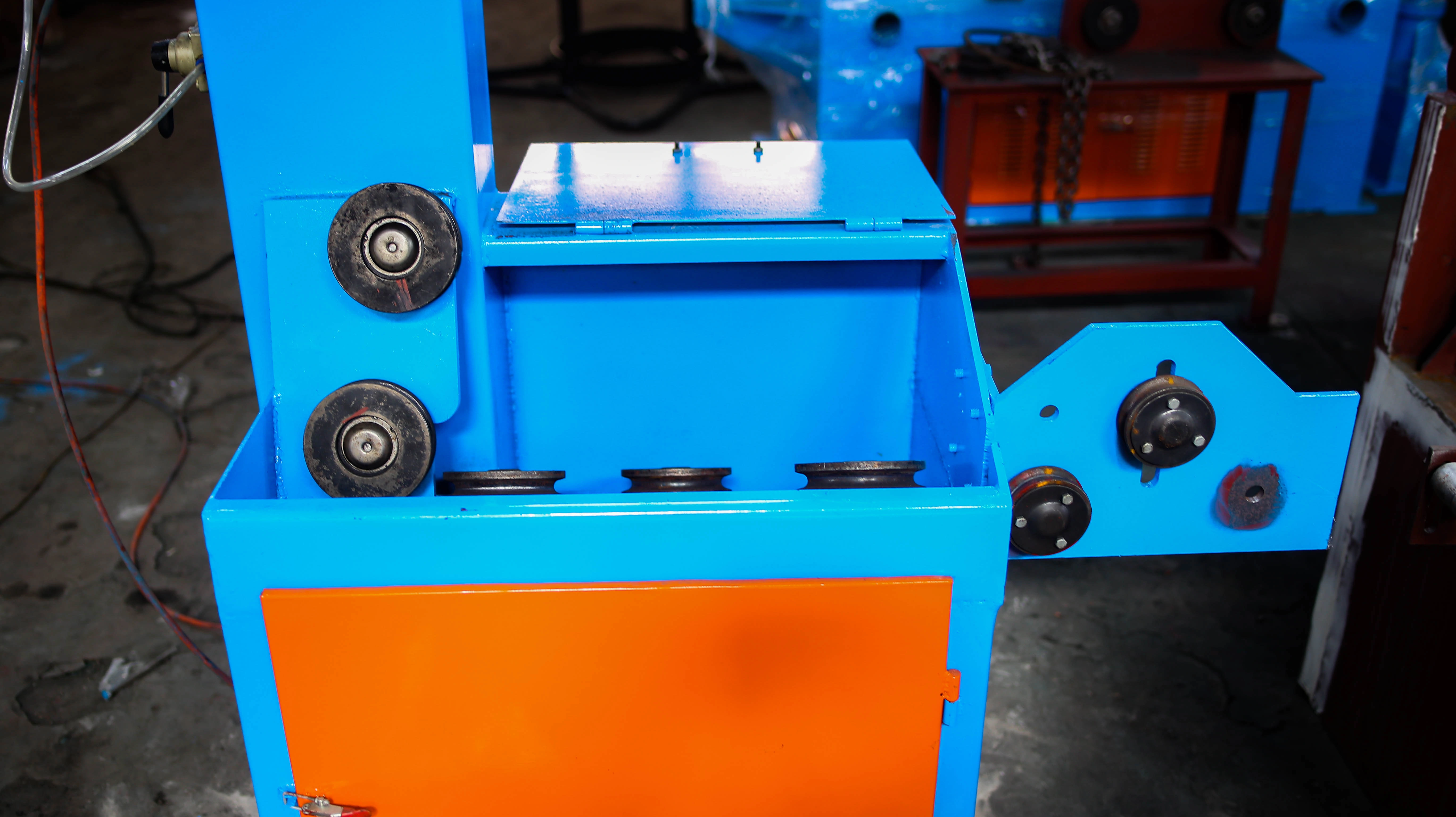

| Pointing Machine | FFI-F-96 | 6.5-1.5mm |
| Pointing Machine | FFI-F-80 | 3.5-1.0mm |
| Butt-Welding Machine | FFI-UN-10 | 8--2mm |
| Butt-Welding Machine | FFI-UN-3 | 6.5-1.5mm |
| Butt-Welding Machine | FFI-UN-1 | 3.5-1.0mm |

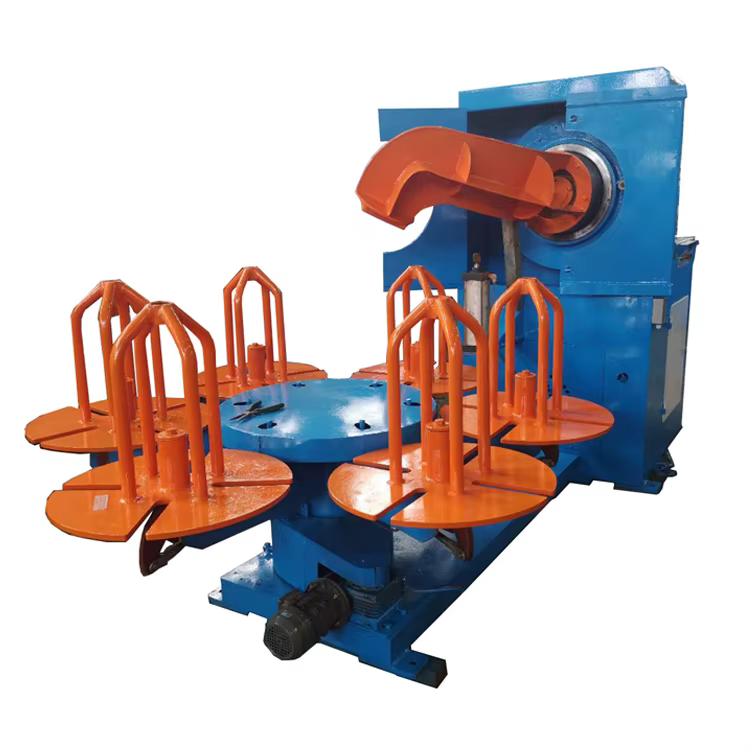

| Automatic Discharging Machine | FFI-XB-600 | capacity 800kg |
| Automatic Discharging Machine | FFI-XB-360 | capacity 400kg |

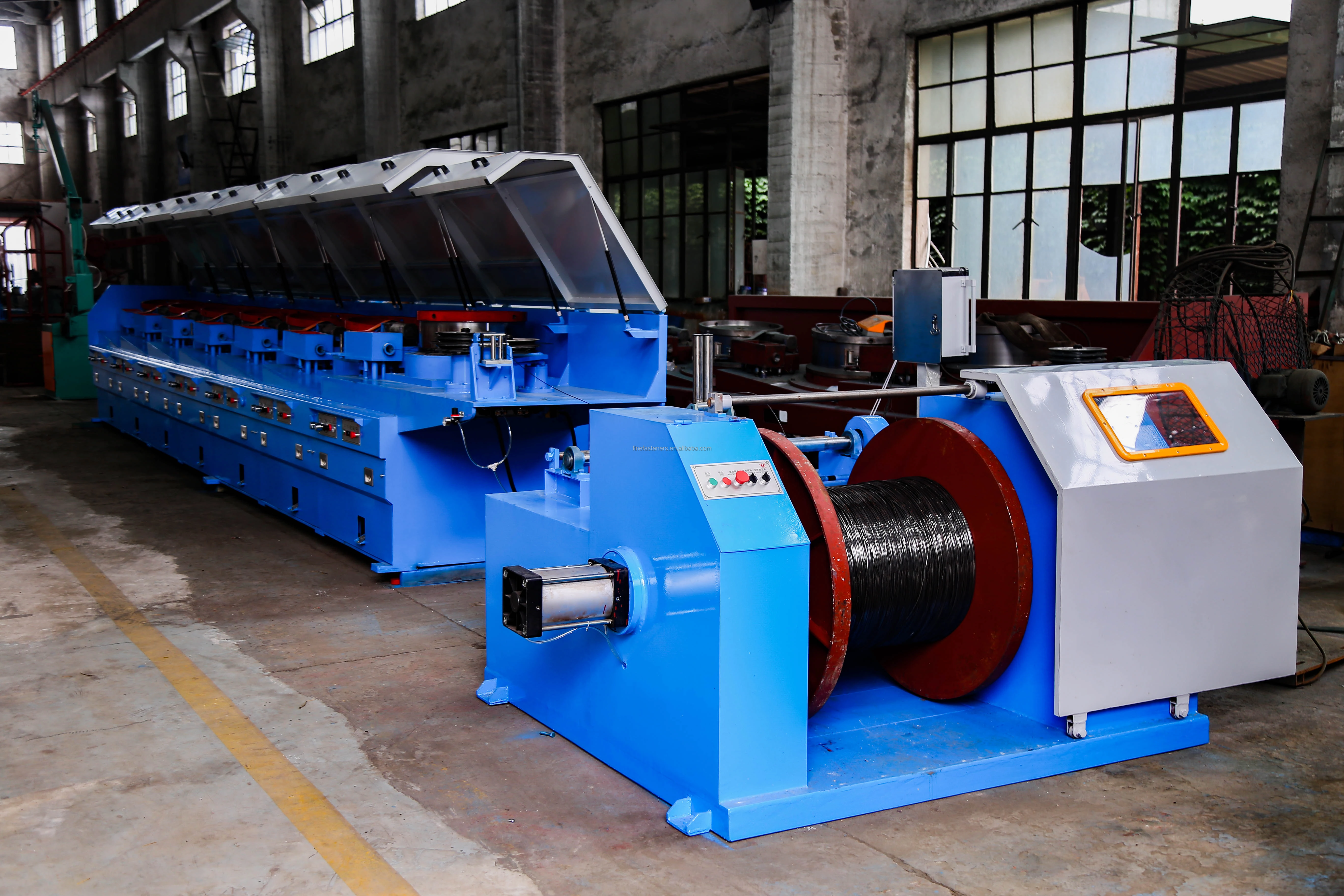

| I Type Spool Reeling Machine | FFI-SG-800 | capacity 800kg |
| I Type Spool Reeling Machine | FFI-SG-630 | capacity 500kg |
| Descaling Machine | FFI-SW650 | |
| Motorless Descaling Machine | with steel brush | |
| Well Type Furnace | FFI-RJ-90-9 |
| Max Speed of Drawing | 600-1200 m/min |
|---|---|
| Max Speed of Outlet | 1.5-3.0 mm |
| Diameter of Block | 560 mm |
| Inlet Diameter | 3.0-6.5 mm |
| Outlet Diameter | 1.6-3.0 mm |
| Motor | Inverter motor |
| Power | 30KW*6 + 15KW |
| Voltage | 380V 50HZ |
| Warranty | 1 Year |
| Packaging | Plywood box or customized |
| Material Intensity | ≤1250Mpa |
The maximum drawing speed of the machine is up to 1200 meters per minute.
This machine can handle various wire materials, including low, medium, and high carbon steel, copper, and aluminum.
The machine requires a power supply of 30KW*6 + 15KW.
Yes, the machine comes with a 1-year warranty.
The inlet diameter ranges from 3.0 to 6.5 mm, and the outlet diameter ranges from 1.6 to 3.0 mm.
Yes, the machine is customizable in terms of colors and sizes to meet your specific needs.
The machine is packaged in a plywood box or customized packaging, depending on your requirements.
This machine is suitable for manufacturing wire for construction, industrial uses, electrical wiring, automotive wire harnesses, and arts and crafts.
The diameter of the drawing block is 560 mm.
The machine uses an inverter motor for efficient operation.
The maximum diameter of inlet wire that the machine can draw varies by model, up to 12.7 mm.
The machine requires between 2 to 11 drawing passes depending on the wire type.
Yes, the machine comes with a machinery test report for quality assurance.
The minimum outlet wire diameter achievable is 0.5 mm, depending on the model.
Additional equipment includes discharging machines, pointing machines, butt-welding machines, and spool reeling machines.
