The High Precision Manual Milling Machine is a strong and reliable tool for metal work. It is made for small shops, schools, or hobbyists who need exact cuts. This milling machine uses a powerful core motor to handle tough jobs with ease. You can drill, cut, and shape m...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

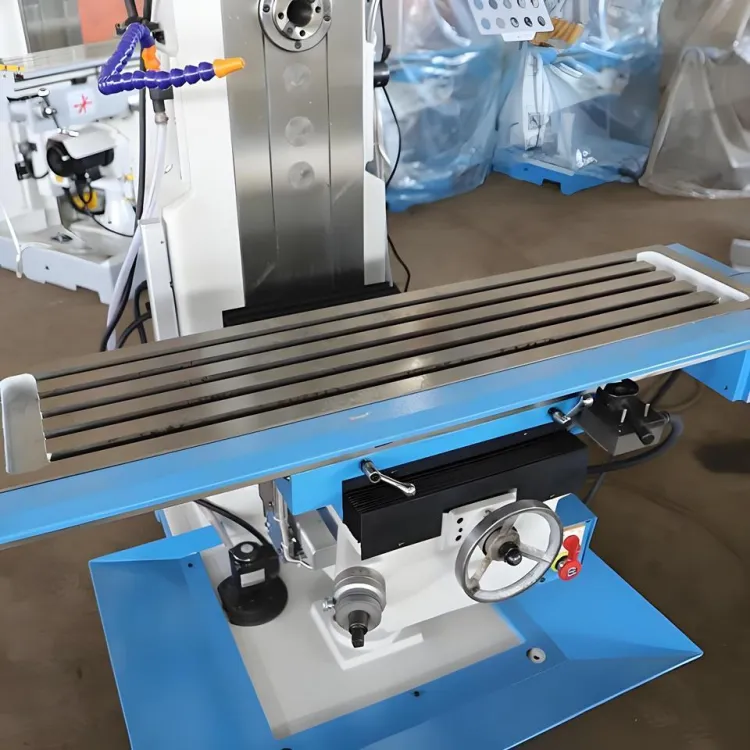

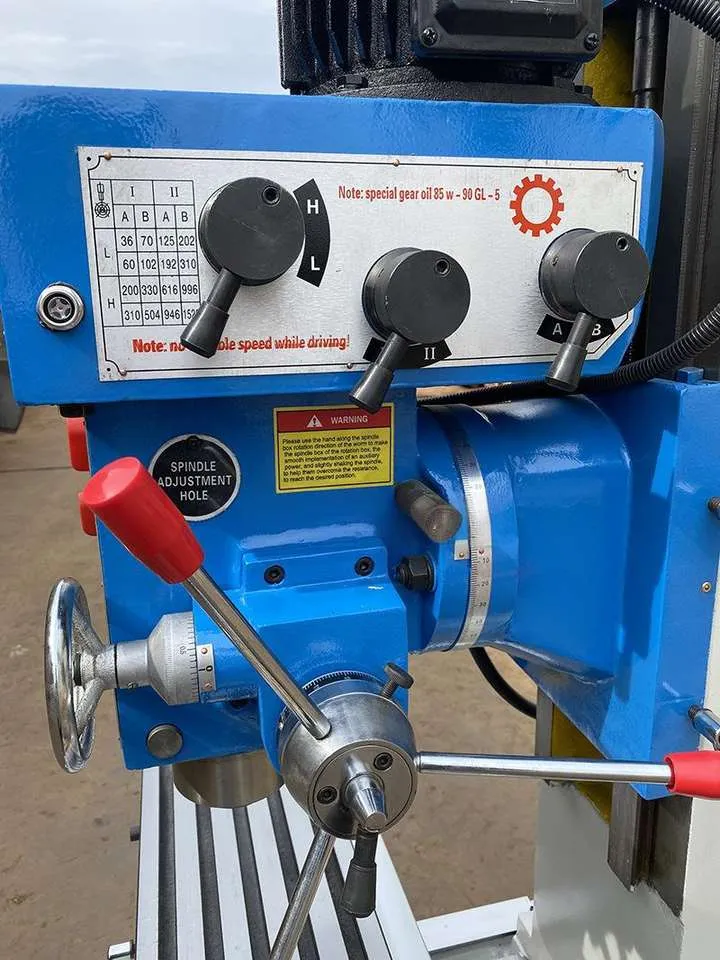

The High Precision Manual Milling Machine is a strong and reliable tool for metal work. It is made for small shops, schools, or hobbyists who need exact cuts. This milling machine uses a powerful core motor to handle tough jobs with ease. You can drill, cut, and shape metal parts with great accuracy. The machine is built to last and is simple to use, even for beginners. It saves energy and works fast, so you can finish projects quickly. This small milling machine is a smart choice for anyone who wants quality and value.
| Attribute | Details |
|---|---|
| Product Name | High Precision Manual Milling Machine |

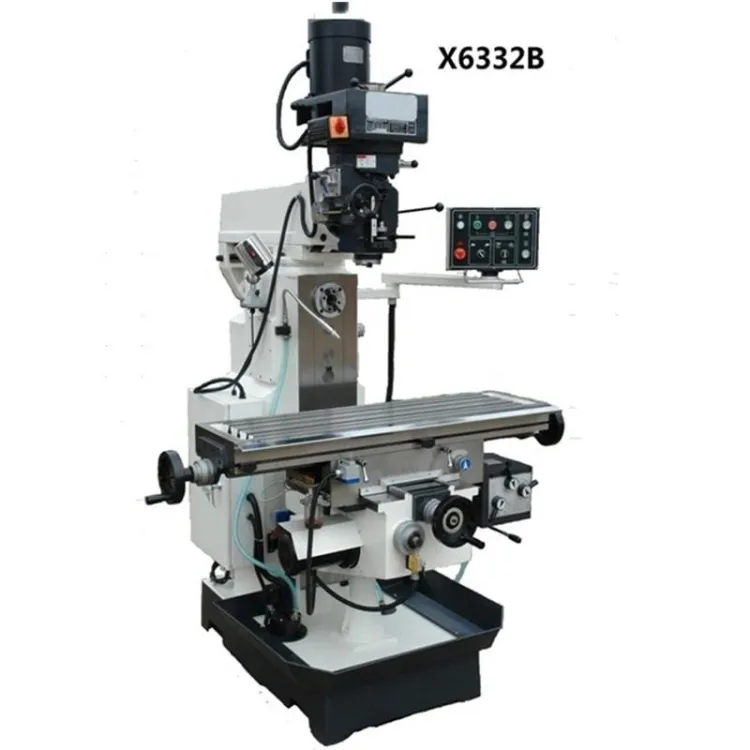

| Model Number | X6332B |
| Type | Universal |
| Machining Capacity | Heavy Duty |
| Table Size | 1250 x 320 mm |
| Table Travel (X) | 600 mm |
| Table Travel (Y) | 300 mm |
| Table Travel (Z) | 400 mm |
| Spindle Taper | ISO40 |
| Spindle Travel | 120 mm |
| Spindle to Column | 200 - 500 mm |
| Spindle to Table | 155 - 455 mm |
| Spindle Speed Range | 80 - 5440 rpm |
| Table Feeding (8 steps) | 15 - 370 mm/min |
| Table Rapid Speed | 540 mm/min |
| Max. Table Load | 600 kg |
| Voltage | 380 V, 220 V |
| Weight | 1500 kg |
| Dimensions (L x W x H) | 1700 x 1520 x 2260 mm |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 1 Year |
| Brand Name | VEKTOR |
| Product Name | High Precision Manual Milling Machine |
|---|---|
| Model Number | X6332B |
| Type | Universal |
| Machining Capacity | Heavy Duty |
| Table Size | 1250 x 320 mm |
| Table Travel (X) | 600 mm |
| Table Travel (Y) | 300 mm |
| Table Travel (Z) | 400 mm |
| Spindle Taper | ISO40 |
| Spindle Travel | 120 mm |
| Spindle to Column | 200 - 500 mm |
| Spindle to Table | 155 - 455 mm |
| Spindle Speed Range | 80 - 5440 rpm |
| Table Feeding (8 steps) | 15 - 370 mm/min |
| Table Rapid Speed | 540 mm/min |
| Max. Table Load | 600 kg |
| Voltage | 380 V, 220 V |
| Weight | 1500 kg |
| Dimensions (L x W x H) | 1700 x 1520 x 2260 mm |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 1 Year |
| Brand Name | VEKTOR |
Have a question about this product or its specifications? Our team can help.
