The High Precision Flat Bed CK6165 CNC Lathe Machine is designed for efficient and accurate machining. This advanced CNC lathe machine features a robust control system and offers exceptional performance for various applications. Perfect for general machinery processing,...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

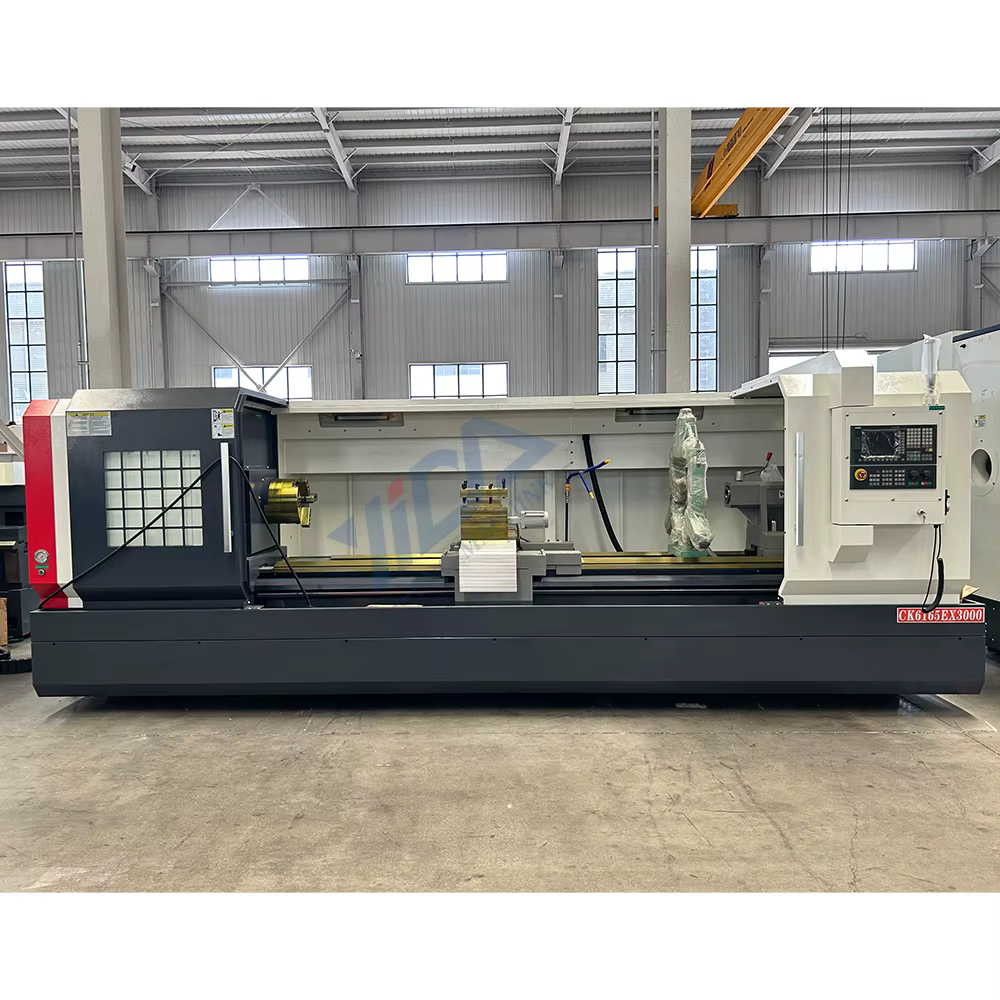

The High Precision Flat Bed CK6165 CNC Lathe Machine is designed for efficient and accurate machining. This advanced CNC lathe machine features a robust control system and offers exceptional performance for various applications. Perfect for general machinery processing, it is a reliable choice for professionals looking to enhance their productivity.
| Attribute | Details |
|---|---|
| Brand Name | YIDA |
| CNC System | SIEMENS, GSK, FANUC (optional) |
| Control System | FANUC |
| Max Length of Workpiece (mm) | 3000 |
| Max Weight of Workpiece (kg) | 400 |
| Number of Axes | 2 |
| No. of Spindles | Single |
| Tool Post Stations | 4, 6, 8 |
| Positioning Accuracy (mm) | ±0.005 |
| Repeatability (x/y/z) (mm) | ±0.003 |
| Spindle Speed Range | 10 - 1000 |
| Dimensions (L*W*H) (mm) | 2500*1600*1650 |
| Weight (kg) | 2900 |
| Voltage | 380 V, 220 V |
| SPECIFICATIONS | Units | CK6165 | CK6165 |
| Manual | HYD. | ||
| Swing over bed | mm | 650 | |
| Swing over cross slide | mm | 350 | |
| Distance between centers | mm | 1000/1500/2000/3000/4000/5000/6000 | |
| Guideway width | mm | 550 | |
| Max. load capacity | T | 3 | |
| Spindle bore | mm | 104 | |
| Spindle bore taper | - | Metric φ120/MT5 | |
| Spindle nose type | - | C11 | |
| Spindle speed steps | - | VF. 3 steps | HYD. 4 steps |
| Spindle speed range | rpm | 10-1000 | 17-1000 |
| Chuck | mm | φ315 3-jaw manual | |
| Turret/tool post | - | Electric 4 position | |
| Tool size | mm | 32 x 32 | |
| X axis travel | mm | 320 | |
| Z axis travel | mm | 850/1350/1850/2850/3850/4850/5850 | |
| X axis rapid traverse | mm/min | 4000 | |
| Z axis rapid traverse | mm/min | 6000 | |
| Tailstock quill diameter | mm | φ100 | |
| Tailstock quill taper | - | MT5 | |
| Tailstock quill travel | mm | 250 | |
| Main spindle motor | kw | 11 | |
| Coolant pump motor | kw | 0.125 | |
| Weight for 1000 | kg | 3700 | |
| Weight for 1500 | kg | 4100 | |
| Weight for 2000 | kg | 4500 | |
| Weight for 3000 | kg | 5300 | |
| Weight for 4000 | kg | 6100 | |
| Weight for 5000 | kg | 6900 | |
| Weight for 6000 | kg | 7700 | |
| Dimension for 1000 | mm | 3300x1750x1850 | |
| Dimension for 1500 | mm | 3800x1750x1850 | |
| Dimension for 2000 | mm | 4300x1750x1850 | |
| Dimension for 3000 | mm | 5300x1750x1850 | |
| Dimension for 4000 | mm | 6300x1750x1850 | |
| Dimension for 5000 | mm | 7300x1750x1850 | |
| Dimension for 6000 | mm | 8300x1750x1850 | |
| Brand Name | YIDA |
|---|---|
| CNC System | SIEMENS, GSK, FANUC (optional) |
| Control System | FANUC |
| Max Length of Workpiece (mm) | 3000 |
| Max Weight of Workpiece (kg) | 400 |
| Number of Axes | 2 |
| No. of Spindles | Single |
| Tool Post Stations | 4, 6, 8 |
| Positioning Accuracy (mm) | ±0.005 |
| Repeatability (x/y/z) (mm) | ±0.003 |
| Spindle Speed Range | 10 - 1000 |
| Dimensions (L*W*H) (mm) | 2500*1600*1650 |
| Weight (kg) | 2900 |
| Voltage | 380 V, 220 V |
| Robust control system options | SIEMENS, GSK, FANUC, Mitsubishi. |
The CK6165 CNC lathe machine can accommodate a maximum workpiece length of 3000 mm.
The maximum weight capacity of the workpiece for the CK6165 CNC lathe is 400 kg.
The CK6165 CNC lathe supports various control systems including SIEMENS, GSK, and FANUC as optional systems.
The positioning accuracy of the CK6165 CNC lathe is ±0.005 mm.
The repeatability for the CK6165 CNC lathe is ±0.003 mm on the x, y, and z axes.
The spindle speed range of the CK6165 CNC lathe is from 10 to 1000 RPM.
The dimensions of the CK6165 CNC lathe are 2500 mm in length, 1600 mm in width, and 1650 mm in height.
The weight of the CK6165 CNC lathe machine is 2900 kg.
The CK6165 CNC lathe machine operates on 380 V and 220 V voltage options.
The CK6165 CNC lathe features a total of 2 axes.
The CK6165 CNC lathe is suitable for general machinery processing, manufacturing precision parts, producing light-duty components, and prototype development.
Yes, the CK6165 CNC lathe comes with a machinery test report to ensure quality assurance.
Yes, the CK6165 CNC lathe is designed with a user-friendly interface, making it easy to operate for beginners.
The CK6165 CNC lathe can be configured with tool post stations of 4, 6, or 8.
