High Efficiency Waste Oil Refining Distillation System

High Efficiency Waste Oil Refining Distillation System

The High Efficiency Waste Oil Refining Distillation System is designed for both lab and industrial-scale applications, offering superior performance in waste oil refining. Ideal for the food, beverage, chemical, and pharmaceutical industries, this system uses advanced wiped film technology to provide high-quality distillation results..

Key Features:

• Efficient Refining Process: Utilizes wiped film distillation to refine waste oil, ensuring high-quality output with minimal waste.
• High Productivity: The system is designed for high-efficiency performance, processing materials quickly and with excellent separation.
• Compact Design: With dimensions of 1800 x 660 x 1990 mm, this distillation system fits easily into both lab and industrial spaces.
• Powerful Motor: Powered by a 120 kW motor, the system provides strong and reliable performance for large-scale operations.
• Magnetic Seal: Features a magnetic sealing system that ensures a tight, leak-proof connection, improving efficiency and safety.
• Advanced Feeding System: Equipped with a high-precision PTFE valve for accurate feeding, enhancing the overall distillation process.
• High-Precision Condensation: The system comes with both a main condenser and an assistant condenser, allowing for efficient condensation of the distillates.
• Insulated Feed Pipe: The feed pipe is jacket-insulated, ensuring the system maintains optimal temperatures throughout the process.
• Large Evaporation Area: The 0.06 m² evaporation area provides efficient processing, increasing throughput without compromising quality.

The High Efficiency Waste Oil Refining Distillation System offers excellent value for industries that require precise distillation and refining of waste oil. With its high efficiency, advanced features, and compact design, it is an essential tool for chemical, pharmaceutical, and food processing industries.

Product Info Gallery

♣1.HIGH BOROSILICATE GLASS 3.3
Corrosion resistance, high temperature resistance, and thermal shock resistance ensure the long-term stability and safety of the system.
♣2.SHORT-PATH MOLECULAR DISTILLATION TECHNOLOGY
It has higher efficiency and better separation effects. At the same time, it can reduce waste generation and operating costs.
♣3.HIGH-PRECISION CONTROL SYSTEM
It can precisely control parameters such as temperature, pressure, flow rate, etc during distillation to ensure the stability and
accuracy of the separation process.
♣4.SAFE AND RELIABLE
Efficient cooling technology is adopted, and explosion proof devices can be customized to effectively avoid safety issues such as overheating and explosions.
♣5.EASY TO USE
It is easy to operate, use and maintain. Users can easily adjust system parameters to meet different molecular distillation requirements.

Structure Configuration

♣A:EFFICIENT
External single coldtrap structure, liquid nitrogen or dry ice can be selected, high cost performance, and good cooling effect.
♣B:SIMPLE
External single-coil condenser structure,supporting low-temperature circulator, can meet the needs of different temperatures.
♣C:PRACTICAL
External cooling coil condenser cold trap can meet more material needs.
♣D:CONVENIENT
The structure of the external double coil condenser is convenient and flexible for temperature control to meet more temperature needs.

Application Fields

♣1.CHEMICAL INDUSTRY
used for separation and purification of high-purity chemicals, such as organic solvents dyes,insecticides, chemical reagents, etc.
♣2.PHARMACEUTICAL INDUSTRY
used for preparing high-purity drugs and intermediates.
♣3.FOOD INDUSTRY
used for extraction and separation of natural products, such as spices, pigments plant extracts, etc.
♣4.BIOTECHNOLOGY
used for separation and purification of bioloaical products such as proteins enzvmes antibodies.
♣5.NEW MATERIAL DEVELOPMENT
used for preparing new high-purity materials such as high-purity metals, semiconductor materials, optical materials, etc.
♣6.PETROCHEMICAL INDUSTRY
used for separation and refining of petrochemical products, such as petroleum fractions, natural gas, petrochemical wastewater, etc.

Support Customisation

♣1.MIXED MOLECULAR DISTILLATION SYSTEM (GLASS MATERIAL WITH STAINLESS STEEL PARTS)
♣2.FULL JACKET
♣3.DOUBLE COILS CUSTOMIZATION
♣4.EXPLOSION-PROOF

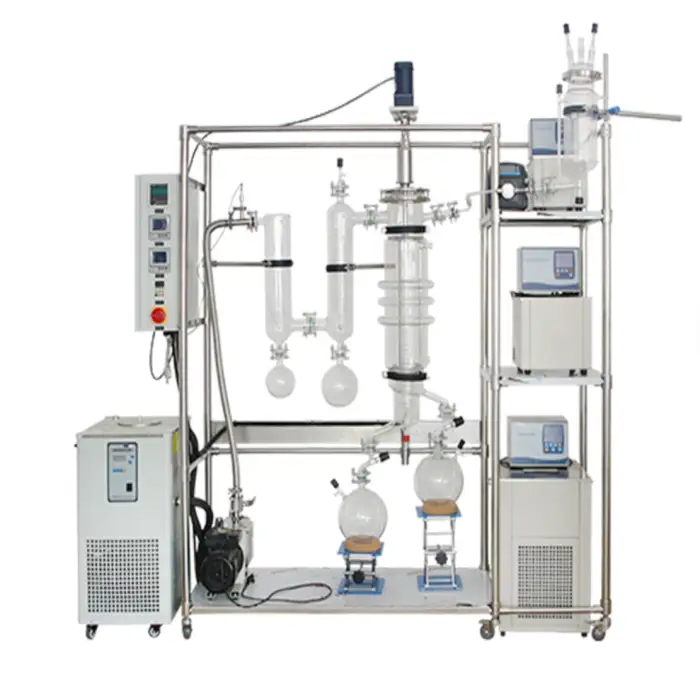

Product Structure

♣Two-stage cold trap
♣Control system
♣External condenser
♣ Feed flask
♣The magnetic coupling system
♣Main evaporator
♣Heating circulator
♣Residue receiving flask
♣Bipolar rotary vane vacuum oil pump
♣Distillate receiving flask
♣Heating/cooling circulator

Supported Equipment

♣1.CONTROL SYSTEM
Frequency Optional automatic control system (PLC unit)
♣2.DISTILLER
YHCHEM's latest design optional jacket discharge module, suitable for high boiling point viscosity materials
♣3.VACUUM SERIES
Bipolar rotary vane vacuum oil pump
Roots pump diffusion pump molecular pump
♣4.CONSTANT TEMPERATURE SYSTEM
Heating circulator
Cooling circulator
Heating/cooling circulator
♣5.FEEDING & DICHARGING
Optional jacketed glass feeding tank and receiving tank (Customizable volume).
Automatic gear pump feeding and discharging system.

Product Series

♣1.WIPE FILM MOLECULAR DISTILLATION SYSTEM (STAINLESS STEEL)
♣2.THIN FILM EVAPORATION SYSTEM (BOROSILICATE GLASS)
♣3.THIN FILM EVAPORATION SYSTEM (STAINLESS STEEL)
♣4.SHORT PATH DISTILLATION KIT

Product Details

♣1.The inlet and outlet are controlled by fluorine-lined valves, which support high-precision control by gear pumps or peristaltic
pumps.
♣2.It can support customized in sulation measures to adapt to the operation of different materials.
♣3.The control box supports light and heavy component pipeline insulation digital control; it can display the scraper motor speed
regulation; equipped with emergency stop and power indicator.
♣4.The rotary motor adopts magnetic sealing method,and the motor can support variable frequency speed regulation.
♣5.The sealing ring is made of fluorine rubber or tetrafluoroethylene, suitable for different material applications.
♣6.Scraper film forming design, contacting material part take stainless steel.
♣7.Digital display Pirani vacuum gauge, display high vacuum number.
