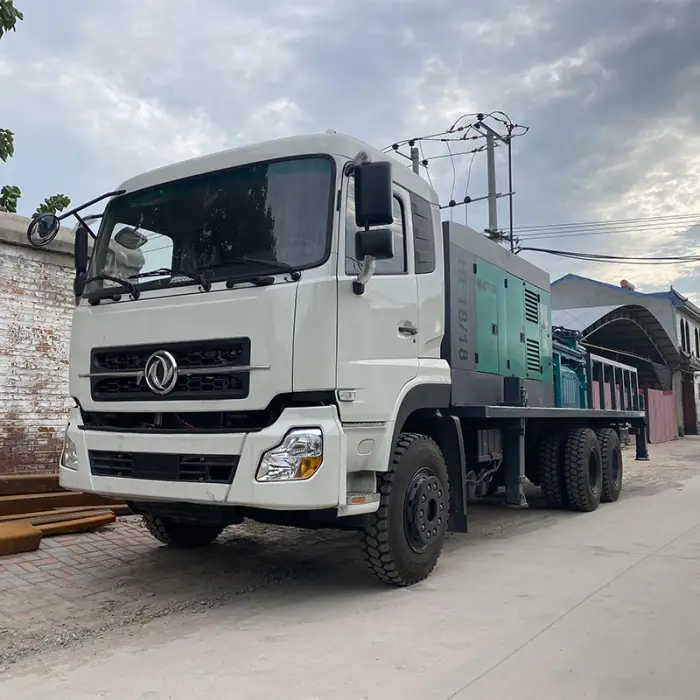

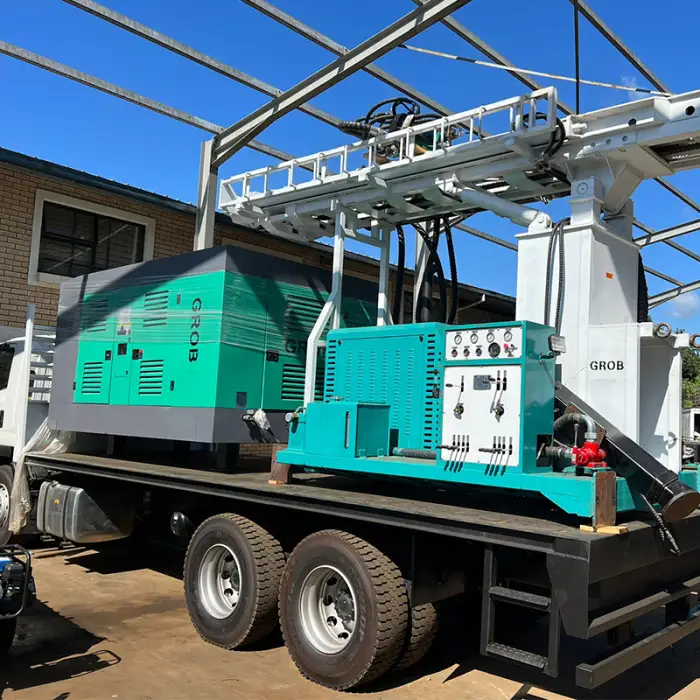

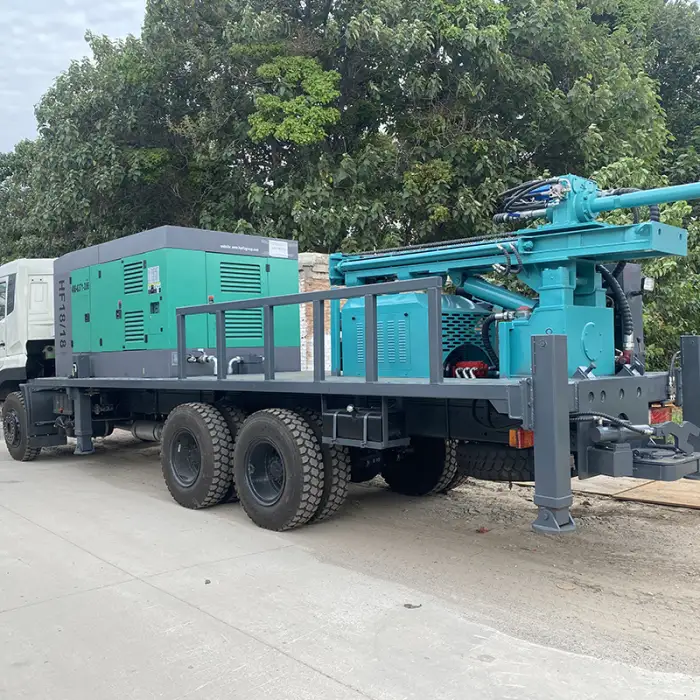

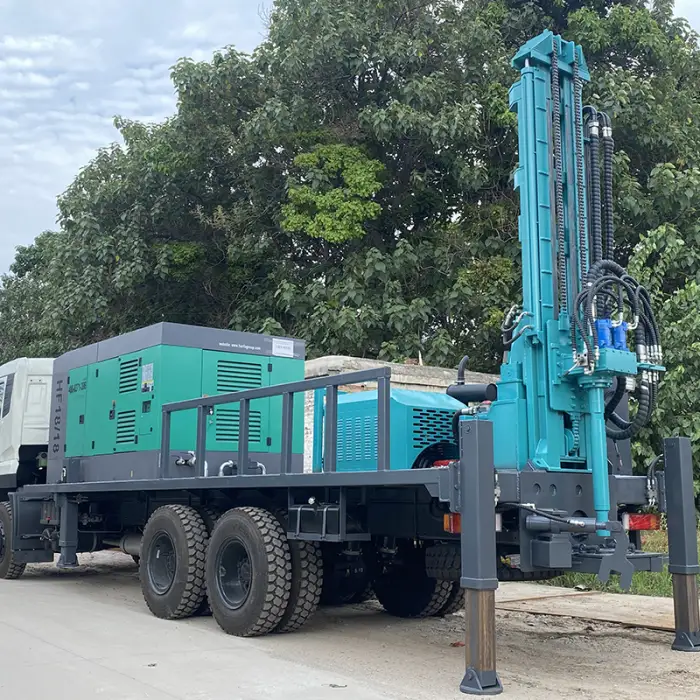

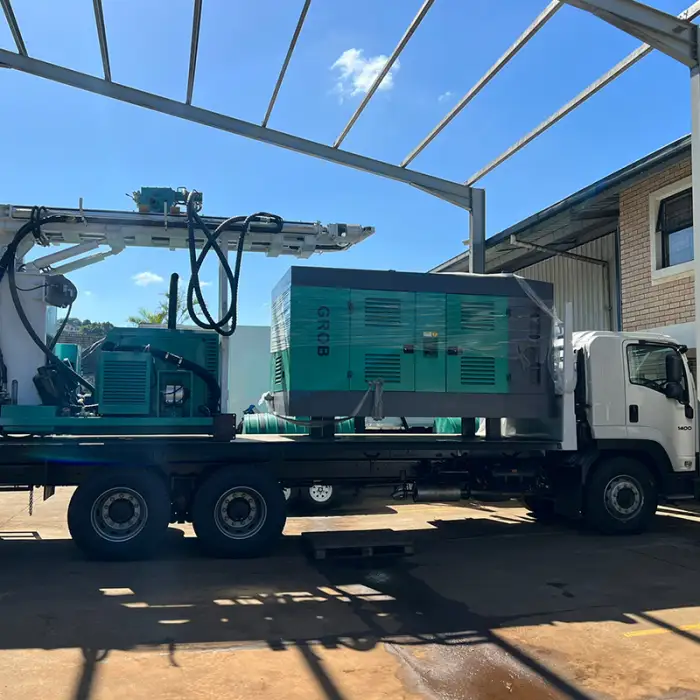

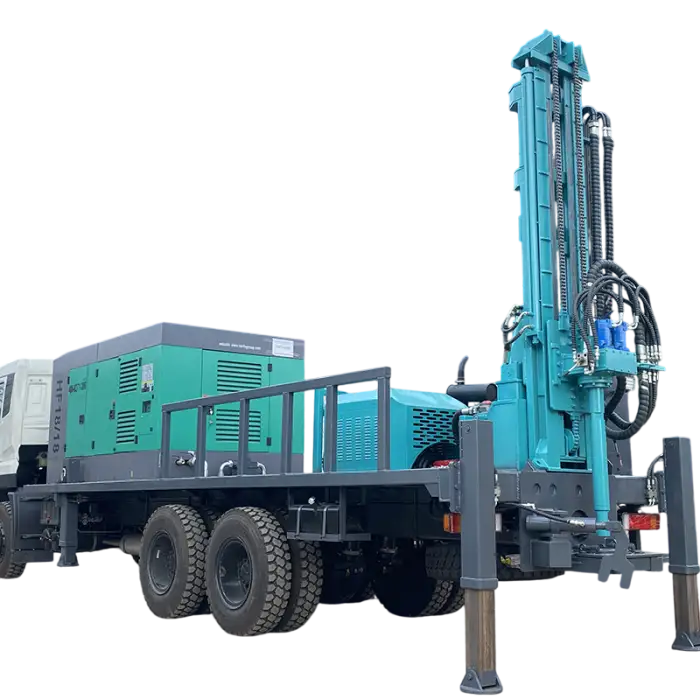

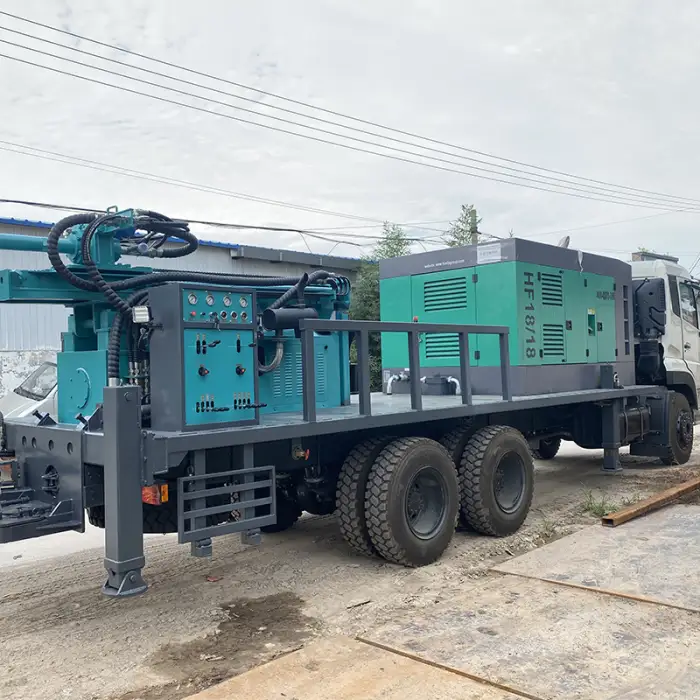

The HFJ300KT Water Well Drilling Rig can drill up to a maximum depth of 300 meters.
The HFJ300KT can drill holes with diameters ranging from 140 mm to 350 mm.
The HFJ300KT is equipped with a Huaichai 420 HP diesel engine.
The rig has a maximum lifting force of 24 tons.
The air consumption for the HFJ300KT ranges from 17 to 35 cubic meters per minute.
The HFJ300KT has a walking speed of 80 km/h.
The total weight of the HFJ300KT is 15 tons.
The HFJ300KT features a 6x4 drive form.
The air compressor in the HFJ300KT has a rated power of 294 kW.
The HFJ300KT can achieve a maximum rotational torque of 6200 to 8500 Nm.
The dimensions of the HFJ300KT are 5200 mm in length, 2000 mm in width, and 2780 mm in height.
The fuel tank capacity of the HFJ300KT is 350 liters.
The HFJ300KT complies with Euro-3 emission standards.
The one-time advance length of the HFJ300KT is 4 meters.
Yes, the HFJ300KT is designed for versatility and can handle a variety of drilling tasks efficiently.
