HDD Rig Machine XZ200
The HDD Rig Machine is designed for effective asphalt road recycling and patching. This robust piece of equipment is built for performance and reliability in various tough applications.
Key Features
Weight: Weighing 8500 kg, this machine provides the stability needed for heavy-duty tasks.
Core Components: Equipped with essential components including PLC, engine, bearing, gearbox, motor, pressure vessel, gear, and pump, ensuring excellent performance.
Model: XZ200, tailored specifically for asphalt road recycling.
Engine Type: Powered by a diesel engine, specifically the QSB5.9-C150 model.
Power: Delivers 113 kW at 2200 rpm, providing sufficient power for demanding operations.
Thrust-Pull Type: Utilizes a pinion and rack drive for efficient operation.
Rotation Type: Features a two-motor rotation system for enhanced maneuverability.
Max Inclination Angle: Capable of operating at a maximum inclination angle of 22 degrees, making it versatile in various terrains.
Pipe Size: Designed to accommodate pipes measuring 73 x 3000 mm.
In conclusion, the HDD Rig Machine is an excellent choice for asphalt road recycling and patching, offering outstanding performance and reliability. Its advanced features make it suitable for various applications, ensuring efficient operation.
Product Info Gallery

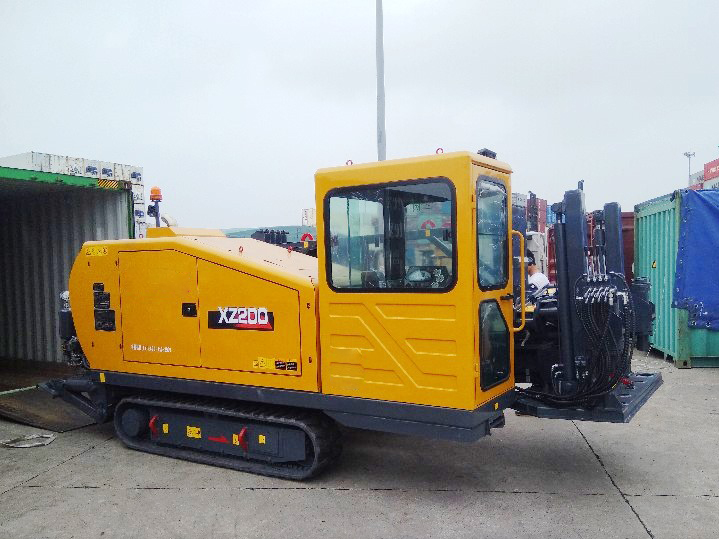

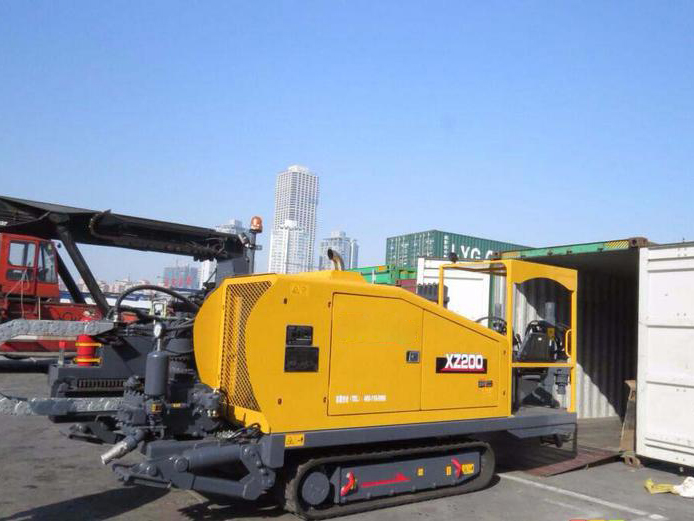

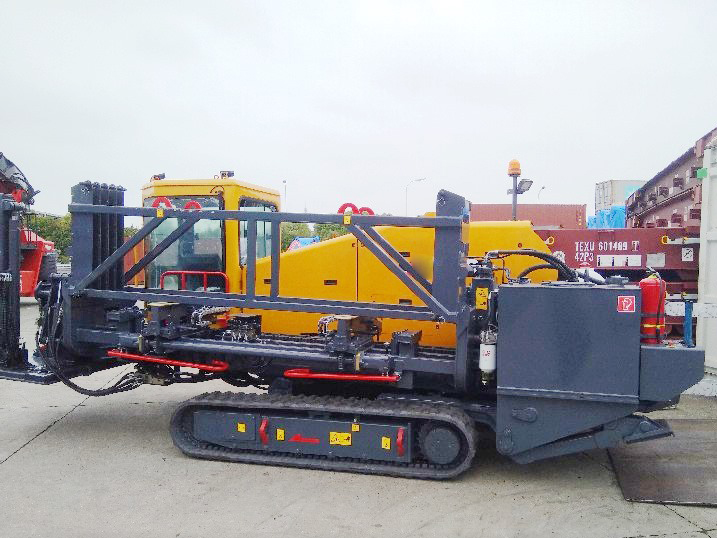

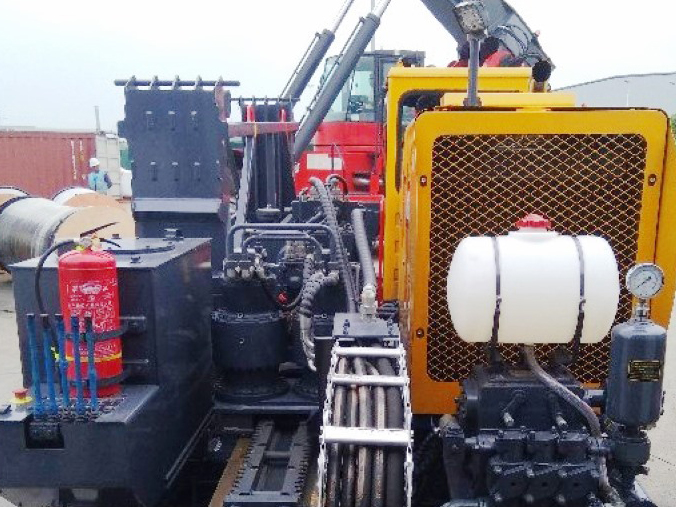

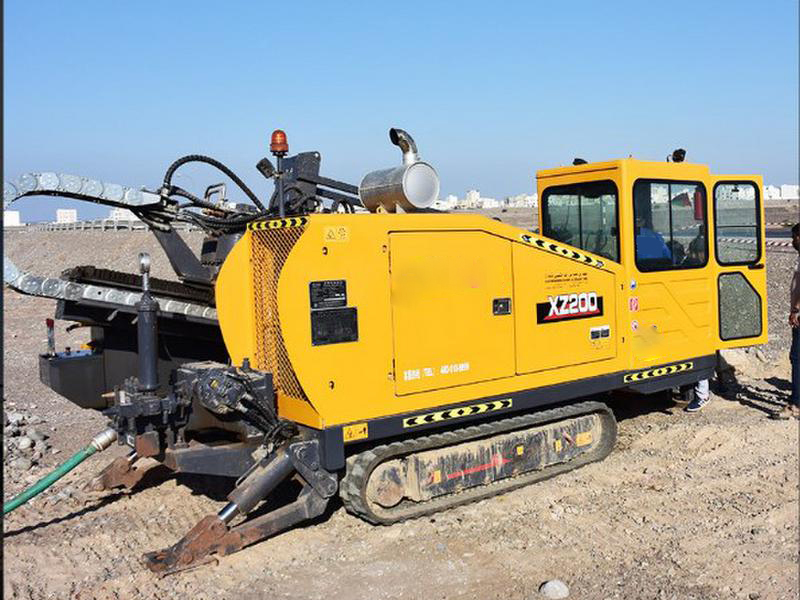

Horizontal Directional Drilling Machine for pipe laying XZ200
XZ Horizontal Directional Drills are mainly used in the trenchless piping construction and replacement of the underground pipe.
The XZ Horizontal Directional Drills have the advantages of advanced performance, high efficiency and comfortable operation.
They are the ideal machines for the construction of the water piping, gas piping, electricity, telecommunication, heating system, crude oil industry.
Main Features:
* cu-mmins 6BTAA5.9-C150 Engine.
* Rack and pinion push-pull system.
* Self-propelled rubber tracks chassis .
* Floating clamp.
* 250L/min mud pump.
* Optional single/double automatic anchor, cab, A/C, mud cleaning, cold start.
XZ200 Horizontal directional drilling structure compact, high performance, full-featured, Hydraulic pilot control, sliding rack and pinion, the main performance parameters and control technology has reached the international advanced level.
1.Carriage and clamp use double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
2.Stable chassis support, using the classical H type beam structure, quality rubber track, frog Outrigger, provides a strong guarantee for the stability of construction.
3.Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) drill pipe handling device, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing, mud throttling and other devices, can also be optioned more Eco Saving cu-mmins with EU Stage 3A.
Performance Paramete
| Description | Unit | Parameter value | |
| Engine | |||
| Manufacturers | Cu-mmins | ||
China III | Model | QSB5.9-C150 | |
| Rated Power | kW /(r/min) | 113 / 2200 | |
China II | Model | 6BTAA5.9-C150 | |
| Rated Power | kW /(r/min) | 112/ 2200 | |
EU Stage IIIA | Model | QSB4.5-C160 | |
| Rated Power | kW /(r/min) | 119/2200 | |
| Thrust-Pull | Type | Pinion and rack drive | |
| Max thrust-pull force | kN | 225/225 | |
| Max thrust-pull speed | m/min | 26 | |
| Rotation | Type | two motor | |
| Torque | N·m | 6350 | |
| Max spindle speed | r/min | 160 | |
| Max inclination angle | ° | 22 | |
| Pipe | Diameter × Length | mm×mm | Φ73×3000 |
| Mud pump | Max Flow rate | L/min | 250 |
| Max pressure | MPa | 8 | |
| Weight | kg | 8500 | |
| Dimention |
mm |
5900x2020x2400 | |
Optional | 1. Cab 2. Air-condition 3. Full-automatic pipeloader 4. Single automatic anchor 5. Dual automatic anchor 6. Mud antifreeze 7. Automatic thread oil daub 8. Piston pump hydraulic system 9. Semi-automatic pipeloader 10. Mud cleaning |
Product Images
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the weight of the HDD Rig Machine XZ200?
The HDD Rig Machine XZ200 weighs 8500 kg, providing the stability needed for heavy-duty tasks.
2. What type of engine does the HDD Rig Machine XZ200 use?
The XZ200 is powered by a diesel engine, specifically the QSB5.9-C150 model.
3. What is the maximum thrust-pull force of the HDD Rig Machine XZ200?
The maximum thrust-pull force of the XZ200 is 225 kN.
4. What is the maximum inclination angle for the HDD Rig Machine XZ200?
The XZ200 can operate at a maximum inclination angle of 22 degrees.
5. What type of drive system does the HDD Rig Machine XZ200 utilize?
The XZ200 utilizes a pinion and rack drive system for efficient operation.
6. What is the power output of the HDD Rig Machine XZ200?
The XZ200 delivers 113 kW at 2200 rpm, providing sufficient power for demanding operations.
7. What pipe sizes can the HDD Rig Machine XZ200 accommodate?
The XZ200 is designed to accommodate pipes measuring 73 x 3000 mm.
8. What are the main applications of the HDD Rig Machine XZ200?
The XZ200 is primarily used for asphalt road recycling, patching, and trenchless piping construction.
9. Does the HDD Rig Machine XZ200 have any optional features?
Yes, optional features include a cab, air conditioning, automatic anchoring systems, and more.
10. What is the maximum flow rate of the mud pump in the HDD Rig Machine XZ200?
The mud pump in the XZ200 has a maximum flow rate of 250 L/min.
11. What type of chassis does the HDD Rig Machine XZ200 use?
The XZ200 features a self-propelled rubber tracks chassis for enhanced stability.
12. What technology does the clamp system of the HDD Rig Machine XZ200 use?
The XZ200 uses a double floating patented technology in its carriage and clamp, which protects the drill pipe threads.
13. What is the dimension of the HDD Rig Machine XZ200?
The dimensions of the XZ200 are 5900 mm x 2020 mm x 2400 mm.
14. What is the torque of the HDD Rig Machine XZ200?
The XZ200 has a torque of 6350 N·m.
15. What are the benefits of using the HDD Rig Machine XZ200?
The XZ200 offers advanced performance, high efficiency, and comfortable operation, making it ideal for various construction tasks.
