Fully automatic Toilet Paper Production Line ( CIF Price Durban Port)
- Section : Machinery
- Category : Paper Production Machinery
- SKU : 62193684396
Fully automatic Toilet Paper Production Line ( CIF Price Durban Port)
The Fully automatic Toilet Paper Production Line is designed to produce high-quality toilet tissue paper rolls efficiently. With its advanced technology and robust construction, this machine ensures smooth operation and consistent performance. Ideal for businesses looking to manufacture jumbo rolls, this machine combines speed and reliability to meet your production needs.
Specifications
| Attribute | Details |
|---|---|
| Voltage | 380V, 50HZ |
| Core Components | PLC |
| Processing Type | Paper Rewinding Machine |
| Production Capacity | 230m/min |
| Brand Name | JORI |
| Power (w) | 7.5~15kw |
| Dimensions (L*W*H) | 7800*3000*1720mm |
| After-sales Service | Engineers available to service machinery overseas |
| Production Speed | 0~230m/min |
| Model | 2000B |

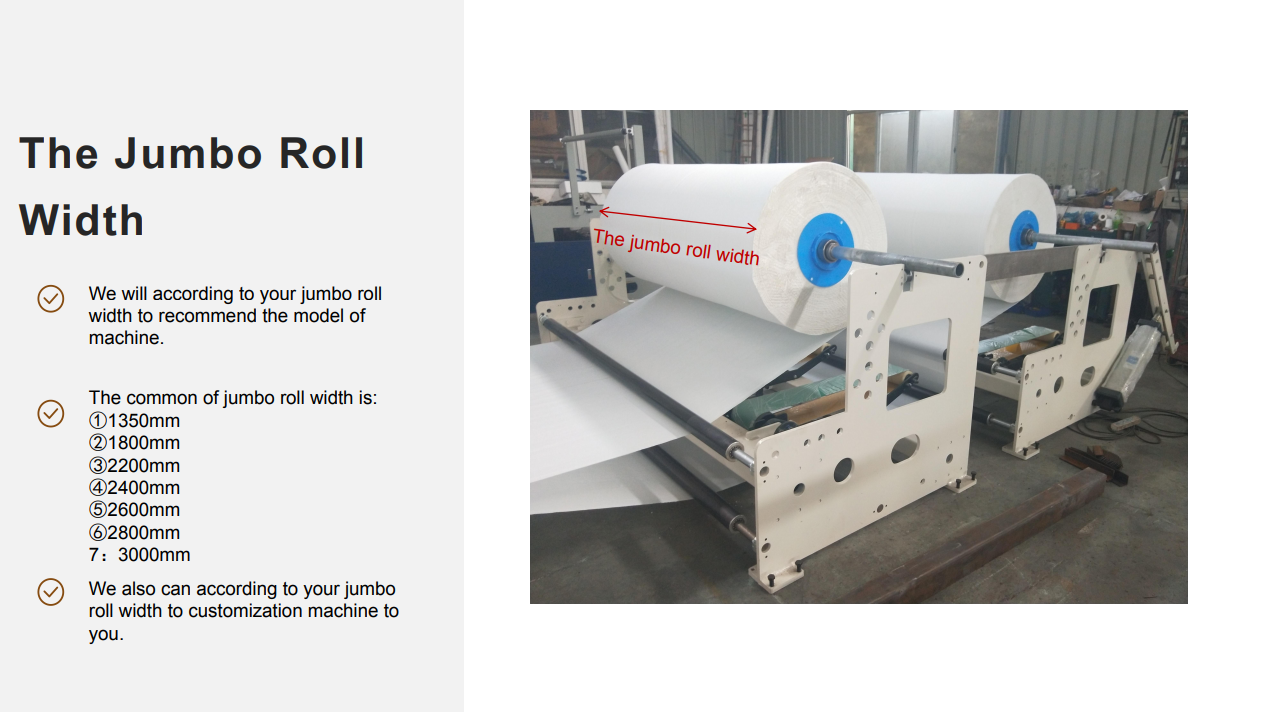

| Jumbo Roll Max Width | 1850mm |

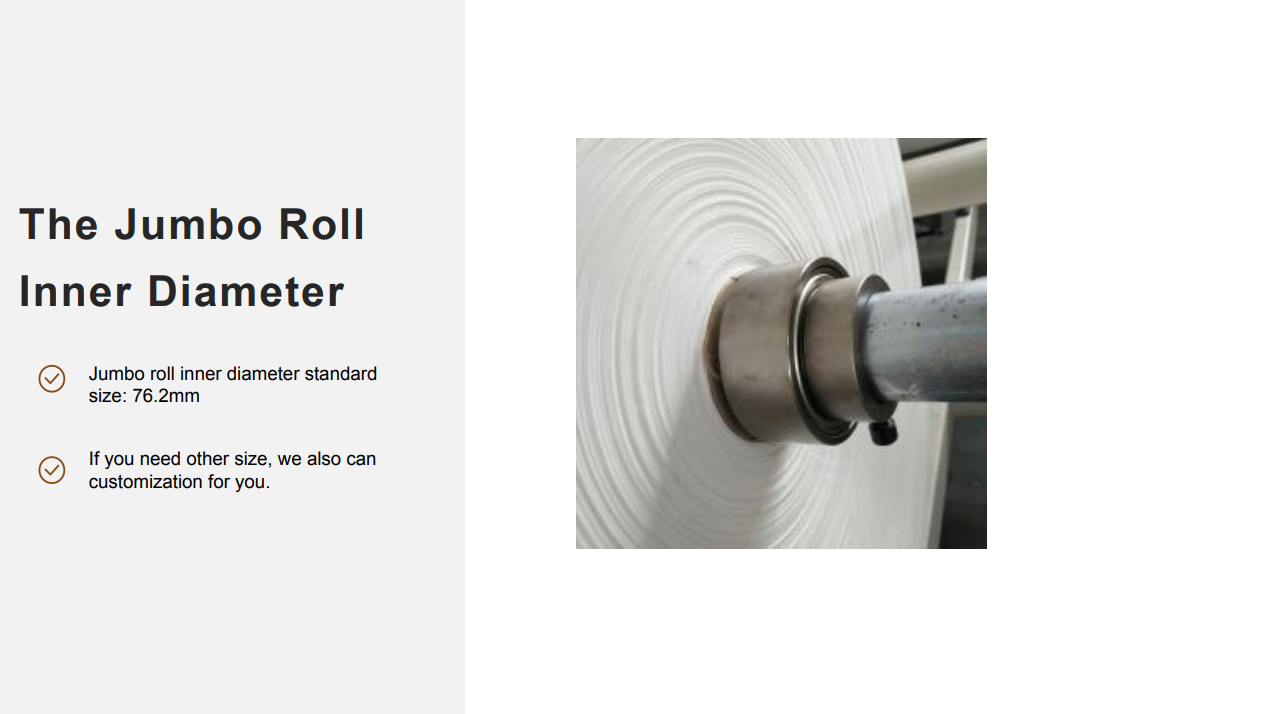

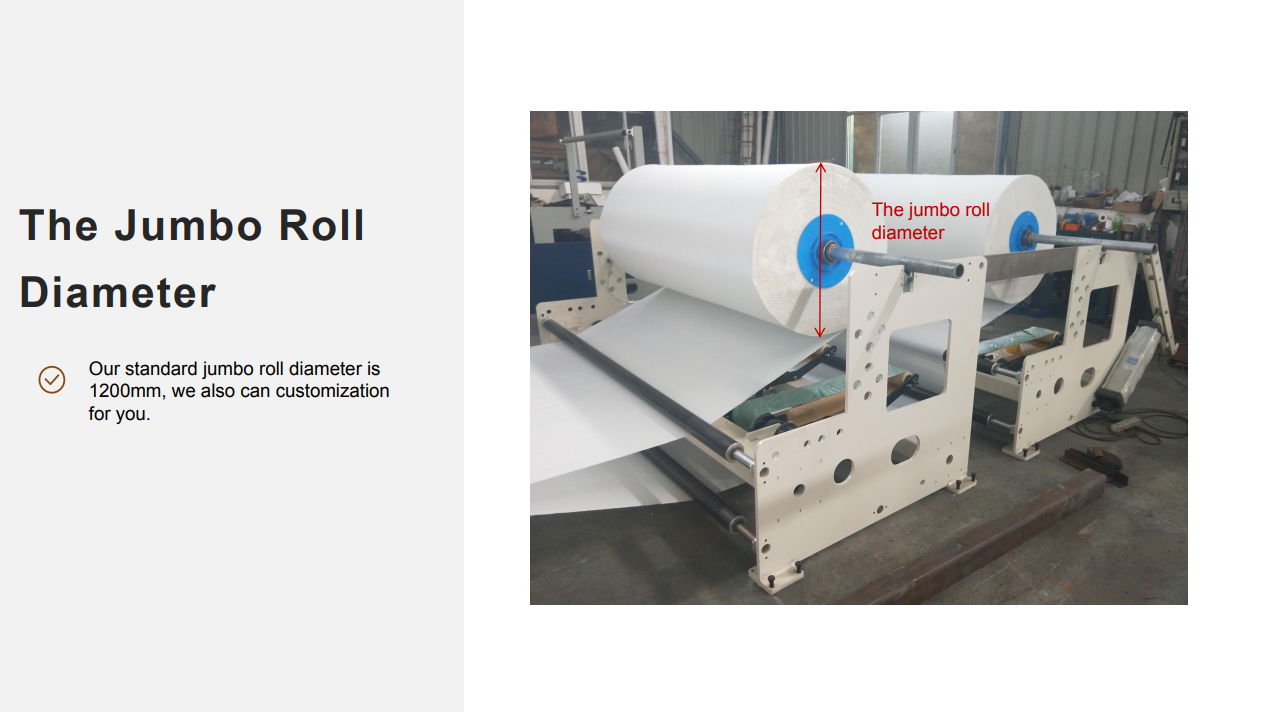

| Jumbo Roll Diameter | 1200mm |
| Finished Product Diameter | 90-280mm |
| Perforation Distance | 100-150mm |
| Rewinding Unit | With core or coreless |
| Color Printing | Glue Laminated or Color printing Device |
| Packaging Details | Wooden Cases, Seaworthy Package |
| Selling Units | Single item |
| Single Package Size | 6000X2000X1000 cm |
| Single Gross Weight | 6000.000 KG |
Key Features
- High-speed production of up to 230 meters per minute.
- Flexible rewinding options for core or coreless paper rolls.
- Advanced PLC control for precise operation.
- Customizable perforation distance for varied product sizes.
- Durable design ensures long-lasting performance.
Applications
- Manufacturing jumbo rolls for commercial use.
- Production for retail toilet tissue paper brands.
- Ideal for paper mills and manufacturing plants.
- Used in hotels, restaurants, and public facilities.
- Production for export to various markets.

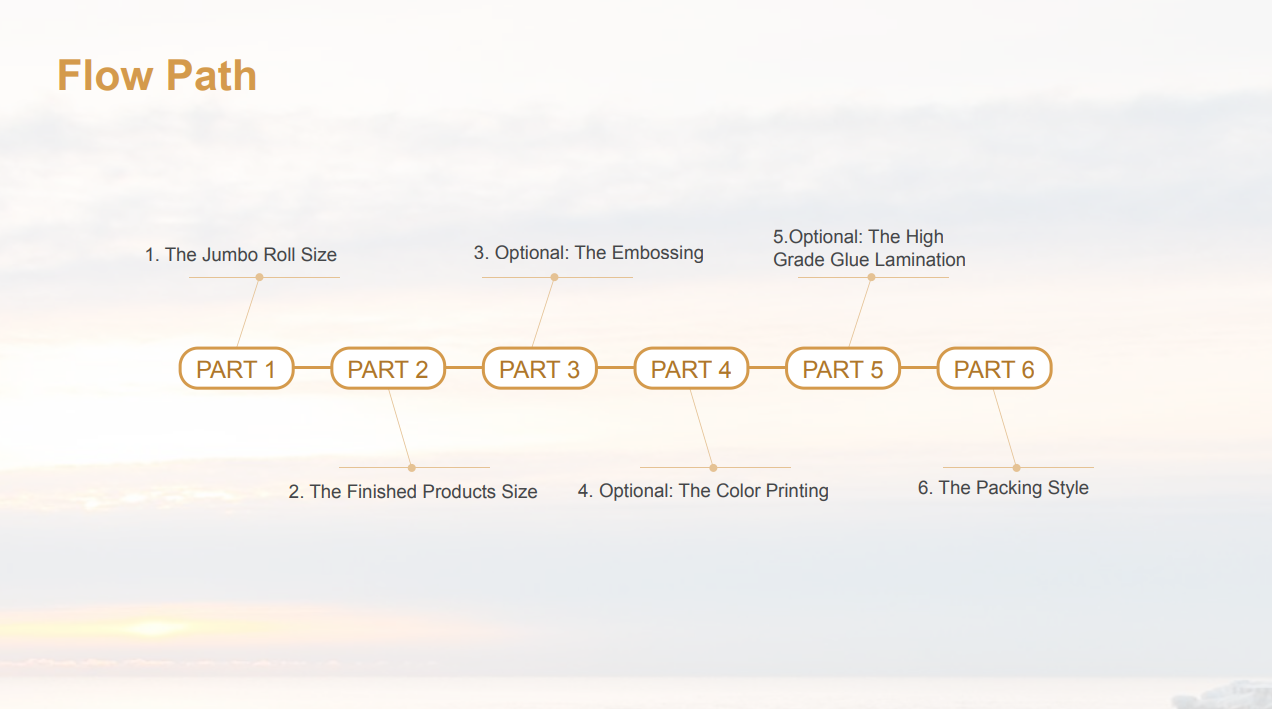

Product Info Flow Path
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What does "CIF Price Durban Port" mean for this production line?
CIF (Cost, Insurance, Freight) Durban Port means the quoted price includes the machine cost, insurance, and ocean freight to Durban Port. Import duties, taxes, customs clearance fees and inland delivery in Durban are usually the buyer's responsibility unless otherwise agreed.
2. What is the machine's production capacity and top speed?
The line has a production speed of 0–230 m/min. Actual output (rolls per hour) depends on roll diameter, perforation settings and operator configuration.
3. What are the electrical and power requirements?
Voltage: 380 V, 50 Hz. Total motor power is quoted as 7.5–15 kW (varies with configuration and accessories). Confirm local power compatibility before ordering.

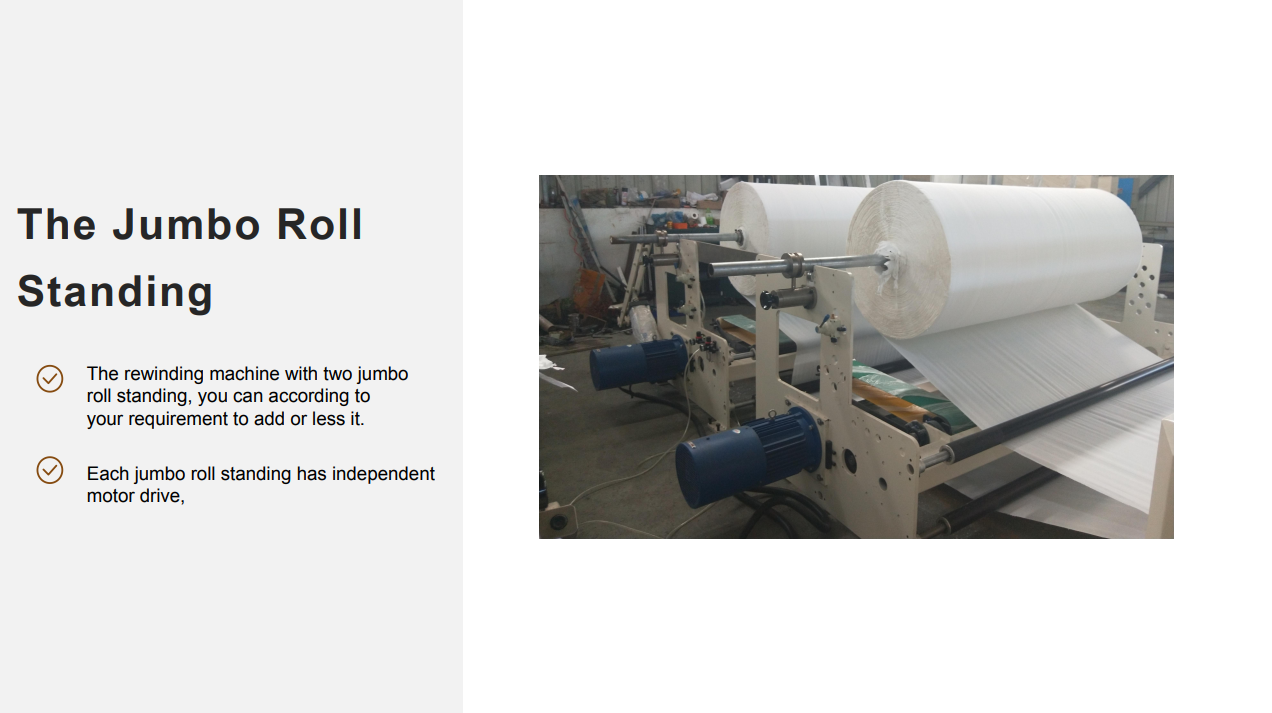

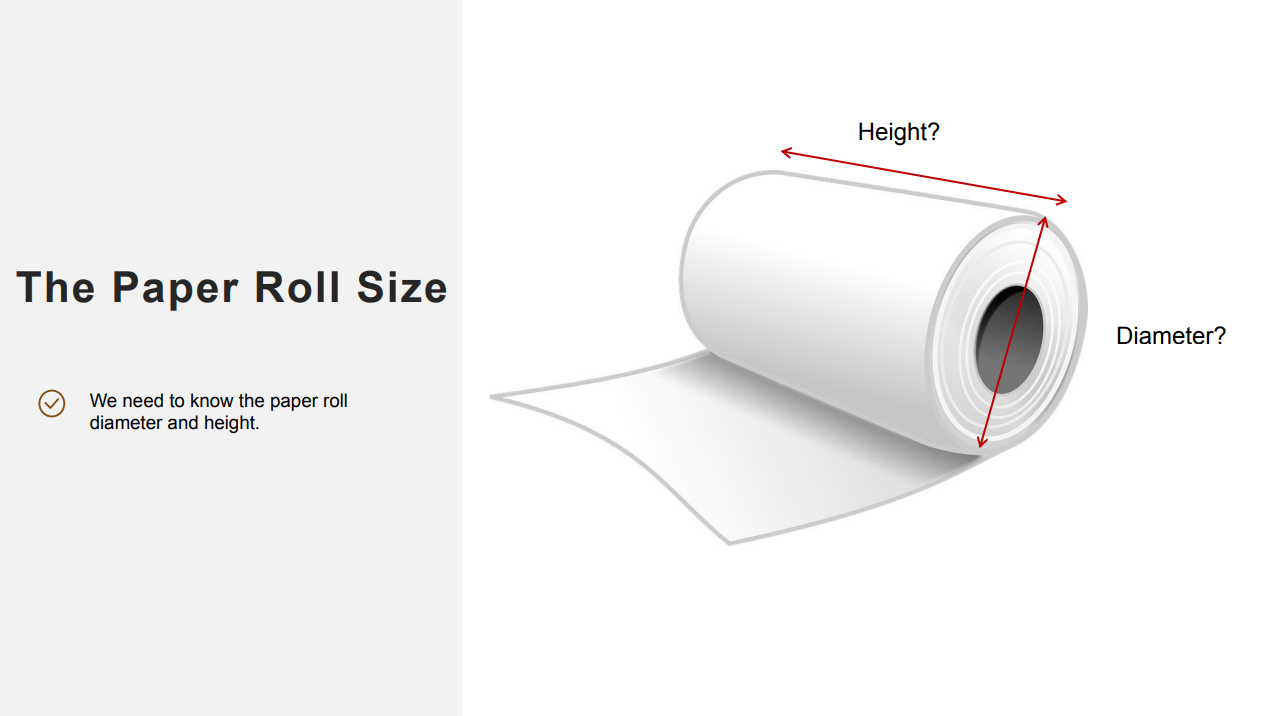

4. What sizes of jumbo rolls and finished toilet rolls can the machine handle?
Jumbo roll max width: 1850 mm; jumbo roll max diameter: 1200 mm. Finished product diameter range: 90–280 mm. Perforation distance: 100–150 mm (adjustable within that range).
5. Does the line support coreless and cored rewinding?
Yes — the rewinding unit supports both with-core and coreless rewinding options.
6. Is printing or laminating available on this line?

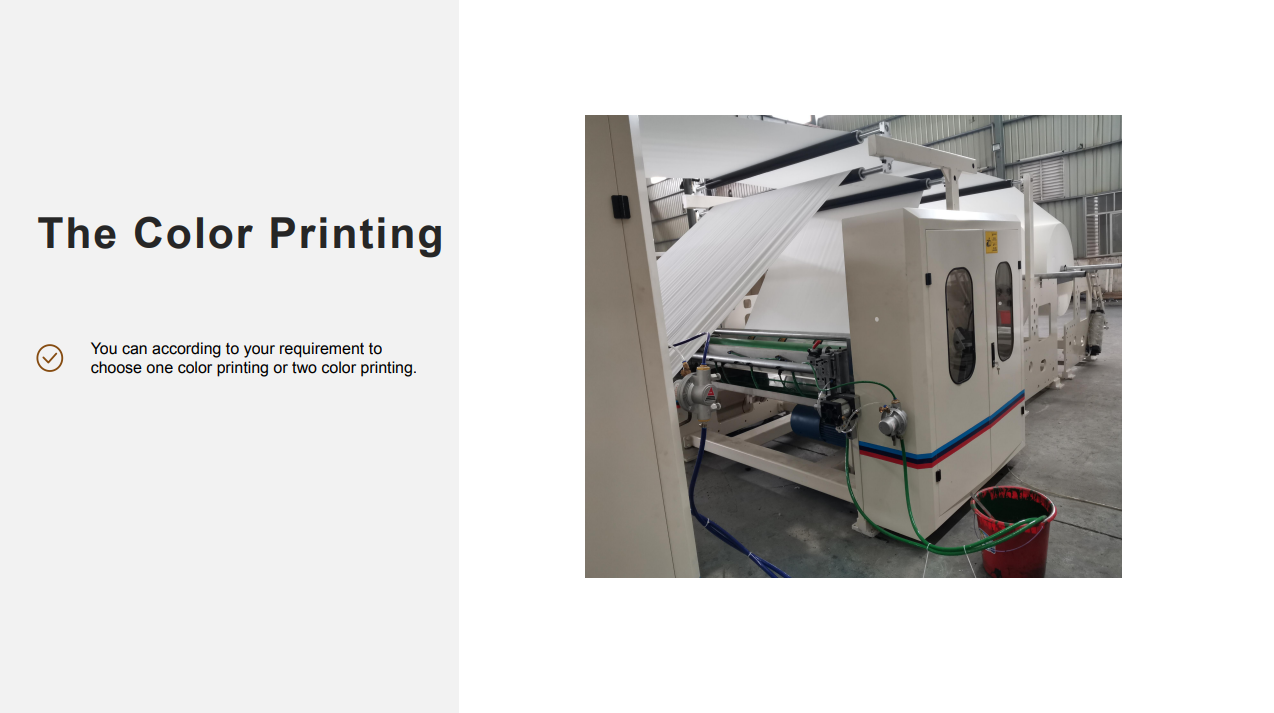

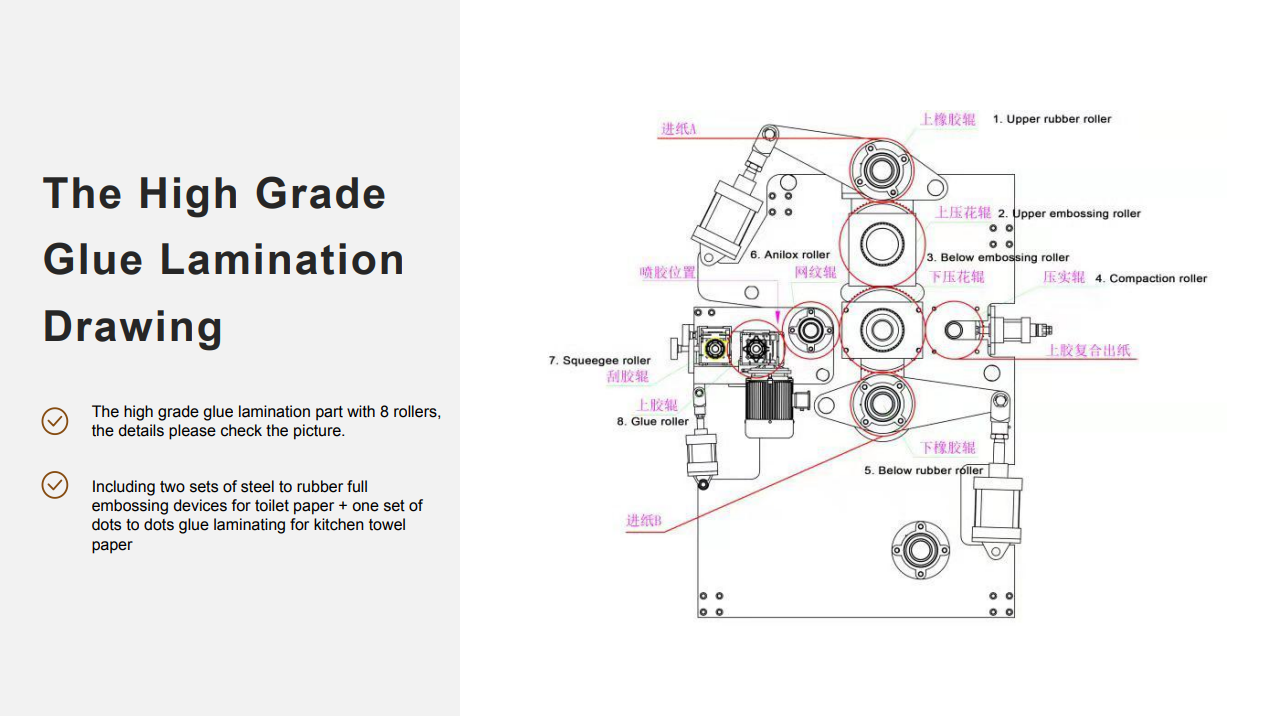

Yes — the machine can be equipped with a glue-laminated or color printing device for branding and decorative printing. Confirm required print resolution and colors when ordering.
7. What type of control system does the machine use?
The line uses an advanced PLC control system for accurate speed control, perforation timing and rewinding operations.

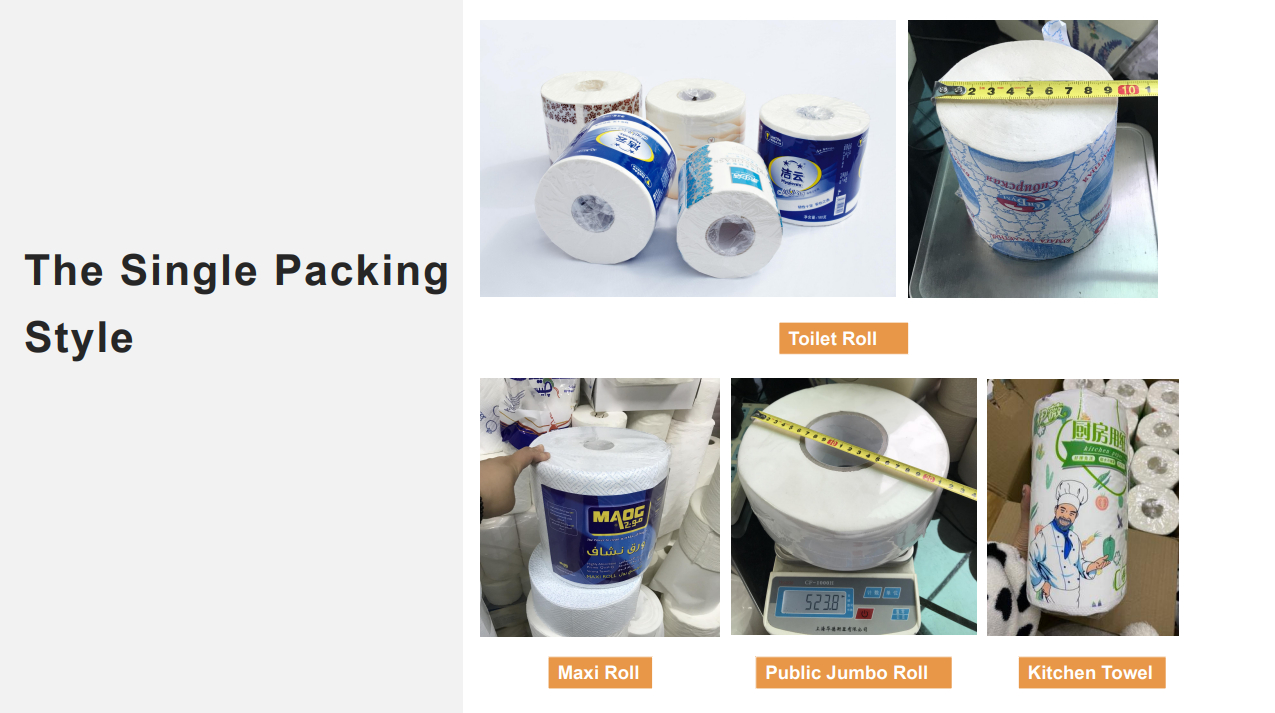

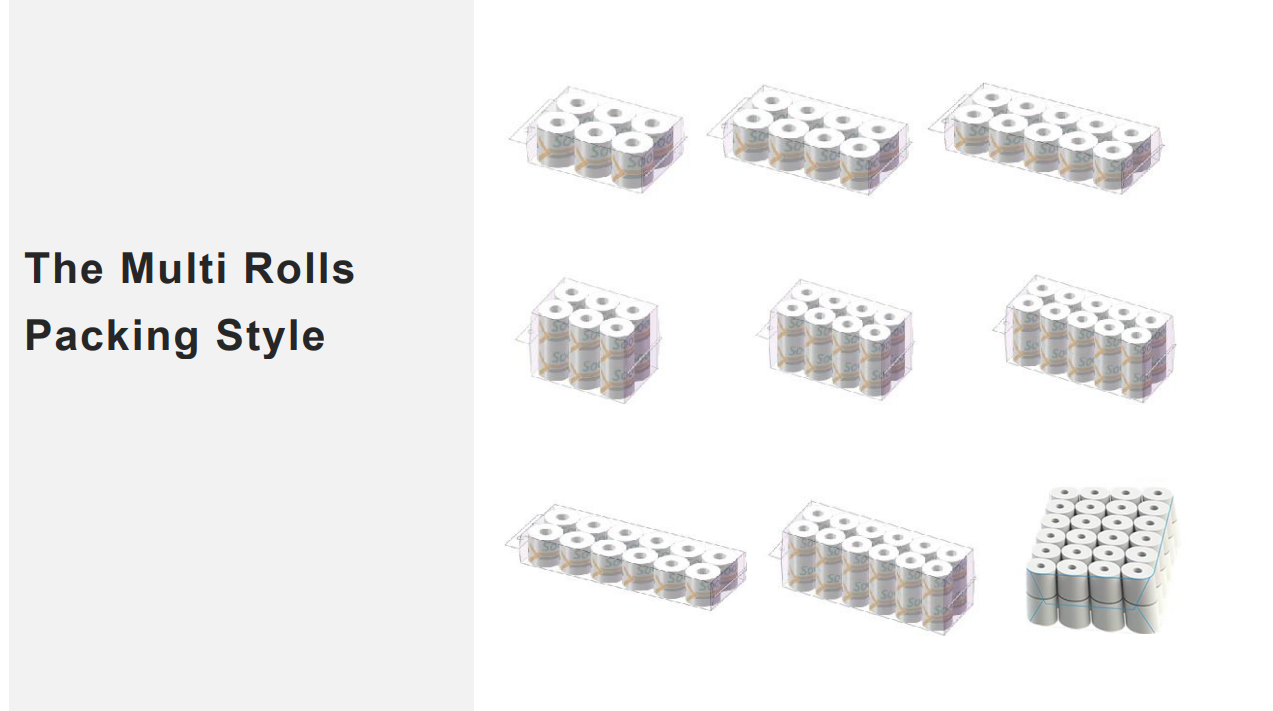

8. What are the machine dimensions and packaging details for shipping?
Machine dimensions (L*W*H): 7800*3000*1720 mm. Packaging: wooden cases, seaworthy. Specified single package size: 6000x2000x1000 (as listed) and a single gross weight of 6000 kg — confirm final packing dimensions/weight with the supplier before shipment.
9. Are installation, commissioning and operator training provided?
Yes — engineers are available to service machinery overseas for installation, commissioning and training. Travel, visa, accommodation and on-site service fees are typically charged separately; confirm scope and costs with the supplier.
10. What after-sales support and spare-part services are available?
After-sales support includes overseas engineers for on-site service. Spare parts availability is offered, but customers are recommended to order a spare-parts kit for wear parts. Ask the supplier for a recommended parts list and lead times.
11. How long is the lead time from order to shipment to Durban?
Lead time depends on machine configuration, factory schedule and shipping. The exact CIF lead time will be provided in the formal quote — contact the supplier with your configuration to get current lead-time estimates.
12. What documentation is provided for customs clearance and import?
Standard export documentation typically includes commercial invoice, packing list, bill of lading, and certificate of origin (if required). The supplier can advise additional documents needed for Durban import.
13. What warranty and quality-testing options are offered?
Warranty and testing terms are not specified in the basic listing. Suppliers commonly offer a limited warranty and can arrange factory acceptance testing (FAT) prior to shipment. Request specific warranty duration and FAT arrangements in the quote.

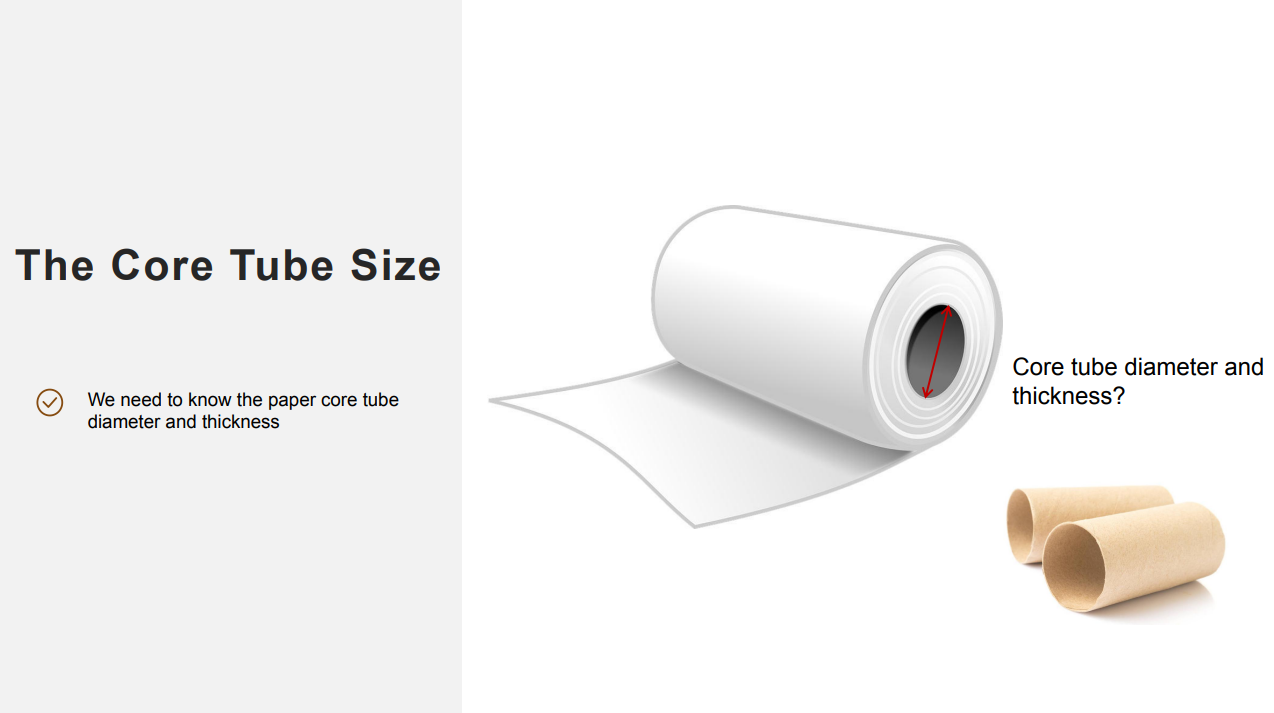

14. What raw materials (paper grade/roll cores) does the line require?
The line is designed for standard toilet tissue parent (jumbo) rolls. Exact paper basis weight, ply, and core specifications depend on your product. Provide your paper specifications to the supplier so they can confirm compatibility or recommend adjustments.
15. What are typical payment terms and how do I request a CIF quote to Durban?
Payment terms vary by supplier (common terms include T/T deposit + balance, or L/C). To get a CIF quote to Durban, provide your desired configuration, quantity, preferred accessories (printing, coreless option, etc.), and delivery address. The supplier will return a formal CIF quotation including price, lead time and payment terms.
