Fully Automatic Multi Layer Clothing Cutter Flatbed Dress Shirt Pattern Cloth Fabric Cutting Machine

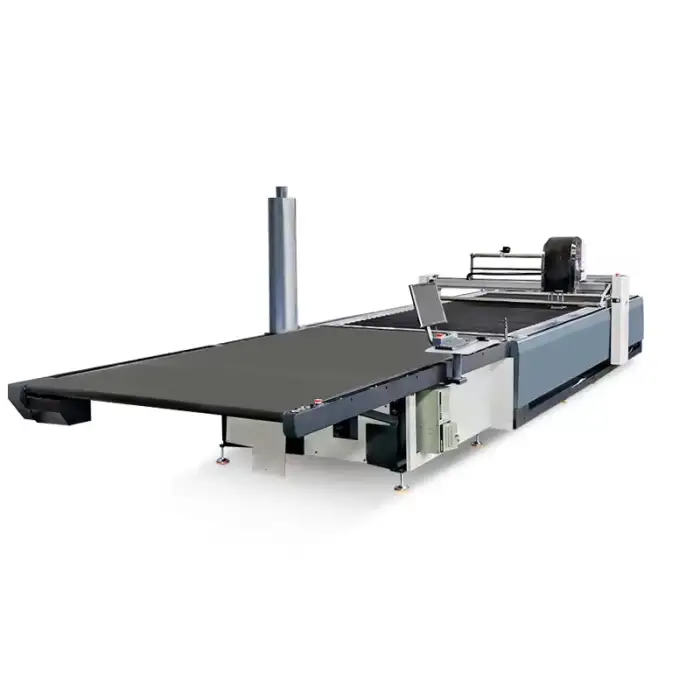

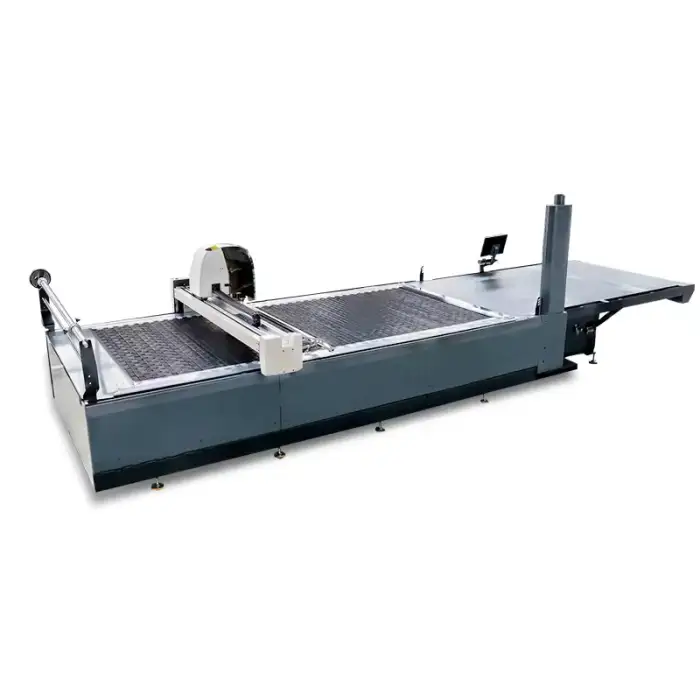

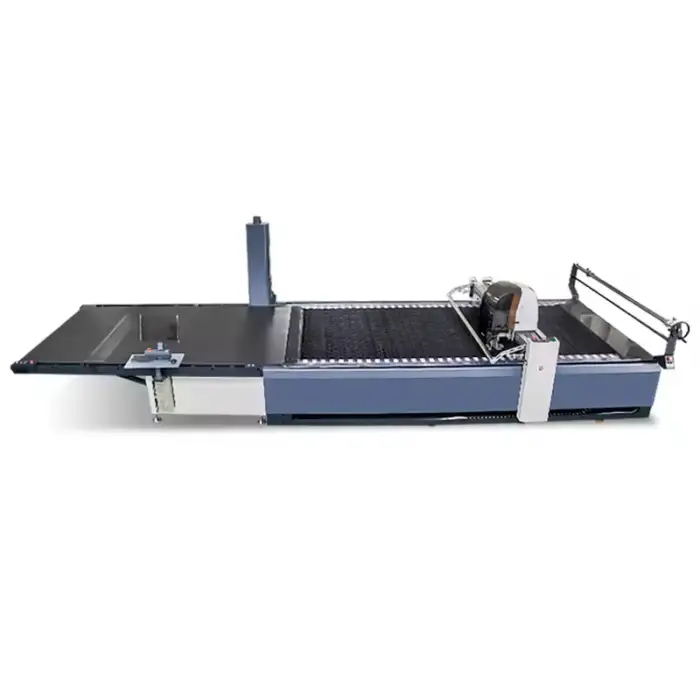

Fully Automatic Multi Layer Clothing Cutter Flatbed Dress Shirt Pattern Cloth Fabric Cutting Machine — an automatic flatbed cutter designed for multi-layer cutting of fabrics and dress shirt patterns in garment production.

Machine dimensions: 360 cm (L) × 230 cm (W) × 160 cm (H). Single package size for shipment: 360 × 230 × 160 cm.

Single gross weight: approximately 4,700 kg.

Rated voltage: 220–380 V (confirm exact wiring and phase requirements with the supplier for your region).

Production capacity of the manufacturing facility: 5,000 sets per year.

Yes, it is fully automatic. The control system is an independently researched and developed PLC-based control platform.

Core components include PLC, engine, bearings, gearbox, motor, pressure vessel, gears and pump. Key imported/quality parts: Omron sensors, Taiwan PMI guides, German igus drag chain cable, Golden Bridge vacuum adsorption turbo pump, and Japan-imported SMC hydraulic buffer components.

Designed for multi-layer cutting of cloth and dress shirt patterns. It supports a wide range of woven and knitted fabrics; compatibility with very delicate or specialty materials should be confirmed with the supplier and may require specific tooling or settings.

Cutting capacity (number of layers and maximum thickness) depends on fabric type and tooling configuration. Please consult the supplier with sample material details for exact layer/thickness performance.

Yes — video outgoing inspection and machinery test report are provided.

The machine is packaged to the stated single package dimensions (360 × 230 × 160 cm). For specific packing details, export crating options, and shipping arrangements, contact the vendor or your freight forwarder.

Installation, commissioning and training are typically available. Please confirm with the supplier whether these services are included or available as optional after-sales services and discuss any travel or local service fees.

After-sales support and warranty terms vary by supplier and region. The manufacturer (Bangzheng Machinery) provides support — contact them or your representative for specific warranty duration, parts coverage and response times.

The machine includes industry-standard safety features tied to its PLC control and hydraulic systems. Regular maintenance of moving parts, vacuum system, sensors and tooling is required. Follow the manufacturer's maintenance schedule and safety guidelines to ensure safe operation and longevity.

Customization and integration options are often available (e.g., tooling, software formats, automation interfaces). Confirm supported pattern file formats, communication protocols and customization options with the manufacturer prior to purchase.
