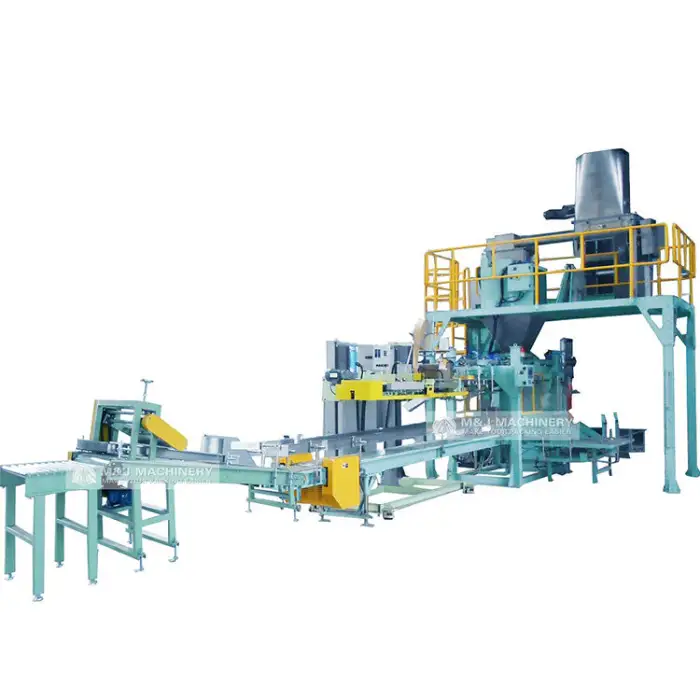

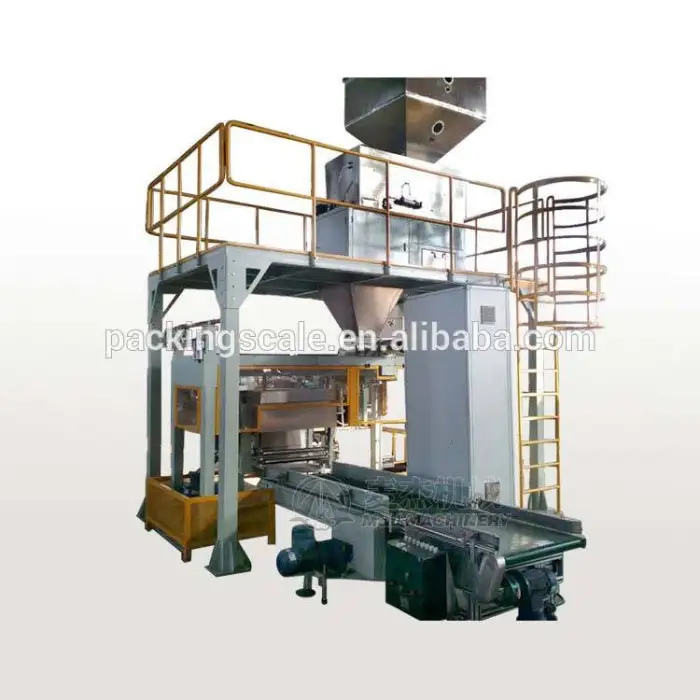

DCS-Z-W-50 Semi-Automatic Granular Packing Machine

DCS-Z-W-50 Semi-Automatic Granular Packing Machine

The DCS-Z-W-50 Semi-Automatic Granular Packing Machine is designed for accurately weighing, filling and packaging granular materials and suitable powders into open-mouth bags. It is ideal for fertilizer packaging operations, with a packing capacity of 10 kg or 25 kg per bag and a production speed of approximately 200–300 bags per hour, depending on the material characteristics.

The machine features a gravity-feeding system and a three-speed feeding mechanism that combines rapid filling, medium-speed transition and slow, fine filling to balance packaging efficiency with weighing accuracy. Its three-sensor suspended weighing mechanism supports a specified packaging accuracy of ±0.2%.

The system includes a 0.5 m³ hopper, a bag conveyor and an automatic sewing machine for bag closure. The sewing unit supports automatic stitching and thread cutting, with broken-needle and broken-thread detection alarms. A touch-screen-compatible control system allows operators to adjust settings and store up to 20 weighing recipes for different packaging requirements.

Key Features

Model: DCS-Z-W-50

Machine Type: Semi-automatic granular packing machine

Suitable Materials: Fertilizer granules and compatible powders

Packing Capacity: 10 kg and 25 kg per bag

Packing Speed: 200–300 bags per hour, depending on material

Weighing Accuracy: ±0.2%

Feeding Method: Gravity feeder

Hopper Capacity: 0.5 m³

Bag Type: Open-mouth PP, PE, kraft paper and plastic bags

Bag Width: 350–650 mm

Bag Length: 550–1,200 mm

Bag Sealing: Automatic stitching

Control System: Digital weighing controller with storage for 20 recipes

Conveyor Motor Power: 0.37 kW

Conveyor Belt Width: 400 mm

Conveyor Speed: 5–20 m/min

Power Supply: AC 380 V, three-phase, 50 Hz

Compressed Air Pressure: 0.5–0.8 MPa

Compressed Air Consumption: 1,000 NL/min

Main Components

Granular weighing and feeding unit

0.5 m³ material hopper

Digital weighing controller

Automatic bag sewing machine

Bag conveyor belt

Pneumatic feeding and discharge mechanisms

Electrical control cabinet

Safety and fault-detection features

Construction and Materials

The machine uses a carbon-steel frame with protective surface treatment. Material-contact components are specified in 304 stainless steel, with alternative stainless-steel construction options indicated in the technical documentation.

Applications

Suitable for fertilizer manufacturers and other industrial packaging operations handling granular materials and compatible powders. The system integrates weighing, bag filling, conveying and stitching to streamline the packaging process and improve production consistency.
