The Full Automatic Pick and Place Machine SMT220 is a powerful and precise desktop solution for your PCB assembly needs. With its high-speed operation and advanced features, this machine is perfect for making LED components and other electronic parts. It is designed for...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

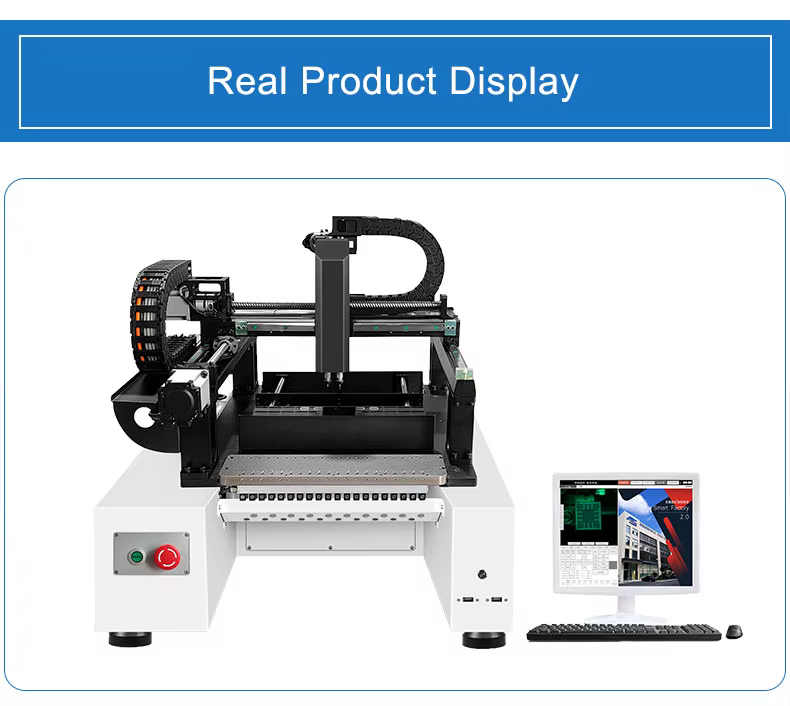

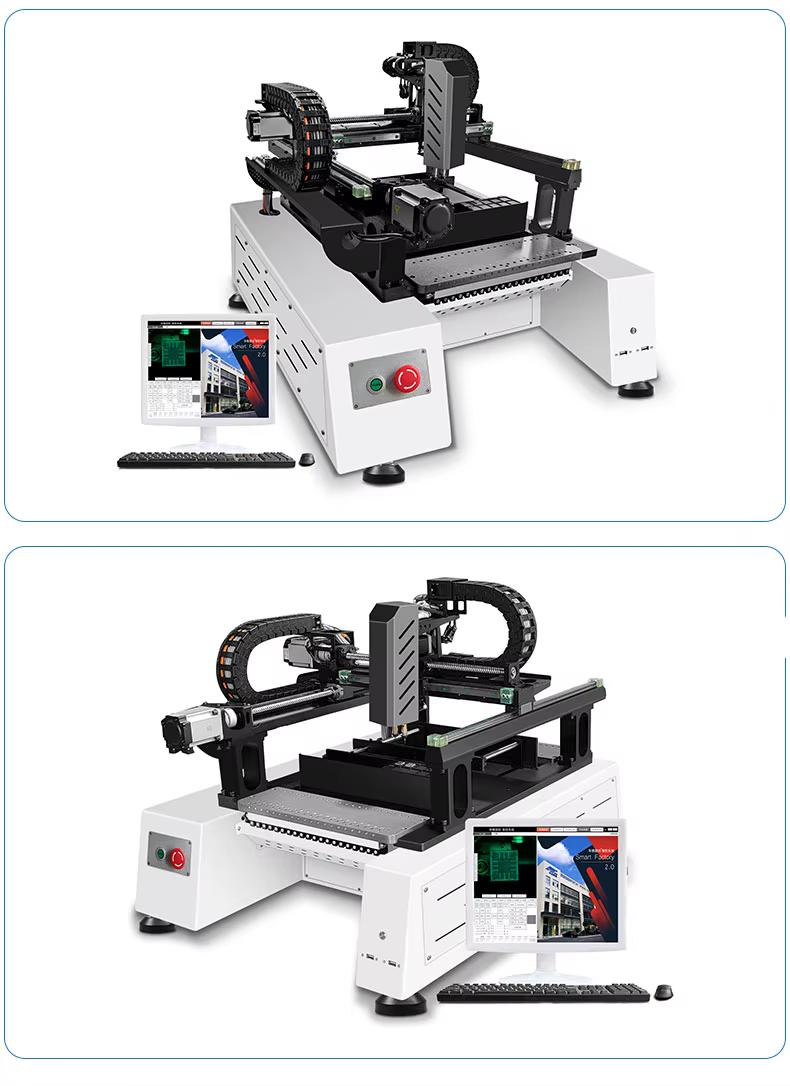

The Full Automatic Pick and Place Machine SMT220 is a powerful and precise desktop solution for your PCB assembly needs. With its high-speed operation and advanced features, this machine is perfect for making LED components and other electronic parts. It is designed for efficiency and accuracy, making it an essential tool for any electronics manufacturer or hobbyist.
| Attribute | Details |
|---|---|
| Machine Type | Pick and Place Machine |
| Patch Speed | 3500-5000 pcs/h |
| Power | AC 220V 50/60Hz 1500W |
| Quantity of Feeder | 40 bits (subject to 8mm fly up) |
| Scope of Patch | 0201, 0402, 0603, 0805, 1206, LED beads, diode, triode, SOT, GFP, BGA, etc. |
| Weight | 96 kg |
| Number of Suction Mouths | 2 |
| Types of Feeder | Pneumatic feeder, vibration feeder, IC tray, etc. |
| Warranty of Core Components | 1 Year |
| Items | Content | |
| Product model | SMT220 | |
| Patch accuracy | 0.05mm | |
| Repeat loading accuracy | 0.05mm | |
| Positioning accuracy | 0.01mm | |
| Continuous working hours | Can work continuously> 24H without shutdown | |
| Patch speed | 3500-5000pcs/h | |
| Patch area | 320*230mm--50*50mm | |
| Scope of patch | 0201,0402,0603,0805,1206, LED beads, diode, triode, SOT, 30 * 30mm, pin spacing greater than 0.3mm GFP, BGA, etc., acceptable visual customization of alien components | |
| Pending head system | The number of suction mouth | 2 |
| The nozzle type | JUKI RUI is applicable | |
| Component Angle Support | ±180° | |
| Available element Height | ≤7mm | |
| Take the same way | Single head take put | |
| Vacuum buffer range | 4.5mm | |
| Maximum trip on the Z axis | 22mm | |
| Feed system | Quantity of feeder | 40 bits (subject to 8mm fly up) |
| Types of feeder | Pneumatic feeder, vibration feeder, IC tray, etc | |
| Feeder type | Applicable to the YAMAHACL series feeder | |
| Number of IC disk | 2 plates (20 bits) | |
| IC disk size | L130*W55mm | |
| Pending method | Automatically optimize the item order to install the items as prompted | |
| Method of feeding | Automatic feeding | |
| PCB board bearing system | Baseline thickness | ≤3mm |
| Orbital regulation | Manual regulation | |
| Change plate mode | Manual upper and lower panels | |
| Bearing structure | Customized, industrial-grade, high-precision aluminum alloy structure | |
| Gas supply system | Vacuum source | Vacuum generator (high speed break with vacuum damage) |
| Vacuum mechanism | High-speed, high-flow vacuum generator for active destruction | |
| Bleed pressure | 0.4-0.5mp | |
| Gas source requirements | No less than 50L external connection, dust filtration, air pressure stabilization device and oil and water separation device are required | |
| Kinetic control system | Operating system | Based on the windows system, we have independently developed the Yingxing International Innovation intelligent operating system |
| Control the Host | Intel high-performance processor industrial control host | |
| Driving system | High-speed DSP drive, an AC servo motor | |
| Security system | Emergency rotary stop button | |
| XY maximum stroke | 320mm*527mm | |
| XY drives the track | Linear guide rail + rolling wire rod | |
| XY motor pattern | Intelligent curve acceleration and deceleration linear linkage, with straight line insertion algorithm | |
| Exercise protection | High wear-resistant tank chain and flexible cable | |
| Vision system | Identify equipment | 1 Mark camera and 1 high-precision camera |
| Indicator | A 17-inch industrial control display | |
| How to take photos | Fixed shot flight pair center | |
| RM | Routine element identification and alien element feature identification | |
| Mark point identification | Manual / fully automatic positioning | |
| Security detection | Leakage material automatic correction, component Angle automatic correction, invalid material automatically thrown | |
| Programming method | Import the coordinate file, one-key automatic programming, the optimal path planning | |
| Compatible file format | The CSV / TXT file format can be imported directly | |
| Circuit protection | Leakage protector, thermosetting shell, insoluble not melt; excellent interface, no cracking, leakage prevention | |
| Power | AC 220V 50/60Hz 1500W | |
| Outline dimension | L770 * W950 * H750mm | |
| Weight of equipment | 96kg | |
| Machine Type | Pick and Place Machine |
|---|---|
| Patch Speed | 3500-5000 pcs/h |
| Power | AC 220V 50/60Hz 1500W |
| Quantity of Feeder | 40 bits (subject to 8mm fly up) |
| Scope of Patch | 0201, 0402, 0603, 0805, 1206, LED beads, diode, triode, SOT, GFP, BGA, etc. |
| Weight | 96 kg |
| Number of Suction Mouths | 2 |
| Types of Feeder | Pneumatic feeder, vibration feeder, IC tray, etc. |
| Warranty of Core Components | 1 Year |
The SMT220 machine has a patch speed ranging from 3500 to 5000 pcs/h.
The SMT220 can handle a variety of components including 0201, 0402, 0603, 0805, 1206, LED beads, diodes, triodes, SOT, GFP, BGA, and more.
Yes, the SMT220 is designed for both small-scale PCB assembly and hobbyist projects, making it an excellent choice for DIY electronics.
The SMT220 machine weighs 96 kg.
The SMT220 supports up to 40 feeder bits (subject to 8mm fly up).
The SMT220 comes with a 1-year warranty for its core components.
Yes, the SMT220 can work continuously for over 24 hours without shutdown.
The SMT220 has a positioning accuracy of 0.01mm.
The SMT220 can handle components with a height of up to 7mm.
The SMT220 operates on a Windows-based system with an independently developed intelligent operating system.
The SMT220 includes an emergency rotary stop button and various circuit protection mechanisms.
Yes, the SMT220 requires an external air supply with a minimum of 50L capacity and dust filtration.
The outline dimensions of the SMT220 are L770 x W950 x H750 mm.
You can program the SMT220 by importing a coordinate file, and it supports direct CSV/TXT file formats for easy programming.
The patch area size for the SMT220 is 320*230mm to 50*50mm.
