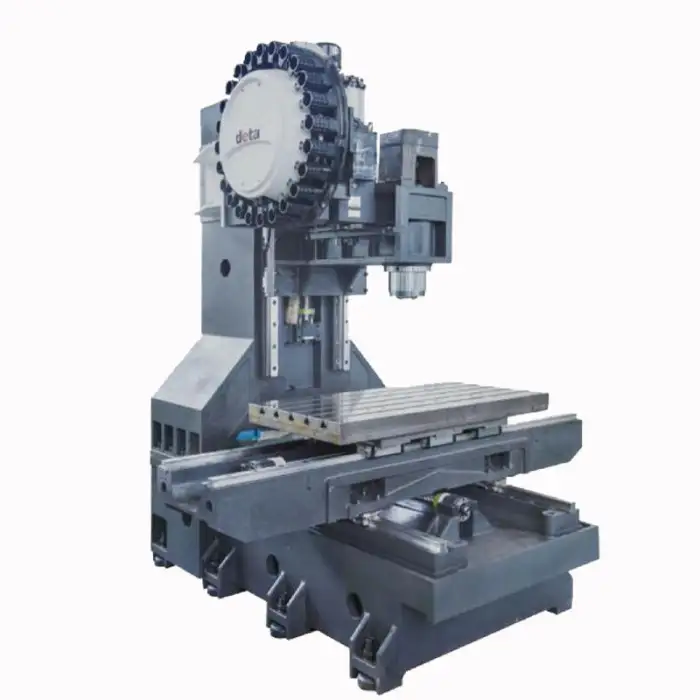

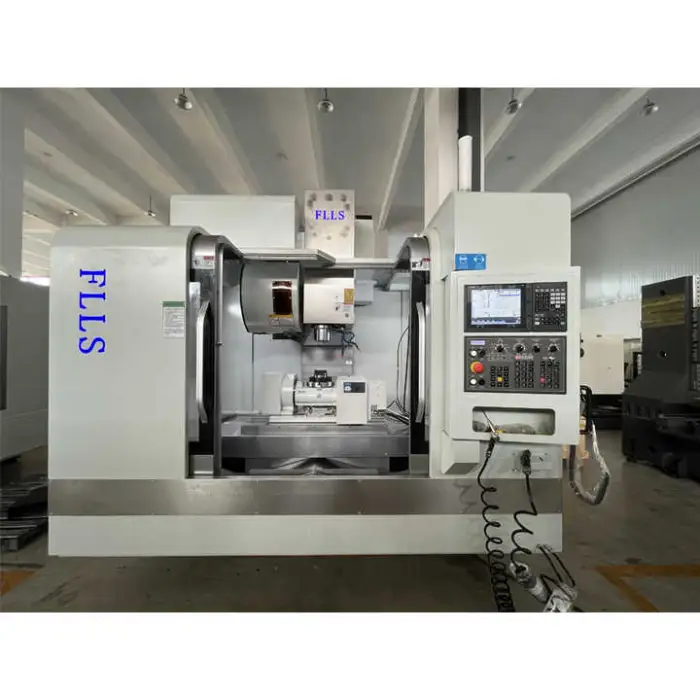

The FLLS VMC1160 High Speed CNC Vertical Machining Center is a powerful tool designed for machining metal steel parts. This machine combines advanced technology with high precision to deliver exceptional performance. Its robust design and high-speed capabilities make it...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
The FLLS VMC1160 High Speed CNC Vertical Machining Center is a powerful tool designed for machining metal steel parts. This machine combines advanced technology with high precision to deliver exceptional performance. Its robust design and high-speed capabilities make it suitable for various machining applications.
| Attribute | Details |
|---|---|
| Control System | SIEMENS, GSK, KND, FANUC, MITSUBISHI (optional) |
| Spindle Speed | 8000/10000/12000/15000/20000 rpm |
| Table Size | 1200 x 600 mm |
| Table Travel (X) | 1100 mm |
| Table Travel (Y) | 600 mm |
| Table Travel (Z) | 600 mm |
| Tool Magazine Capacity | 24, 32, 40 |
| Weight | 7 tons |
| Warranty | 1 Year |
| Model | Unit | VMC-855 | VMC-1160 | VMC-1370 | VMC-1580 |
| X/Y/Z axis travel | mm | 800*550*550 | 1100*600*600 | 1300*700*650 | 1500*800*700 |
| Spindle nose to worktable surface | mm | 120-670 | 140-740 | 140-790 | 150-850 |
| Spindle center to Z-axis shield face | mm | 570 | 630 | 710 | 840 |
| Worktable dimension | mm | 1000*550 | 1200*600 | 1400*700 | 1600*800 |
| Worktable max load | kg | 750 | 900 | 1000 | 1300 |
| T-slot size (width*slots*spacing) | mm | 18*5*90 | 18*5*100 | 5*18*120 | 22*7*110 |
| Spindle speed | rpm | 10000 | 10000 | 10000 | 8000 |
| Spindle motor | kw | 11/15 | 11/15 | 11/15 | 15 |
| Spindle taper | BT40 | BT40(Optional BT50) | BT40(Optional BT50) | BT50(Optional BT40) | |
| Spindle diameter | mm | 150 | 150 | 150 | 155/190 |
| X/Y/Z axis fast speed | m/min | 48*48*48 | 36*36*36 | 24*24*24 | 20*20*20 |
| X/Y/Z axis screw specifications | 4016/4016/4016 | 4012/4012/4012 | 4012/4012/4012 | 5010/5010/5010 | |
| X/Y/Z axis motor power | kw | 3/3/3 | 3/3/3 | 3/3/3 | 3/3/3 |
| Repeat (full travel) | mm | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
| Positioning accuracy (full travel) | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| ATC tool changer | |||||
| Tool changer type | ATC | ATC | ATC | ATC | |
| Tool magazine capacity | branch | 24(Optional BT40/32 ) | 24(Optional BT40/32 BT50/30) | 24(Optional BT40/32 BT50/30) | 24(Optional BT40/32 BT50/30) |
| Max tool diameter | mm | 80 | 80(Optional BT50/110) | 80(Optional BT50/110) | 80(Optional BT50/110) |
| Max tool length | mm | 300 | 300(Optional BT50/350) | 300(Optional BT50/350) | 300(Optional BT50/350) |
| Max tool weight | kg | 8 | 8 | 8 | 15 |
| Tool change time (tool to tool) | sec | 2 | 2 | 2 | 4 |
| Tool change time (cutting to cutting) | sec | 2.8 | 2.8 | 2.8 | 4.8 |
| Oil cooler | w | 515 | 515 | 515 | 515 |
| Orbital lubrication automatic oiling machine | w | 200 | 200 | 200 | 200 |
| Cutting fluid pump | w | 700 | 700 | 700 | 700 |
| Air pressure | kgf/cm2 | 7 | 7 | 7 | 7 |
| electricity demand | KVA | 20 | 30 | 30 | 30 |
| Weight | T | 6 | 7 | 9 | 12 |
| Dimensions (L*W*H) | m | 2.7*2.45*2.55 | 3.1*2.4*2.7 | 3.4*3.3*3.0 | 4*3.3*3.0 |
| Control System | SIEMENS, GSK, KND, FANUC, MITSUBISHI (optional) |
|---|---|
| Spindle Speed | 8000/10000/12000/15000/20000 rpm |
| Table Size | 1200 x 600 mm |
| Table Travel (X) | 1100 mm |
| Table Travel (Y) | 600 mm |
| Table Travel (Z) | 600 mm |
| Tool Magazine Capacity | 24, 32, 40 |
| Weight | 7 tons |
| Warranty | 1 Year |
The FLLS VMC1160 is designed primarily for machining metal steel parts, but it can also handle various materials including aluminum and other metals depending on the tooling used.
The FLLS VMC1160 features a maximum spindle speed of up to 20,000 rpm, providing high-speed machining capabilities.
The table size of the FLLS VMC1160 is 1200 x 600 mm, making it suitable for various machining tasks.
The FLLS VMC1160 has a table travel of 1100 mm in the X direction, 600 mm in the Y direction, and 600 mm in the Z direction.
The tool magazine of the FLLS VMC1160 can hold 24, 32, or 40 tools, depending on the configuration you choose.
The FLLS VMC1160 weighs approximately 7 tons, contributing to its stability during operation.
Yes, the FLLS VMC1160 comes with a 1-year warranty, ensuring peace of mind with your purchase.
The FLLS VMC1160 is primarily equipped with a SIEMENS control system, but it also supports optional systems such as GSK, KND, FANUC, and MITSUBISHI.
The FLLS VMC1160 has a heavy-duty maximum table load capacity of 900 kg.
The FLLS VMC1160 features a fast tool change time of just 2 seconds, enhancing productivity.
The FLLS VMC1160 offers high accuracy with a positioning accuracy of ±0.005 mm.
The rapid feed speed of the FLLS VMC1160 ranges from 1 to 24,000 mm/min, allowing for efficient machining processes.
The FLLS VMC1160 is suitable for general machinery processing, manufacturing metal steel parts, high-precision component production, custom machining solutions, and tooling and fixture production.
Yes, the FLLS VMC1160 can be configured for custom machining solutions based on your specific requirements.
For more information about the FLLS VMC1160, you can visit the product info gallery or contact our sales team for detailed specifications and inquiries.
