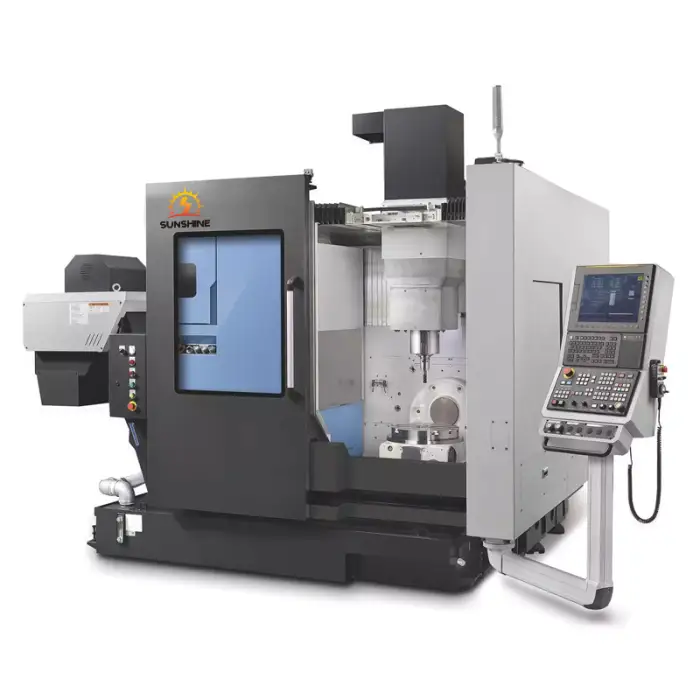

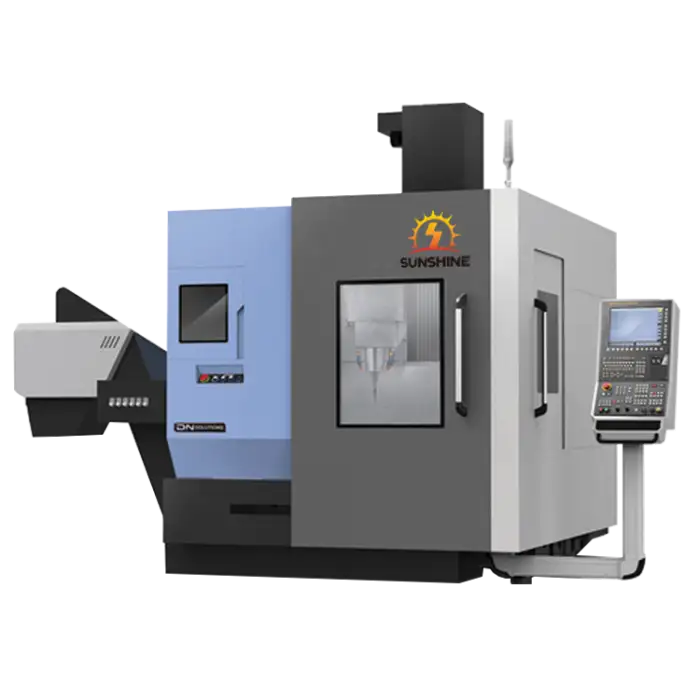

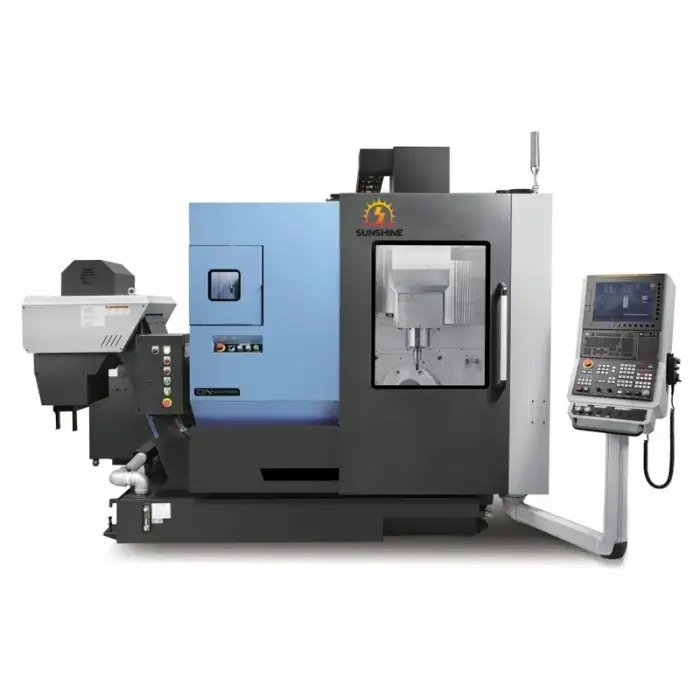

The Five-axis Machining Center is a powerful CNC milling machine designed to create complex shapes with precision. This machine is perfect for heavy-duty machining tasks. Its advanced five-axis linkage integration allows for high flexibility and accuracy in manufacturin...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
The Five-axis Machining Center is a powerful CNC milling machine designed to create complex shapes with precision. This machine is perfect for heavy-duty machining tasks. Its advanced five-axis linkage integration allows for high flexibility and accuracy in manufacturing. With a range of features and specifications, this milling machine meets the needs of various industries.
| Attribute | Details |
|---|---|
| Machine Type | CNC Vertical Machine Center |
| Spindle Power | 7.5 kW |
| Spindle Torque | 35.8/70 Nm |
| Tool Change Time (T-T) | 1.55 s |
| Tool Magazine Capacity | 24 |
| Workbench T-slot | 14 |
| Max. Table Load | 200 kg |
| Positioning Accuracy | ±0.005 mm |
| Spindle Speed Range | 1 - 10,000 r.p.m |
| Rapid Feed Speed | 1 - 10,000 mm/min |
| Repeatability (X/Y/Z) | ±0.004 mm |
| Table Size | 630 x 500 mm |
| Table Travel (X/Y/Z) | 550/450/400 mm |
| Weight | 6.8 t |
| Voltage | 220 V, 380 V |
| Warranty | 1 Year |
Specification
| Specification | unit | CMC500f | CMC650U | DMC800U |
| working desk size | mm | Φ630×500 | Φ650×540 | Φ800 |
| Workbench T-slot | mm | 14 | 14 | 14 |
| Center hole of workbench | mm | Φ30 | Φ50 | Φ50 |
| Maximum load-bearing capacity of workbench | kg | 200 | 300 | 1200 |
| X-axis travel | mm | 550 | 650 | 850 |
| Y-axis travel | mm | 450 | 520 | 850 |
| Z-axis travel | mm | 400 | 475 | 600 |
| A-axis rotation range | º | - | ±120 | ±120 |
| B-axis rotation range | º | -5/110 | - | - |
| C-axis rotation range | º | 360 | 360 | 360 |
| Distance from spindle end to worktable | mm | 150-550 | 150-625 | 150-750 |
| Spindle taper | -- | BBT40 | BBT40 | HSK-A63 |
| Spindle maximum speed | rpm | 10000 | 12000 | 14000 |
| Spindle power | kw | 7.5 | 7.5 | 25 |
| Spindle torque | N.M | 35.8/70 | 45 | 91.7 |
| Tool magazine type | -- | Disc | Disc | Horizontal chain type |
| Tool magazine capacity | 把 | 24 | 24 | 30 |
| Maximum tool diameter (full tool/adjacent tool) | mm | Φ78/Φ150 | Φ78/Φ150 | Φ78/Φ150 |
| Maximum tool length | mm | 300 | 300 | 300 |
| Maximum tool weight | kg | 8 | 8 | 8 |
| Tool change time (T-T) | s | 1.55 | 1.55 | 2 |
| Rapid moving speed (X/Y/Z) | mm/min | 42000/42000/42000 | 42000/42000/42000 | 32000/32000/32000 |
| Cutting feed speed (X/Y/Z) | mm/min | 1-10000/1-10000/1-10000 | 1-10000/1-10000/1-10000 | 1-10000/1-10000/1-10000 |
| Positioning accuracy (X/Y/Z) | mm | 0.005/300JIS | 0.005/300JIS | 0.005/300JIS |
| Positioning accuracy (A/C) | " | - | ±5 | ±5 |
| Positioning accuracy (B/C) | " | ±5 | - | - |
| Repeatability (X/Y/Z) | mm | ±0.003JIS | ±0.003JIS | ±0.003JIS |
| Repeatability (A/C) | " | - | 4 | 4 |
| Repeatability (B/C) | " | 4 | - | - |
| Machine weight | kg | 6500 | 8500 | 18000 |
| Machine dimensions | mm | 3500×3400×2700 | 3970×3210×2800 | 5500×4000×3500 |
| Machine Type | CNC Vertical Machine Center |
|---|---|
| Spindle Power | 7.5 kW |
| Spindle Torque | 35.8/70 Nm |
| Tool Change Time (T-T) | 1.55 s |
| Tool Magazine Capacity | 24 |
| Workbench T-slot | 14 |
| Max. Table Load | 200 kg |
| Positioning Accuracy | ±0.005 mm |
| Spindle Speed Range | 1 - 10,000 r.p.m |
| Rapid Feed Speed | 1 - 10,000 mm/min |
| Repeatability (X/Y/Z) | ±0.004 mm |
| Table Size | 630 x 500 mm |
| Table Travel (X/Y/Z) | 550/450/400 mm |
| Weight | 6.8 t |
| Voltage | 220 V, 380 V |
| Warranty | 1 Year |
The maximum spindle speed of the Five-axis Machining Center is 10,000 r.p.m.
The tool change time is just 1.55 seconds, allowing for fast and efficient operations.

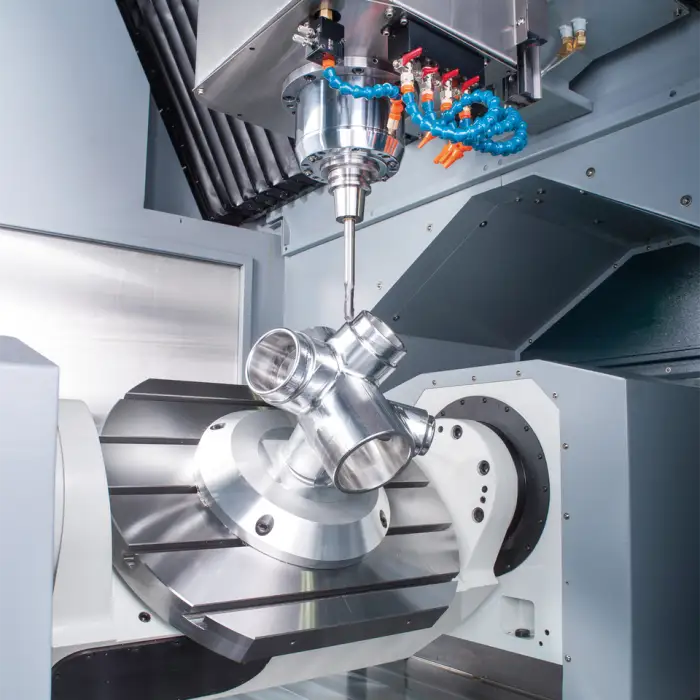

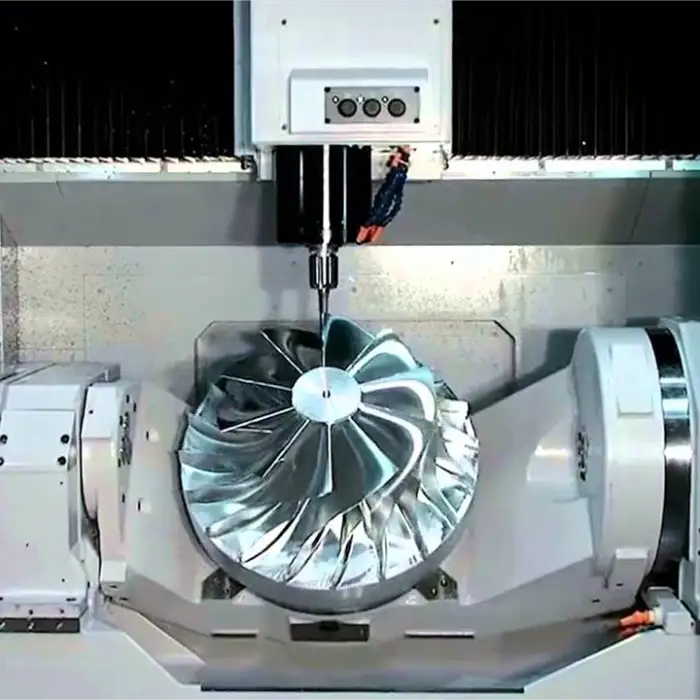

This machining center is designed to create complex shaped parts, making it ideal for aerospace components, intricate molds, automotive parts, custom tooling, and high-precision medical devices.
The positioning accuracy of the Five-axis Machining Center is ±0.005 mm.
The maximum load-bearing capacity of the workbench is 200 kg.
The tool magazine capacity is 24 tools.
Industries such as aerospace, automotive, medical device manufacturing, and custom tooling fabrication can greatly benefit from using this CNC milling machine.
The dimensions of the Five-axis Machining Center vary by model, but for the CMC500f, they are 3500×3400×2700 mm.
The weight of the machine is approximately 6.8 tons.
The machine operates on either 220 V or 380 V.
Yes, the Five-axis Machining Center comes with a 1-year warranty.
Yes, the robust construction of the machine supports heavy workloads up to 200 kg.
The machine features different tool magazine types, including a disc and horizontal chain type.
The maximum tool weight that the machine can handle is 8 kg.
The rapid feed speed is 1 - 10,000 mm/min.
