Product Description

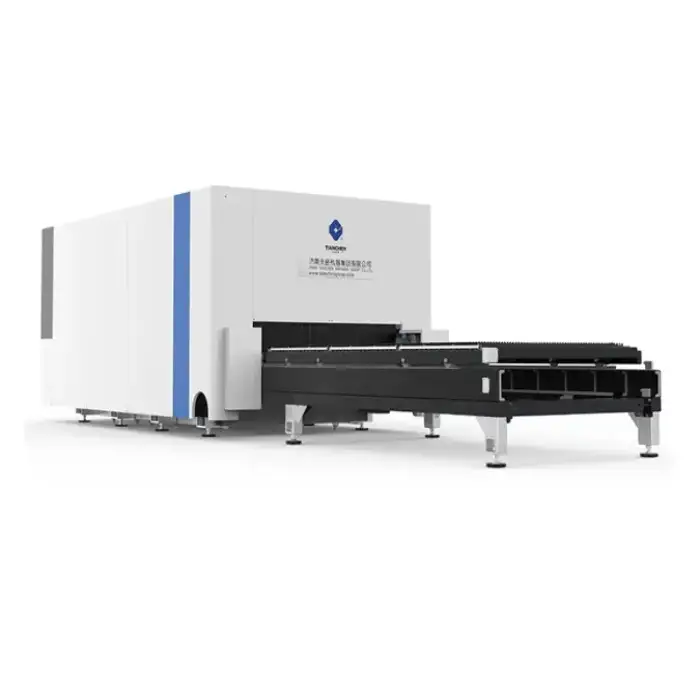

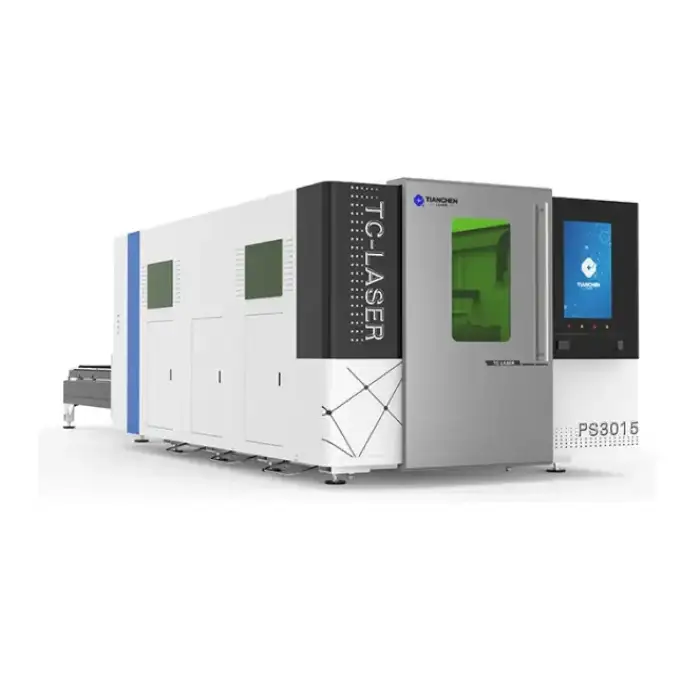

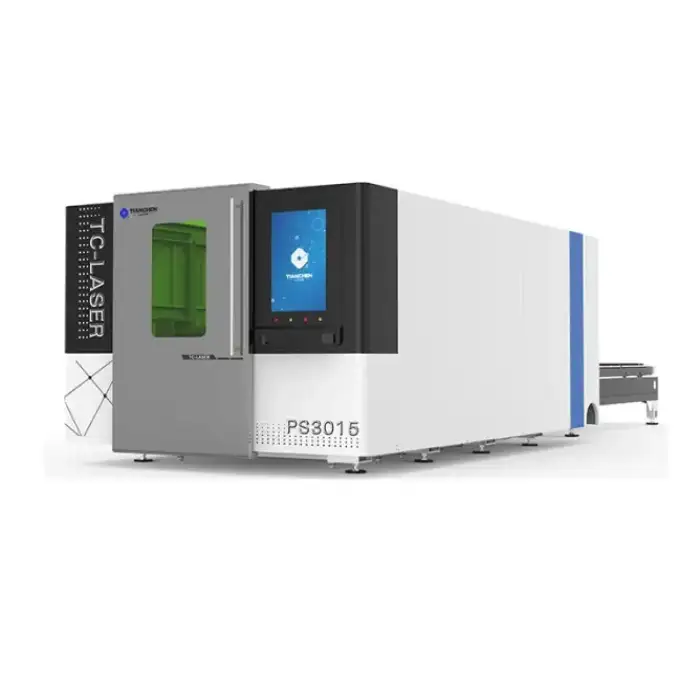

Fiber laser cutter PS3015 1000w-6000w fiber laser cutting machine with full protection cover
PS3015 fiber laser cutting machine:
Application industry:
Industry of kitchen ware,lamps and lanterns,panel beating,metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.
Technical parameters:
| Product model | PS3015 |
| Working area | 3000*1500mm |
| Max Movement Speed | 130m/min |
| Max Acceleration | 1.0G |
| Positioning Accuracy | 0.05mm/m |
| Re-position Accuracy | 0.03mm/m |
| Dimensions | 8500*2750*2300mm |
| Maximum Loading Weight | 800KGS |
| Gross weight | 4.2T |
Product configuration:
Anti-burn board design,special design
Highly heat and corrosion resistant,combining the properties of aluminum which renders increased durability, excellent heat resistance, and form-ability, and
those of zinc which offers high heat resistance and excellent corrosion protection.
Auto focus laser head: Raytools
Max Laser Source
Maxphotonics MSFC1000w-6000w
Machine bed:
Main body frame: The whole main body is made of the carbon structural steel with staggered honeycomb welding structure,which is machined roughly after stress annealing and then the vibration aging treatment is performed.The natural aging may completely eliminate the welding and machining stress. With good rigidity and high precision ,it may maintain normal use for 20 years without deformation.
| Product model | PS3015 |
|---|---|
| Working area | 3000*1500mm |
| Max Movement Speed | 130m/min |
| Max Acceleration | 1.0G |
| Positioning Accuracy | 0.05mm/m |
| Re-position Accuracy | 0.03mm/m |
| Dimensions | 8500*2750*2300mm |
| Maximum Loading Weight | 800KGS |
| Gross weight | 4.2T |
| 00 | 0200:57 |
| Fiber laser cutter power | 1000W, 1500W, 2000W, 3000W, 4000W, 6000w, |
| Fiber laser generator | MAX, JPT, RAYCUS, NIGHT, IPG etc. |
| Fiber laser cutter materials | Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials. |
| Auto focus laser head | Raytools |
| Main body frame | The whole main body is made of the carbon structural steel with staggered honeycomb welding structure,which is machined roughly after stress annealing and then the vibration aging treatment is performed.The natural aging may completely eliminate the welding and machining stress. With good rigidity and high precision ,it may maintain normal use for 20 years without deformation. |
| Power | 1000W |
The Fiber laser cutter PS3015 is available in power options ranging from 1000W to 6000W.
The PS3015 fiber laser cutter can cut various materials including iron, aluminum, carbon steel, stainless steel, copper, and other metal sheet materials.
The working area of the PS3015 fiber laser cutting machine is 3000mm x 1500mm.
The PS3015 has a maximum movement speed of 130m/min and a maximum acceleration of 1.0G.
The positioning accuracy of the PS3015 is 0.05mm/m, while the re-position accuracy is 0.03mm/m.
The full protection cover ensures that the cutting process is safer by reducing exposure to harmful laser emissions and preventing accidents.
The dimensions of the PS3015 laser cutter are 8500mm x 2750mm x 2300mm, and it has a gross weight of 4.2 tons.
The maximum loading weight for the PS3015 is 800KG.
The PS3015 can be equipped with fiber laser generators from brands like MAX, JPT, RAYCUS, NIGHT, and IPG.
The PS3015 is suited for various industries including kitchenware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air conditioning, elevators, and hotel metal supplies processing.
The PS3015 features an anti-burn board design, is made from carbon structural steel, and undergoes stress annealing and vibration aging treatment, enhancing its durability and precision.
The auto-focus laser head optimizes the cutting process by automatically adjusting focus, which reduces human intervention and improves cutting quality and efficiency.
The PS3015 has been manufactured by Tianchen laser, a top fiber laser machine cutting manufacturer in China, and is compliant with CE and other relevant certifications.
The laser source, such as the Maxphotonics MSFC, is designed for high reliability and long service life, ensuring consistent performance over time.
The honeycomb welding structure used in the main body frame of the PS3015 enhances rigidity and precision, allowing the machine to maintain normal use for up to 20 years without deformation.
