Packaging & Labelling Materials

E20 Portable Polyurethane Foam Machine 7kw 380V/220V High Safety

  • SKU: 1601821625526
  • Category: Packaging & Labelling Materials

The JHBW-E20 is an electric and pneumatic-driven polyurethane and polyurea spraying machine designed for insulation, waterproofing, anti-corrosion protection and protective coating applications. It features a fixed 1:1 material mixing ratio, adjustable heating temperatu...

Price per item

R158,451.20

Asset Finance Available

Explore funding with Afrimart's partners. Subject to provider approval.

Check Funding Options
SKU:
1601821625526
Payment security and privacy badges

Product Description

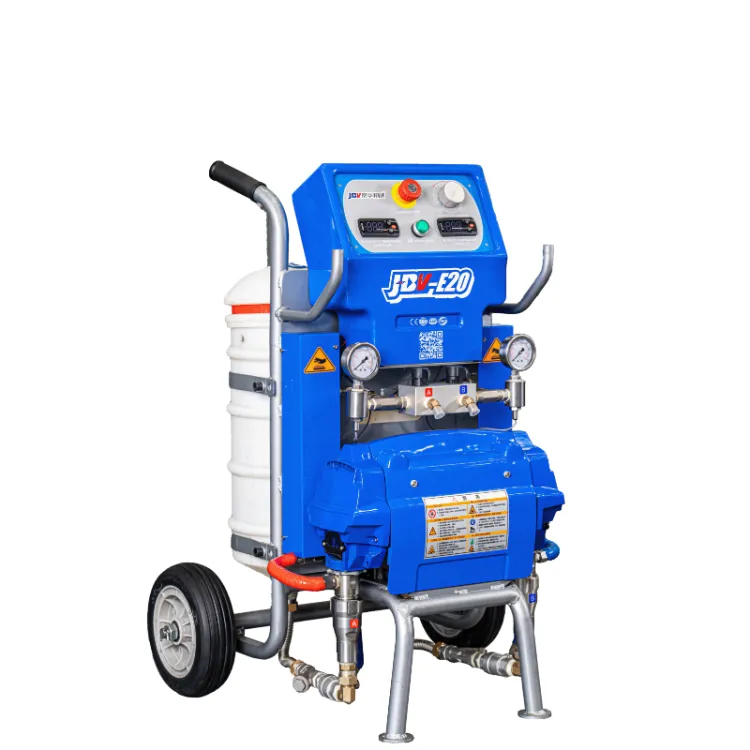

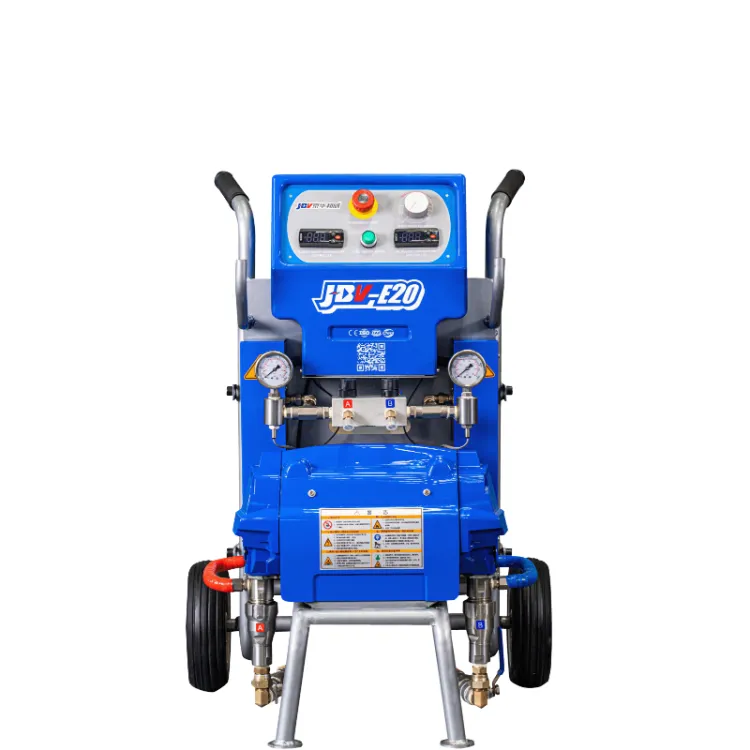

JHBW-E20 Polyurethane & Polyurea Spray Foam Machine

The JHBW-E20 is an electric and pneumatic-driven polyurethane and polyurea spraying machine designed for insulation, waterproofing, anti-corrosion protection and protective coating applications. It features a fixed 1:1 material mixing ratio, adjustable heating temperature and a high-pressure spraying system to ensure consistent material application.

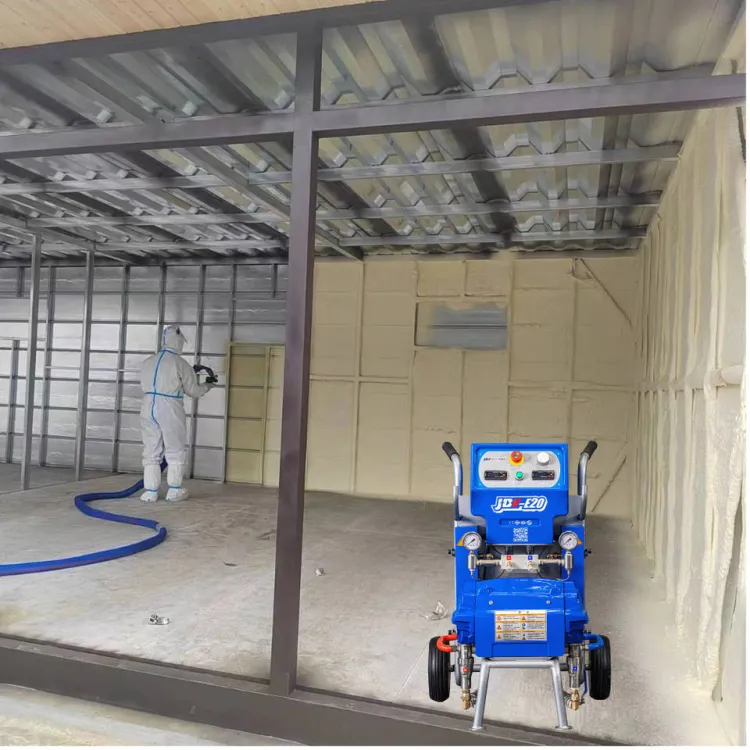

The machine is suitable for residential, commercial and industrial projects, including wall insulation, roof waterproofing, pipeline protection, steel structures and industrial tank coatings. Its mobile push-pull trolley design makes it convenient to transport and operate at different job sites.

Technical Specifications

SpecificationDetails
ModelJHBW-E20
Driving SystemElectric and pneumatic
Material Mixing Ratio1:1 (Fixed ratio)
Maximum Working Pressure15 MPa
Material Output Capacity2–6 kg/min
Total Power7 kW
Electrical Requirements220V / 380V (Customizable)
Pneumatic Pressure0.6–0.9 MPa
Air Consumption180 L/min
Heating Temperature Range0–80°C
Material Heating Power2,000 W × 2
Material Viscosity Range200–1,000 CPS
Maximum Heating Hose Length20 m (Optional)
Standard Heated Insulated Pipe10 m
Spray Gun Connecting Pipes1.5 m × 2
Machine Weight (Net)66 kg
Machine Dimensions (L × W × H)750 × 650 × 1,000 mm
Gross Weight120 kg
Packaging Dimensions (L × W × H)900 × 900 × 1,470 mm

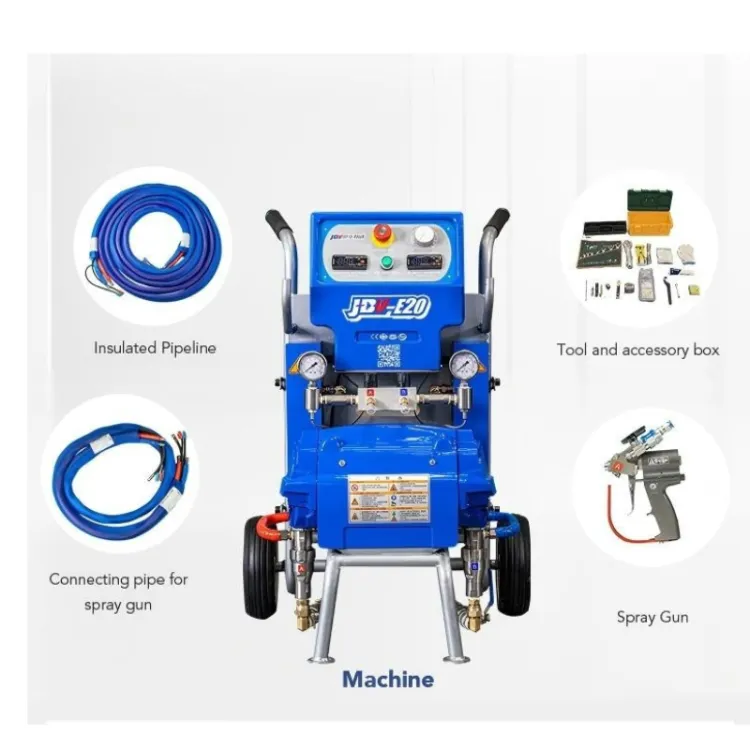

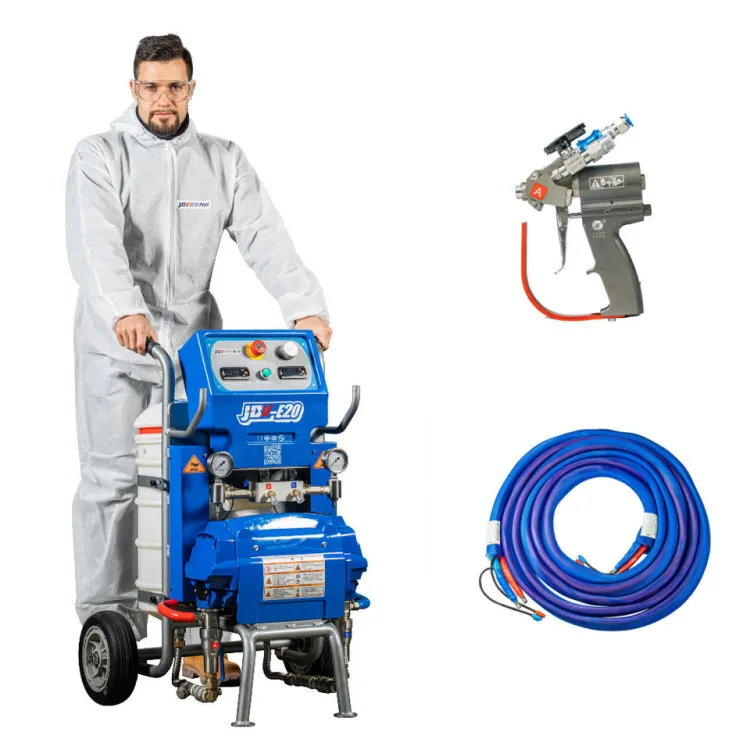

Standard Configuration

1 × Main machine

1 × Spray gun

1 × Set of random accessories

10 m insulated heating pipe

2 × 1.5 m spray gun connecting pipes

Key Features

Fixed 1:1 Mixing Ratio: Maintains consistent material proportions during spraying.

High-Pressure Performance: Maximum working pressure of 15 MPa for effective material application.

Integrated Heating System: Dual 2,000 W heating elements help maintain suitable material temperatures.

Adjustable Temperature: Heating temperature range of 0–80°C.

Portable Design: Push-pull trolley structure with wheels for easier movement between job sites.

Energy Efficiency: Designed for reduced energy consumption and improved operating efficiency.

Applications

Polyurethane foam insulation for residential and commercial buildings.

Roof and wall waterproofing.

Floor slab joint sealing.

HVAC insulation applications.

Pipeline and industrial tank anti-corrosion protection.

Steel structure insulation and protective coatings.

Truck floor and industrial equipment protective coatings.

Marine and shipbuilding waterproofing applications.

Note: The 20 m maximum heating hose is optional; the standard configuration includes a 10 m heated insulated pipe.

Applications
