DX-216 Drum Wood Chipper — image 1

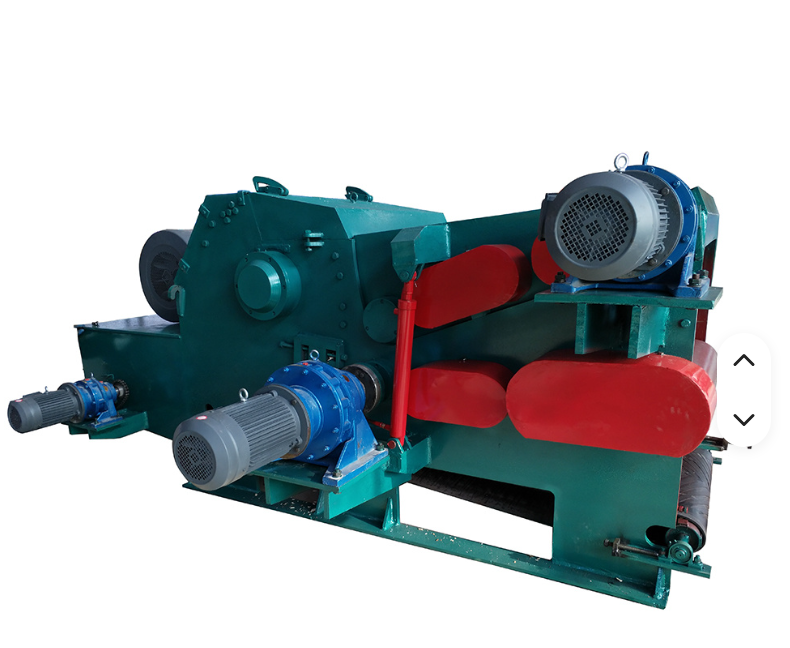

DX-216 Drum Wood Chipper
Woodworking Machinery

DX-216 Drum Wood Chipper

  • SKU: 1600060143959
  • Category: Woodworking Machinery

The DX-216 Drum Wood Chipper is a heavy-duty wood-processing machine for chipping logs, branches and wood waste. Its motor-driven drum cutting system features a 650 mm knife roll diameter and accommodates 3 blades. The 230 × 500 mm feed mouth accepts material up to the...

R363,700

Asset Finance Available

Explore funding with Afrimart's partners. Subject to provider approval.

Check Funding Options
Section:
Machinery
SKU:
1600060143959
Payment security and privacy badges

Product Description

The DX-216 Drum Wood Chipper is a heavy-duty wood-processing machine for chipping logs, branches and wood waste. Its motor-driven drum cutting system features a 650 mm knife roll diameter and accommodates 3 blades. The 230 × 500 mm feed mouth accepts material up to the specified maximum size of 200 mm, producing chips between 20 and 35 mm long.

Powered by a 55 kW main motor, the DX-216 offers a processing capacity of 6–8 tonnes per hour and a rotary speed of 590 RPM. Material handling is supported by a 3–4 kW feed conveyor, a 4 kW feed roller motor and a 2.2 kW discharging conveyor. Electric start provides straightforward machine start-up.

- Model: DX-216
- Motor-powered drum chipping system
- 6–8 t/h processing capacity
- 230 × 500 mm feed mouth
- Maximum material size of 200 mm
- Produces 20–35 mm chips
- Electric start

The machine measures 1980 × 1950 × 1250 mm and weighs 4,070 kg. It is supplied with a main motor, control cabinet, feeding conveyor and discharging conveyor, providing an integrated solution for wood chipping and material handling.

Key Specifications

ModelDX-216
Engine TypeMotor engine
Capacity6–8 t/h
Main Motor Power55 kW
Knife Roll Diameter650 mm
Feed Mouth Size230 × 500 mm
Maximum Material Size200 mm
Chip Length20–35 mm
Rotary Speed590 RPM
Number of Blades2–3
Weight4,070 kg
Dimensions1980 × 1950 × 1250 mm

Frequently Asked Questions

What is the power range of the Big Capacity Wood Hammer Mill?

The power range of the Big Capacity Wood Hammer Mill is between 3kw to 132kw, allowing you to choose a model that fits your specific needs.

What voltage options are available for this wood shredder?

The wood shredder can be customized for different voltages, with a standard option being 380V, 50HZ.

What is the weight of the Big Capacity Wood Hammer Mill?

The weight of the Big Capacity Wood Hammer Mill is 200 kg.

What are the core components of this product?

The core components of the Big Capacity Wood Hammer Mill include an engine and a motor.

Is there a warranty for the Big Capacity Wood Hammer Mill?

Yes, there is a 1-year warranty provided for the Big Capacity Wood Hammer Mill.

What are the dimensions of the machine?

The dimensions of the Big Capacity Wood Hammer Mill are 1550mm (length) x 920mm (width) x 1100mm (height).

What materials can this wood shredder handle?

This wood shredder is designed for crushing small diameter raw materials into powder size.

What makes this wood hammer mill efficient?

The Big Capacity Wood Hammer Mill features a superior design and high-quality materials that ensure exceptional performance and high efficiency.

Can I receive a machinery test report for this product?

Yes, a machinery test report is provided with the Big Capacity Wood Hammer Mill.

How long is the service life of this wood chip crusher?

The Big Capacity Wood Hammer Mill is built for a long service life, ensuring durability and reliability over time.

Is it possible to get a video of the outgoing inspection?

Yes, video outgoing inspection is provided for the Big Capacity Wood Hammer Mill.

What type of customer is this product suitable for?

This product is suitable for businesses and individuals needing to efficiently process wood materials for various applications.

What is the cost-effectiveness of this wood shredder?

The Big Capacity Wood Hammer Mill offers low operating costs while delivering top-level quality and performance.

Does this product require special maintenance?

Regular maintenance is recommended to ensure optimal performance, but the machine is designed for ease of use and durability.

Where is the Big Capacity Wood Hammer Mill manufactured?

The Big Capacity Wood Hammer Mill is manufactured by Ainuok, known for producing high-quality machinery.
