The Dust Collector is available in power ratings of 7.5kw and 5kw, with options for customization.
The Dust Collector features a filter efficiency of 99.99%, ensuring effective dust removal.
The Dust Collector is constructed from durable carbon steel and stainless steel, with customization options available.
Yes, it is suitable for both single-phase and three-phase power supplies, with voltage options of 380 V and 220–240 V.
The Dust Collector uses an advanced auto pulse jet cleaning system for continuous operation and maintenance.
The Dust Collector is capable of capturing particles as small as 0.1 microns.
It is ideal for industrial dust removal in gypsum tile manufacturing, powder engineering, and air purification in construction sites.
The Dust Collector has an air volume capacity ranging from 400 to 322,560 m3/h.
The number of filter units varies by model, ranging from 16 to 64 filter units.
The filtration area varies by model: M-16 has 21 m2, M-24 has 15 m2, M-36 has 24 m2, M-48 has 40 m2, M-56 has 50 m2, and M-64 has 64 m2.
The height of the filters for all models is 1.5 meters.
The wind capacity varies by model: M-16 supports 1000-1500 m3/h, M-24 supports 1500-2500 m3/h, and so on, up to M-64 which supports 5500-6500 m3/h.
Yes, the Dust Collector offers customizable installation options to suit your specific needs.

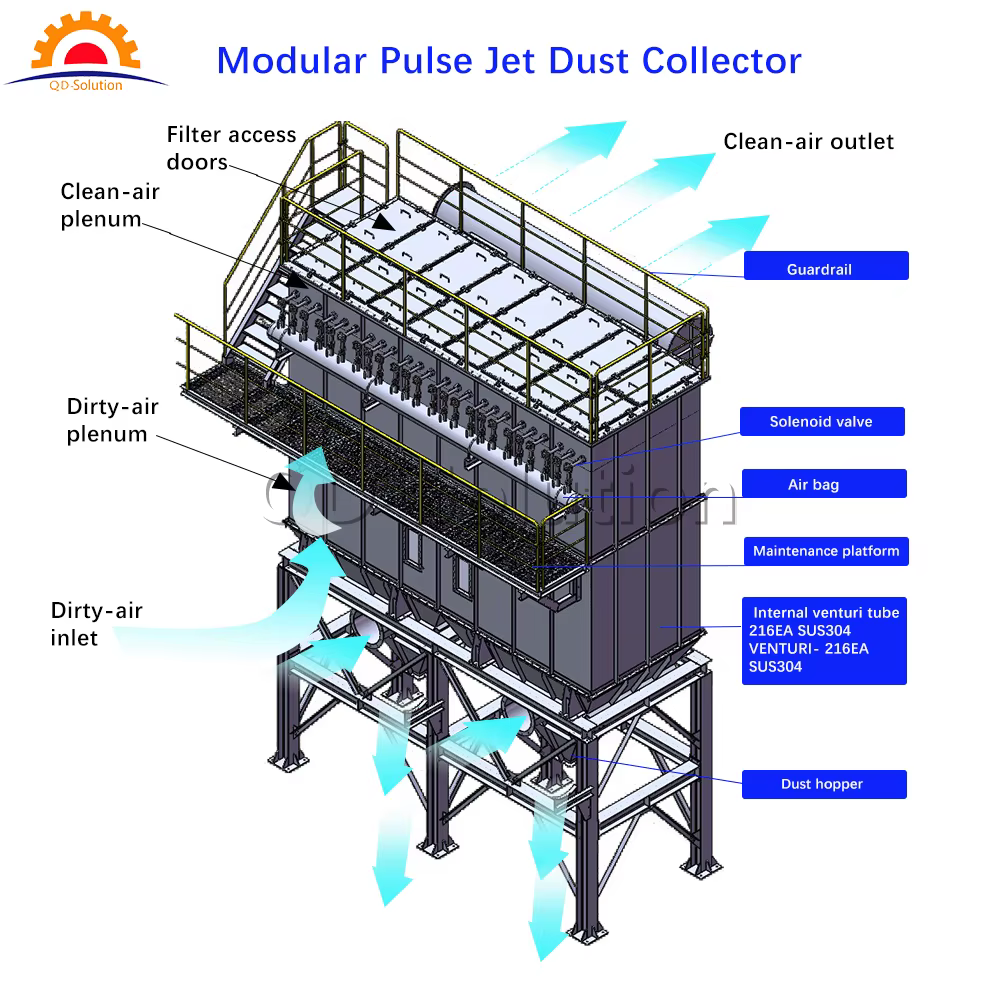

The pulse jet cleaning system uses bursts of compressed air to clean the filter bags, maintaining optimal performance without manual intervention.
Industries such as construction, manufacturing, and any facility that requires efficient dust control can benefit from this Dust Collector.
