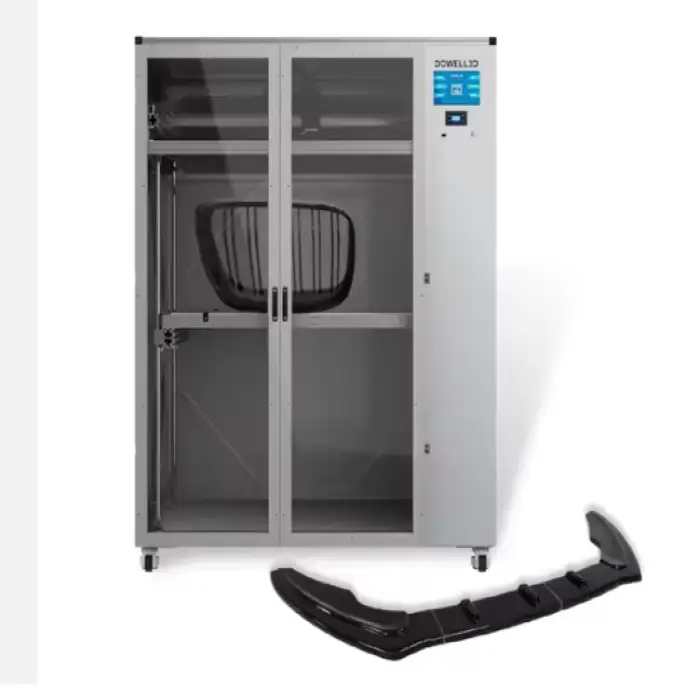

Dowell High Precision FDM 3D Printer

Dowell High Precision FDM 3D Printer

The Dowell High Precision FDM 3D Printer offers reliable and precise 3D printing with a large forming size of 800800800mm. This 3D printer is designed to deliver exceptional print quality while preventing issues such as clogging, ensuring smooth, uninterrupted printing. Whether you're working on prototypes, models, or custom designs, this 3D printer is a perfect fit for industrial and professional applications.

Key Features:

• Large Forming Size: With a printing size of 800800800mm, it is ideal for large projects or multi-part printing.
• High Precision Printing: Ensures high accuracy in every print, making it suitable for detailed models, prototypes, and complex designs.
• FDM Technology: Utilizes Fused Deposition Modeling (FDM), a reliable 3D printing technology known for its precision and ease of use.
• Wide Nozzle Size Range: The printer supports nozzle sizes from 0.4mm to 1.0mm, offering flexibility for different types of prints.
• Adjustable Nozzle Temperature: Capable of reaching temperatures from 0 to 420°C, making it compatible with a wide range of materials.
• Tempered Glass Plate: Features a 6mm tempered glass plate for better adhesion and smooth print results.
• Multicolor Printing: Supports multicolor printing, giving you the flexibility to create detailed models with various hues.
• High-Quality Print Speed: Print speeds ranging from 30 to 200mm/s allow for efficient yet high-quality results.
• Automatic Grade: The printer operates automatically, reducing the need for constant intervention during the printing process.
• Connectivity Options: Supports SD card and U disk connectivity for easy file transfer and printing.
• Compatibility with Multiple Software: Works with Cura slicing software, offering advanced settings for better control over your prints.
• Operating System Support: Compatible with Windows 7 and 10 for seamless integration into your existing workflow.
• File Format Support: Accepts G-code, STL, and OBJ file formats for easy integration with various 3D modeling programs.

The Dowell High Precision FDM 3D Printer is an excellent choice for anyone seeking precision and reliability in their 3D printing process. Whether for industrial applications, prototyping, or creative projects, this printer will deliver top-tier results every time.

Product Info Gallery:

Advantage of DM SERIES Large Industrial 3D Printer

Strong Frame Body

High-quality strong aluminum alloy as the main body, it has the advantages of high intensity, light weight, no rust, corrosion resistance, etc, 4 screw rollers stable for large 3d printing.

One key auto leveling help you easy operate

1. First, 4 corners auto-level independently.

2. Then 8*8=64 points on the whole bed automatic detection platform flatness. Through the independent 4 screw automatic adjustment to achieve the true automatic leveling.

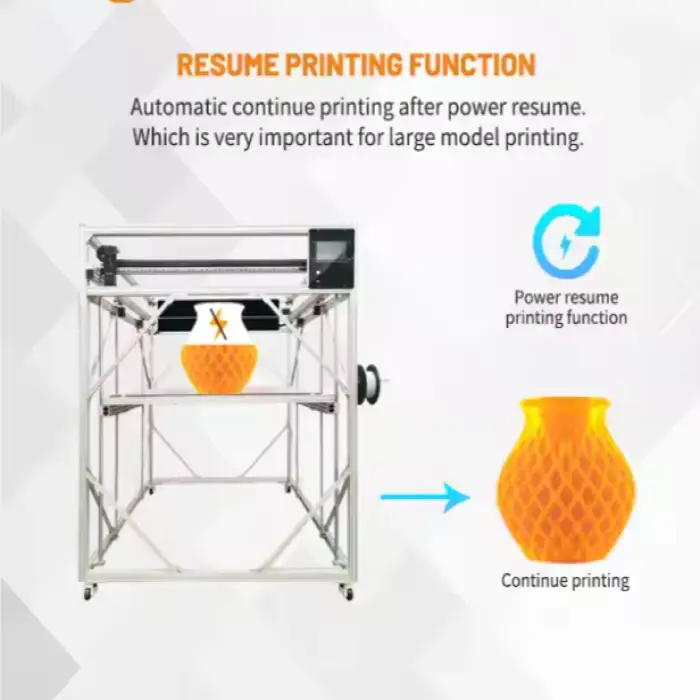

Auto resume printing from power off

The 3d printing machine will continue to complete the last printing work from the point of suspension after power resume.

Ball screw & liner guide rails

X axis and Y axis linear guides have high accuracy and long service life.

Z-axis ball screw converts rotary motion into linear motion, with high transmission accuracy and low friction resistance, ensuring the accuracy and stability of the machine.


6mm tempered glass platform

Whole bed heated by silicon rubber heater evenly, precise control temperature 0-100 degrees.

Super load capacity more than hundreds kilograms

Independently developed 420°c high temperature nozzle, most of commonly filament are printable.

Anti-collision nozzle protection, prevent the nozzle hitting the platform.

7 Inch Touch Screen

The operation interface is 7 inch full color with high sensitivity touch screen, support milti-laguage , shows real- time printing progress.

Silent drive & strong motor

At the same time with silent and efficient two advantages, effectively reduce work noise

Support Filament

Dowell3D independently developed 420° high temperature nozzle with constant temperature enclosure can print a variety of filament perfectly.

Customzaiton Options

In addition to the basic features, Dowell3d offer customized services helps your 3d printing work easier and add more enjoyment.

Wide Choice of Printing Size

Besides the standard sizes 42 models，you can also contact us to customize your preferred print size.
