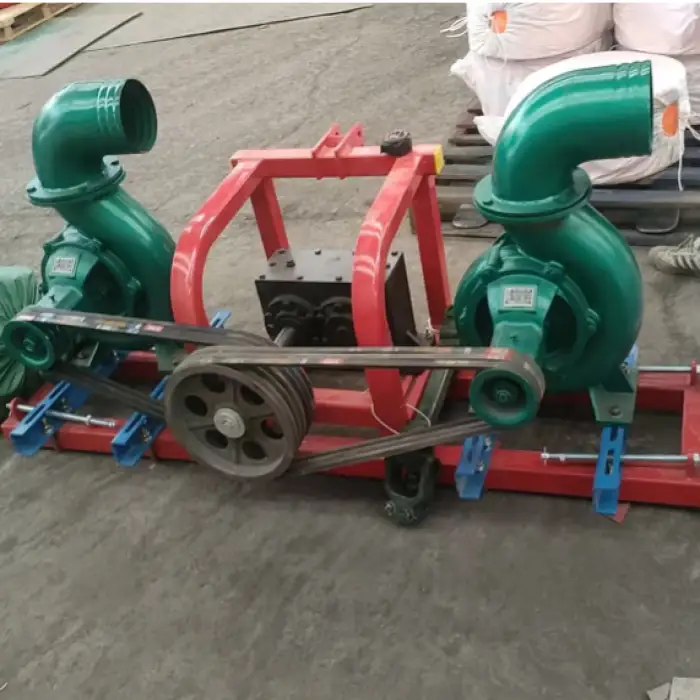

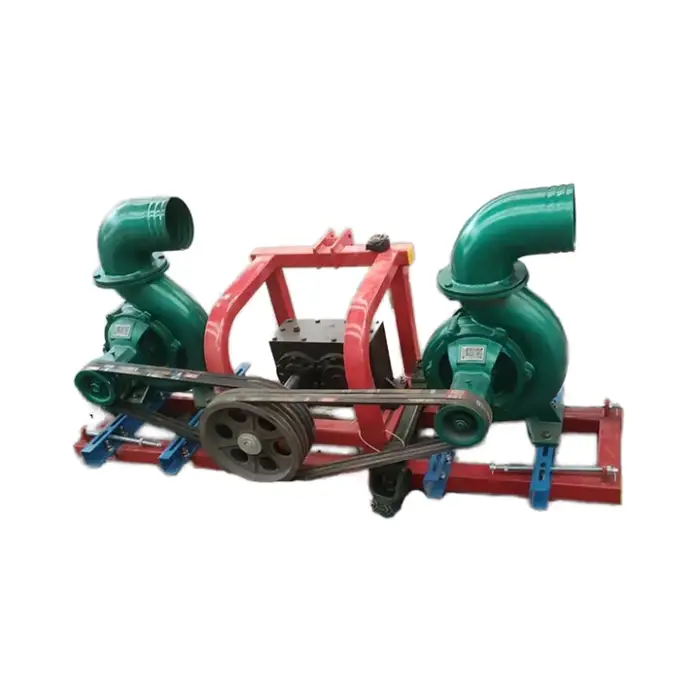

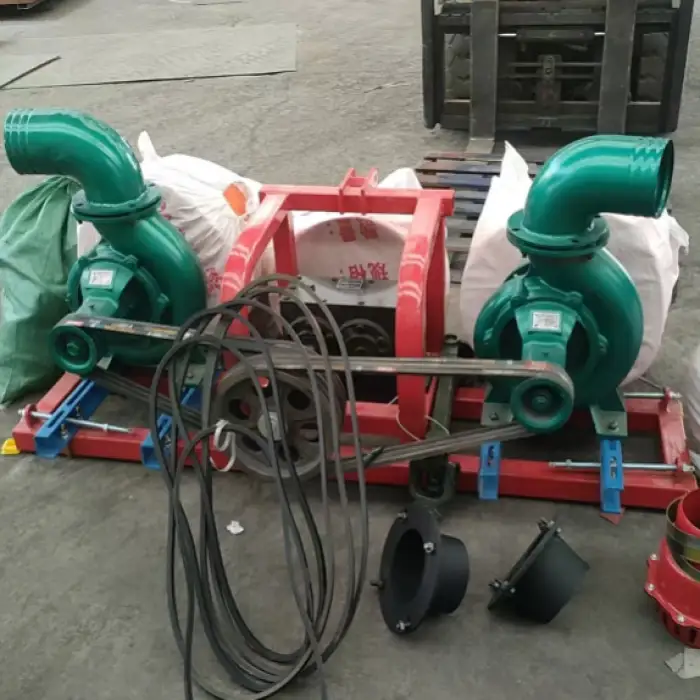

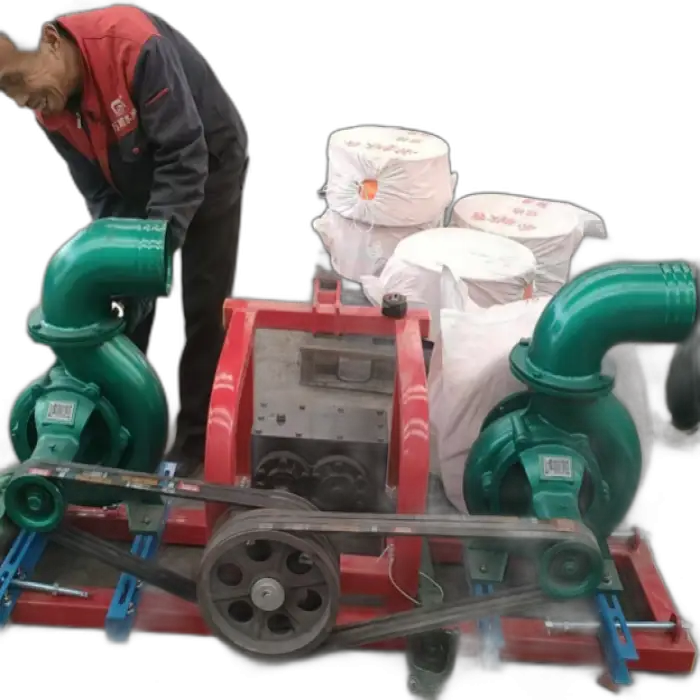

Double Position PTO Irrigation Pump

The Double Position PTO Irrigation Pump (20 Years Pump by WANLU) is a robust irrigation pump designed for agricultural use. It features a double-position configuration and is built for high-pressure, efficient water delivery to support crop irrigation and farm water supply.

Key specifications: outlet size 150 mm, maximum flow 100 m³/h, maximum head 120 m. Power is listed as 22 * 2 kW (two 22 kW units / 44 kW total). Structure: single-stage pump.

‘Double Position’ refers to the pump’s two-position/dual configuration—effectively providing two 22 kW power units in the assembly to increase capacity and flexibility. For exact mechanical interpretation and available configurations, confirm with the supplier or technical datasheet.

The pump is compatible with diesel engine drives and is described as a PTO irrigation pump. Models may be configured for tractor PTO drive or for an on-pump diesel engine—confirm the specific drive option when ordering.

Each 22 kW unit equals approximately 30 hp (1 kW ≈ 1.34 hp), so the combined rated power is about 44 kW (~60 hp). Allow for drivetrain losses and operating margin; consult your dealer or the pump manufacturer with your PTO speed and gearbox details to select a compatible tractor.

Yes. The pump is intended for agricultural irrigation, farm water supply, field irrigation, and rural water management as listed in the product applications.

The product is specified as a single-stage irrigation pump and does not explicitly state solids-handling capability. For water with high sediment or large solids, use appropriate inlet screens/filters or consult the manufacturer about a solids-capable model or protective accessories.

Packed in robust wooden packing. Single package size: 149 x 97 x 82 cm. Single gross weight: 300.000 KG (listed; confirm units with supplier—likely 300 kg).

Yes — the product description lists ISO9001 certification, indicating that the manufacturer follows a recognized quality management system.

The pump description notes customizable support for various irrigation needs. Common customizations may include different drive options (PTO or diesel), suction/ discharge fittings, control packages, and mounting arrangements. Contact the supplier to discuss specific customization requirements.

Typical steps: securely mount the pump and align the PTO or engine coupling; install appropriate suction piping with a foot valve/strainer; prime the pump before startup; ensure correct rotation and PTO speed; monitor pressure and flow during initial operation. Follow the manufacturer’s installation manual for torque, coupling, and safety details.

General maintenance includes checking and replacing seals and gaskets as needed, inspecting and lubricating bearings and couplings, monitoring impeller wear, checking drive belts or PTO shafts, and ensuring oil levels (if applicable). Follow the manufacturer’s maintenance schedule for recommended intervals and procedures.

Spare parts and after-sales service availability typically depend on the manufacturer or authorized distributors. Contact WANLU or your local dealer to confirm spare parts, service locations, and lead times.

Match the pump’s flow (100 m³/h) and head (120 m) to your irrigation requirements, taking into account pipe friction, elevation, and sprinkler or drip system demands. Verify outlet size (150 mm) compatibility with your fittings. If unsure, provide your field layout, required flow, and total head to the manufacturer or a pump specialist for sizing assistance.

Warranty and support details are not listed in the product description. For warranty terms, technical support, commissioning, and training options, contact the seller or WANLU directly before purchase.
