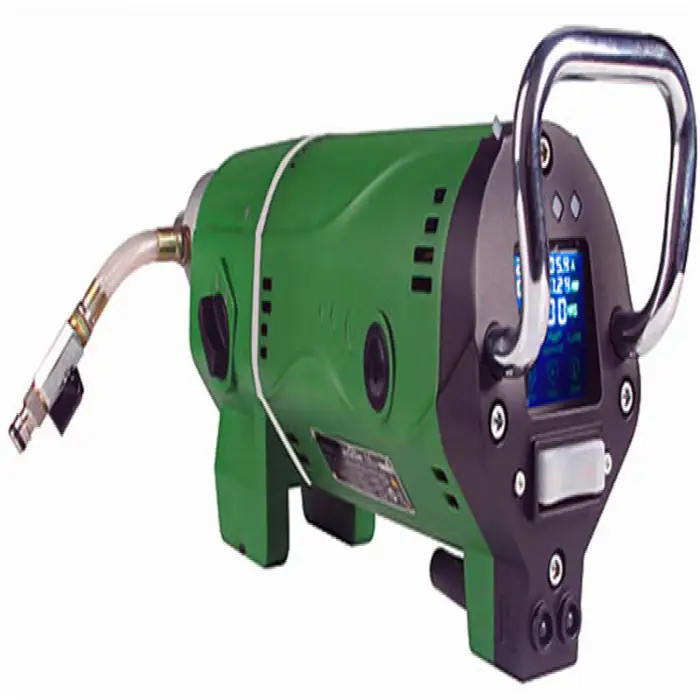

DMP-162D Core Drill Motor – Powerful, Versatile, and Safe Concrete Drilling

DMP-162D Core Drill Motor – Powerful, Versatile, and Safe Concrete Drilling

Maximize Your Drilling Efficiency with the DMP-162D Core Drill Motor
The DMP-162D Core Drill Motor is a high-performance solution for core drilling in concrete and brick. With its robust 2200W input power and advanced features, this drill motor ensures smooth, efficient operation while prioritizing safety. Whether you're working with concrete or brick, the DMP-162D is the tool you need for tough drilling jobs.

Key Features at a Glance

Powerful Performance:

• Input Power: 2200W
• Output Power: 1500W
• Voltage Options: 220V, 50Hz or 110V, 60Hz

Versatile Drilling Capacity:

• Max. Ø Concrete: 162mm
• Max. Ø Brick: 202mm
• Capable of handling a wide range of drilling tasks in both concrete and brick.

3-Speed Gear Regulation:

• Provides the flexibility to drill at different speeds for various core drilling diameters.
• The torque magnitude inversely correlates with the no-load speed, giving you control over each operation.

Electronic Smart Control for Motor Protection:

• Soft Start technology allows gradual ramping up to full speed for smoother operation.
• Built-in PRCD and overloading protection ensures the motor automatically stops if overloading occurs, safeguarding both the motor and the user.

Mechanical Slipping Clutch:

• In addition to electronic protection, the mechanical slipping clutch enhances safety by protecting the motor and operator in the event of a malfunction or overload.

Easy Maintenance:

• External Carbon Brushes can be easily replaced with just a coin, simplifying maintenance and reducing downtime.

Durable Construction:

• Magnesium Alloy Shell provides lightweight durability, allowing for extended usage without compromising on strength.
• New Material Armature features a larger conductive coil for increased durability and performance.

LED Indicator Light:

• Provides a visual warning for overloading or the need for carbon brush replacement, helping you maintain the tool in optimal condition.

Model Specifications

Why Choose the DMP-162D Core Drill Motor?

• Advanced Safety Features: Enjoy peace of mind with electronic smart control, mechanical slipping clutch, and soft start technology.
• Versatile and High-Performance: Tackle concrete and brick with a motor capable of handling up to 202mm diameter holes.
• User-Friendly Maintenance: Easily replace carbon brushes with a simple tool and avoid complex disassembly.
• Lightweight and Durable: Made with a magnesium alloy shell and a new material armature, the DMP-162D is built to last while staying lightweight for ease of use.

Applications

• Concrete Drilling: Ideal for core drilling in concrete for construction and renovation.
• Brick Drilling: Perfect for drilling into brick materials for various construction projects.
• Professional Use: Designed for both DIY and professional use, offering high power and efficiency for heavy-duty tasks.

Product Info Gallery

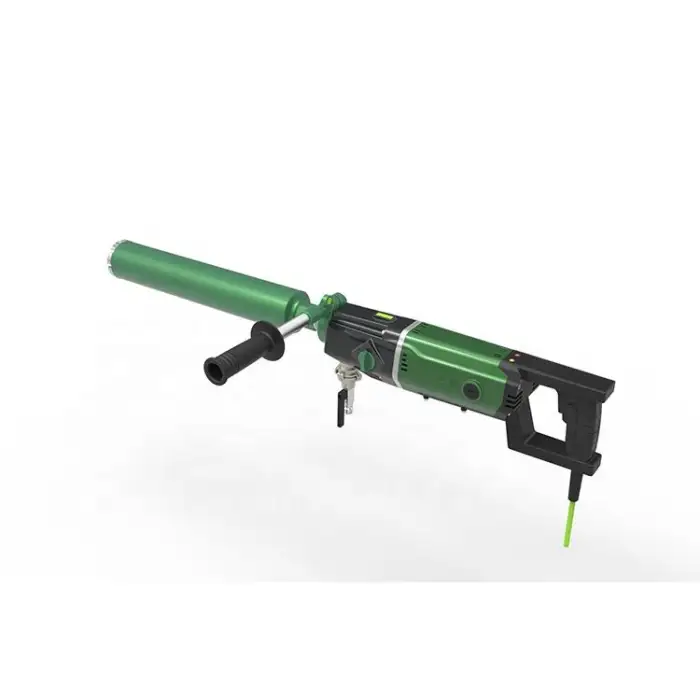

DMP-162D  202mm Max  Drilling Diameter with Stand Core drill motor

Specification:

Features:

1. 3-speed gear regulation: different operating speed for different core drilling diameter in concrete. The magnitude of torque has an inverse proportion of no loading speed.

2. Electronic smart control for motor: our motor is equipped with Soft Start, PRCD, Overloading protection. Soft start helps the motor start slowly and then reach to no load speed in a few seconds. Also, it has the function to make motor stop working if the currency overloading.
3. Mechanical slipping clutch equipped: as a pro concrete core drill motor, it is one of the irreplaceable parts in machines. Mechanical gives more safety to operators, if the electronic protector out off work, it will work for protection. Maximize motor safety.
4. External carbon brushes: say no to the complex replacement of carbon brushes. Our carbon brushes inserted in the shell even can use a coin to open its cover.
5. New material armature: a conductive coil, bigger than the common in the market.
6.LED indicator light: showing repair warning of overloading and carbon brush replacement.
7. Magnesium alloy for shell: for lightweight.
