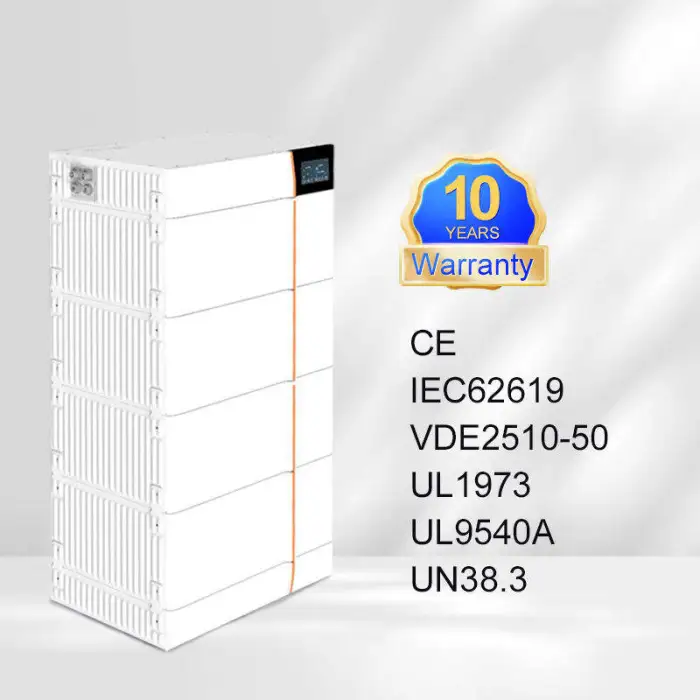

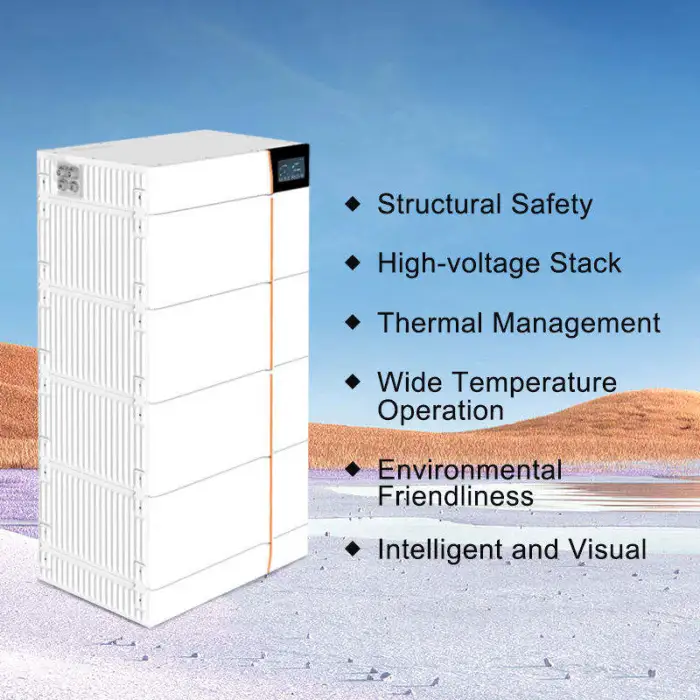

The Deye GB-L LiFePO4 Energy Storage System is a powerful and efficient solution for storing renewable energy. Featuring advanced LiFePO4 battery technology, this system offers reliable, long-lasting performance for solar energy storage and backup applications. With a robust design and multiple configuration options, it ensures high performance, safety, and flexibility.
The Deye GB-L LiFePO4 Energy Storage System is the perfect choice for anyone looking to store energy efficiently and reliably. Its advanced features, combined with exceptional safety and durability, make it an ideal solution for solar energy systems, backup power, and off-grid applications.
Specification
| Model | GB-L | ||||

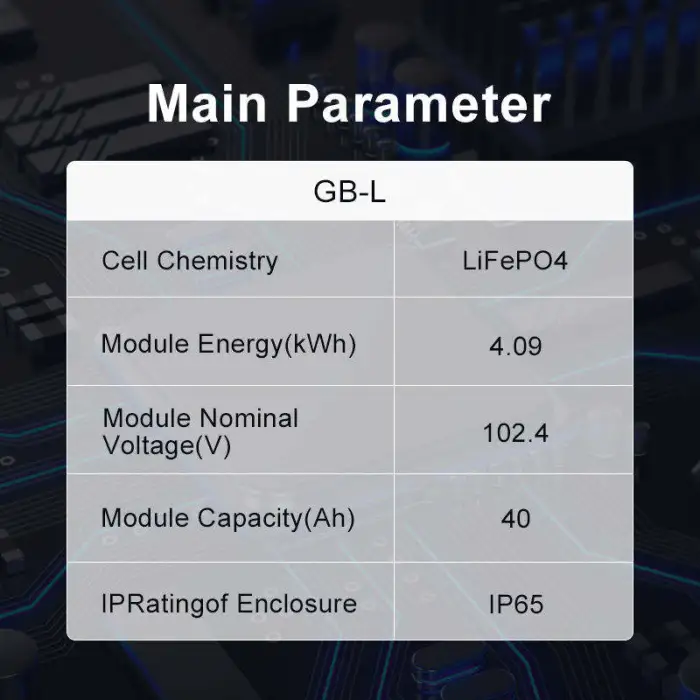

| Main Parameter | |||||
| Cell Chemistry | LiFePO4 | ||||

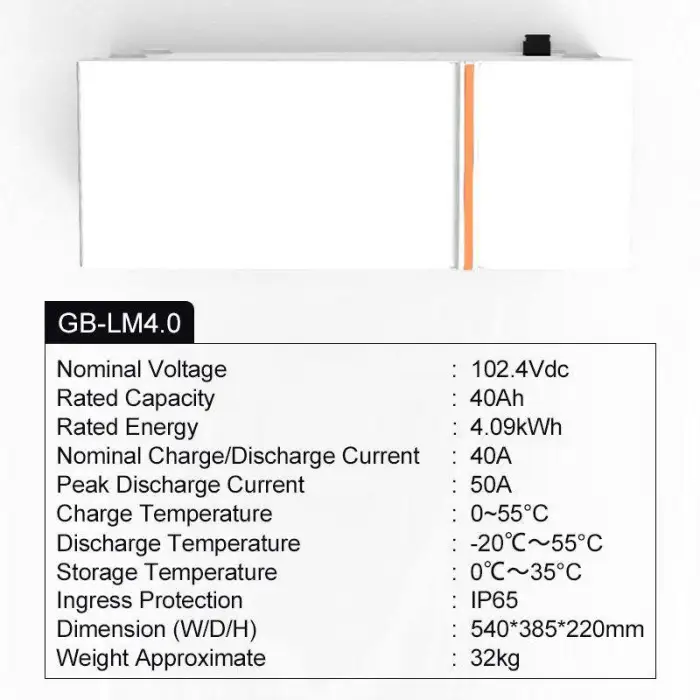

| Module Energy(kWh) | 4.09 | ||||
| Module Nominal Voltage(V) | 102.4 | ||||
| Module Capacity(Ah) | 40 | ||||
| Battery Module Qty in series.(Optional) | 2 | 3 | 4 | 5 | 6 |
| System Nominal Voltage (V) | 204.8 | 307.2 | 409.6 | 512 | 614.4 |
| System Operating Voltage(V) | 179.2~691.2 | ||||
| System Energy(kWh) | 8.18 | 12.27 | 16.36 | 20.45 | 24.56 |
| System Usable Energy (kWh) | 7.36 | 11.04 | 14.72 | 18.40 | 22.10 |
Charge/Discharge Current (A) | Recommend | 20 | |||
| Nominal | 40 | ||||
Peak Discharge (2 mins,25°C) | 50 | ||||
| Working Temperature(°C) | Charge: 0~55/Discharge:-20~55 | ||||
| LCDDisplay | SOC%,Power,Total Voltage | ||||
| Communication Port | CAN2.0/RS485 | ||||
| Humidity | 5%~90% | ||||
| Altitude | ≤2000m | ||||
| IPRating of Enclosure | IP65 | ||||
| Storage Temperature(°C) | 0~35 | ||||
| Dimension(W/D/H,mm) | 540*385*650 | 540*385*870 | 540*385*1090 | 540*385*1310 | 540*385*1530 |
| Weight Approximate(kg) | 76 | 108 | 140 | 172 | 204 |
| Installation Location | Floor Mount | ||||
| Recommend Depth of Discharge | 90% | ||||
| Cycle Life | 25±2°C, 0.5C/0.5C,EOL70%≥6000 | ||||
| Warranty | 10years | ||||
| Certification | CE/IEC62619 /VDE2510-50/ UL1973/UL9540A/UN38.3 | ||||
| High Capacity | Offers a system usable energy range from 7.36 kWh to 22.1 kWh, making it suitable for various residential and commercial applications. |
|---|---|
| Advanced LiFePO4 Technology | Uses LiFePO4 batteries, known for their superior safety, efficiency, and long cycle life. |
| Wide Voltage Range | Operating voltage between 179.2V and 691.2V, providing flexibility for different energy storage setups. |
| IP65 Enclosure | Designed with an IP65-rated enclosure, ensuring excellent protection against dust and water for safe outdoor and indoor installations. |
| Efficient Communication | Equipped with CAN2.0 and RS485 communication ports, allowing seamless integration with energy management systems and remote monitoring. |
| Nominal Voltage | The system operates at a nominal voltage of 102.4V, optimizing energy conversion and storage. |
| High Energy Density | With a module capacity of 40Ah and energy storage of 4.09 kWh per module, the system is capable of efficient energy storage for long-term use. |
| Voltage | 102.4V |
The Deye GB-L system offers a usable energy range from 7.36 kWh to 22.1 kWh, making it suitable for various residential and commercial applications.
The Deye GB-L Energy Storage System uses advanced LiFePO4 (Lithium Iron Phosphate) battery technology, which is known for superior safety, efficiency, and a long cycle life.
The system operates at a voltage range between 179.2V and 691.2V, providing flexibility for different energy storage setups.
Yes, the Deye GB-L features an IP65-rated enclosure, ensuring excellent protection against dust and water, making it safe for outdoor installations.
The system is equipped with CAN2.0 and RS485 communication ports, allowing for seamless integration with energy management systems and remote monitoring.
The system operates at a nominal voltage of 102.4V, optimizing energy conversion and storage.
Each module has a capacity of 40Ah and can store 4.09 kWh of energy.
The recommended depth of discharge for the Deye GB-L system is 90%.
The batteries have a cycle life of over 6000 cycles at 25±2°C, 0.5C charge/discharge rate, with an end of life (EOL) capacity of 70%.
The Deye GB-L Energy Storage System comes with a warranty of 10 years.
The Deye GB-L system is certified with CE, IEC62619, VDE2510-50, UL1973, UL9540A, and UN38.3.
The weight of the Deye GB-L system varies depending on the configuration, ranging from approximately 76 kg to 204 kg.
The working temperature for charging is 0 to 55°C, and for discharging, it is -20 to 55°C.
The Deye GB-L system is designed for floor mounting installation.
Yes, the Deye GB-L Energy Storage System is an ideal solution for off-grid applications, as well as solar energy systems and backup power.
