Detall ESD antistatic electrical lab work table

Product Description

Detall ESD antistatic electrical lab work table

Detall ESD antistatic electrical lab work tableProduct Introduction

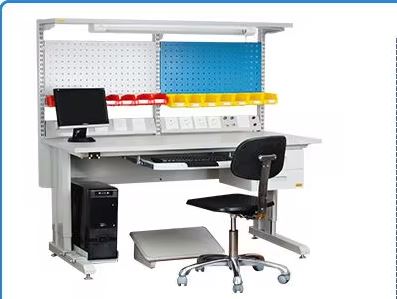

The towerline ESD workbench is a specific type of workbench which adopt the structure of table together with the double slotted Upright frame supporter . it is able to allow the work surface or the optional modular accessories to be mounted on either side of both the single sided and double sided station, and adjustable on workstation along column.

ESD Towerline workbench is suitable for electronics and semiconductor industries , military-industrial , aerospace sectors, contract manufacturers, research and educational organizations and telecommunication industries.

SPECIFICATIONS FOR Detall ESD antistatic electrical lab work table
Sizelengthmm1200/1530
Deepthmm600/750
Heightmm785mm (table top to ground)
760-1120 (adjustable type)
Main performance parametersESD performance parameters

ohm

(test input 100V, )

metal surface: 105 - 1010
Laminate surface: 106 - 1010
Static weight loadingKG300kg - light duty type
500kg - standard duty type
800kg - heavy duty type



Extensible structure

In order to increase the functions and storage space of the workbench, Detall design the workbench's system be divided into different structure, maximum the numbers and variety of functional accessories, the design maximum extends the functions of the workbench.
The workbench is divided into1. 2 or 3 column by the double slotted Upright frame supporter to add the max quantity of accessories on the columns.



High Standard of Detall ESD antistatic electrical lab work table - CE certificated
EN ISO 12100:2010Safety of machinery - general principles for design -  risk assessment and risk reducion
EN 60204-1:2006 +A1:2009 +AC:2010Safety of machinery - Electrical Equipment of machnies - part 1: Gerneral requirments
IEC 61340-5-1:2007Electrostatics - Part 5-1: Protection of electronic devices from electrostatic phenomena
Electrical Properties of Detall ESD antistatic electrical lab work table
TestRelative HumidityElectrical Results
Point to point resistance60%-40%106 to 1 x 107 ohms
40%-20%107 to 1 x 108 ohms
20%-10%108 to 1 x 1010 ohms
Point to earth resistance60%-40%106 to 1 x 107 ohms
40%-20%107 to 1 x 108 ohms
20%-10%108 to 1 x 1010 ohms
Volume Resistance60%-30%107 to 1 x 108 ohms
30%-10%108 to 1 x 1010 ohms
Static Decay50%0.01sec
10%0.02sec
1. Per EOS/ESD - S 4.1
2. Measured Face to Back at 72°F, 100 V with a LCD Megohmmeter, Item No. 19770,NFPA Electrodes (2.5 inch diameter, 5 pounds)
3. FTMS 101C, Method 4046
